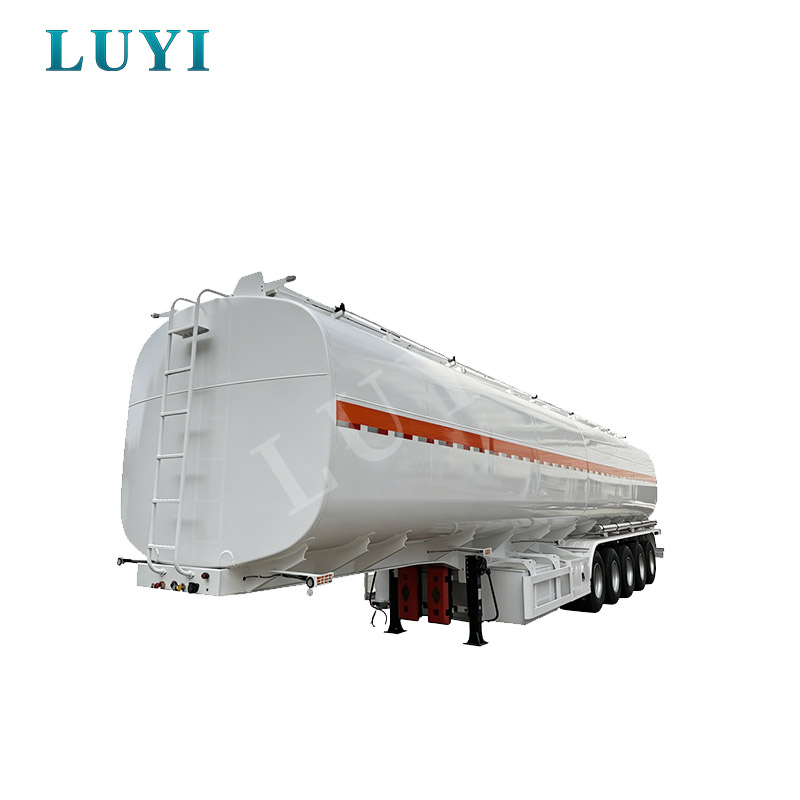

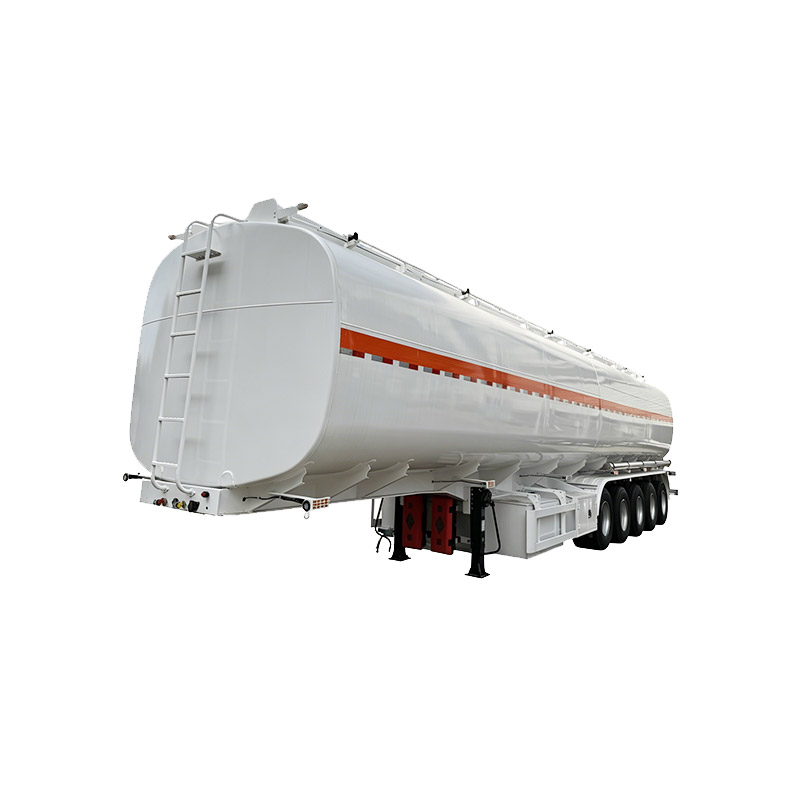

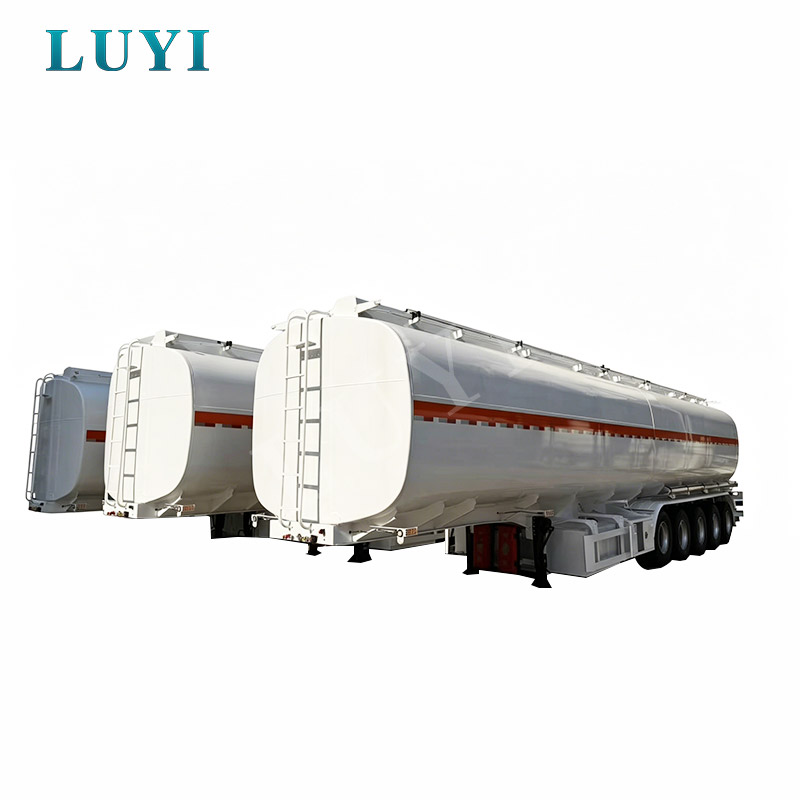

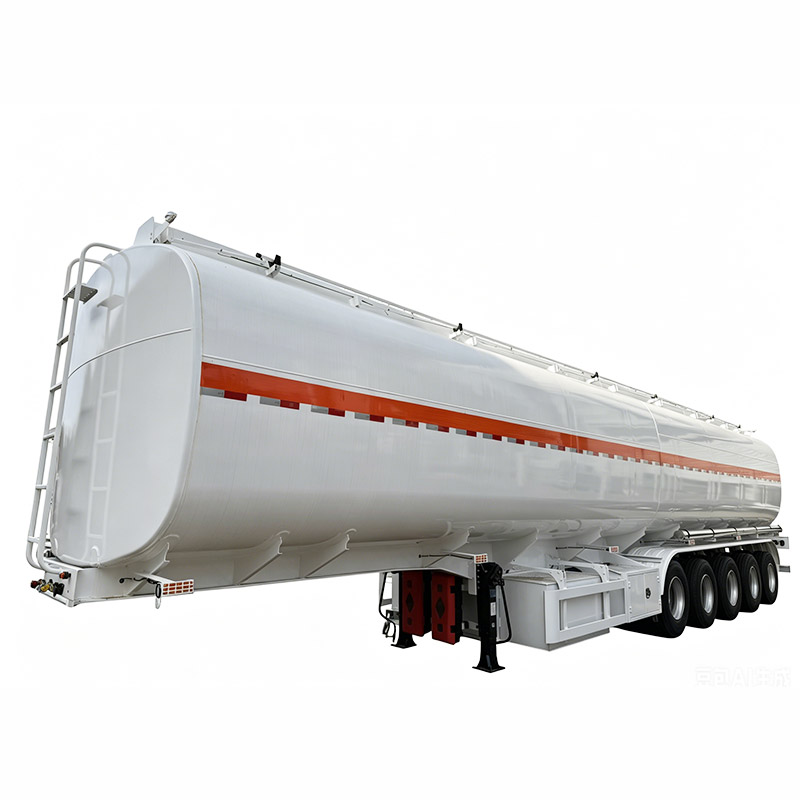

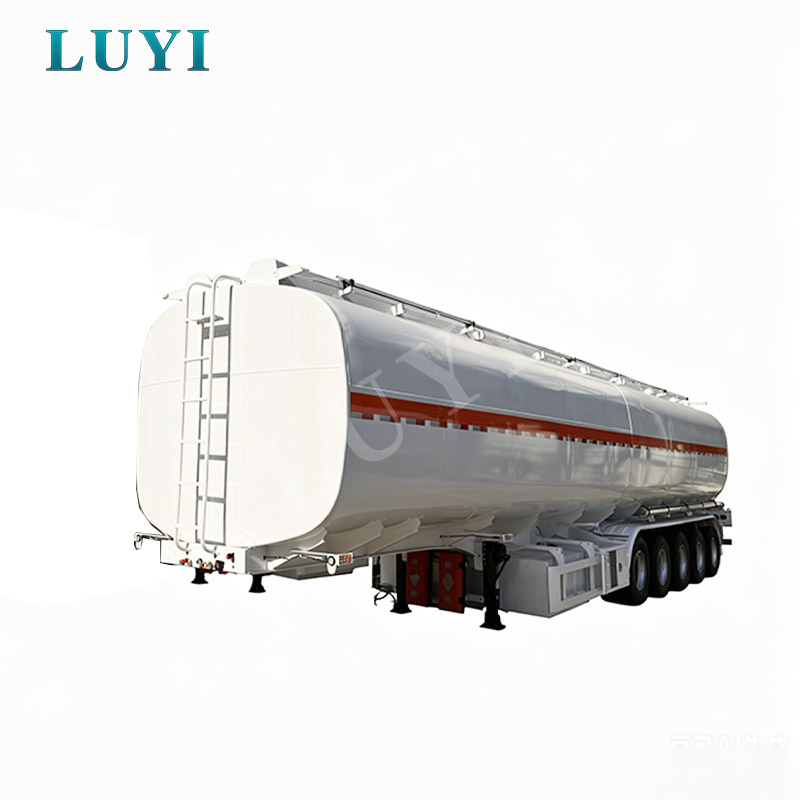

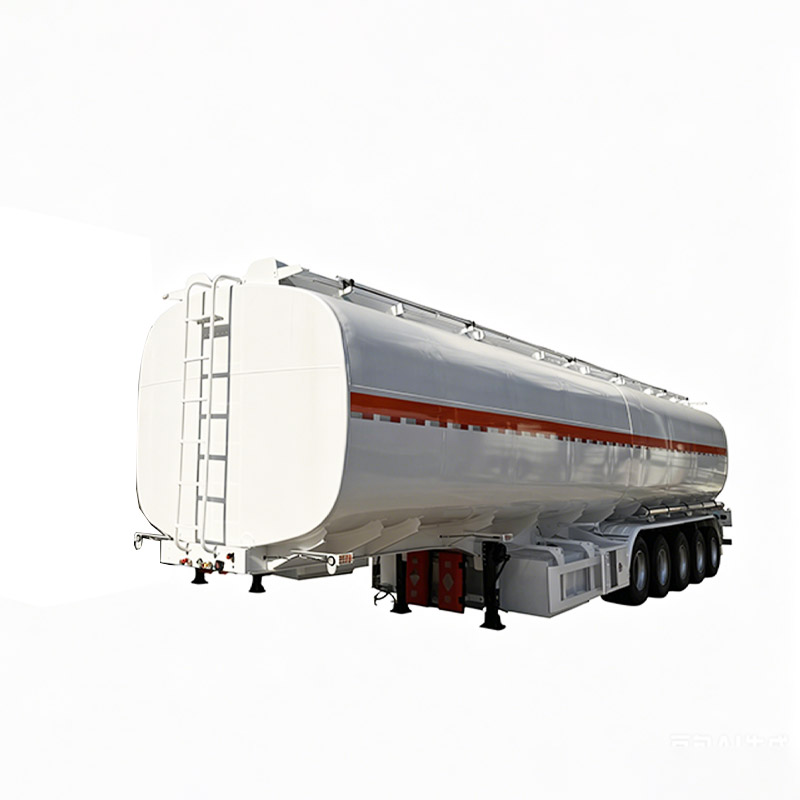

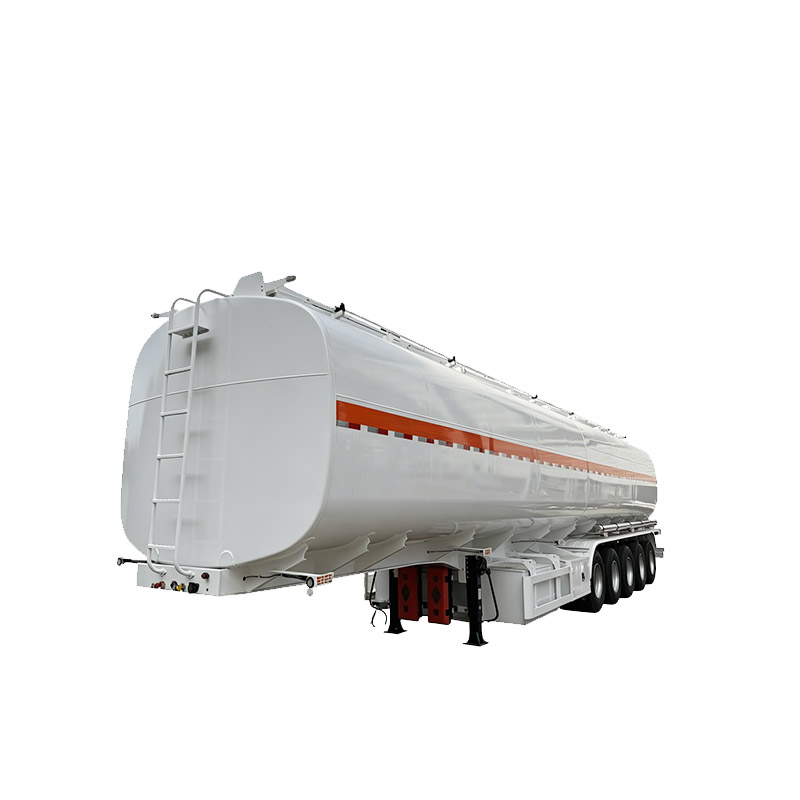

70,000L 5 Axle Carbon Steel Fuel Tanker Trailer for Bulk Petrol and Diesel Transport

Key Applications

The 70,000L five-axle fuel tanker trailer is a high-capacity transport unit intended primarily for bulk petrol, diesel and conventional fuel logistics. Unlike smaller tankers used for frequent urban deliveries, this configuration is better suited to operators that need to move a larger volume per trip between fuel terminals, storage depots, regional distribution facilities and large operating sites.

Typical applications include:

• Long-distance fuel transport between petroleum terminals and regional storage depots.
• Bulk diesel and petrol supply for large fuel distributors and commercial filling-station networks.
• Fuel delivery to mining areas, construction camps, power-generation projects and remote industrial sites.
• Fleet refueling support for heavy equipment, agricultural machinery and off-road operating vehicles.
• Emergency fuel reserve transport for infrastructure projects, backup power systems and disaster-response operations.

Buyers comparing different capacities can review Luyi Auto’s full range of fuel and liquid tanker semi-trailers. For examples of tanker configurations supplied for practical overseas transport projects, see the Energy & Chemical case studies.

Buyer fit note: A nominal tank volume of 70,000 liters does not automatically equal the legal payload. The actual permitted load depends on fuel density, trailer tare weight, tractor specification, axle-load limits, gross combination weight and the road regulations of the destination country. These factors should be confirmed before the final drawing is approved.

Technical Specifications

Dimensions, tank wall thickness, axle rating, tire specification, trailer tare weight and legal payload should be listed in the final technical drawing rather than estimated from the nominal volume alone.

Strengths and Characteristics

High Transport Volume Per Trip

The 70m³ tank is intended for operators whose routes and regulations permit high-volume fuel movement. Where the legal gross weight is suitable, a larger tank can reduce the number of trips required to move a given monthly fuel volume. However, the economic benefit should be calculated using actual route distance, fuel density, toll structure, return-load conditions and axle-load restrictions.

Three Independent Compartments

The three-compartment layout allows separate loading and discharge without direct mixing between compartments. This is useful when a fleet needs to deliver different fuel grades, divide a shipment between several unloading points or maintain better control over delivery quantities.

Five-Axle Load Distribution

A five-axle configuration distributes the trailer load across more axle positions than a standard three-axle tanker. This can support high-capacity transport projects, but it does not replace a legal axle-load calculation. The axle spacing, axle rating, tractor configuration and permitted gross weight must all be matched to the target market.

Liftable Front Axle

The first axle uses air suspension and can be configured as a lift axle. When the trailer is empty or operating within permitted axle-load conditions, lifting this axle may help reduce unnecessary tire wear and rolling resistance. The lift function must only be used when local regulations and the remaining axle loads allow it.

Carbon Steel Tank Construction

Carbon steel provides a practical balance of structural strength, manufacturing cost and repair accessibility for conventional petrol and diesel transport. It is not automatically suitable for corrosive chemicals, food-grade liquids or cargoes that can react with carbon steel. Cargo compatibility must be checked before production.

For fleets that require a smaller regional-delivery configuration, the 45,000L fuel tanker trailer may provide better maneuverability and route flexibility.

Advanced Safety Systems & Compliance

Fuel tanker safety depends on the complete vehicle configuration rather than one individual component. For the LY9400GPG model, the supplied specification includes separate compartment valves, sealed aluminum alloy manhole covers, a WABCO dual-circuit brake system and a complete 24V lighting and reflector package.

• Independent emergency bottom valves: Each compartment has its own emergency bottom valve to support controlled shutoff and reduce the risk of uncontrolled discharge.
• Separate discharge outlets: Individual aluminum alloy discharge valves allow each compartment to be unloaded independently.
• Dual-circuit braking: The WABCO dual-circuit air brake arrangement provides separate pneumatic circuits for heavy-vehicle braking operation.
• Visibility equipment: Turn signals, brake lamps, side marker lamps and reflectors improve trailer visibility during night driving and roadside operation.
• Side protection: Aluminum guardrails, mudguards and related protective components are included in the supplied accessory configuration.

Depending on the destination country and loading terminal, optional safety equipment may include ABS or EBS, API-compatible bottom loading, overfill sensors, vapor-recovery connections, electrostatic grounding equipment, fire-extinguisher brackets, additional reflective markings and destination-specific rear or side protection.

Where ADR, UNECE or another dangerous-goods transport regime applies, the required components, approval documents and inspection scope must be confirmed for the final trailer. CE documentation should not be treated as a substitute for local vehicle registration, axle-load approval or dangerous-goods transport authorization.

Our Craftsmanship & Quality Control

For a large fuel tanker, production control must focus on both the tank structure and the running system. Small deviations in welding, chassis alignment, valve installation or axle positioning can affect long-term reliability, tire wear, sealing performance and braking stability.

Luyi Auto’s pre-delivery inspection process for this model covers:

• Visual inspection of tank and chassis welds.
• Verification of main structural dimensions and assembly alignment.
• Inspection of the tank-supporting structure and load-bearing chassis areas.
• Functional checks of axles, suspension and the lift-axle mechanism.
• Testing of the dual-circuit braking system.
• Inspection of lamps, side markers, reflectors and the wiring harness.
• Checking of manhole covers, compartment valves and installed accessories.
• Review of surface preparation, paint finish and anti-rust protection.
• Verification that the toolbox, spare tire bracket, guardrails, mudguards and piping are complete.

Inspection results should be recorded before shipment so the delivered configuration can be checked against the approved technical agreement. Buyers can review Luyi Auto’s manufacturing facility and production capabilities before confirming a bulk order or arranging a factory inspection.

Optional Configurations & Customization

The purpose of customization is not simply to add equipment. Each option should solve a specific issue involving cargo compatibility, road conditions, unloading efficiency, local regulation or total operating cost.

• Tank volume and dimensions: Adjusted according to legal vehicle dimensions, fuel density, route limits and required delivery volume.
• Compartment quantity: Configured according to the number of fuel grades and delivery points.
• Tank material: Carbon steel, stainless steel or aluminum alloy can be evaluated according to cargo, tare-weight target and budget.
• Axle configuration: Axle number, rating, brand and spacing can be selected around local axle-load requirements.
• Suspension: Mechanical, air or combined suspension arrangements can be reviewed according to road quality and fleet maintenance capability.
• Lift axle: Available where the operating route and local regulations permit its use.
• Loading system: Top loading, bottom loading or terminal-compatible API arrangements can be discussed.
• Discharge system: Gravity discharge, pump-assisted discharge or project-specific piping can be evaluated.
• Safety package: ABS, EBS, vapor recovery, overfill protection, grounding equipment and additional emergency accessories can be specified.
• Landing gear and kingpin: Selected to match the tractor, coupling height and operational load.
• Tires and rims: Selected according to axle rating, road conditions and local replacement availability.
• Exterior configuration: Paint color, logo, warning labels, toolbox layout, spare tire carrier and guardrail arrangement can be customized.

Before issuing a final quotation, Luyi Auto should review the customer’s cargo type, liquid density, country of registration, road conditions, tractor specification, preferred loading method and legal axle-load limits. More information about customized manufacturing support is available on the Luyi Auto service page.

Packaging and Transportation

Before export, the trailer is treated with protective wax and marine-transport protection to reduce exposure to moisture and salt during shipping. Removable accessories and smaller components are packed separately in cartons or wooden cases and secured to prevent movement or loss.

Depending on the trailer dimensions, destination port and shipping schedule, available transport methods may include:

• Roll-on/roll-off shipping.
• Flat-rack shipment.
• Bulk or break-bulk vessel shipment.

A final inspection should be completed before loading. Buyers can request shipment photos, an accessory checklist and agreed export documents before vessel departure. Door-to-door transport coordination may also be arranged where the destination route and local delivery conditions permit.

Why Choose Luyi Auto

For a 70,000L fuel tanker project, the key purchasing issue is not whether a factory can build a large tank. The more important question is whether the manufacturer can match the tank volume, axle layout, suspension, valves, braking system and export documentation to the buyer’s actual operating environment.

Luyi Auto supports buyers through:

• Configuration review based on cargo, route, local axle limits and tractor specification.
• Custom compartment, axle, suspension, loading and discharge arrangements.
• Pre-delivery checks covering the structure, running system, brakes, electrical equipment and accessories.
• Export preparation for RO-RO, flat-rack and bulk-vessel shipment.
• Technical communication for replacement parts and after-sales requirements.
• Support for single-unit procurement, fleet orders and project-based customization.

Buyers evaluating supplier experience can review Luyi Auto’s Nigeria diesel tanker project and other tanker delivery examples before requesting a technical proposal.

FAQ

1. Is a 70,000L five-axle tanker suitable for frequent short-distance fuel delivery?

It is generally better suited to high-volume regional or long-distance bulk transport. For frequent deliveries to small stations, narrow roads or congested urban locations, a smaller tanker may offer better maneuverability and lower operating cost.

2. What liquids can this carbon steel tanker transport?

The standard configuration is intended for conventional fuels such as petrol and diesel that are compatible with carbon steel. It should not be used for highly corrosive chemicals, food-grade liquids or unfamiliar industrial fluids without a formal material-compatibility review.

3. Can the trailer be customized for local road and dangerous-goods regulations?

Yes. Axle layout, overall dimensions, brake equipment, lighting, reflective markings, loading components and safety accessories can be reviewed around the destination market. The buyer should provide local gross-weight limits, axle-load rules, registration requirements and applicable dangerous-goods standards before production.

4. How should I choose the correct axle and suspension configuration?

The decision should be based on legal gross weight, fuel density, trailer tare weight, route quality, tractor specification, expected empty-return mileage and local spare-parts availability. A five-axle layout should not be selected solely because it appears to offer a higher capacity.

5. What loading and unloading systems are available?

The supplied specification includes top access through aluminum alloy manhole covers and separate discharge valves for each compartment. Bottom loading, API-compatible connections, vapor recovery, overfill protection and pump-assisted discharge can be evaluated as optional configurations.

6. What information is required for a quotation, and what is the expected lead time?

Please provide the destination country, cargo type, liquid density, required tank volume, number of compartments, legal axle limits, tractor model, road conditions and preferred loading and unloading method. The stated production lead time is typically 15–30 working days after deposit, although the final schedule depends on drawing approval, component availability and order quantity. The six-year warranty scope, spare-parts support and shipping terms should be defined in the sales contract.
