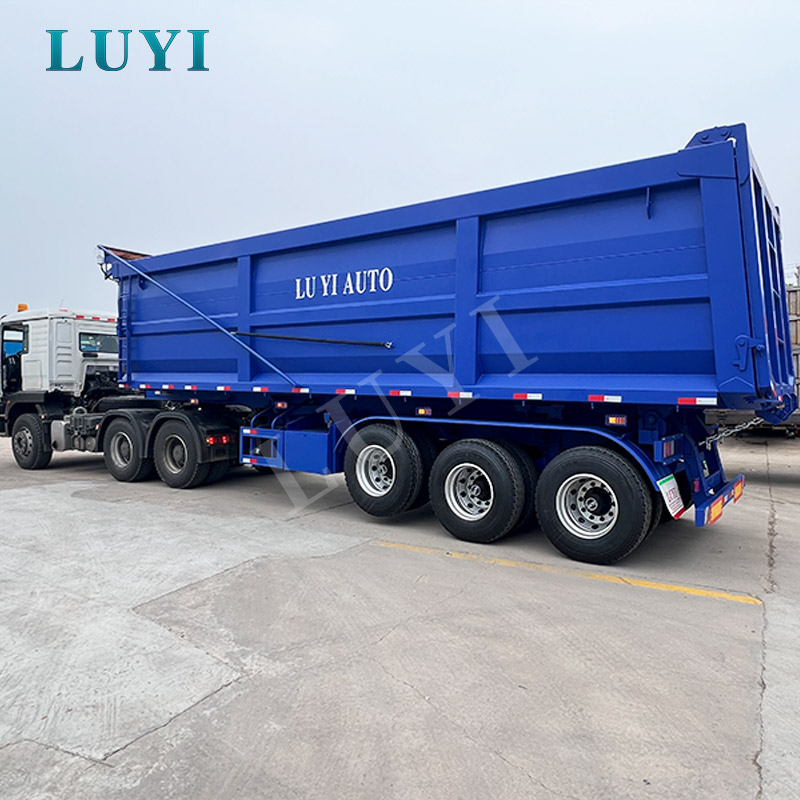

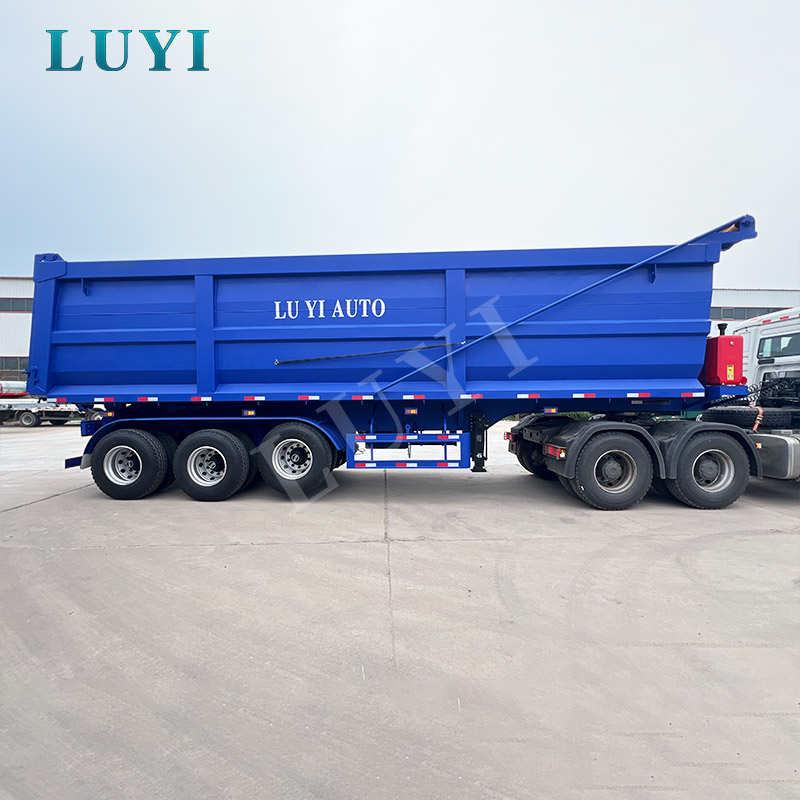

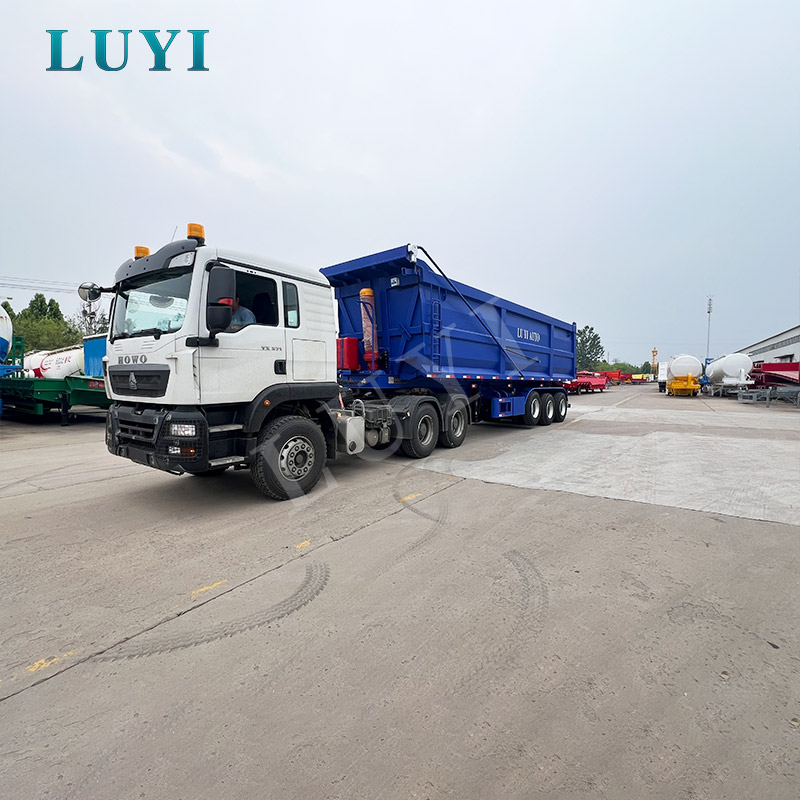

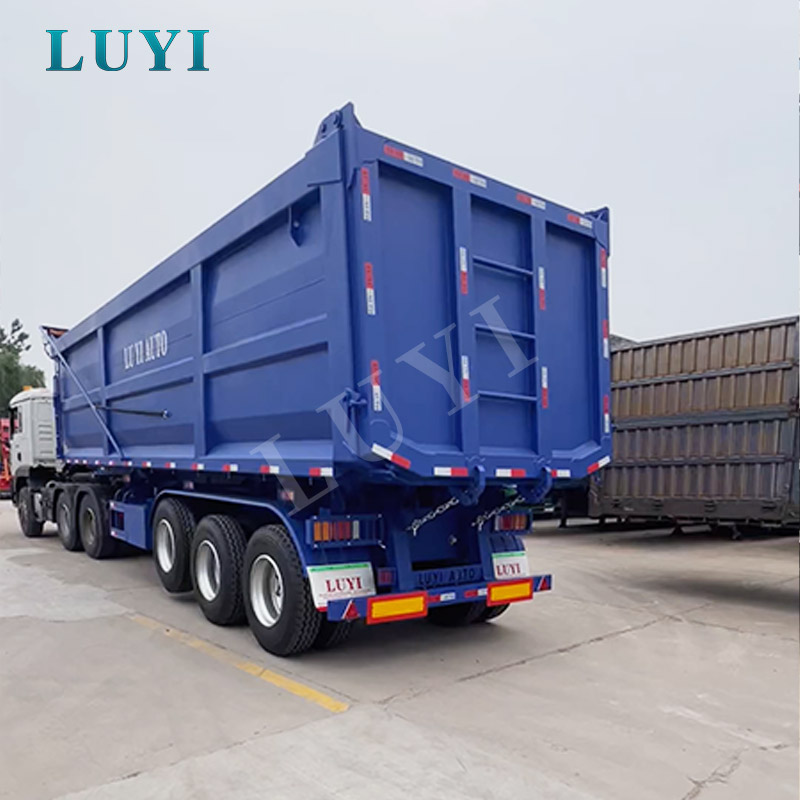

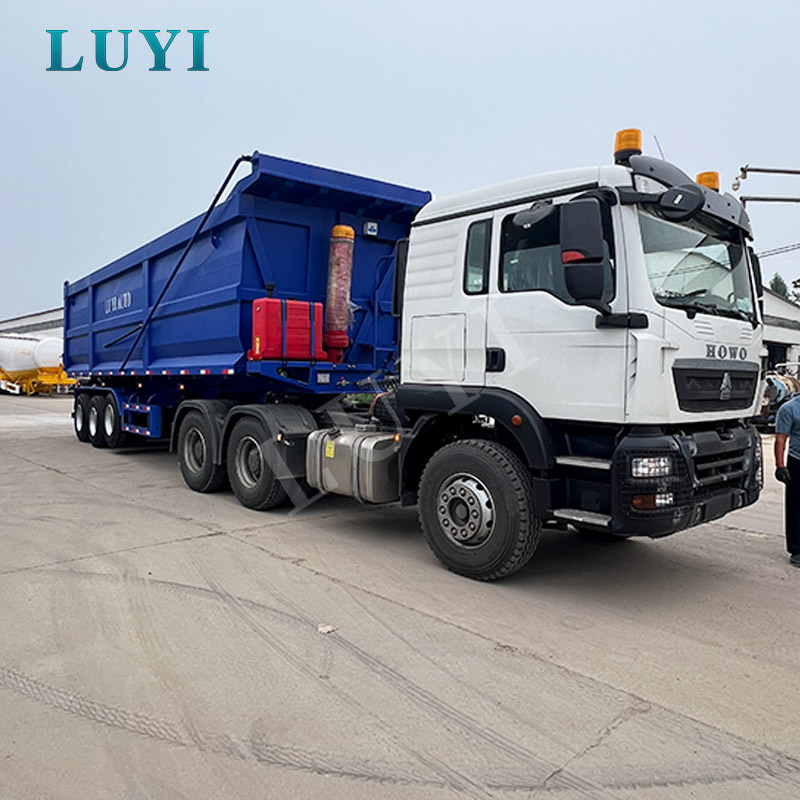

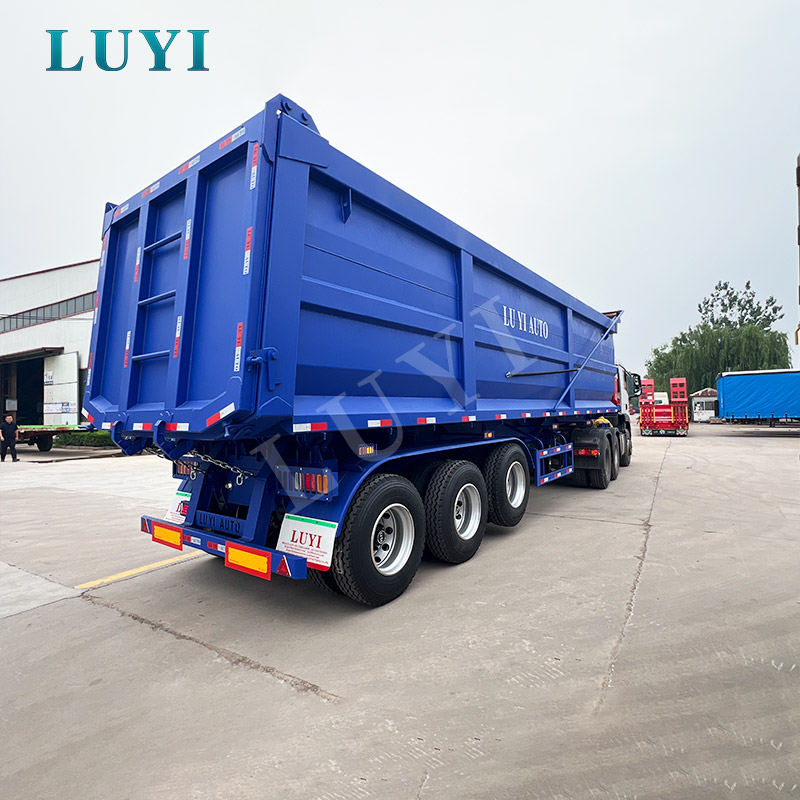

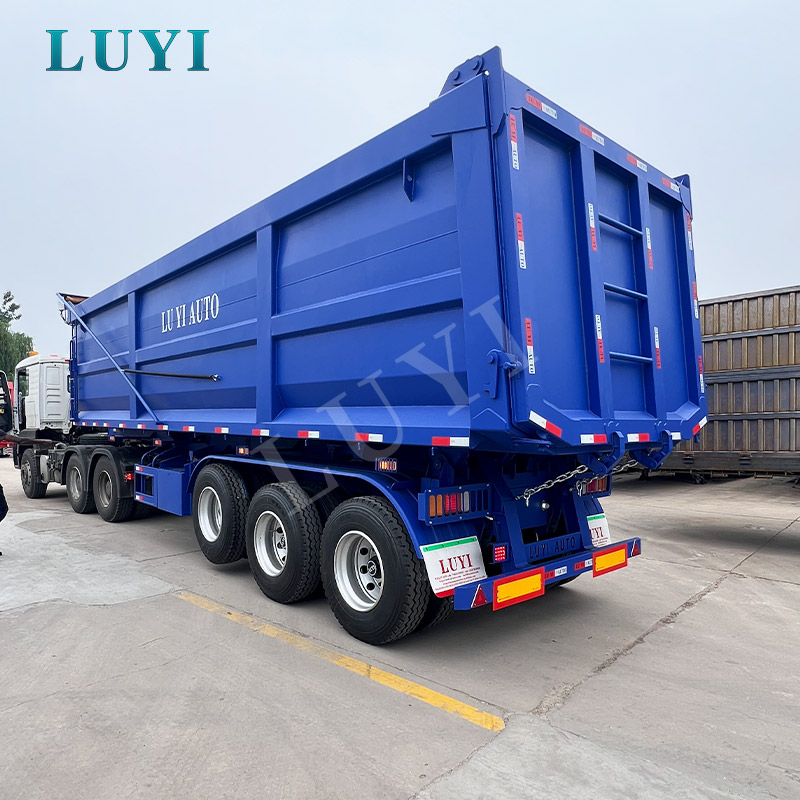

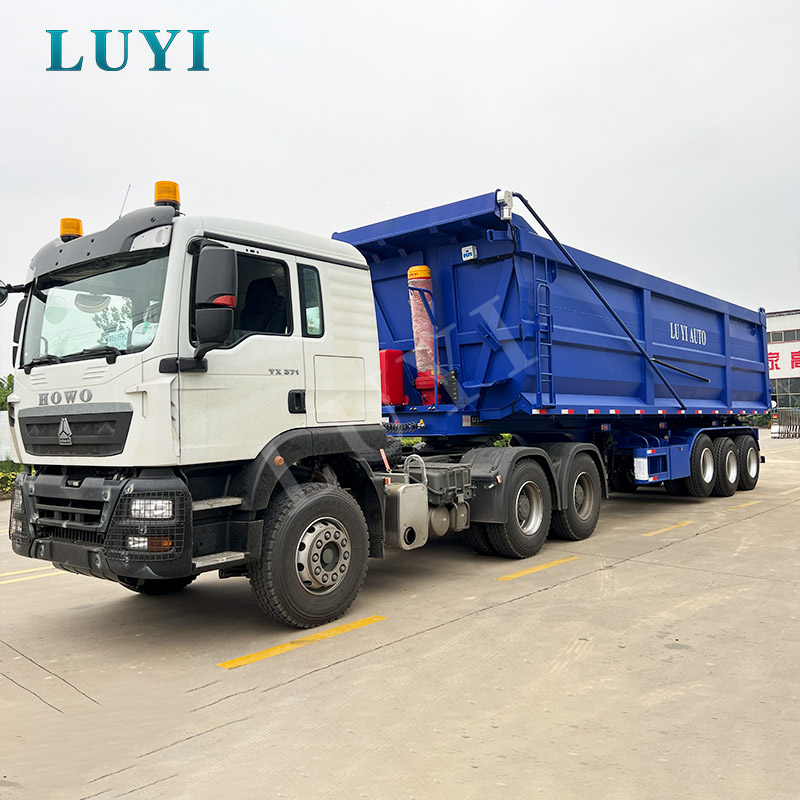

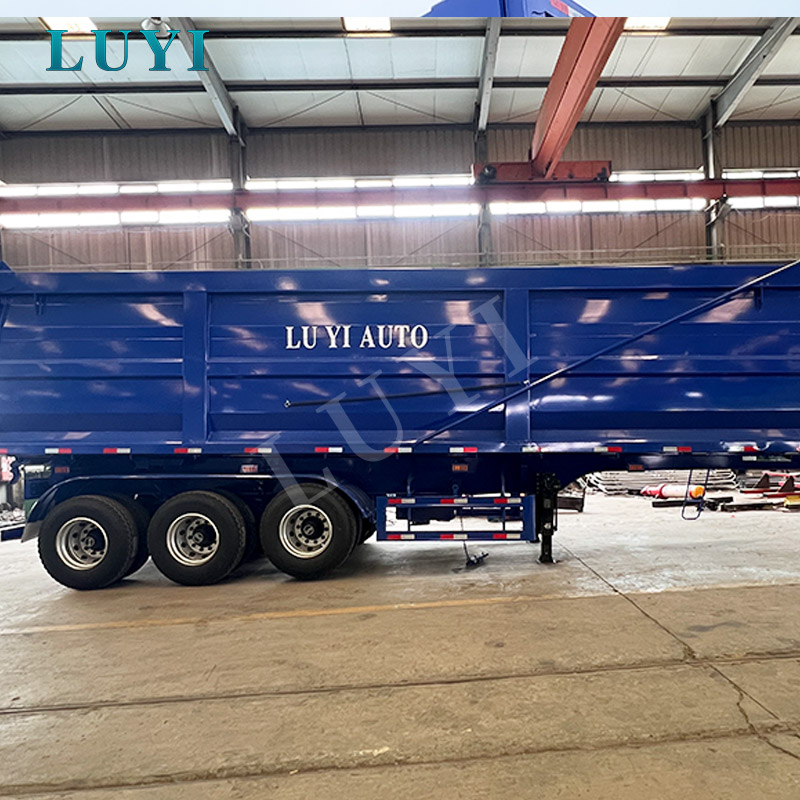

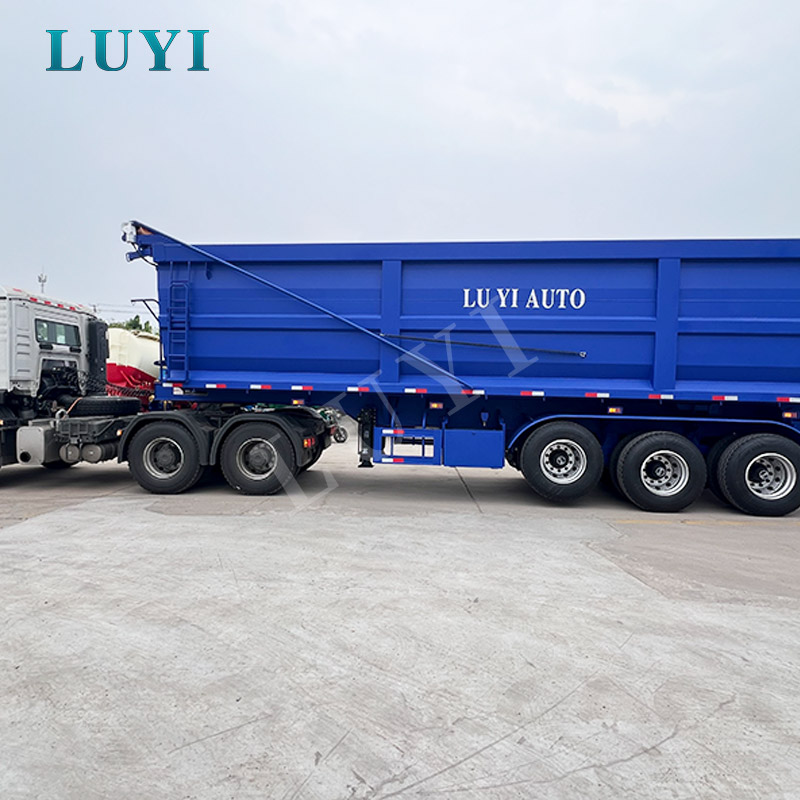

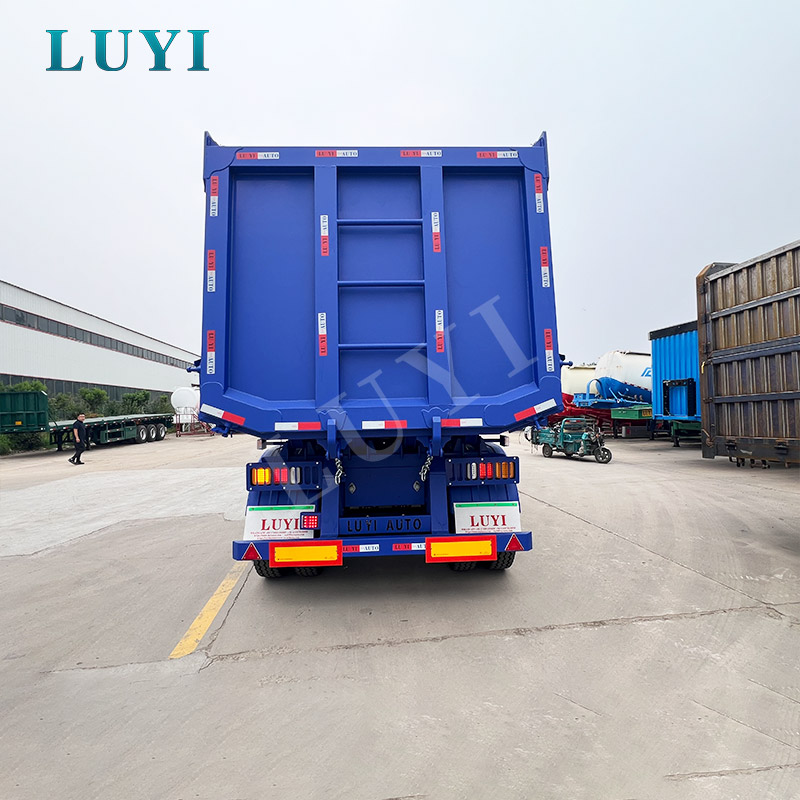

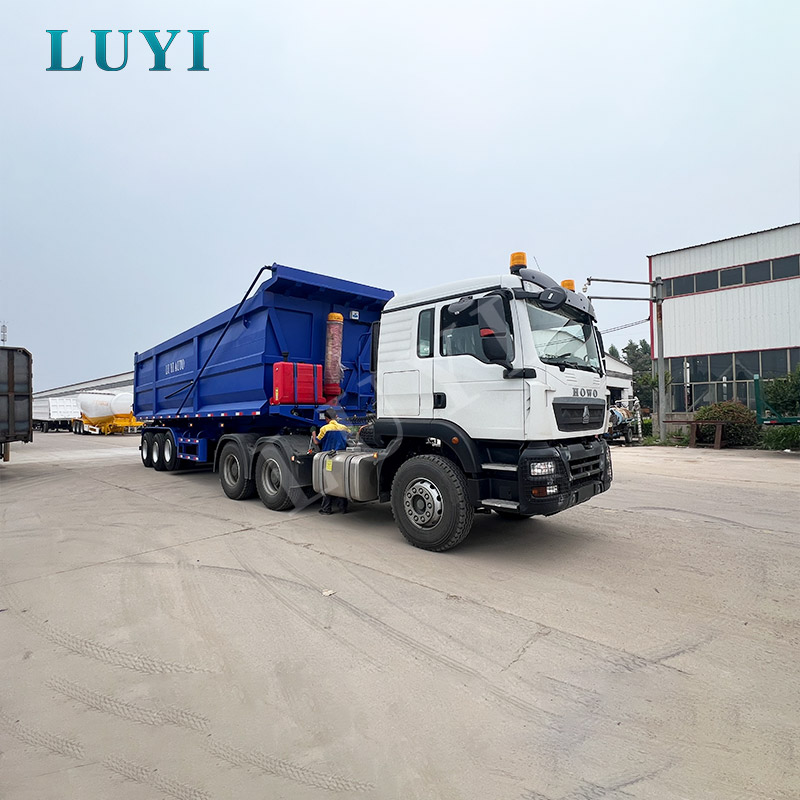

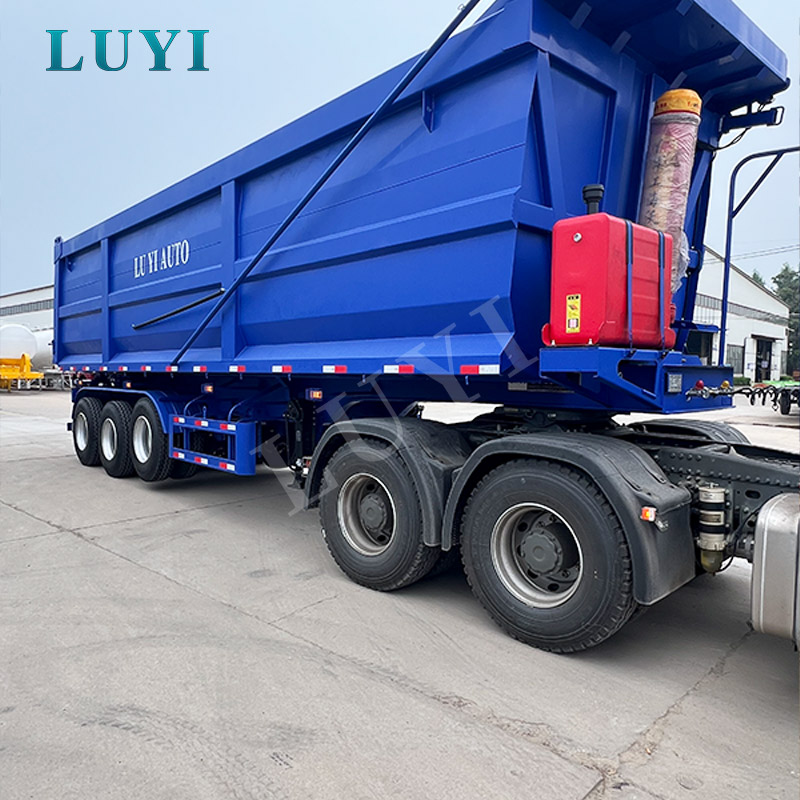

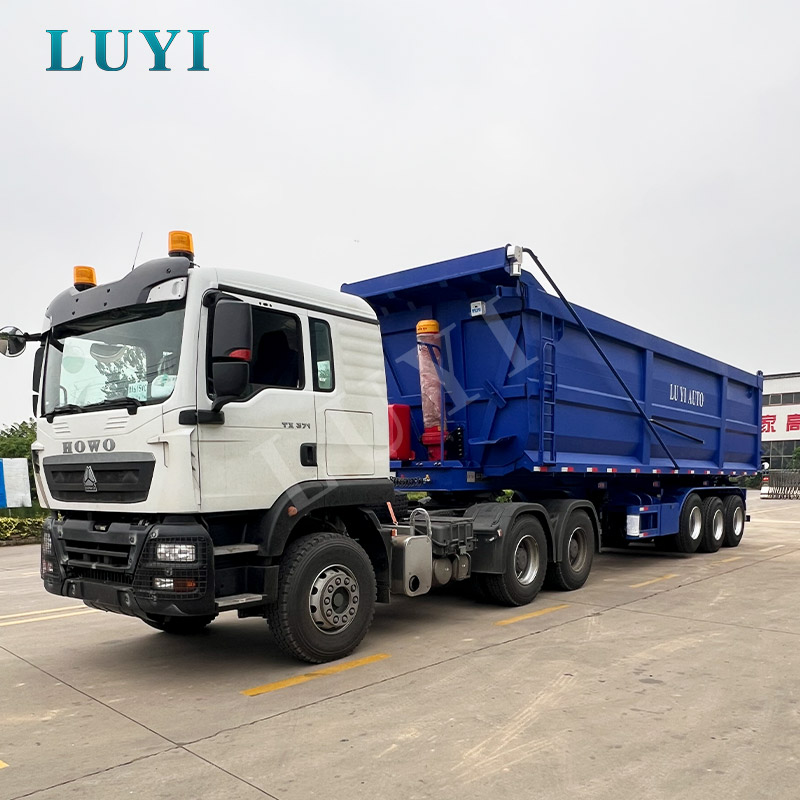

3 Axle U Type Rear Tipper Trailer for Mining and Construction Bulk Cargo

Key Applications

The 3 Axle U Type Rear Tipper Trailer is intended for bulk transport operations where loading cycles are frequent, unloading time affects daily productivity and material residue inside the cargo body creates additional cleaning work. It is commonly selected by mining contractors, construction material suppliers, infrastructure companies, port operators, agricultural transport businesses and regional bulk-haul fleets.

Typical cargo includes sand, gravel, crushed stone, coal, ore, soil, slag, road-base material, demolition waste and selected agricultural bulk products. The curved U-shaped body allows loose material to move toward the rear opening with fewer internal dead corners than a conventional rectangular body. This is particularly useful when hauling wet sand, sticky soil, fine coal or mixed aggregates that may remain trapped along square side-wall joints.

• Mining and quarry transport: moving ore, coal, crushed stone and overburden between extraction areas, crushers, stockpiles and processing yards.
• Road and bridge construction: delivering aggregates, road-base material, sand, gravel and earthwork material to active job sites.
• Railway and water conservancy projects: transporting fill material, stone, soil and construction bulk cargo between temporary material yards and work sections.
• Port and terminal logistics: transferring coal, mineral material, aggregates and other loose cargo within controlled logistics areas.
• Construction waste removal: carrying suitable demolition debris, soil and loose site waste after the body thickness and tailgate structure are confirmed for the material.
• Agricultural bulk transport: hauling grain, fertilizer and other compatible dry materials when the body sealing and discharge arrangement match the cargo.

Buyers comparing body sizes, axle layouts and hydraulic tipping arrangements can review Luyi Auto’s rear tipping semi trailer range. Real project applications are also available in the construction and infrastructure case studies.

Technical Specifications

The listed dimensions and component brands describe the supplied configuration. Final payload, body thickness, hydraulic cylinder, braking layout and road-use specification must be confirmed against the cargo density, tractor model and destination-country regulations.

How to Select the Right Configuration

A rear tipper trailer should not be selected only by its nominal payload. Two customers both requesting a 30-ton trailer may require different body plates, suspension systems and hydraulic components if one carries dry grain on paved roads and the other carries wet ore on an unpaved mining route.

Before production, the following operating conditions should be confirmed:

• Cargo type and density: wet ore, gravel and slag place different impact and wear loads on the cargo body compared with coal, grain or dry sand.
• Loading method: large loaders and excavators can create concentrated impact on the floor and side panels, which may require thicker plates or additional reinforcement.
• Road condition: paved highways, construction access roads and rough mine roads require different suspension and tire priorities.
• Tipping frequency: high-cycle operation requires closer attention to the hydraulic cylinder, hinge points, rear-door locking system and frame rigidity.
• Unloading ground: the trailer should normally tip on firm, level ground with sufficient overhead clearance and no material accumulation behind the tailgate.
• Local axle-load rules: the permitted payload depends on gross vehicle weight, tractor configuration, axle spacing and destination-country regulations.
• Maintenance resources: axle, suspension, braking and hydraulic brands should be selected with local spare-parts availability in mind.

For higher-volume or heavier bulk cargo projects, buyers can compare this model with the 4 Axle 60T U Dump Trailer.

Strengths and Characteristics

U-Shaped Body for Cleaner Rear Discharge

The curved body profile reduces square internal corners where wet or fine material can collect. During tipping, sand, coal, ore, soil and aggregates move more directly toward the rear opening. Cleaner discharge reduces the time operators spend removing residual material and helps the trailer return to the loading point sooner.

Compact Body for Job-Site Maneuverability

The 8200 mm overall length is suited to regional bulk transport and job sites where turning space is more limited than on long-distance highway routes. A shorter body can be easier to position near loaders, stockpiles and designated discharge points, provided the tractor and turning radius are correctly matched.

Air Suspension with Liftable First Axle

Air suspension is used in the supplied configuration to improve axle-load distribution and adapt the trailer to changing load conditions. When the trailer operates empty or lightly loaded, the first axle can be raised where regulations and operating conditions permit. This can reduce unnecessary tire contact, rolling resistance and tire wear.

Air suspension is generally more suitable for fleets operating on paved or mixed-quality roads. For severe mine roads, deep ruts or maintenance environments where a simpler suspension is preferred, heavy-duty mechanical leaf spring suspension can be discussed as an alternative.

Disc Brakes and WABCO Braking Components

The trailer uses disc brakes, a WABCO brake valve and double brake chambers. This configuration is selected to provide controlled braking response during repeated loaded transport cycles. Brake performance still depends on correct tractor-trailer matching, regular adjustment, air-system maintenance and compliance with local braking regulations.

Aluminum Alloy Rims

Aluminum alloy rims help reduce wheel-end weight compared with conventional steel rims. For fleets concerned with payload efficiency, tire handling and corrosion resistance, this can provide a practical operating benefit, although replacement availability and local maintenance capability should be considered before final confirmation.

Frame Built Around Repeated Tipping Loads

A rear tipper frame experiences a different load pattern from a normal flatbed trailer. During unloading, the body weight transfers through the tipping hinge, hydraulic cylinder mounting area and main frame. The 8 mm upper and lower wing plates, reinforced front structure and automatic submerged-arc welding on key frame sections are intended to maintain alignment during repeated lifting cycles.

Advanced Safety Systems & Compliance

Rear tipping introduces stability risks that do not occur during normal horizontal cargo unloading. Safe operation depends on the trailer structure, braking system, hydraulic condition, loading balance and the ground beneath the wheels.

• Dual-circuit pneumatic braking: provides separated air-brake control circuits for the trailer braking system.
• Disc brake configuration: supports consistent braking response during frequent transport cycles.
• WABCO brake valve: provides a recognized braking component option with established spare-parts availability in many markets.
• Double brake chambers: support service and parking brake operation on the trailer axles.
• Lift axle control: the first axle can be raised during appropriate empty-running conditions and lowered before loaded operation.

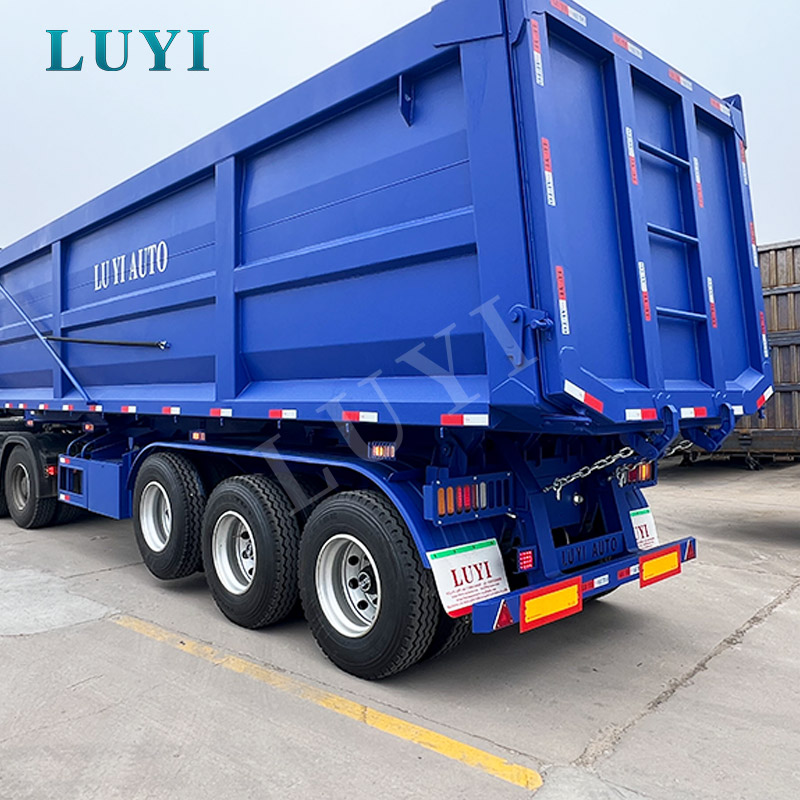

• 24V lighting system: includes brake lights, turn signals, tail lamps, side marker lamps and reflectors for road and site visibility.
• ABS option: can be configured according to the buyer’s market, tractor compatibility and registration requirements.

Operators should only raise the cargo body on firm and level ground. The tractor and trailer should remain aligned, the parking brake should be applied and the unloading area should be checked for overhead cables, unstable ground and accumulated material behind the tailgate. Uneven loading, material frozen to one side or tipping on a slope can create a serious rollover risk.

Lighting layout, reflective tape, rear underrun protection, side protection, brake components, axle loading and overall dimensions can be adjusted where required. Buyers remain responsible for confirming final registration and road-use requirements with the relevant authority in the destination country.

A practical example of this trailer type in project use can be reviewed in Luyi Auto’s Saudi construction rear tipping trailer case study.

Our Craftsmanship & Quality Control

Rear tipper quality cannot be judged only by external paint or the stated steel thickness. Long-term operating reliability depends on whether the cargo body, subframe, hydraulic cylinder bracket, rear hinge, axle installation and braking system remain correctly aligned after fabrication.

Material and Plate Verification

Steel plates, frame sections and purchased components are checked against the confirmed production specification before cutting and assembly. Where the trailer will carry abrasive ore, slag or demolition material, the body material and plate thickness should be upgraded before production rather than reinforced only after excessive wear occurs.

Main Frame Fabrication

Key frame sections are positioned in fixtures to control straightness and dimensional consistency. Automatic submerged-arc welding is used on suitable load-bearing seams to improve weld penetration and repeatability. Manual welds around brackets, hinges and smaller assemblies are visually inspected and corrected where required.

Cargo Body and Rear Hinge Alignment

The U-shaped body must remain centered over the frame, while the rear tipping hinge must allow the body to rise without twisting. Technicians check body alignment, hinge installation, tailgate fit and locking operation before hydraulic testing.

Hydraulic Lifting Test

The hydraulic oil tank, hoses, fittings, cylinder mounting points and operating controls are checked for correct installation. The body is raised and lowered through complete operating cycles to inspect lifting smoothness, hydraulic leakage, abnormal movement and interference between the body and chassis.

Running-Gear Inspection

Axle position, suspension installation, wheel fasteners, brake chambers, air lines and tire condition are checked before release. Lift axle operation is tested to confirm that the axle raises and lowers correctly under the specified operating conditions.

Electrical and Surface Inspection

Technicians test tail lamps, turn signals, brake lamps, side marker lamps and electrical connections. The completed trailer is also checked for surface preparation, paint coverage, anti-rust treatment and accessory completeness.

Customers can review the Luyi Auto factory and manufacturing capability for further information about production and inspection.

Optional Configurations & Customization

Customization should be based on cargo density, loading impact, road condition, local axle limits, tipping frequency and maintenance availability. Increasing every component specification without considering these factors can raise tare weight and purchase cost without delivering a proportional operating benefit.

• Payload and body size: body length, width, height and usable volume can be adjusted within legal transport limits.
• Body material: high-strength steel or wear-resistant plate can be selected according to material abrasiveness and impact.
• Floor and side-wall thickness: thicker plates can be specified for ore, stone, slag and construction waste.
• Axle brands: LUYI, FUWA, BPW or other available axle options can be discussed according to market preference.
• Suspension: air suspension with lift axle, or heavy-duty mechanical suspension for rough-road operation.
• Hydraulic cylinder: cylinder size and supplier can be matched to the body length, tipping angle, load and operating frequency.
• Brake configuration: disc or drum brake options, WABCO components and ABS specifications according to local requirements.
• Tires and rims: tire brand, tire size, steel rims or aluminum alloy rims according to load and local availability.
• King pin: 50# or 90# specification according to tractor coupling and application.
• Tailgate structure: mechanical, pneumatic or hydraulic opening arrangements can be discussed according to cargo flow.
• Toolboxes and accessories: spare tire carrier, toolbox, water tank, work lights, mudguards and protective covers.
• Paint and branding: fleet colors, company logo, safety markings and project identification.
• Spare-parts package: brake components, seals, lamps, air fittings and selected hydraulic parts for overseas maintenance.

Luyi Auto’s custom trailer and after-sales service covers configuration discussion, production communication, shipping coordination, spare-parts support and technical guidance.

Packaging and Transportation

Before shipment, the trailer receives a final functional inspection and marine transport preparation. Exposed steel and vulnerable surfaces are treated with anti-rust wax or additional protective coating. Loose accessories, lamps, air-line fittings, tools and spare parts are packed separately and fixed to reduce movement during loading and sea transport.

Common shipping methods include:

• RO-RO vessel: suitable when the destination route and port support roll-on/roll-off vehicle transport.
• Flat-rack container: used when the trailer dimensions and shipping route make container-based handling practical.
• Bulk carrier: commonly considered for multiple units or destinations with suitable bulk vessel service.

For batch orders, removable components and shipping arrangements can be reviewed to reduce occupied volume and improve vessel utilization. The final method depends on freight cost, destination port, available sailing schedule, unloading conditions and the number of trailers in the order.

The normal production period is approximately 15–30 working days after deposit, drawing confirmation and component approval. Chassis-independent semi-trailer production is also affected by axle, tire, hydraulic and suspension availability. The confirmed delivery date should therefore be written into the sales contract.

Product brochures and technical reference materials are available through the Luyi Auto download center.

Why Choose Luyi Auto

For an overseas buyer, the lowest quoted trailer price does not always produce the lowest operating cost. An incorrectly selected rear tipper may suffer from body deformation, slow unloading, hydraulic leakage, uneven tire wear, poor spare-parts availability or difficulty meeting local registration requirements.

Luyi Auto bases the configuration discussion on the buyer’s actual cargo, material density, road condition, loading method, tractor model, unloading environment and destination-market requirements. This approach helps determine whether the supplied 30-ton air-suspension model is appropriate or whether the body plate, hydraulic system, suspension and axle layout should be changed.

• Application-based specification: recommendations are developed around real bulk materials and operating routes.
• Manufacturing control: frame dimensions, welding, hydraulic movement, running gear, brakes and lighting are inspected before shipment.
• Flexible customization: the body, suspension, axle, brake, hydraulic and tire configurations can be adjusted.
• Export preparation: anti-corrosion treatment, accessory packing and shipping coordination are included in delivery planning.
• Batch-order support: configuration consistency, production scheduling and shipping plans can be coordinated for fleets and dealers.
• After-sales communication: maintenance guidance and spare-parts support are available for overseas operators.

Buyers reviewing other transport equipment can browse Luyi Auto’s semi trailer product range. For a project-specific configuration, submit the required payload, cargo type and destination through the Luyi Auto inquiry form.

FAQ

1. What materials can this rear tipper trailer transport?

It is suitable for sand, gravel, coal, ore, soil, slag, road-base material, construction aggregates and compatible bulk cargo. The standard 3 mm floor and side panels should be reviewed before carrying highly abrasive stone, heavy ore or demolition waste. Thicker or wear-resistant plates may be required.

2. Why use a U-shaped cargo body instead of a rectangular body?

The curved U-shaped profile has fewer internal corners, allowing loose material to slide toward the rear opening more naturally. This helps reduce retained sand, coal, soil and wet material, resulting in cleaner unloading and less manual cleaning between transport cycles.

3. Is the loading capacity 30 tons or 60 tons?

The supplied LY9400ZZX configuration on this page is rated for a 30-ton loading weight. The legally permitted payload may be lower depending on the trailer tare weight, tractor, axle spacing, road classification and destination-country gross vehicle weight regulations. Buyers requiring a 60-ton project configuration should request a different axle, frame, suspension and body specification.

4. Does this trailer use air suspension or leaf spring suspension?

The standard configuration shown here uses air suspension with a liftable first axle. Heavy-duty mechanical leaf spring suspension can be supplied as an alternative for rough mine roads, severe construction access routes or markets where mechanical suspension is easier to maintain.

5. Can the first axle be lifted?

Yes. The first axle is liftable in the standard air-suspension configuration. It is mainly used during empty or light-load operation where legally permitted. The axle should be lowered before carrying the rated load to maintain proper weight distribution and braking performance.

6. What hydraulic system is used?

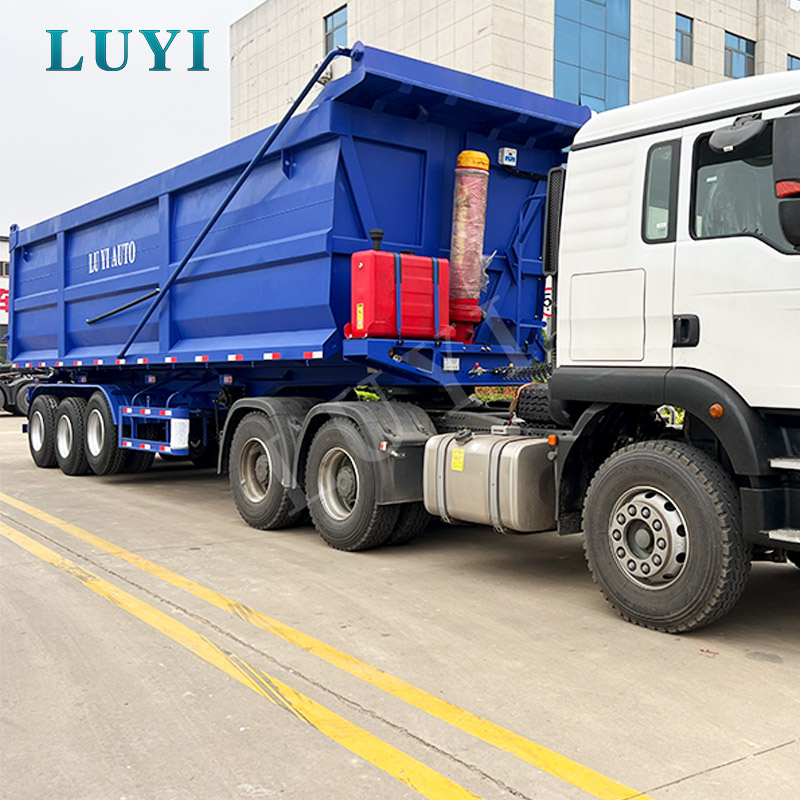

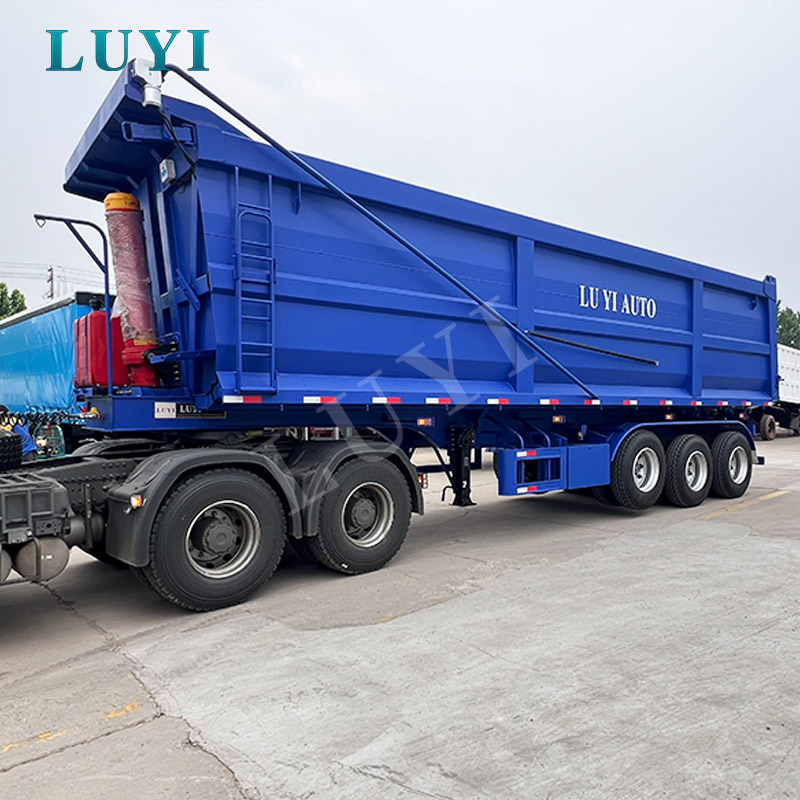

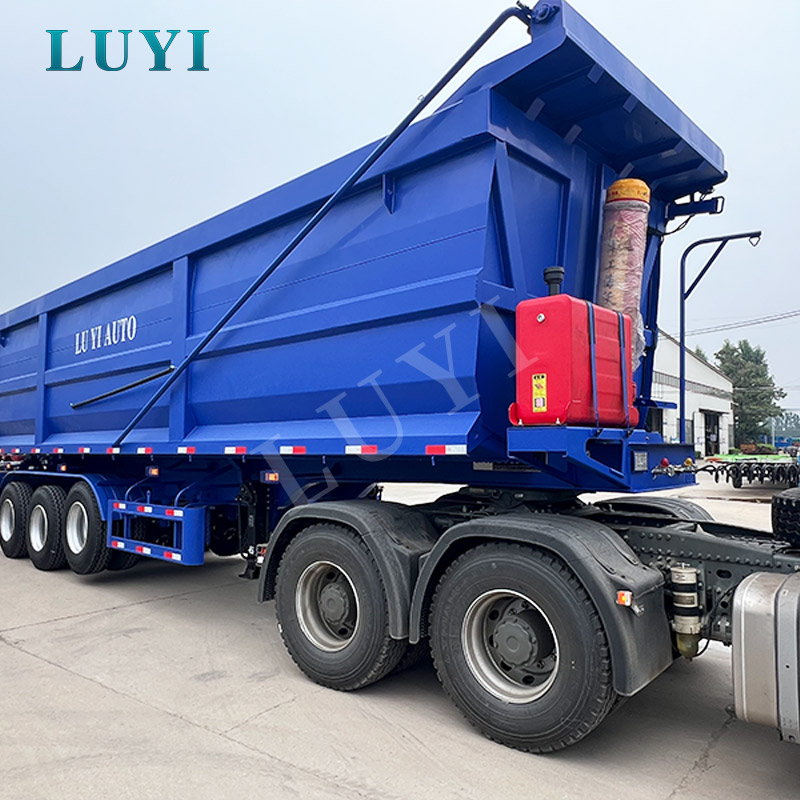

The trailer uses a front-mounted hydraulic lifting system with a separate hydraulic oil tank. The final cylinder model, working pressure and lifting capacity are matched to the cargo body dimensions, load distribution and required tipping angle before production.

7. Can the trailer be customized for local regulations?

Yes. Axle configuration, braking system, ABS, tire size, suspension, lighting, reflective markings, rear protection, king pin, dimensions and payload specification can be discussed according to the destination market. Final registration requirements should also be confirmed by the buyer with the local transport authority.

8. What information is required for an accurate quotation?

Please provide the destination country, cargo type, cargo density, required legal payload, loading method, road condition, daily transport distance, unloading frequency, tractor model, preferred suspension, tire specification, required quantity and expected delivery date. Photos or videos of the operating route and unloading site are useful for demanding mining and construction projects.
