ISUZU GIGA 6×4 20CBM Sewage Suction Truck for Municipal Sanitation

Key Applications

The ISUZU GIGA 6×4 20CBM sewage suction truck is intended for operators who need to collect, transport and discharge sewage, sludge and other non-hazardous liquid-solid waste in regular municipal or commercial sanitation work. Typical buyers include municipal sanitation departments, environmental service contractors, wastewater maintenance companies, property management groups, construction contractors and rural sanitation operators.

In practical operation, this vehicle is commonly assigned to routes where a smaller sanitation truck would require frequent unloading or where sludge must be transported over a longer distance before disposal. The 18–20m³ tank capacity helps improve route efficiency, while the 6×4 chassis provides a more stable platform for a large tank, vacuum system and hydraulic self-discharging structure.

• Municipal sewer cleaning and blocked drainage maintenance
• Septic tank emptying in residential communities and commercial properties
• Sludge and wastewater collection from factories, hotels, schools and shopping malls
• Construction mud, dirty water and sediment removal from project sites
• Waste collection from rural villages, livestock farms and agricultural facilities
• Transportation of non-flammable solid-liquid mixed waste to approved treatment facilities

Buyers comparing sanitation vehicles with other commercial vehicle types can also review Luyi Auto’s heavy-duty truck product range and broader transportation equipment applications.

Technical Specifications

Final dimensions, curb weight, payload, engine model, emission level and pump specification must be confirmed in the signed technical agreement because chassis availability and destination regulations may differ by market.

Strengths and Characteristics

This vehicle is designed as an integrated sanitation system rather than simply a tank installed on a truck chassis. The chassis, tank volume, vacuum pump, power take-off, hydraulic lifting structure and discharge method must work together under repeated loading, transport and unloading cycles.

• Large-volume sanitation capacity: The 18–20m³ tank reduces the number of disposal trips required during municipal, industrial or construction-site cleaning routes.
• High-vacuum suction system: The vacuum pump, power take-off and drive-shaft arrangement provide the suction power required for sewage, sludge and mixed waste collection.

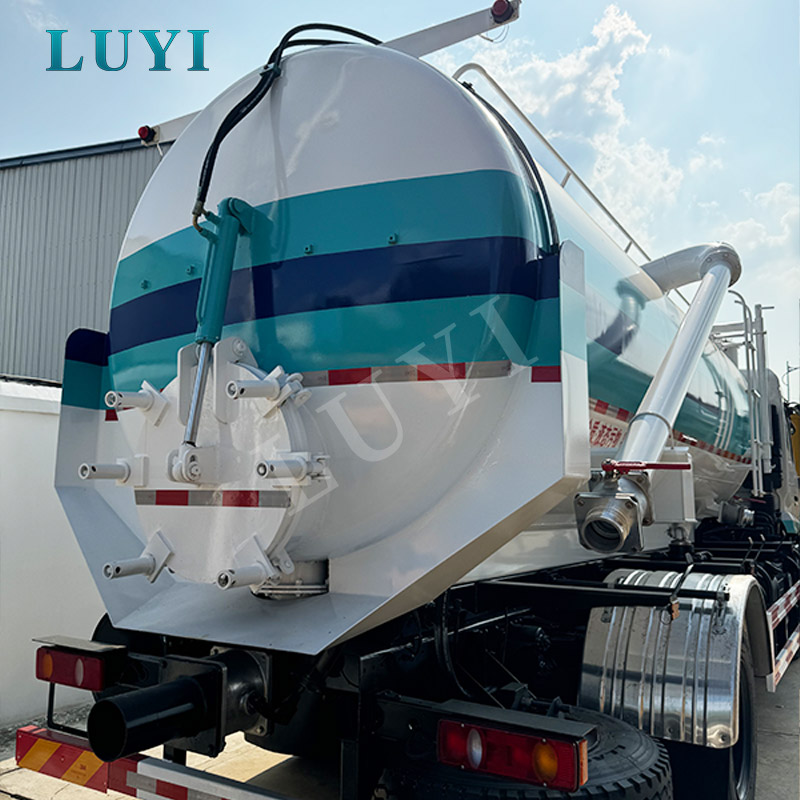

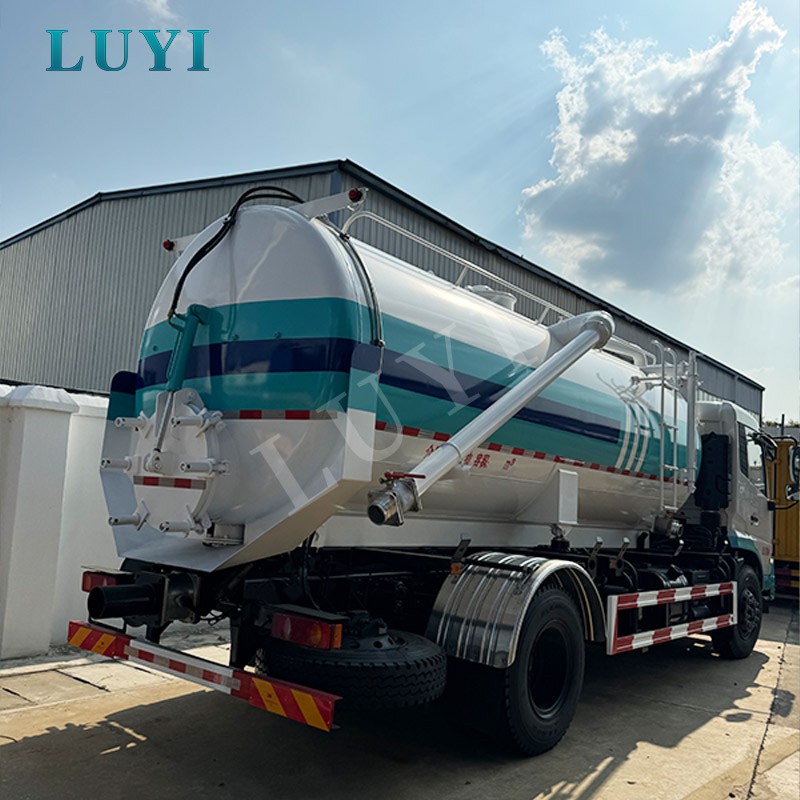

• Hydraulic self-discharging: The tank can be raised hydraulically, while the rear cover opens for direct discharge. This reduces manual clean-out work when handling settled sludge.

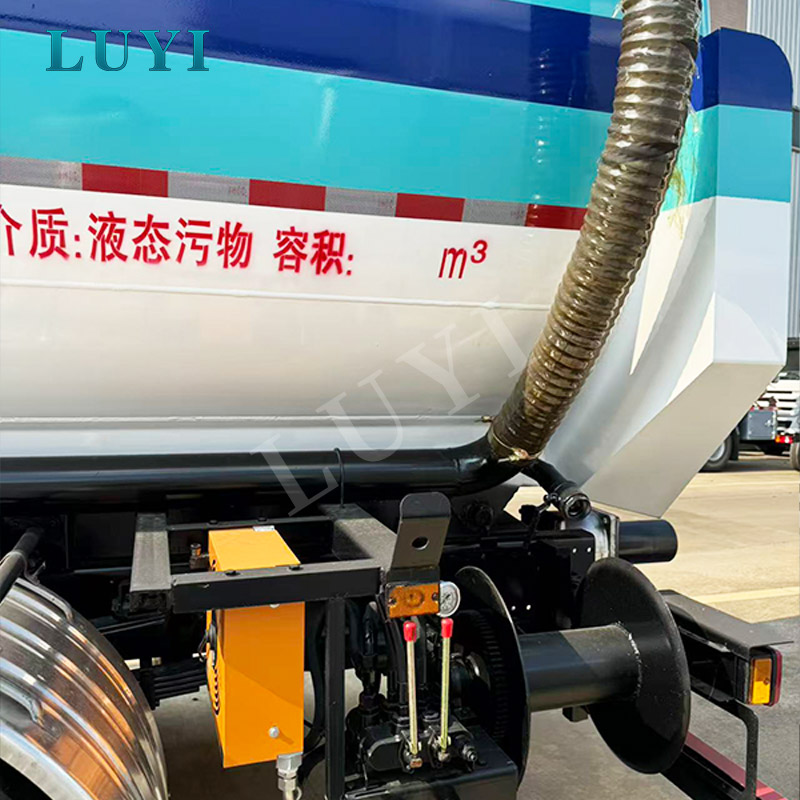

• Extended working reach: The standard 8-meter hose provides practical access where the truck cannot park directly beside a sewer, septic tank or collection point.
• Heavy-duty chassis platform: The 6×4 chassis distributes the tank and superstructure load across twin rear drive axles, supporting stable road operation under a large-volume configuration.

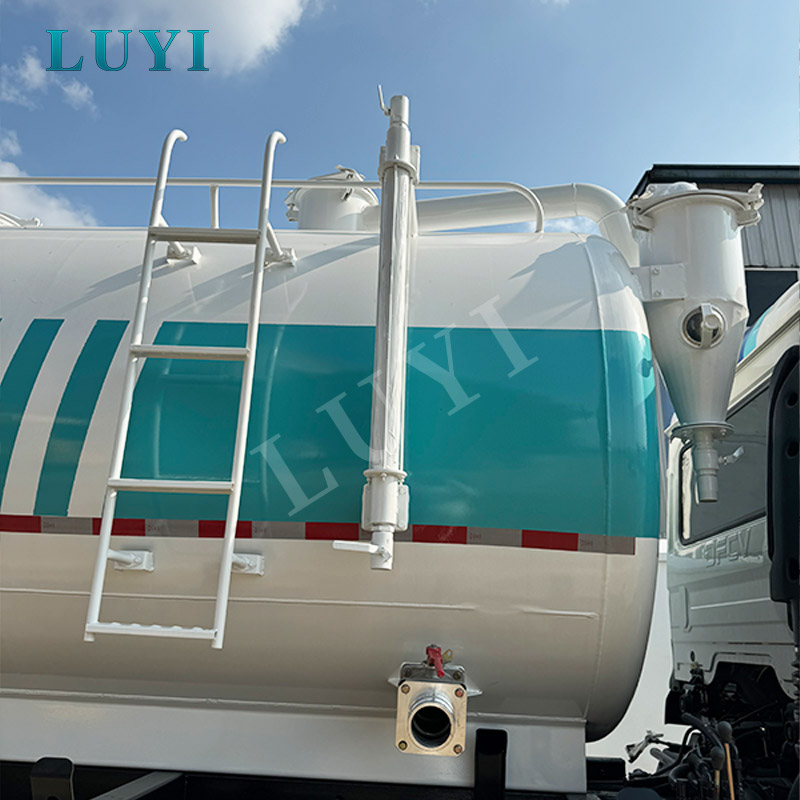

• Maintenance-oriented layout: The viewing window, observation pipe, hand-washing device, accessible valves and pipe network make routine operation and inspection more practical.

The most suitable configuration should be selected according to waste density, solid content, suction distance, disposal route, road gradient and local axle-load limits. A larger tank is not automatically the best choice if the working area has narrow roads, strict weight limits or limited disposal-site access.

Advanced Safety Systems & Compliance

A sewage suction truck operates with vacuum pressure, rotating pump components, hydraulic lifting equipment and a large tank containing shifting liquid-solid material. Safe operation therefore depends on both the installed components and correct configuration of the complete vehicle.

• Anti-overflow valve: Helps prevent sewage from entering the vacuum pump when the tank reaches its safe filling level.
• Oil-water separator: Separates moisture and contaminants before they reach critical vacuum-system components.
• Vacuum pressure gauge: Allows the operator to monitor working pressure and identify abnormal suction conditions.
• Hydraulic rear-door operation: Reduces direct operator contact with waste during discharge and tank cleaning.
• Heavy-duty braking configuration: The final braking system is matched to the selected chassis, gross vehicle weight and destination-market requirements.
• Lighting and visibility: Rear lights, side marker lights, reflectors and warning markings can be configured to local road-use requirements.
• Emission and driving configuration: Emission level, left-hand or right-hand drive and other chassis details must be confirmed for the destination country before production.

This standard sewage suction configuration is intended for compatible, non-flammable waste. It must not be used to collect fuel, volatile chemicals, explosive liquids or strongly corrosive media unless the complete tank, pump, valves, electrical system and safety design have been specifically engineered and approved for that material.

Destination-country registration, axle-load, lighting, braking, emission and dimensional requirements should be confirmed before the order is finalized. Compliance is based on the final agreed configuration rather than the product name alone.

Our Craftsmanship & Quality Control

For this type of special-purpose vehicle, quality inspection must cover the complete connection between the chassis and the sewage suction superstructure. A well-finished tank is not sufficient if the power take-off alignment, vacuum pipework, hydraulic lifting system or rear-door sealing has not been tested correctly.

During production and pre-delivery inspection, the Luyi Auto team focuses on the following points:

• Material verification: Tank plate thickness, material specification and major structural components are checked against the confirmed production sheet.
• Tank forming and welding: The cylindrical shell, formed heads, internal reinforcement and mounting structure are checked for dimensional consistency and weld continuity.
• Sealing inspection: Tank seams, rear cover, valves, pipe connections and observation components are inspected for leakage.
• PTO and drive-shaft alignment: The power take-off, transmission shaft and vacuum pump installation are checked to reduce abnormal vibration and premature component wear.
• Vacuum-system testing: The pump, pressure gauge, anti-overflow device, separator, suction hose and valve controls are function-tested before delivery.
• Hydraulic operation testing: Tank lifting, hydraulic cylinders, rear-door opening and closing, hoses and connectors are checked through repeated operating cycles.
• Chassis function inspection: Braking, steering, lighting, electrical connections, tires and basic road functions are checked as part of final vehicle acceptance.
• Surface protection: Coating coverage, exposed metal surfaces, anti-rust treatment and accessory installation are reviewed before shipment.
• Delivery records: Final configuration details, inspection results and vehicle photos can be retained for order traceability.

Buyers can learn more about Luyi Auto’s production environment through the manufacturing facility page.

Optional Configurations & Customization

Customization should be based on the actual waste characteristics and working route rather than adding equipment without a clear operating need. Before preparing a quotation, the technical team normally needs to understand the intended media, daily collection volume, suction distance, disposal method, road conditions and destination regulations.

• Tank capacity: Tank volume can be evaluated according to collection volume, route length, legal gross weight and chassis capacity.
• Tank material: Carbon steel is the standard choice for general sewage and sludge. Stainless steel may be considered for compatible media requiring improved corrosion resistance.
• Tank thickness and reinforcement: Plate thickness and internal structure can be reviewed according to tank size, waste density and operating frequency.
• Chassis configuration: Chassis brand, engine power, drive layout, cab type, steering position and emission level can be discussed according to market availability.
• Vacuum pump: Pump model and capacity can be matched to suction depth, hose length, sludge concentration and maintenance preferences.
• Suction hose: Additional hose length, hose supports, connectors and quick couplings can be supplied for different working sites.
• Hydraulic system: Hydraulic pump, lifting cylinders, control valves and rear-door operation can be matched to the selected tank structure.
• Operating controls: Side or rear operating positions, control layout and warning labels can be arranged for the buyer’s normal working process.
• Accessories: Toolboxes, hose racks, hand-washing devices, observation components, warning beacons and protective guards are available subject to configuration.
• Paint and identification: Vehicle color, company logo, safety markings and operating labels can be produced according to the approved artwork.

For a configuration-based recommendation, buyers can submit their requirements through the Luyi Auto inquiry page.

Packaging and Transportation

The shipping method is selected according to the vehicle dimensions, destination port, sailing schedule and local unloading conditions. Complete sewage suction trucks are generally shipped by RO-RO vessel, flat rack or bulk carrier.

• Exposed metal surfaces are checked and protected with anti-rust treatment before loading.
• Suction hoses, loose accessories, tools and spare components are packed and securely fixed to prevent movement during transport.
• Pipe openings, valves, electrical connectors and vulnerable components are sealed or covered where required.
• The truck is inspected before port delivery, including lighting, tires, fluid condition, hydraulic components and accessory completeness.
• Commercial invoice, packing list and other agreed export documents are prepared according to the order and shipping terms.
• Shipping photos and loading records can be supplied for buyer confirmation.

Normal production lead time is approximately 15–30 working days after receipt of the deposit and final technical confirmation. The actual schedule depends on chassis availability, tank configuration, pump selection, order quantity and customization requirements.

Luyi Auto’s export and after-sales service support includes shipping coordination, technical communication and spare-parts assistance.

Why Choose Luyi Auto

Purchasing a sewage suction truck involves more than selecting a tank size. The buyer must confirm that the chassis, gross weight, pump output, tank material, discharge method and local compliance requirements are compatible with the intended job.

• Application-based configuration: Recommendations are prepared around the actual waste, road conditions, collection frequency and disposal route.
• Chassis and superstructure coordination: The chassis, power take-off, vacuum pump, tank mounting and hydraulic system are considered as one working vehicle.
• Export-oriented communication: The team can discuss steering position, emission level, shipping method, documentation and destination-market requirements before production.
• Production visibility: Buyers can request configuration confirmation, manufacturing updates, inspection photos and shipping records.
• Customization without unnecessary over-specification: Equipment is selected according to operational value, maintenance access and budget rather than simply adding more components.
• After-sales and parts support: Technical guidance and replacement-part coordination are available for pump, hydraulic, pipework and vehicle components.

To discuss a sanitation fleet order, project requirement or customized vehicle specification, please contact the Luyi Auto team.

FAQ

Can this truck collect septic waste, construction mud and industrial wastewater?

It is suitable for municipal sewage, septic waste, sludge, construction mud and compatible non-hazardous liquid-solid mixtures. The buyer should provide the material name, density, solid content, temperature and corrosiveness before ordering. Flammable, explosive or strongly corrosive liquids require a separately engineered vehicle.

How should I choose the correct tank volume and vacuum pump?

Tank volume should be selected according to daily collection volume, disposal distance, road access, legal gross weight and chassis capacity. The vacuum pump should be matched to suction depth, hose length, waste viscosity and expected operating frequency. A larger tank or pump is not always more economical if it increases weight, fuel use or maintenance cost.

Can the truck be customized for local road regulations?

Yes. Chassis model, steering position, emission configuration, lighting, reflective markings, braking details and overall dimensions can be discussed according to destination-market requirements. Final registration eligibility should be confirmed against the approved technical specification and local regulations.

What information should I provide before requesting a quotation?

Please provide the destination country, intended waste type, required tank volume, suction distance, working frequency, preferred chassis, steering position, emission requirement, quantity and expected delivery time. Photos or videos of the working site can help the technical team recommend a more suitable configuration.

What is the normal production and delivery time?

Production normally requires approximately 15–30 working days after the deposit and final technical confirmation. Chassis availability, custom tank design, pump selection and order quantity may affect the schedule. Ocean transit time is quoted separately according to the destination port and shipping method.

What maintenance is required for the vacuum and hydraulic systems?

Operators should check vacuum pump oil, hose connections, valves, pressure gauges and hydraulic oil before operation. The tank and pipework should be cleaned after use, especially when handling sediment or thick sludge. Weak suction is commonly related to air leakage, blocked pipelines, an incorrectly positioned valve or worn pump components. Regular inspection helps prevent avoidable downtime.
