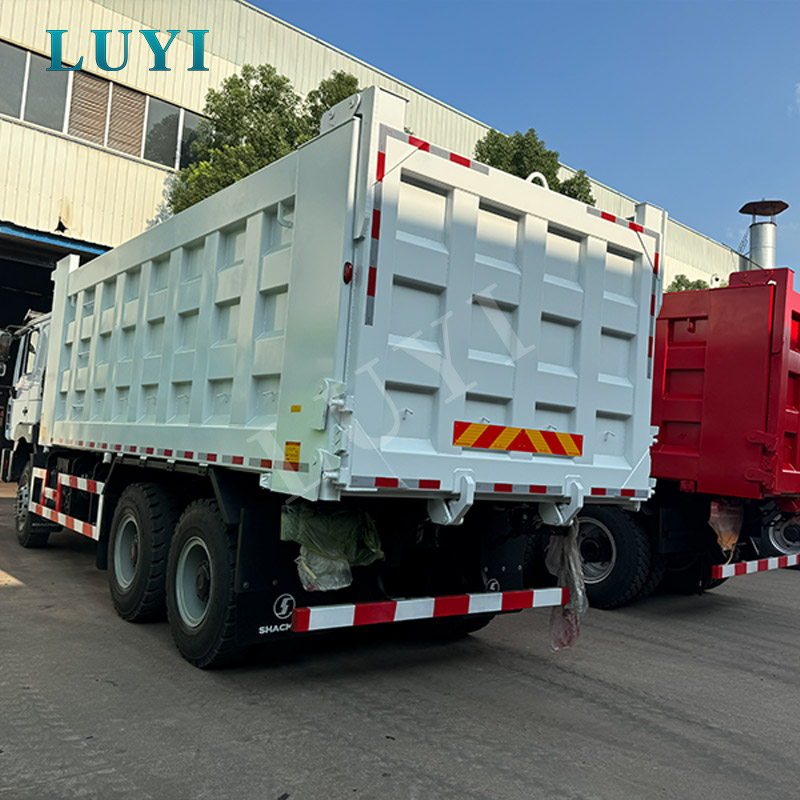

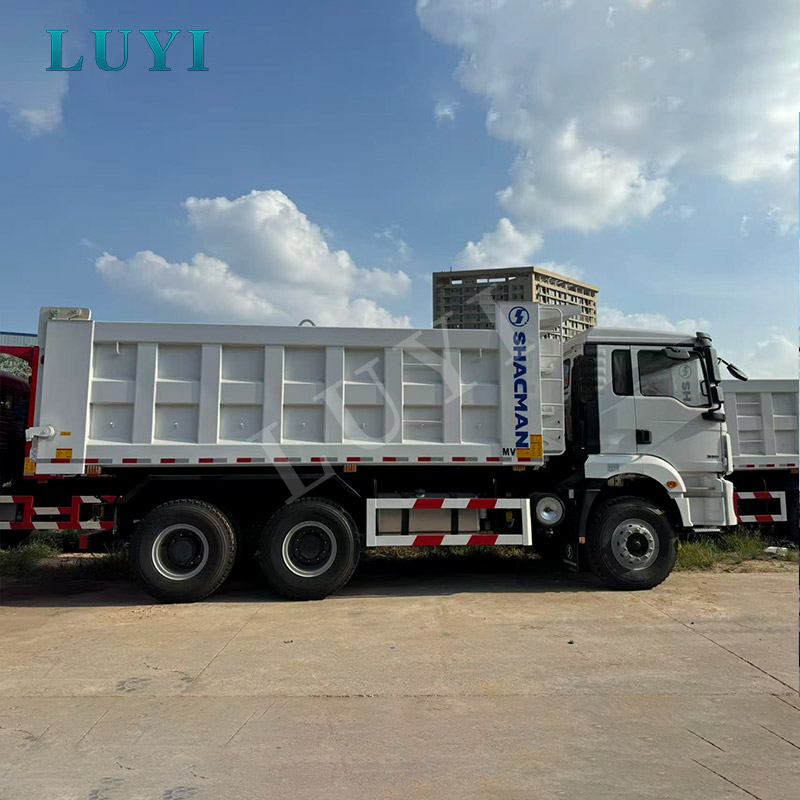

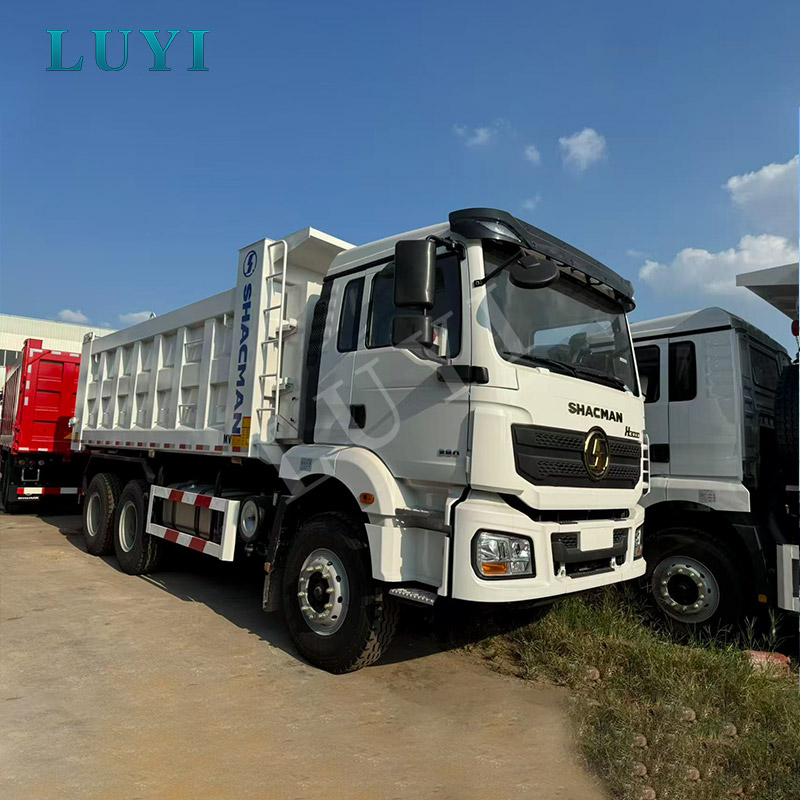

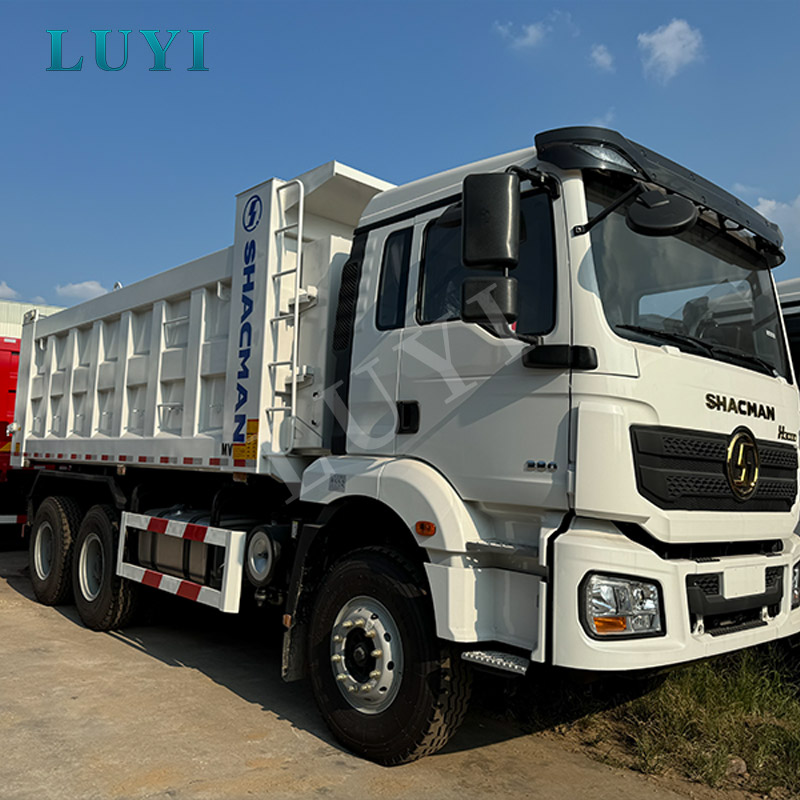

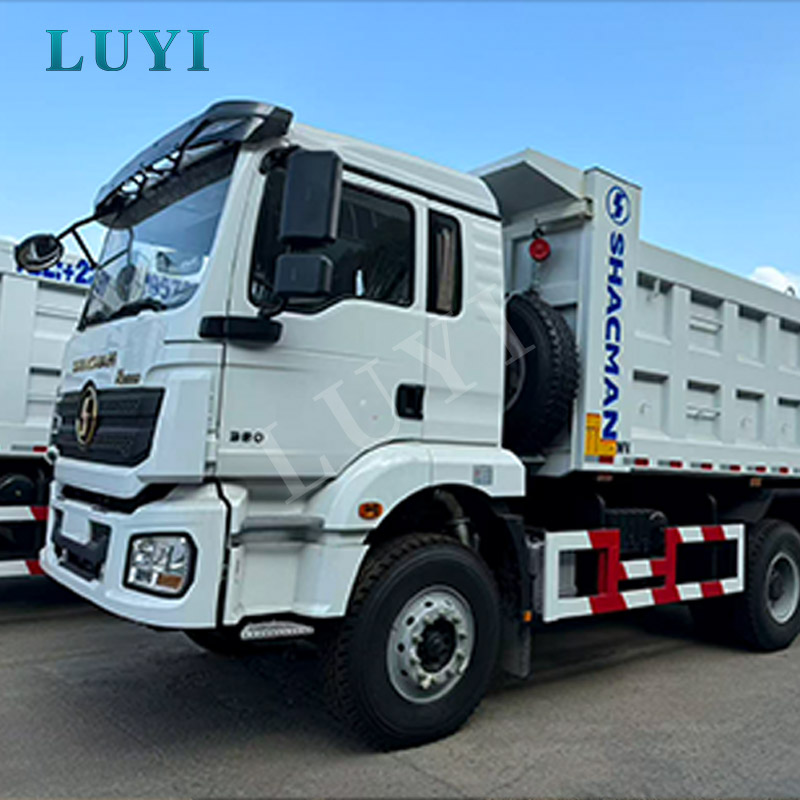

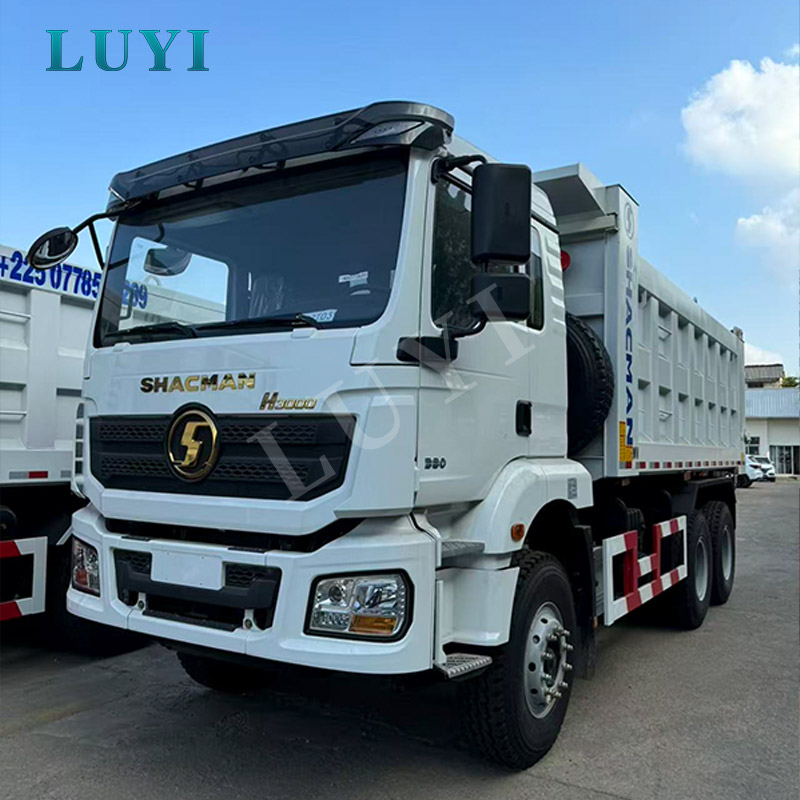

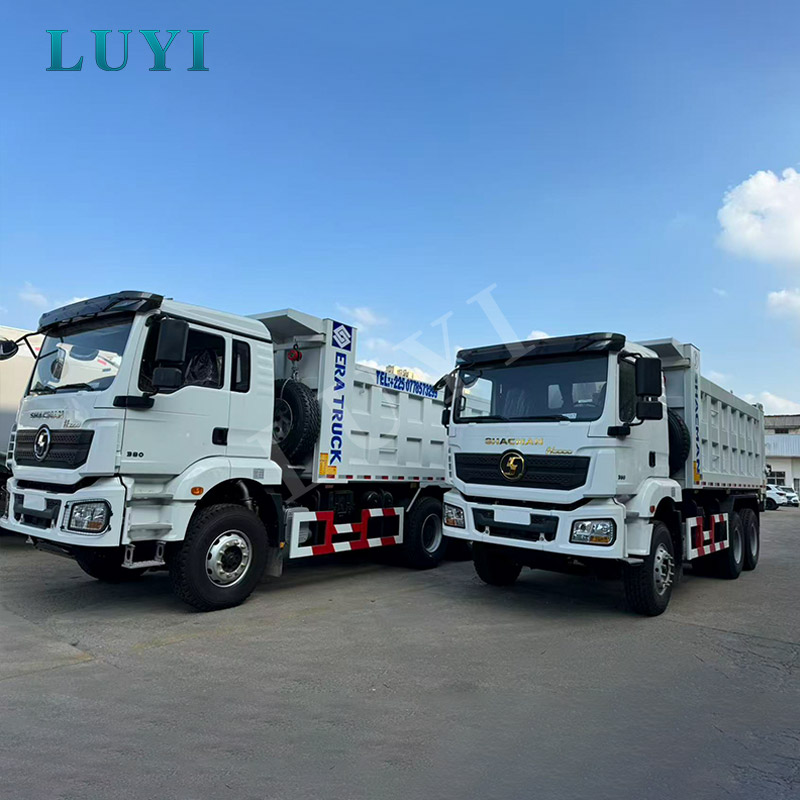

Shacman H3000 8×4 Tipper Truck for Mining and Construction Haulage

Key Applications

The Shacman H3000 tipper truck is designed for bulk material transport where vehicles operate under repeated loading, climbing, braking and unloading cycles. It is typically selected by mining companies, quarry operators, construction contractors, infrastructure companies, material suppliers and fleet owners who need an integrated truck rather than a tractor-and-semi-trailer combination.

The 8×4 configuration is particularly suitable for projects that require a long cargo body, improved axle-load distribution and stable operation with dense bulk materials. Compared with a 6×4 dump truck, it provides a longer chassis platform for the 7400 mm cargo body, although the final legal payload must always be checked against local gross vehicle weight and axle-load regulations.

• Mining and quarry operations: transport of ore, coal, crushed stone, overburden and mineral material between excavation areas, crushers and stockpiles.
• Road and bridge construction: movement of sand, gravel, soil, road-base material and aggregates between material yards and active work sections.
• Railway and water conservancy projects: delivery of fill material, stone and earthwork materials to infrastructure sites.
• Urban construction: transport of suitable construction waste, excavated soil and demolition material after the cargo-body specification is confirmed.
• Port and industrial logistics: short-distance transfer of bulk commodities within terminals, plants and controlled industrial areas.
• Agricultural material transport: movement of fertilizer, grain and other compatible bulk materials when the tailgate and sealing structure match the cargo.

Buyers evaluating different chassis brands and drive layouts can review Luyi Auto’s dump truck range and broader heavy-duty truck solutions.

Technical Specifications

Final curb weight, legal payload, body volume, overall dimensions and registration configuration must be confirmed according to the selected drive form, destination-country regulations and final production drawing.

Configuration Logic and Buyer Selection Guide

A tipper truck should be selected around the complete operating cycle rather than engine power or cargo-body size alone. The material density, loading equipment, road gradient, haul distance and unloading frequency directly affect the correct chassis, axle ratio, body thickness and hydraulic configuration.

8×4 or 6×4 Drive Configuration

The 8×4 layout is generally preferred when the buyer requires a longer cargo body, more balanced axle loading and a higher-capacity road-legal configuration. It is commonly used for road construction, quarry transport and infrastructure supply routes.

A 6×4 model can offer a shorter wheelbase and better maneuverability in narrow mines, confined construction areas or shorter haul cycles. However, changing from 8×4 to 6×4 requires the body length, axle loading, frame and legal payload to be recalculated rather than simply removing one axle.

Cargo Density and Body Plate Selection

Coal, dry sand and agricultural materials place different demands on the cargo body than dense ore, rock, slag or demolition waste. The supplied 10 mm floor and 8 mm side panels are configured for heavy-duty work, but buyers carrying sharp or highly abrasive material should still confirm the steel grade, impact pattern and expected service life before production.

Axle Ratio and Road Gradient

The 5.262 rear axle ratio supports traction and loaded starting performance in mines, quarries and hilly construction routes. Fleet owners operating mainly on paved, flatter roads should discuss route speed and fuel-consumption priorities before finalizing the axle ratio.

Emission Standard

This configuration uses a Euro 2 engine, which is commonly selected for export markets where simple maintenance, fuel tolerance and parts accessibility are important. It should not be ordered for a country that requires Euro 5, Euro 6 or another higher emission level unless a compliant engine and chassis configuration are confirmed in writing.

Related working environments can be reviewed on Luyi Auto’s transport equipment applications page.

Strengths and Characteristics

WP12 Powertrain for Loaded Haul Cycles

The WP12.400E201 engine is matched with the 10JSD180 transmission and heavy-duty drive axles. This combination is intended for repeated loaded starts, gradient climbing and short-to-medium-distance hauling rather than light-duty highway distribution.

The gearbox specification and 5.262 axle ratio favor pulling force under load. For fleet buyers, the final powertrain decision should also consider local diesel quality, operating altitude, ambient temperature and access to engine and transmission parts.

Reinforced Multi-Layer Frame

A dump truck frame carries concentrated loads from both the cargo body and the front hydraulic cylinder. During tipping, force is transferred through the cylinder base, subframe and rear hinge area. The 850 × 300 mm frame with an 8 + 7 layered structure is used to support these changing load paths during loaded driving and unloading.

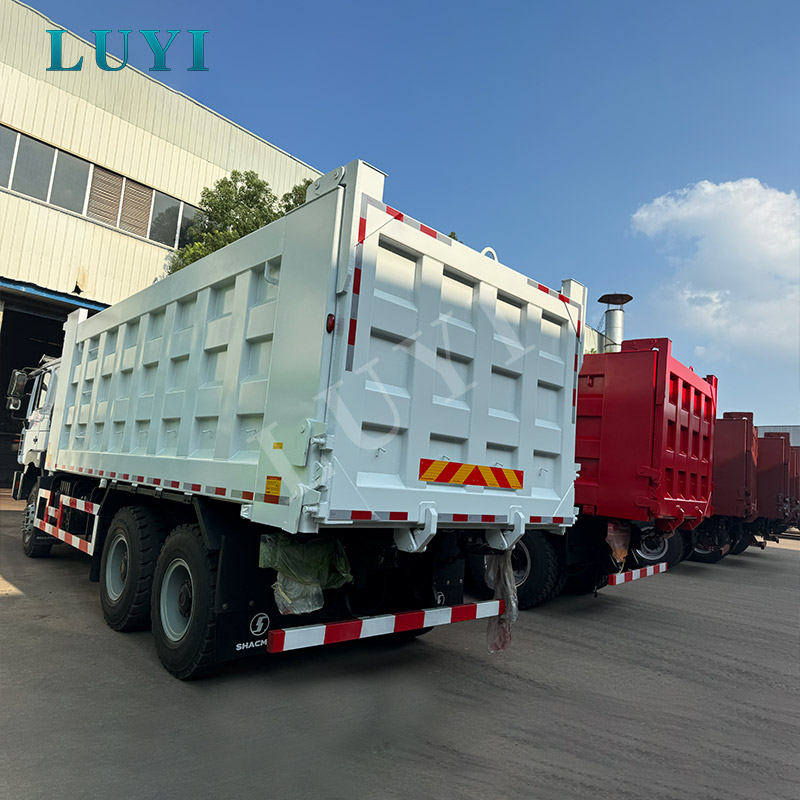

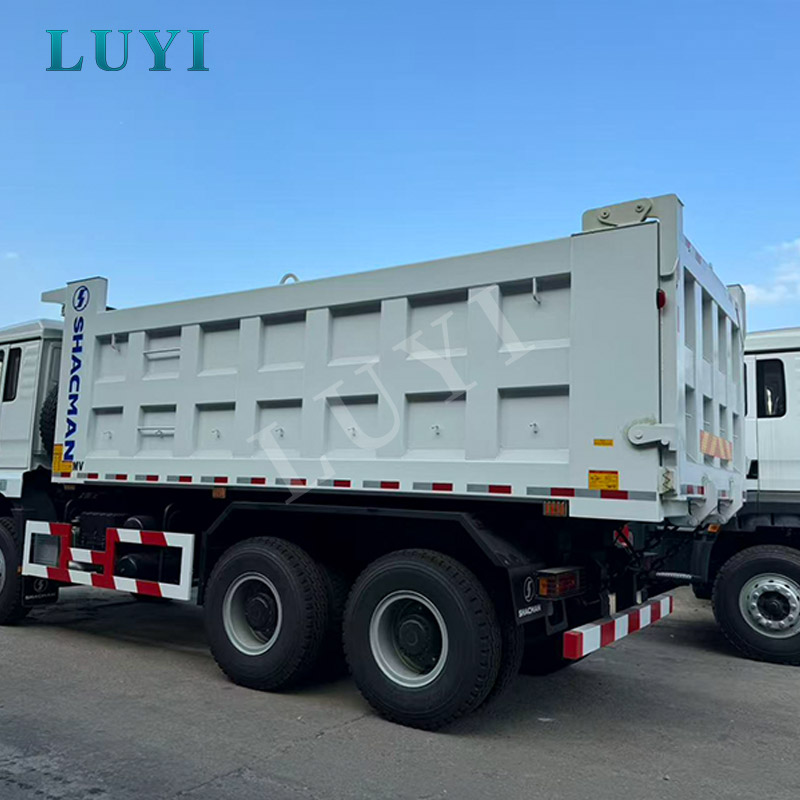

10 mm Floor and 8 mm Side Panels

The cargo body is built with a 10 mm floor and 8 mm side panels. The thicker floor helps manage impact from loaders and excavators, while the side panels resist outward pressure from dense bulk materials. For severe quarry work, additional reinforcement or wear-resistant steel can be discussed according to the cargo and loading method.

Heavy-Duty MAN Axle Configuration

The truck uses a MAN 9.5-ton front axle configuration and 16-ton widened two-stage rear drive axles. The widened rear axle and mixed-pattern tires are intended to improve support and traction on construction roads, material yards and uneven surfaces.

Mechanical Suspension for Rough Roads

Multi-leaf spring suspension is easier to inspect and maintain in remote working areas than more complex suspension systems. The four-main-leaf and four-U-bolt structure is designed around heavy load support, although suspension condition and U-bolt torque should be checked regularly during demanding mine operation.

Cab Configuration for Daily Site Work

The H3000 standard cab includes a hydraulic driver seat, four-point hydraulic cab suspension, electric windows and cooling air conditioning. These features reduce fatigue during repeated loading and unloading cycles without adding unnecessary complexity to a work-focused vehicle.

Advanced Safety Systems & Compliance

Safe dump-truck operation depends on more than the braking system. Load distribution, body stability, hydraulic condition, road gradient and unloading ground must all be controlled during daily use.

• Dual-circuit air braking: provides separate pneumatic brake circuits for heavy commercial vehicle operation.
• ABS configuration: supports wheel-slip control during braking, subject to the confirmed chassis specification.
• Reverse buzzer: warns workers and equipment operators when the truck is reversing around loading and unloading areas.
• Warning lamps: improve visibility during site operation and low-light working conditions.
• Metal bumper and radiator guard: provide additional protection in construction and quarry environments.
• Oil-bath air filter: helps protect the engine intake system in dusty mining and earthmoving conditions.
• Grade 12.9 fasteners: are used in specified high-load connection points where confirmed by the vehicle configuration.

The cargo body should only be raised on stable, level ground. Before tipping, the operator should verify that the rear area is clear, the truck is aligned, the load is evenly distributed and there are no overhead power lines or structures. Material frozen or stuck to one side of the body can create an uneven center of gravity and increase rollover risk.

Buyers should confirm local requirements covering emission level, axle loading, overall dimensions, lighting, reflective markings, underrun protection, braking, steering position and registration documents before ordering. Configuration for a different market may require changes to the engine, cab, lamps, brake system or body dimensions.

Our Craftsmanship & Quality Control

For a complete tipper truck, quality control must cover both the supplied chassis and the manufactured dump body. A strong cargo box is not sufficient if the subframe, hydraulic cylinder and rear hinge are not correctly aligned with the chassis.

Chassis Configuration Verification

Before body installation, technicians check the chassis model, engine, transmission, axle, wheelbase, tire, cab and electrical configuration against the approved order specification. This prevents a chassis intended for a different duty cycle from being fitted with an unsuitable cargo body.

Steel Cutting and Body Fabrication

The floor, side panels, front panel, reinforcing ribs and subframe components are cut and positioned according to the confirmed body drawing. Plate thickness is checked before assembly, with particular attention paid to the floor and lower side-wall areas exposed to loader impact and material abrasion.

Welding and Structural Alignment

Weld seams around the body ribs, subframe, cylinder bracket and rear hinge area are inspected for continuity and visible defects. The cargo body is checked for dimensional accuracy and alignment before the hydraulic system is fully commissioned.

Hydraulic Lifting Test

The front-end hydraulic cylinder, pump, hydraulic oil tank, hoses, valves and fittings are inspected for installation security and leakage. The cargo body is raised and lowered through complete cycles to check lifting stability, cylinder movement, body clearance and rear-hinge operation.

Brake, Electrical and Cab Inspection

Technicians test the brake system, ABS where fitted, reverse buzzer, warning lamps, headlights, tail lamps, turn signals, electric windows and cab controls. Fluid levels and visible connections are also checked before road testing.

Pre-Delivery Road and Function Test

The completed truck is checked for steering response, transmission shifting, braking, suspension behavior, abnormal vibration and visible leakage. Accessories, tools and shipping documents are verified before the vehicle is released for export.

Further information about production capability is available on the Luyi Auto factory page.

Optional Configurations & Customization

Customization should be based on the buyer’s material, road conditions, legal payload and maintenance capability. A larger body is not always the correct solution, especially when dense cargo can exceed axle limits before the body reaches its full volume.

• 8×4 or separately engineered 6×4 drive configuration
• Alternative engine power and emission standards, subject to chassis availability
• Left-hand-drive or available right-hand-drive chassis options
• Different cargo-body length, width, height and volume
• High-strength or wear-resistant cargo-body steel
• Customized floor and side-panel thickness
• Front-end hydraulic cylinder brand and lifting capacity
• Mechanical or hydraulic tailgate control options
• Alternative tire brands and tread patterns
• Fuel tank capacity and anti-theft protection options
• Cab configuration, sleeper arrangement and air-conditioning options
• Work lamps, warning lamps, camera and reverse-monitoring systems
• Toolbox, fire extinguisher, water tank and spare-parts package
• Fleet color, company logo and English or multilingual body decals

Luyi Auto’s customization and after-sales service can support configuration review, production communication, shipping coordination and spare-parts planning.

Packaging and Transportation

A complete 8×4 tipper truck is normally prepared for RO-RO or bulk-vessel shipment. Flat-rack transport may only be practical after the overall dimensions, body structure, port equipment and freight cost have been reviewed.

Before shipment, exposed metal areas receive anti-rust protection. Cab glass, mirrors, lamps, hydraulic components and vulnerable accessories are protected against handling damage. Loose tools, filters, seals and spare parts are packed in cartons or wooden cases and secured inside the vehicle where appropriate.

• RO-RO shipment: usually the most practical method for complete running vehicles where a suitable route is available.
• Bulk carrier: commonly used for project orders, multiple vehicles or destinations without regular RO-RO service.
• Flat-rack shipment: considered only after dimension and port-handling confirmation.

The normal production and preparation period is approximately 15–30 working days after deposit, technical approval and chassis confirmation. The final schedule depends on chassis inventory, optional equipment, order quantity and vessel availability.

Why Choose Luyi Auto

For a mining or construction fleet, the purchase decision should focus on whether the truck matches the operating route. An oversized body, unsuitable axle ratio or incorrect emission configuration can create higher fuel consumption, overload risk, registration problems and premature chassis wear.

Luyi Auto reviews the cargo density, route gradient, road surface, loading equipment, daily distance, unloading frequency and local regulations before confirming the vehicle. This allows the technical discussion to cover the full truck rather than treating the chassis, cargo body and hydraulic system as separate products.

• Working-condition-based selection: drive type, body dimensions, steel thickness and axle ratio are reviewed against the actual task.
• Complete-vehicle coordination: the chassis, subframe, dump body and hydraulic system are matched as one operating unit.
• Export configuration support: steering position, emission standard, lighting and shipping requirements can be discussed before production.
• Pre-delivery inspection: structural, hydraulic, brake, electrical and road functions are checked before shipment.
• Batch-order coordination: consistent specifications and production schedules can be arranged for fleets, contractors and distributors.
• Spare-parts planning: buyers can order commonly used filters, seals, lamps, brake parts and hydraulic components with the truck.

Relevant project experience can be reviewed in Luyi Auto’s construction and infrastructure cases and mining and heavy haulage cases.

FAQ

1. Should I choose an 8×4 or 6×4 Shacman H3000 tipper truck?

An 8×4 truck is generally better suited to a longer cargo body, improved axle-load distribution and higher-capacity road construction or quarry work. A 6×4 truck may be more suitable for narrow mine roads, tighter turning areas and shorter haul cycles. The legal payload and body dimensions must be recalculated for each drive configuration.

2. What materials can this truck transport?

It is suitable for ore, coal, sand, gravel, stone, soil, slag, road-base material and compatible construction bulk cargo. Highly abrasive rock, sharp demolition waste or extremely dense ore may require upgraded steel grade, reinforcement or a smaller body volume.

3. Is the 10 mm floor and 8 mm side panel suitable for mining?

This thickness is configured for heavy-duty bulk material transport. However, body life also depends on steel grade, loader bucket size, loading height, material sharpness and daily cycle count. Severe rock and ore applications should be reviewed individually before production.

4. Can the emission standard be changed from Euro 2?

Alternative emission standards may be available through a different engine or chassis configuration. The buyer should provide the destination country and registration requirements before quotation because engine, electrical and after-treatment systems can change substantially between emission levels.

5. What hydraulic system is used?

The truck uses a front-end hydraulic lifting cylinder. The final cylinder brand, rated lifting force, hydraulic pump and oil-tank specification are matched to the cargo-body size and expected load before production.

6. What information should I provide for an accurate quotation?

Please provide the destination country, required drive form, emission standard, cargo type, cargo density, legal payload, road gradient, road condition, daily transport distance, loading equipment, preferred body dimensions, order quantity and required delivery date.
