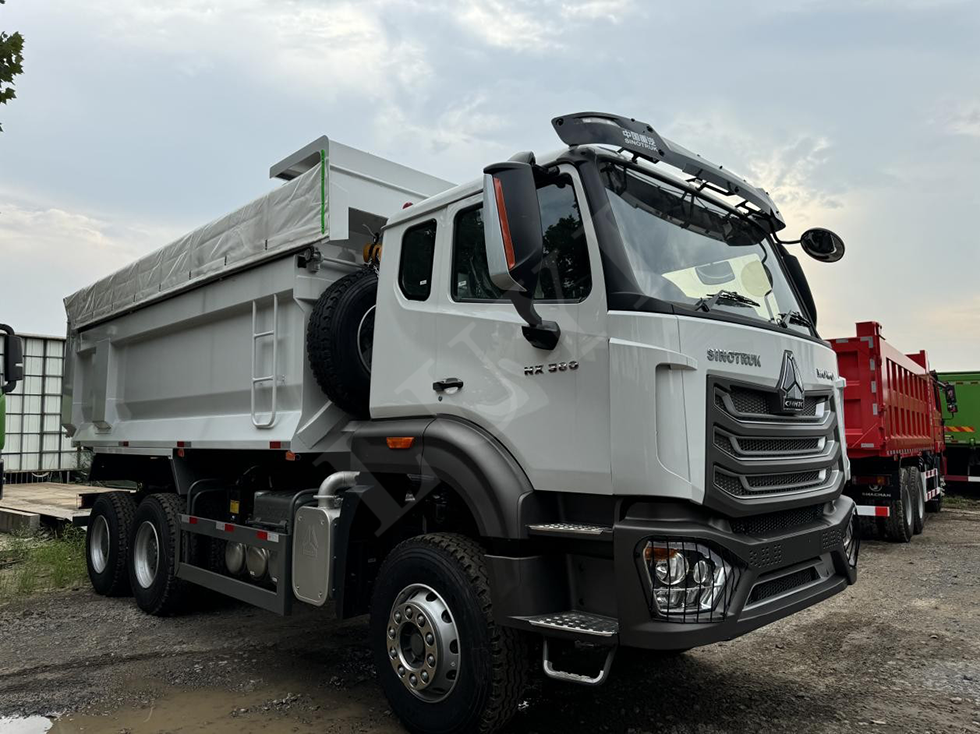

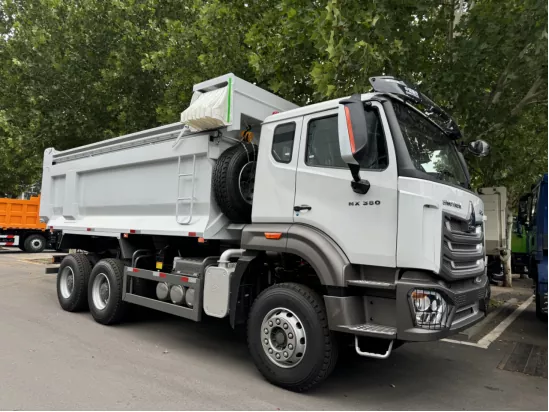

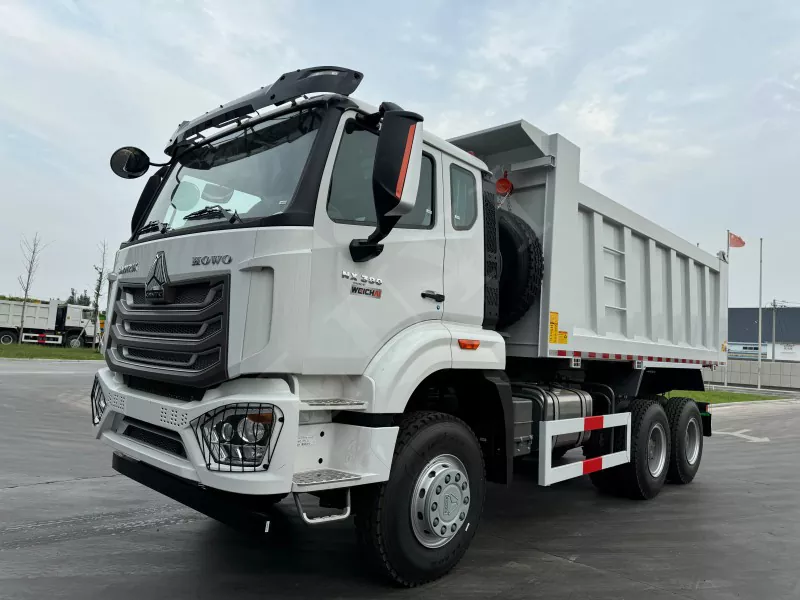

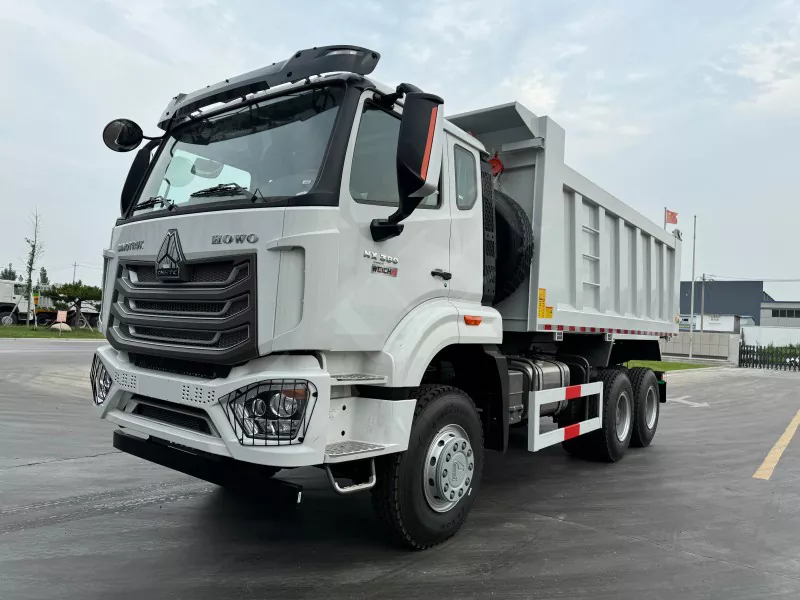

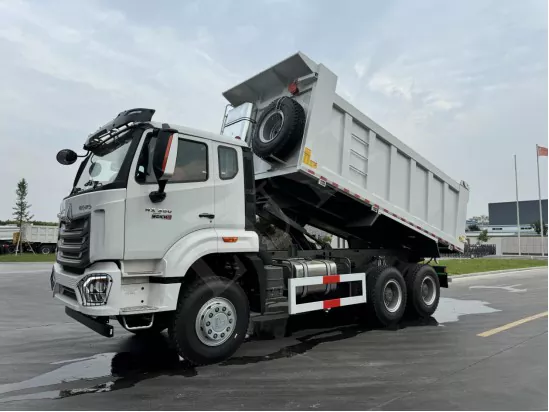

HOWO NX Tipper Truck

UNECE R105 Certified | ASME Section XII Compliant | DNV.GL Marine Standard Approved

Cost-effective heavy-duty transport:

LUYI AUTO HOWO NX tipper truck provides an affordable solution for heavy-duty transport tasks. It is capable of transporting 25-30 tons of cargo It has Euro 5 emission standards, making it environmentally friendly, and we can customize it according to any requirements of our customers

Core specifications

▸Truck power system

In terms of power, it is equipped with Sinotruk D10.38-40 engine with an output power of 380 horsepower, which meets the National V/Euro V emission standards, matches Sinotruk HW19712 gearbox, has 12 gears, uses Sinotruk AC16 rear axle, and has a speed ratio of 5.45. In addition, the vehicle is also equipped with ABS, air conditioning, and power steering

The truck's fuel economy, combustion system optimization and reduced oil consumption have improved economy to meet the needs of long-distance or high-intensity transportation.

▸Truck's carrying capacity and good durability

The truck uses a reinforced chassis: 6×4 drive uses a double-beam multi-leaf spring suspension with good carrying capacity, suitable for heavy-duty cargo transportation such as sand, gravel, and coal.

▸Ability to adapt to complex road conditions

Full drive force: 6×4 drive distribution is reasonable, rear axle dual tire design, strong ability to get out of muddy and potholes, reliable performance in mines, construction sites and other scenes.

High speed ratio rear axle: provides stronger traction, and excellent heavy-load starting and climbing performance.

▸Driving comfort and safety

Humanized cab: wide flat roof/high roof design, shock-absorbing seats, air conditioning, multi-function steering wheel and other configurations improve long-term driving comfort.

Safety configuration: ABS, exhaust brake, anti-rollover warning and other systems enhance safety, especially suitable for nighttime or bad weather operations.

Product Parameter (Specification)

Product Feature And Application

At present, there is a great demand for dump trucks in African and Southeast Asian countries, and the increase in infrastructure construction worldwide is the main driving force for the growth in demand for dump trucks. Therefore, Shandong Luyi Special Automobile Manufacturing Co., Ltd., located in Liangshan County, Shandong Province, is a second-hand car manufacturer with sufficient inventory of dump trucks, which have been exported to many countries and regions. Dump trucks have played a great role in the construction of infrastructure such as roads, bridges, ports and urbanization projects. At present, these countries still need a large number of dump trucks for material transportation and construction waste removal. The eliminated National III and National IV dump trucks in China are still in demand in these markets.

Production Details

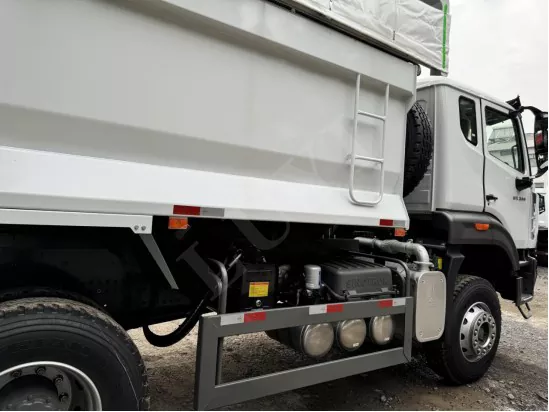

Dump system

1.Large cargo box volume: standard electronically controlled hydraulic lifting system, cargo box length 6-8 meters (optional U-shaped or rectangular structure), volume about 20-30 cubic meters.

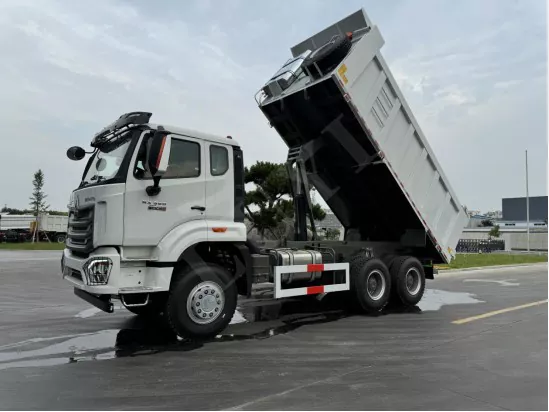

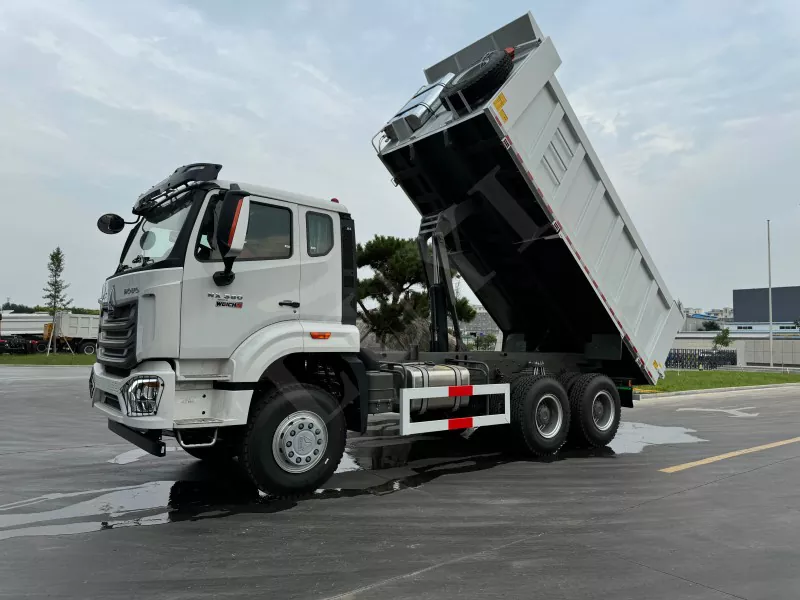

Fast lifting speed: using double cylinder front top or middle top hydraulic cylinder, lifting time ≤ 20 seconds, improve loading and unloading efficiency.

Anti-overturning design: the cargo box side panels are thickened, and the bottom plate is paved with wear-resistant steel, which is suitable for easily worn materials such as sand, gravel, and slag.

Cab

2.HOWO NX is equipped with a very spacious cab: the design of the floor makes the cab very spacious, the driver can move freely, and reduce the fatigue caused by long-term driving. In addition, the car is also equipped with ergonomic seats: equipped with airbag shock-absorbing seats, supporting multi-directional adjustment, such as lumbar support, height, inclination, etc., which effectively relieves the driver's driving fatigue. Sound insulation and noise reduction function of the cab: the cab is equipped with sound insulation materials, the mute effect is very good, and almost no noise can be heard. The car is also equipped with ABS anti-lock braking system, and active safety technologies such as lane departure warning and emergency braking are optional. The full LCD instrument of the smart instrument is very clear, which can display the speed, fuel consumption, and tire pressure, making it convenient for the driver to monitor the vehicle status in real time. The car is equipped with an efficient air-conditioning system: the air-conditioning can quickly adjust the air-conditioning temperature to adapt to hot or cold working environments. Even if you drive long distances, the car is very comfortable and can make you feel very comfortable.

Power Performance

3.380 horsepower engine: usually equipped with Sinotruk MC series diesel engine, which meets the National VI emission standards and takes into account both power and fuel efficiency.

Low speed and high torque: Optimized for heavy-load conditions, it can output high torque (about 1500N·m) at low speed, suitable for frequent starting and stopping and climbing.

6×4 drive mode: rear double-axle drive, strong grip, suitable for muddy, gravel and other complex road conditions.Reinforced frame: using high-strength steel multi-layer local reinforcement, excellent torsion resistance, load-bearing capacity can reach more than 30 tons.Engineering version suspension: multi-leaf spring steel plate suspension (such as 10 front and 12 rear), with engineering-specific wide-section tires, strong impact resistance.

4.Tire specifications available

Various tire types: single and dual tire configurations are available, and multiple tire models are supported. We support customization of Michelin, Double Coin, and Triangle brands to adapt to different road conditions and load requirements. Usually 12.00R20 or 12R22.5 steel radial tires are used. Some models may be equipped with 13.00R25 (for more complex road conditions). Block or mixed patterns (such as "mine pattern" or "off-road pattern") provide good grip and mud discharge performance, suitable for complex road conditions such as construction sites and mining areas. High load capacity: single tire load can reach 3.5-4.5 tons (need to match according to axle load). Wear and cut resistance: tread rubber formula and structural design are suitable for environments with sharp objects such as gravel and slag.

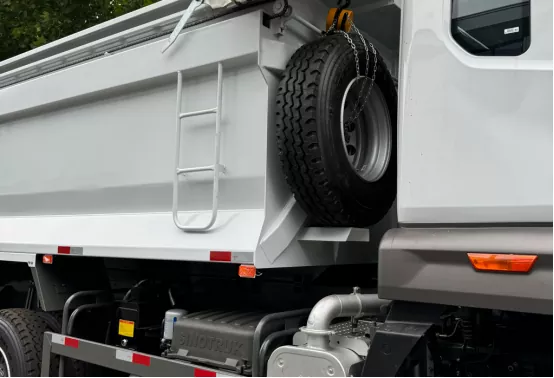

5.Considerate after-sales service: the spare tire is provided with the truck, which provides additional protection for long-distance transportation and reduces the downtime caused by tire failure.

6.Tarpaulin

The tarpaulin is driven by a motor and covers the top of the cargo box. It does not require manual pulling and can be completed quickly, saving time. It is suitable for the transportation of sand, gravel and slag, which improves work efficiency. The electric tarpaulin can prevent tight sealing during transportation, without worrying about spillage or dust flying outward. The electric tarpaulin is very durable. The tarpaulin is mostly made of high-strength PVC or coated canvas, which has the advantages of wear resistance, waterproof and UV resistance. It can adapt to the harsh environment of the construction site.
