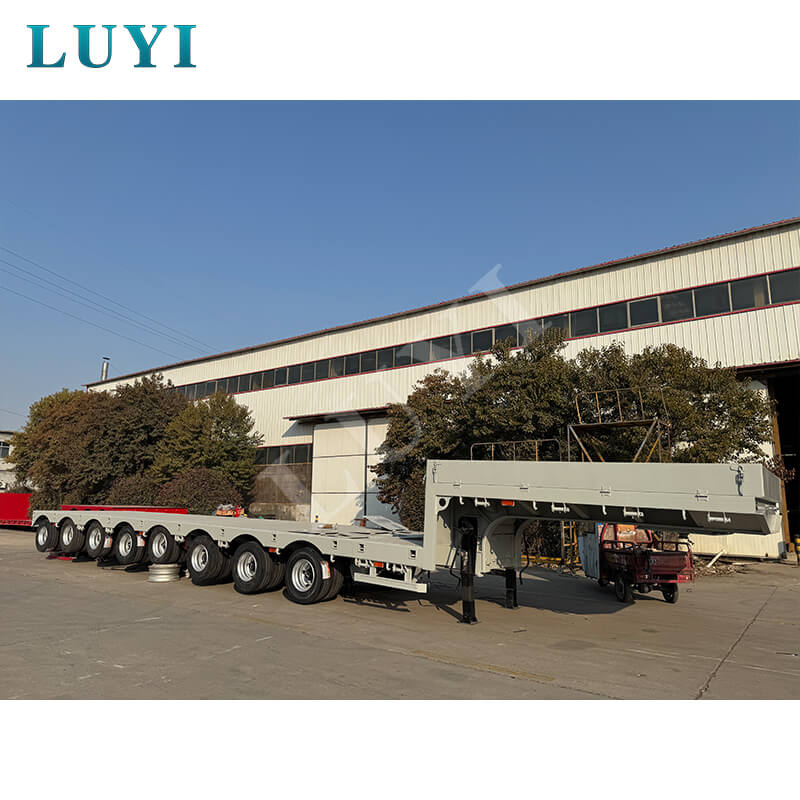

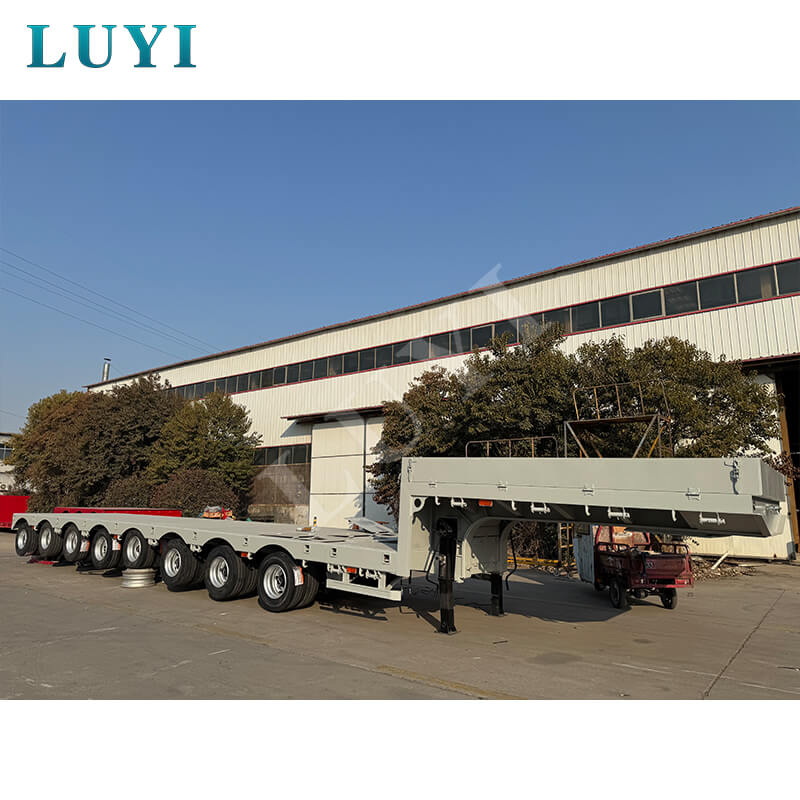

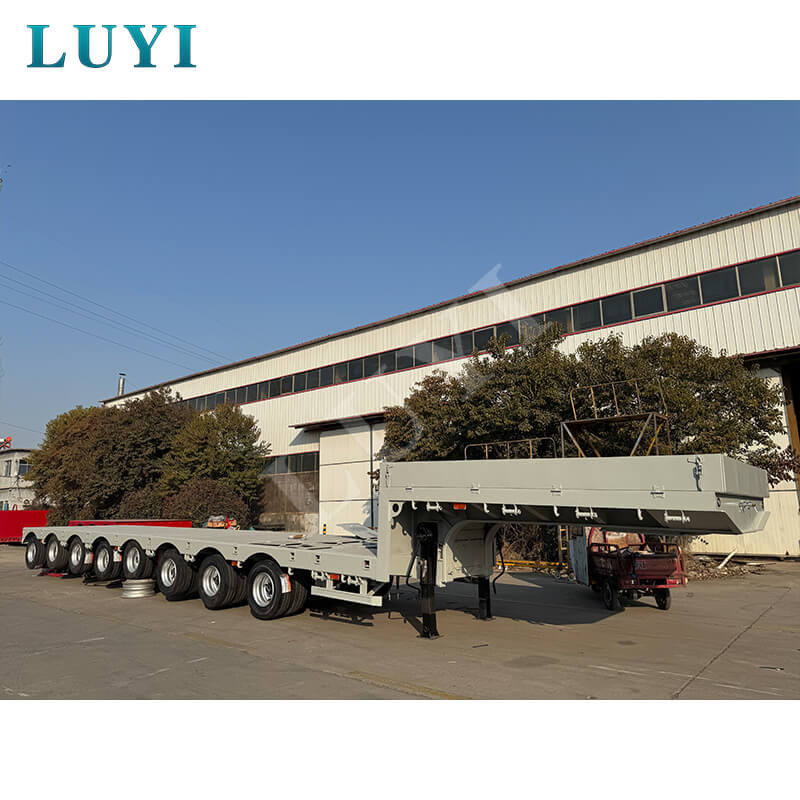

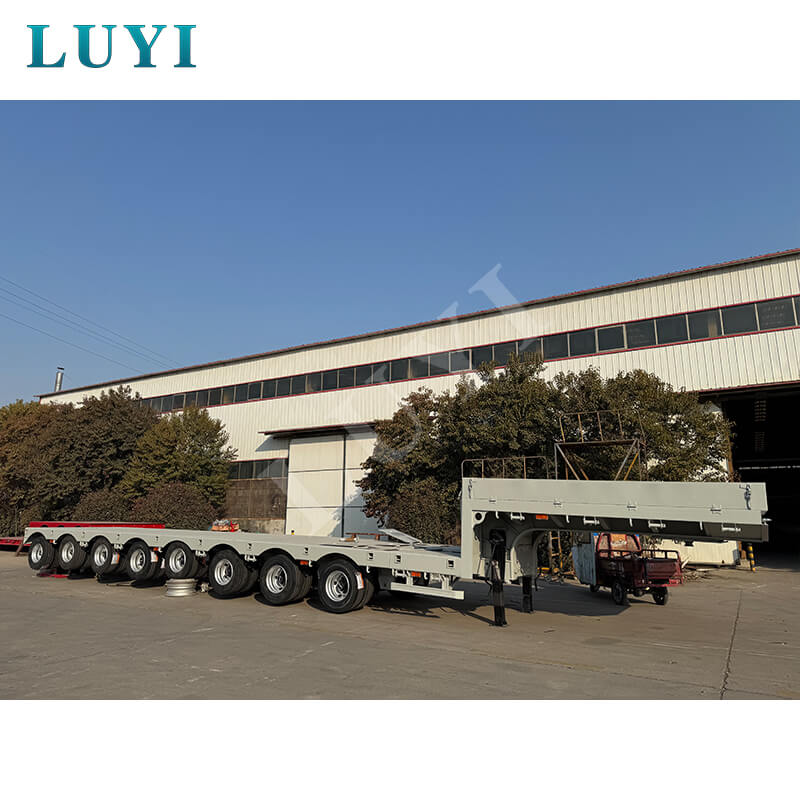

Originating from Shandong, China, the LUYI 8-axle 17m heavy-duty low-bed semi-trailer is a high-performance equipment tailored for heavy cargo transportation. Boasting an 80-ton load capacity and a maximum payload exceeding 30,000 kg, it effortlessly handles large engineering machinery and heavy components. With dimensions of 16900*3000*1800 mm, the low-bed design adapts to over-height cargo, effectively avoiding transportation height restrictions.
The main beam is constructed from T700/Q345 high-strength steel, combined with an 8-axle structure and optional mechanical/air suspension, ensuring stable weight distribution and enhanced safety. The dual-line braking system guarantees driving security, while the standard 28-ton landing gear improves loading and unloading convenience. Equipped with multiple tire specifications (11.00r20, 12r22.5, 315, 385) and JOST standard uprights (2 inches/50mm or 3.5 inches/90mm), the semi-trailer features corrosion-resistant polyurethane paint and offers customizable colors to meet diverse heavy-duty transportation needs.
Size：16900*3000*1800MM
Landing Gear：Standard 28Ton
Max Payload：80T
King pin：2"(50mm)or3.5"(90mm) JOST
Suspension：Mechanical Suspension Air Suspension
Leaf Spring：90(W)mm*13(Thickness)mm*10(Layer)
Tire：12R22.5/12.00R20/11R22.5
Main Beam：T700/Q345 Steel
Color：Customers Optional
