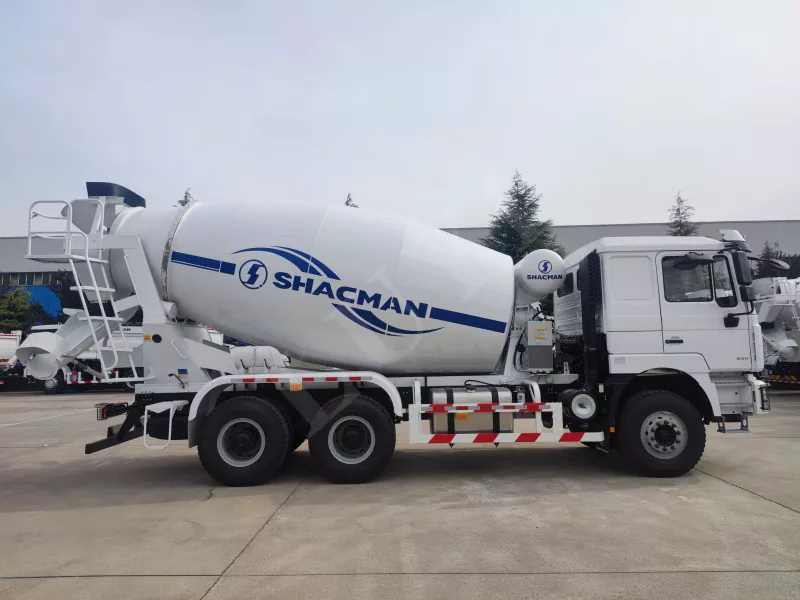

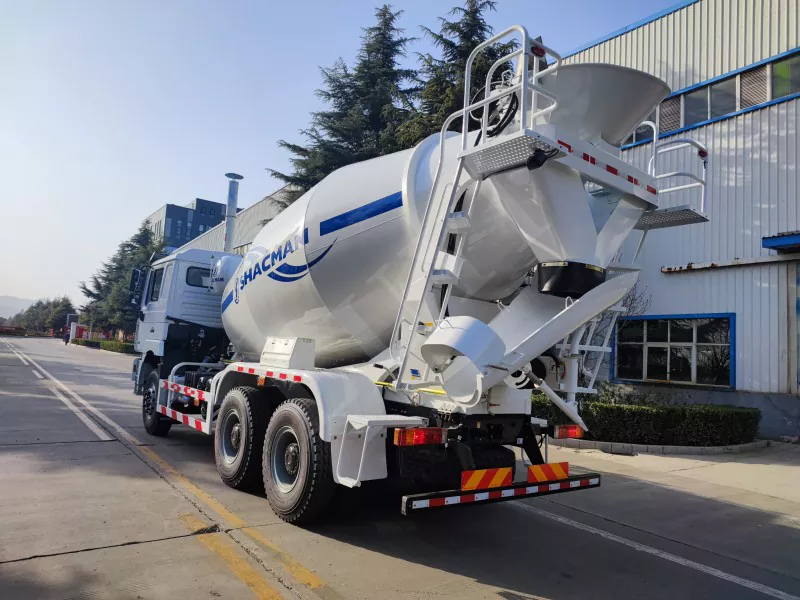

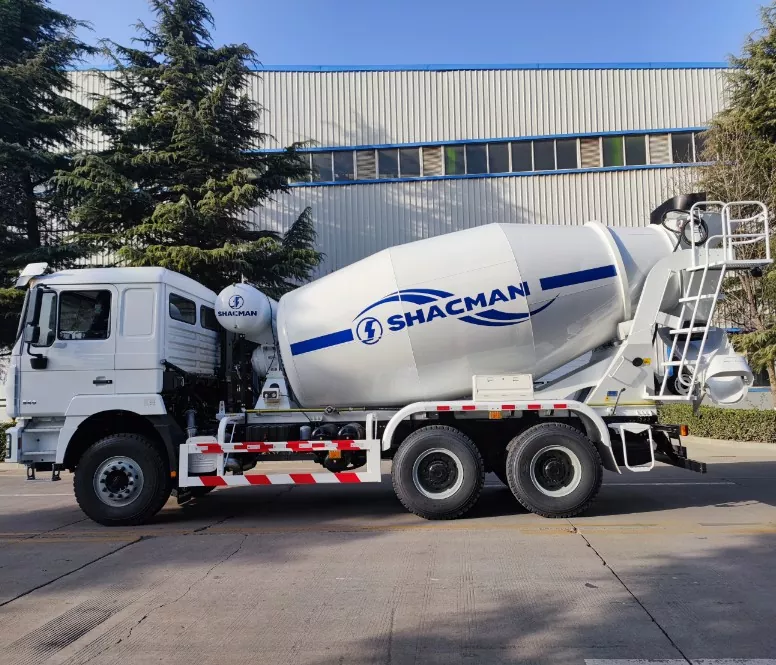

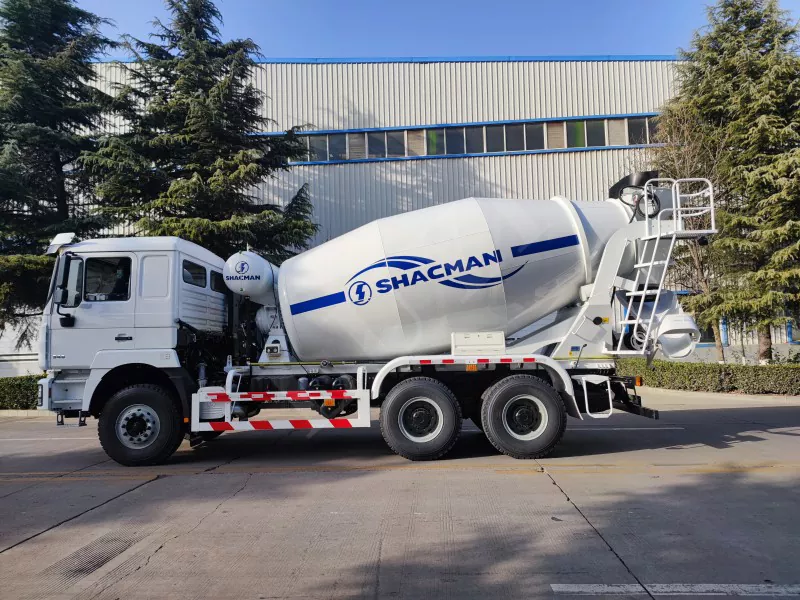

Shaanxi Automobile Cement Mixer

Shaanxi automobile cement mixer takes high power, strong load bearing and long life tank as its core advantages, taking into account the safety and operation comfort, while realizing the balance of environmental protection and economy through LNG version and lightweight design. Its modular configuration and customized service further satisfy the diversified engineering needs, making it the preferred model for infrastructure transportation.

Core Technical Specifications

▸Power and Chassis Performance

    1.Highly efficient powertrain:Equipped with Weichai engines (e.g. WP10.336/340E32 models), the power covers 336-380 hp, with high torque and remarkable fuel economy, which is especially suitable for complex working conditions. Some models are also available in liquefied natural gas (LNG) version, which adopts National IV emission standard, saving about 100,000 RMB in annual fuel cost and providing a driving range of 350 kilometers.

    2.Chassis and load capacity:Adopting double-layer beam structure (such as 850×320mm triple-layer beam) and Mann-Bridge drive system with 16-ton rear axle to enhance the load-carrying capacity; the tires are 12.00R20 steel wire tires, and some models are equipped with lightweight aluminum alloy wheels to enhance the durability.

▸Safety and Reliability

1. Brake system optimization:Equipped with industry-exclusive dual relay valve technology, shortening braking response time by 24% and reducing braking distance by 3.5%; two-stage protection (drying tank + oil-water separation) ensures gas cleanliness and improves braking safety.

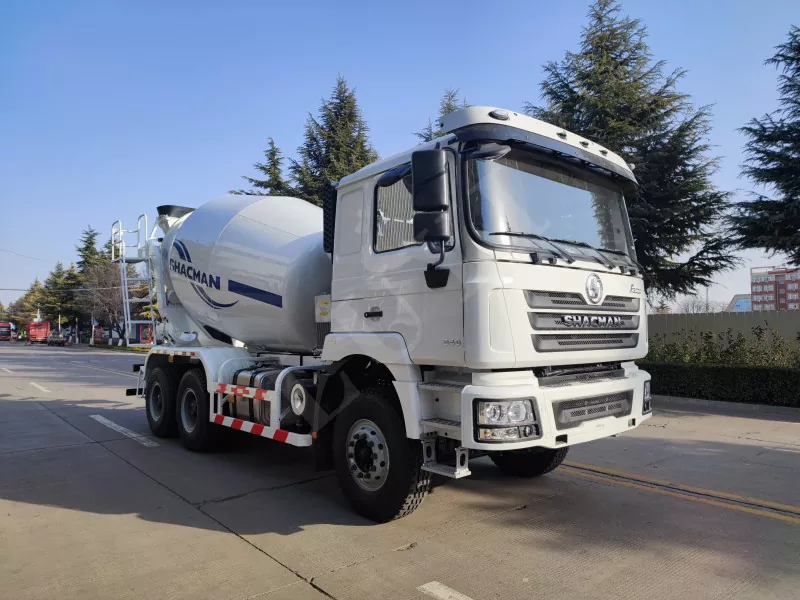

2. Cab safety design:All-steel high-strength cab passes the crash test (front, side, top pressure and anti-drilling verification), and the tank body adopts 10° low inclination design, which reduces the center of gravity of the whole vehicle and enhances the driving stability.

3. Critical Component Reliability:Hydraulic system, reducer and other “three major components” are mostly imported brands (such as Germany Rexroth hydraulic pumps, Italy Bonfiglioli reducer), to ensure the stability of long-term operation.

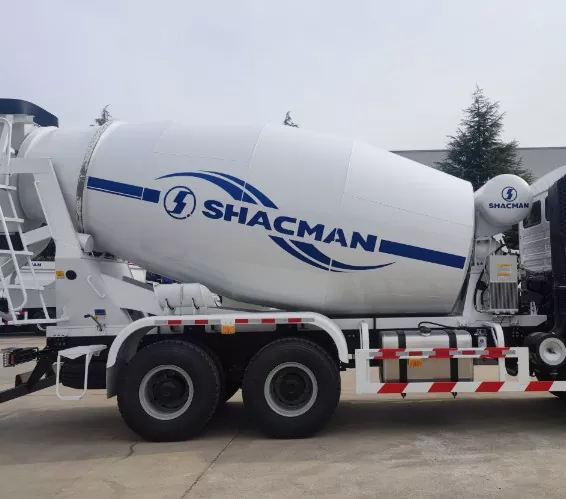

▸Tanks and mixing systems

1. Wear-resistant tank material:The tank is made of T610 high-strength wear-resistant fine grain alloy steel or 16Mn steel, with a thickness of 5mm (6-8mm for the head), and the blades are equipped with wear-resistant guards, which prolongs the service life by 2.5 times, and the residual rate is low and the discharging speed is fast.

2. Optimized structural design:The tank volume covers 6-14 square meters, supporting two working conditions of compound type and highway type: the highest speed of compound type is 75km/h, which is suitable for ramp transportation; the speed of highway type is up to 90km/h, which is suitable for flat road conditions.

▸Handling and comfort

1.Precision control:Equipped with 120mm cylinder bore steering gear, maximum output torque of 7900N-m, the minimum turning diameter is reduced by 2.7 meters, adapting to the needs of narrow site turnaround.

2.Cab Comfort Configuration:The cab is spacious and comes standard with airbag shock-absorbing seats (heated/breathable), multifunctional steering wheel (integrated cruise control, Bluetooth phone), 7-inch touch screen (with navigation and reversing camera), and soundproofing technology that reduces noise by 15%.

Product Parameter (Specification)

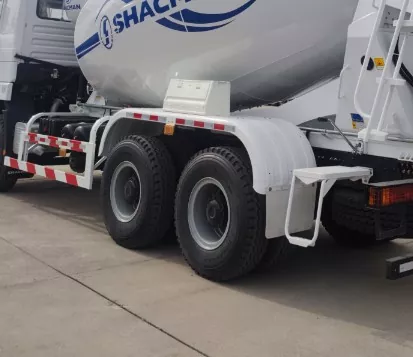

vehicle wheel

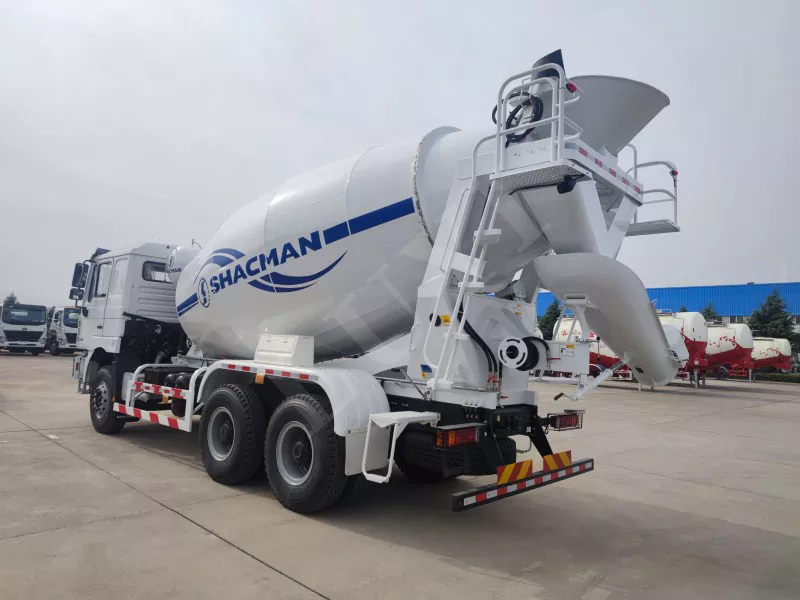

1.Equipped with a 6x4drive system, fearless of complex terrain challenges, ensuring job continuity

Variable load capacity

2.8 to 12 cubic meters of variable load capacity,flexible to meet the needs of various construction projects at hand.

Vehicle structure

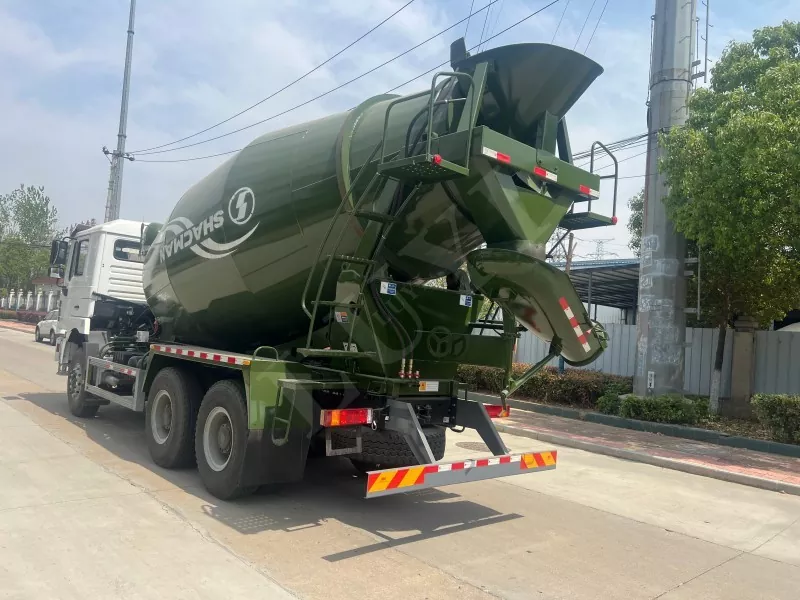

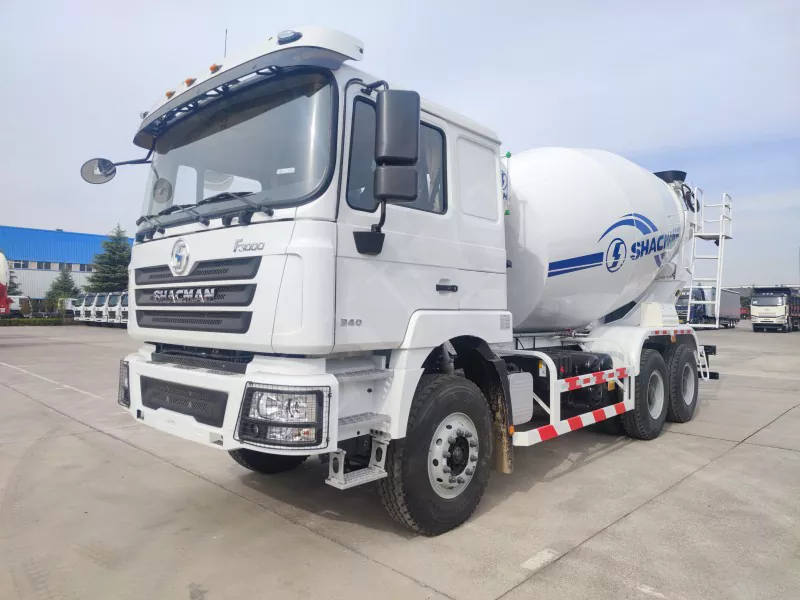

3.Adopting F3000 platform high-strength vehicle structure to enhance load-bearing capacity and operational durability.

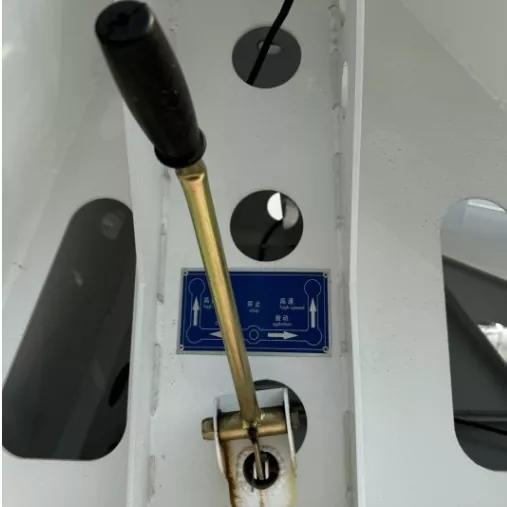

Mixing technology

4.Integrating advanced mixing technology not only improves the uniformity of concrete mixing.

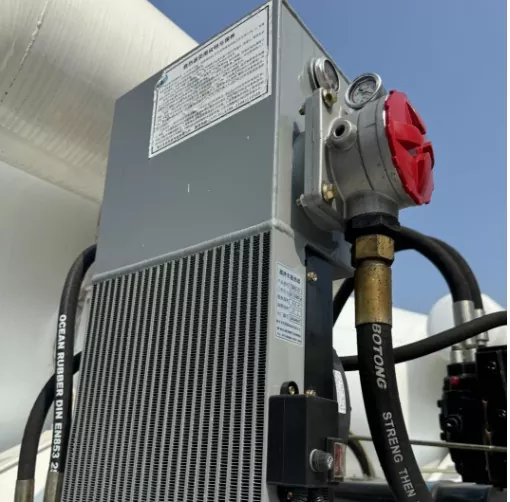

Heat sink

5.The radiator is primarily used to cool critical systems to ensure that the vehicle remains stable over long periods of time.
