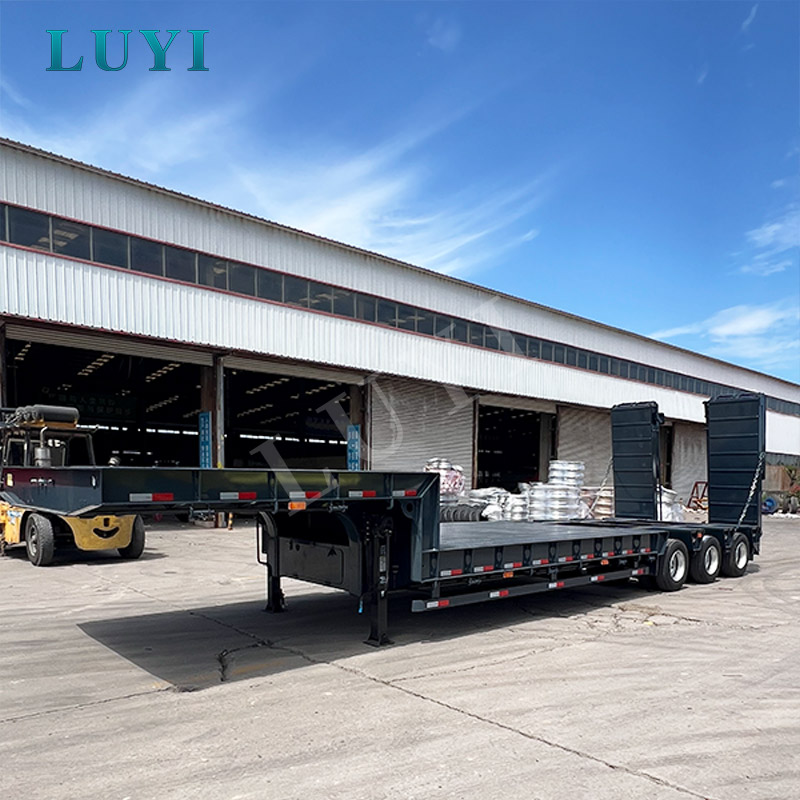

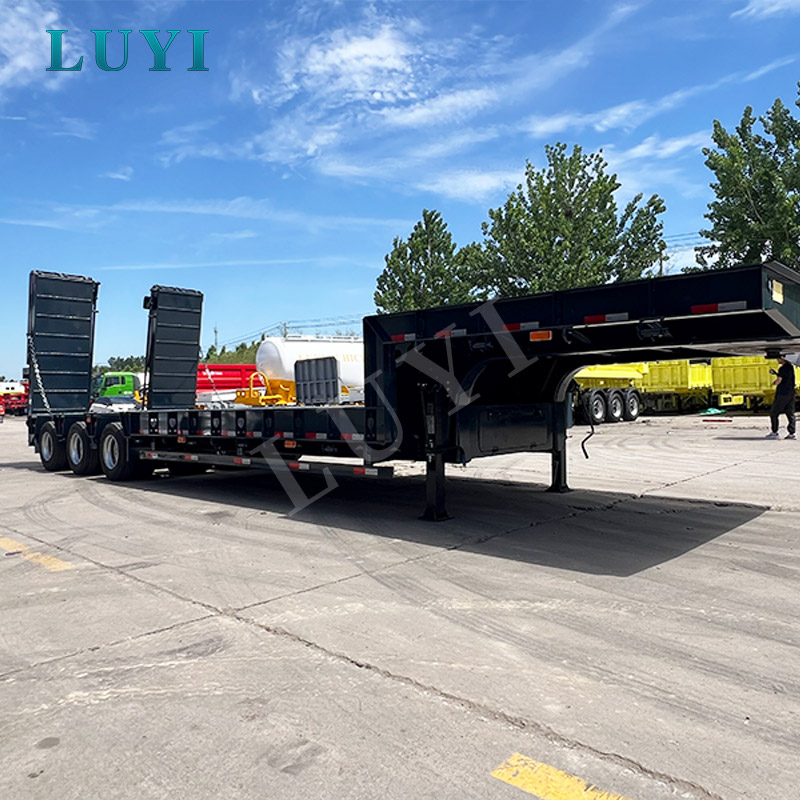

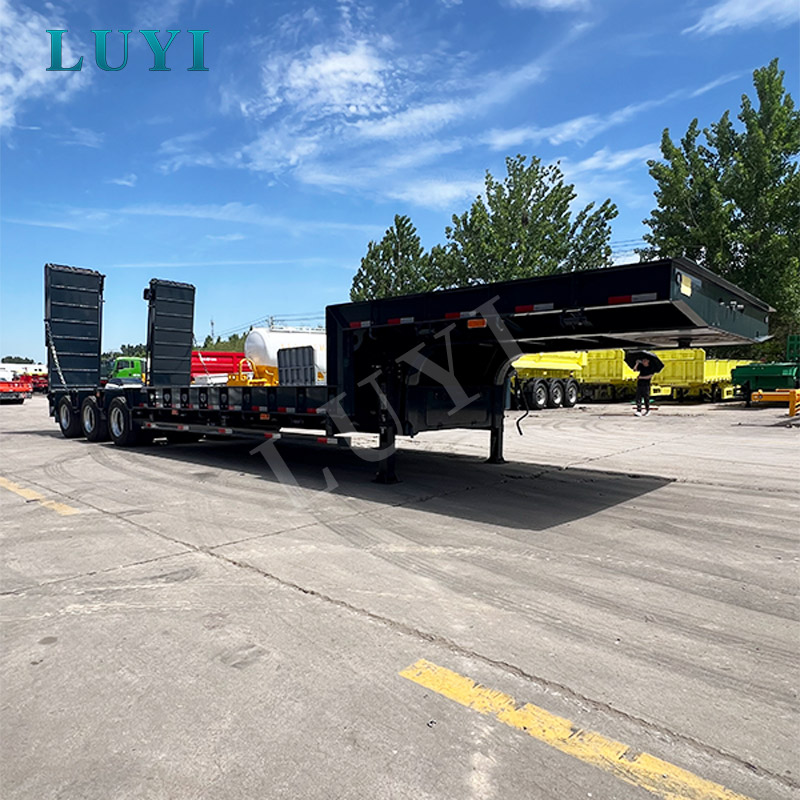

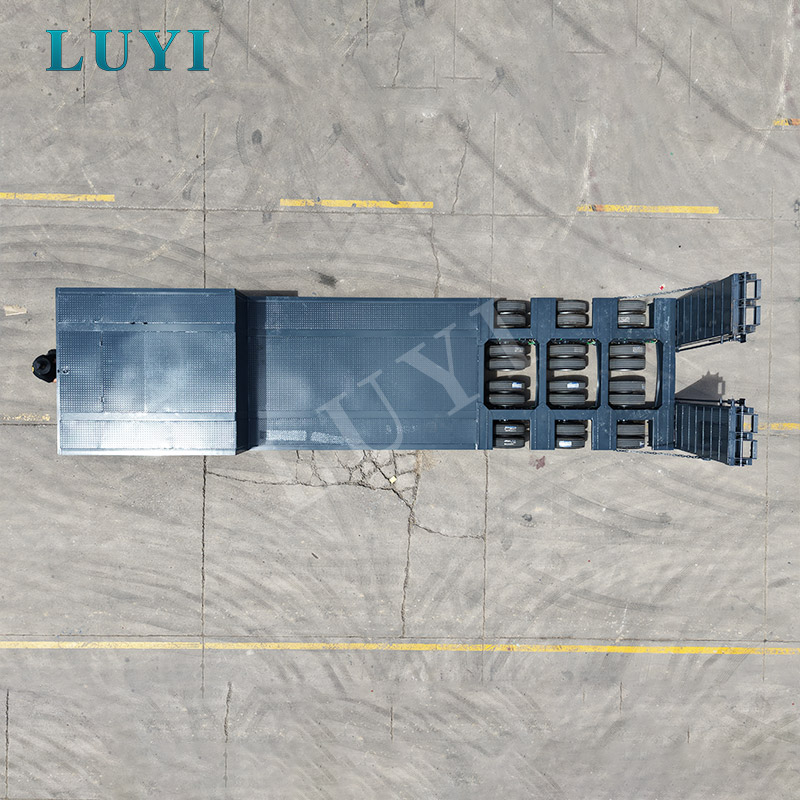

3 Line 6 Axle 80T Lowbed Semi Trailer for Heavy Machinery Transport

Key Applications

The 3 line 6 axle 80T lowbed semi trailer is built for heavy haulage tasks where standard flatbed trailers cannot safely handle the cargo weight, height or loading stability requirements. Its low loading platform helps reduce the center of gravity, while the reinforced gooseneck and multi-axle structure provide better support for oversized machinery and irregular project cargo.

This type of lowbed semi trailer is commonly selected by construction contractors, mining operators, equipment rental companies, agricultural machinery distributors, port logistics providers and infrastructure project teams. It is especially useful when equipment needs to be moved between job sites, mines, ports, farms, factories and project storage yards.

• Construction machinery transport, including excavators, bulldozers, loaders, rollers and cranes
• Mining equipment transfer, such as mining excavators, crushers and heavy site machinery
• Agricultural machinery delivery, including combine harvesters and large tractors
• Industrial equipment transport, such as boilers, generator sets and large steel structures
• Infrastructure project cargo, including bridge girders, tunnel boring machine parts and oversized components
• Special heavy equipment transport for energy, offshore, military and project logistics applications

Technical Specifications

Strengths and Characteristics

The main value of this 3 line 6 axle lowboy trailer is not only its 80-ton rated loading capacity, but also the way its frame, axles, deck and ramp system work together under heavy equipment transport conditions. For machinery logistics, the trailer must handle concentrated loads from crawler tracks, uneven equipment weight distribution and repeated loading impact.

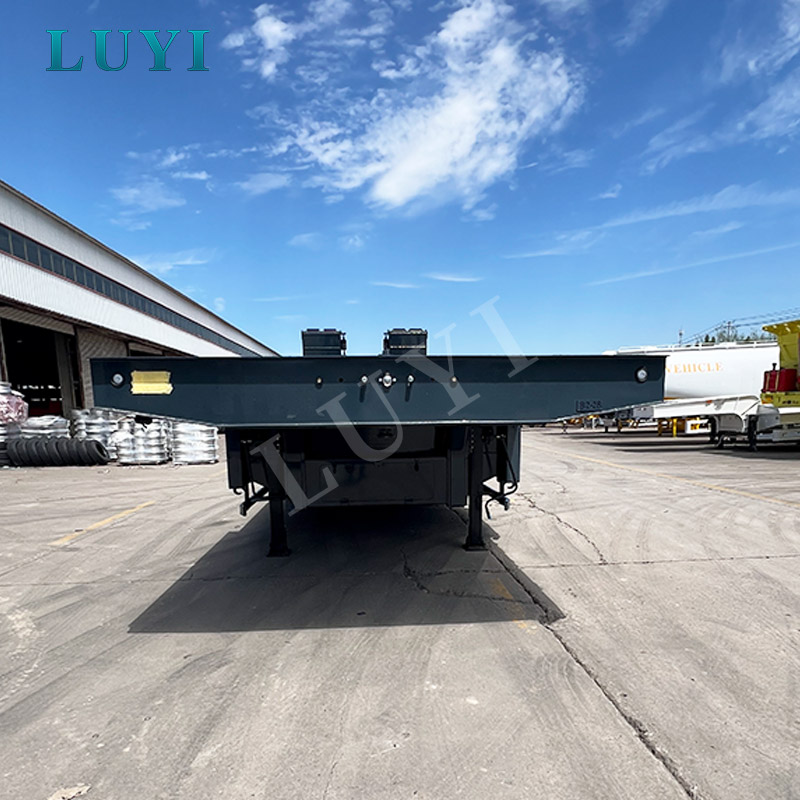

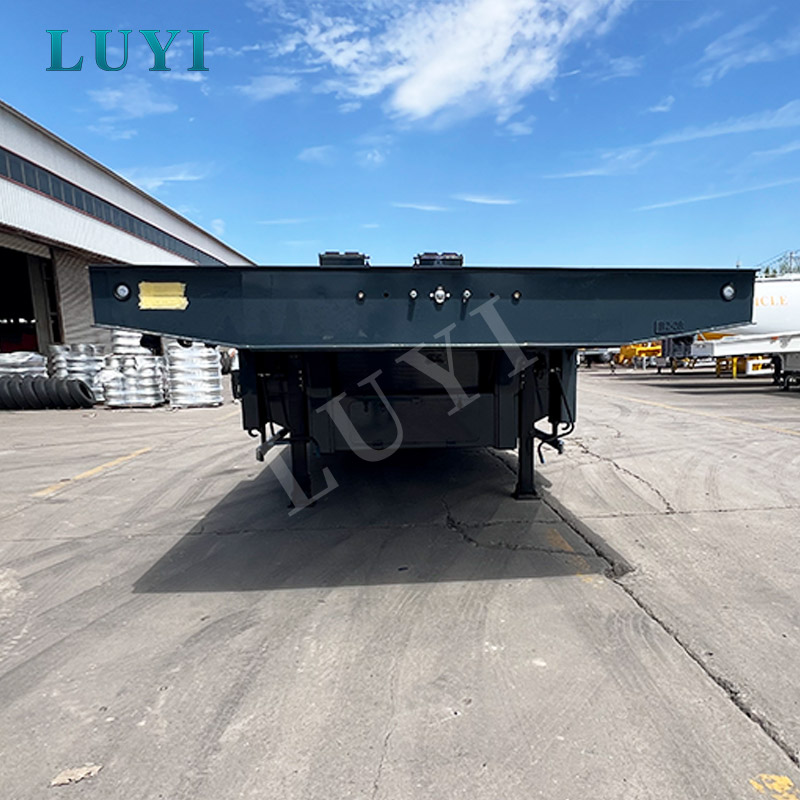

The Q690/ST52 high-strength alloy steel frame is selected to improve deformation resistance during long-distance heavy haulage. The 3,000mm wide deck gives more support for wide equipment, while the low 1,100mm deck height helps reduce the overall transport height of excavators, bulldozers, cranes and industrial equipment. This is important for routes with bridge height limits, overhead lines or road permit restrictions.

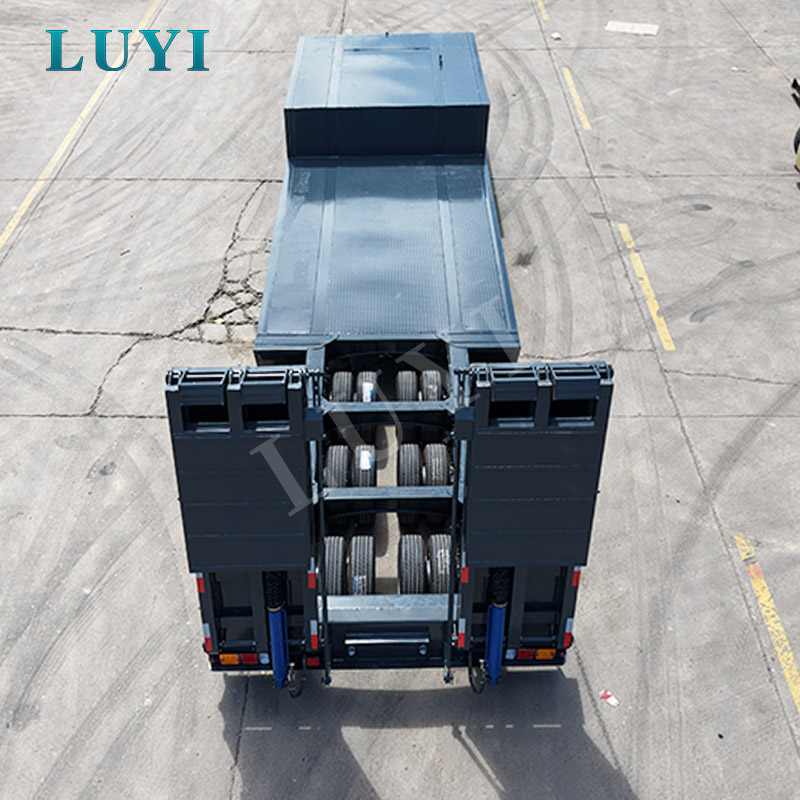

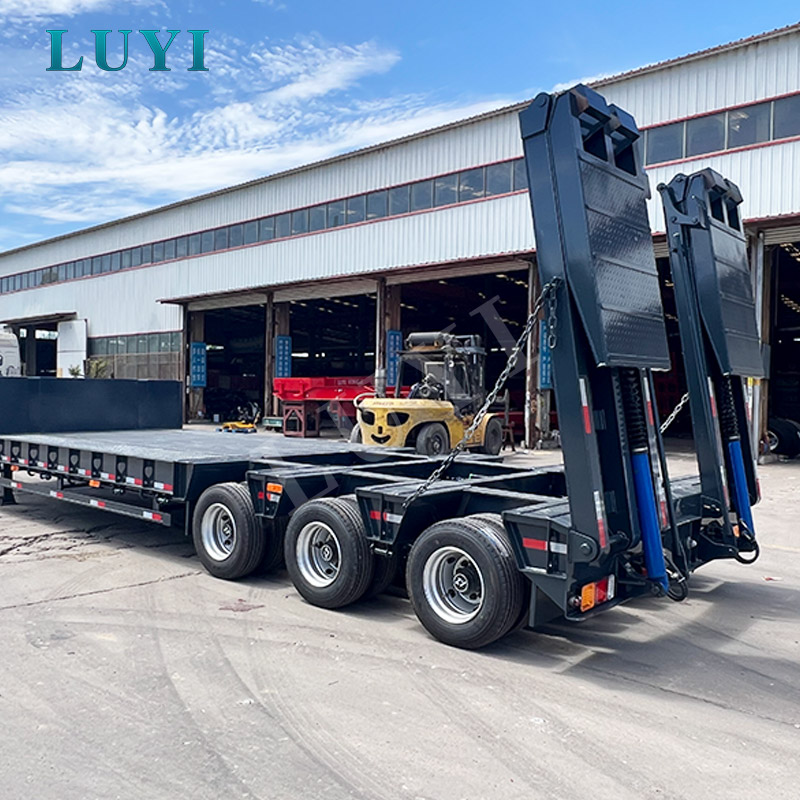

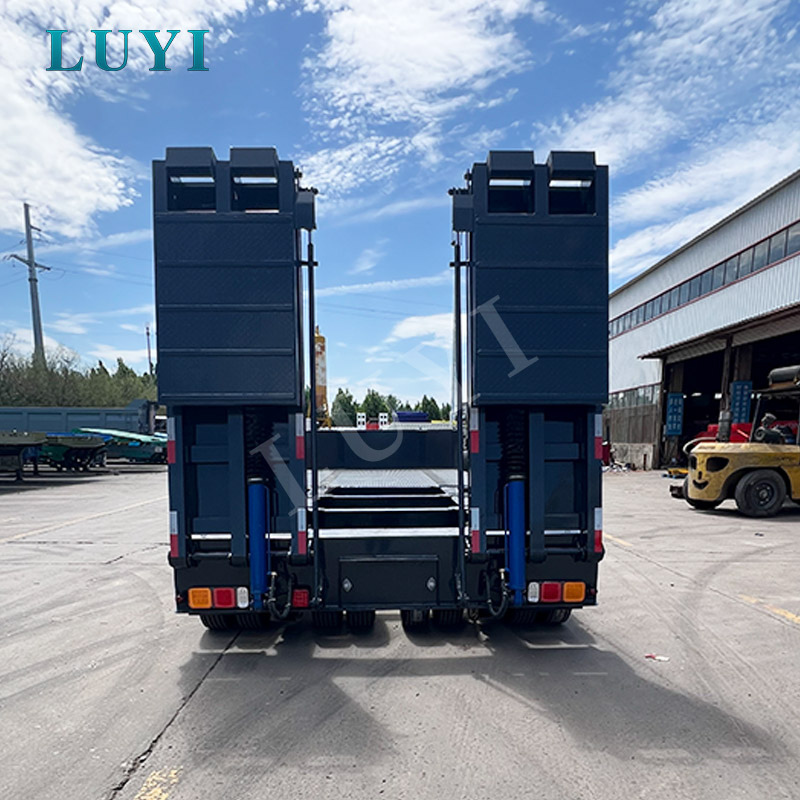

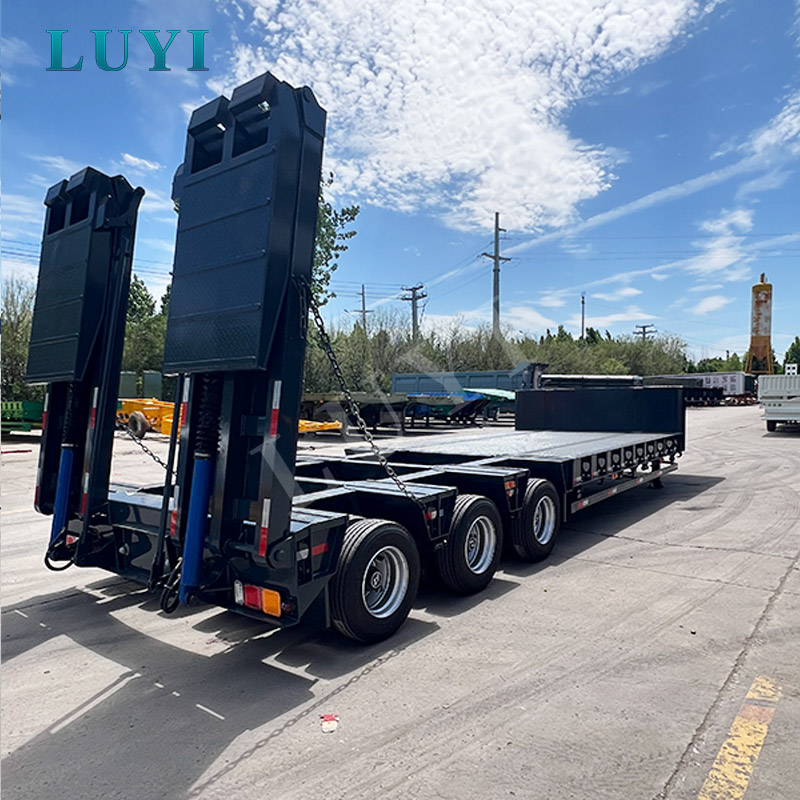

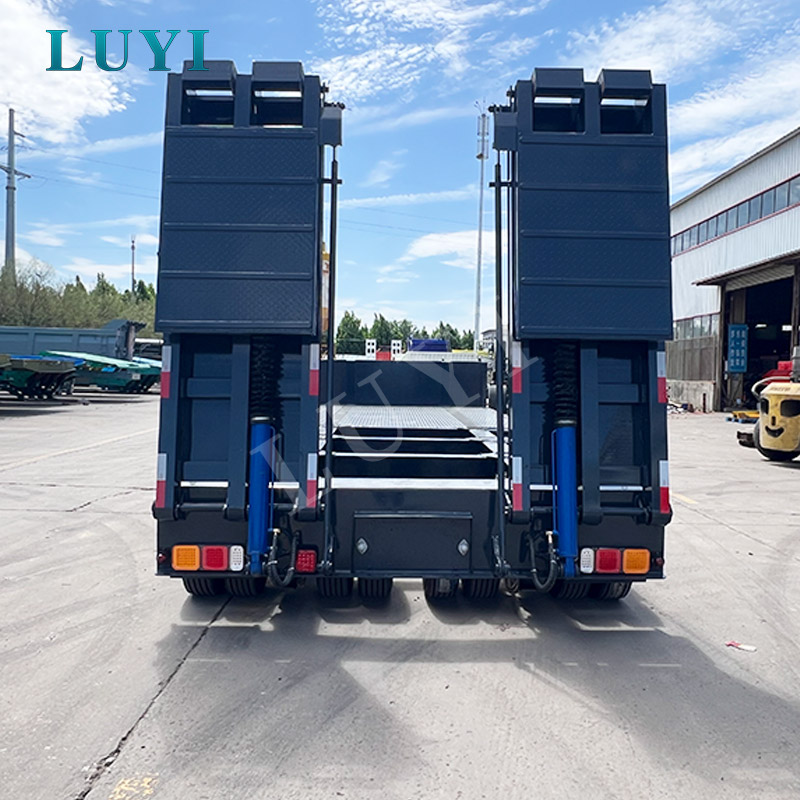

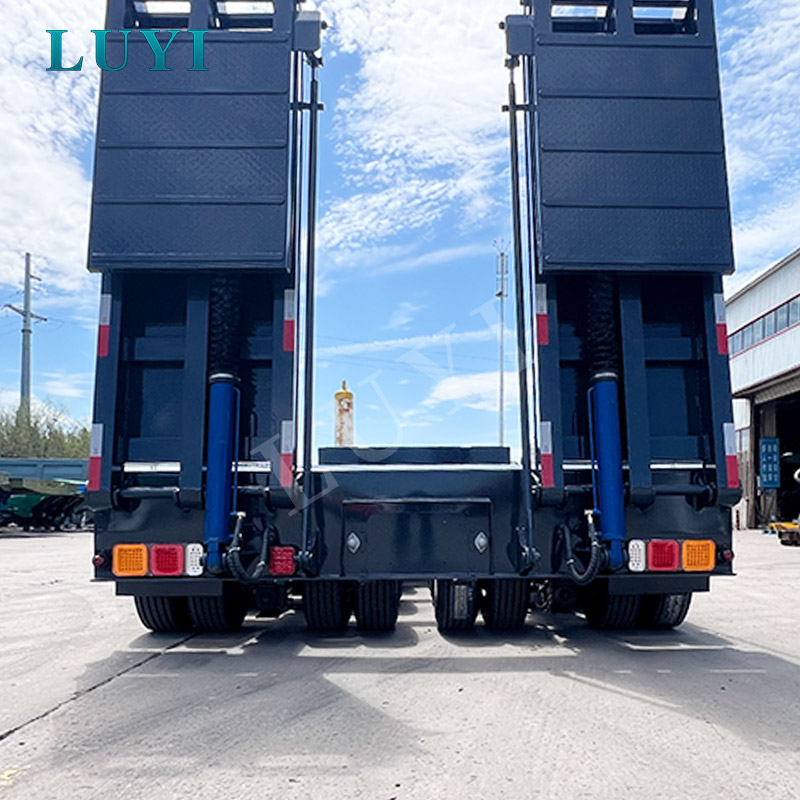

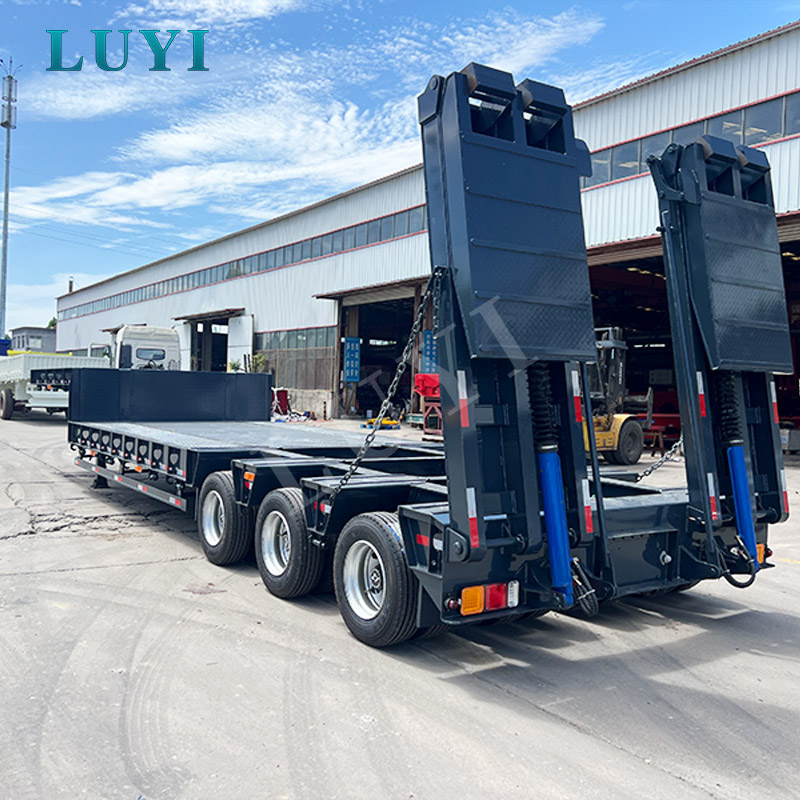

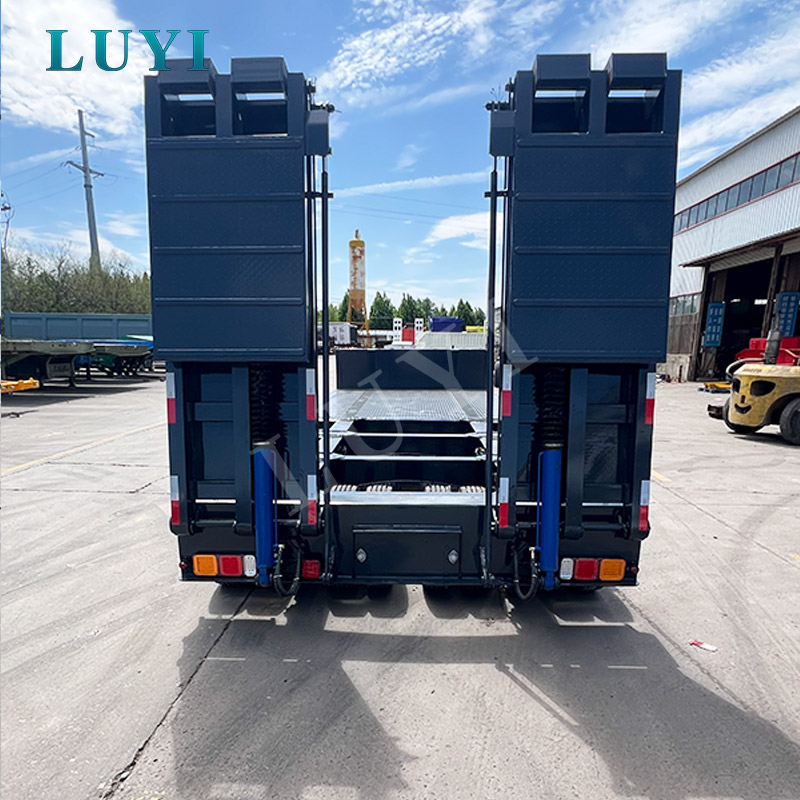

The hydraulic foldable ramps allow many types of construction machinery to self-load and unload without relying heavily on external lifting equipment. For buyers comparing different heavy machinery transport options, Luyi Auto also provides a related 6 axle heavy duty lowbed semi trailer configuration for oversized machinery transport.

Advanced Safety Systems & Compliance

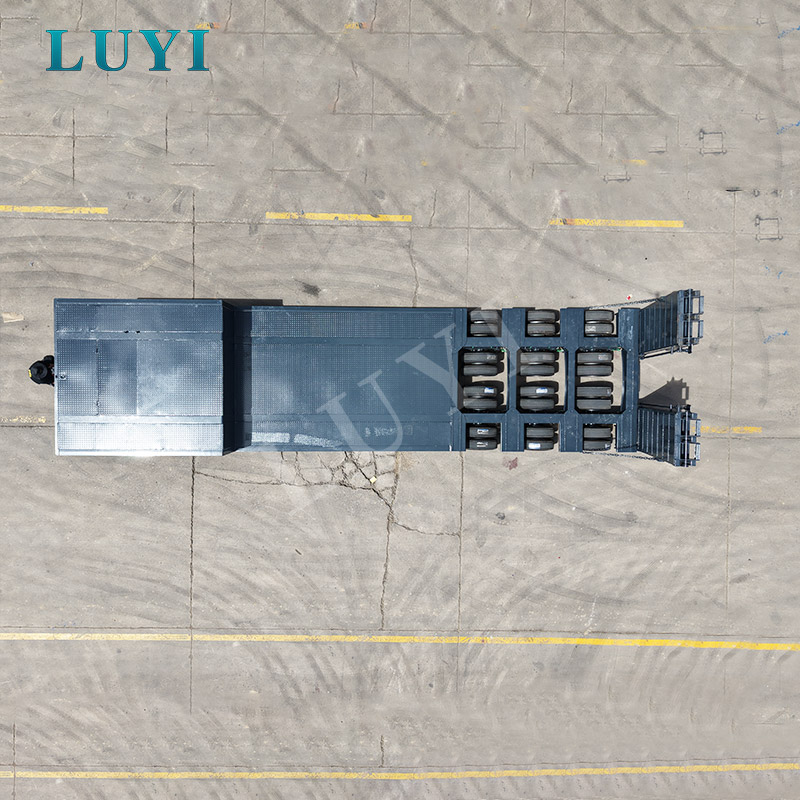

Heavy equipment transport requires stable braking, reliable axle load distribution and clear road-use safety configuration. This model uses 6 heavy-duty axles with 16-ton capacity per axle, combined with a WABCO dual-circuit braking system to support more stable braking under loaded conditions.

The standard heavy-duty rigid suspension is suitable for many heavy haulage routes where strength and load stability are the priority. Air suspension can be selected when the customer needs better shock absorption, smoother transport for sensitive cargo or improved axle load balancing under specific road conditions.

For export projects, the final specification should be checked against local road regulations, including overall width, axle load limit, lighting, reflective markings, braking requirements, permit rules and special transport restrictions. Luyi Auto can adjust dimensions, load capacity and configuration for markets such as Saudi Arabia, Africa and Southeast Asia according to project requirements.

Our Craftsmanship & Quality Control

For a heavy-duty lowbed trailer, manufacturing quality is mainly reflected in the main beam, gooseneck, deck welding, ramp structure, axle alignment, suspension installation and anti-corrosion treatment. These are the areas that directly affect service life, loading safety and maintenance cost.

Before delivery, Luyi Auto technicians inspect welding quality, main beam dimensions, structural strength, axle installation, suspension system, braking system, lighting system, ramp movement, surface coating and accessory completeness. The coating process includes professional sand blasting, zinc-rich primer and two-component topcoat to improve rust resistance during sea shipping and long-term outdoor operation.

For buyers who want to understand the production base, welding process, assembly area and inspection workflow, more information is available on the Luyi Auto factory page.

Optional Configurations & Customization

Heavy machinery transport is not a one-specification business. The best configuration depends on cargo weight, machine track width, working route, road condition, local axle-load regulations, unloading method and budget. Luyi Auto can customize the trailer structure according to actual transport requirements instead of only offering a fixed standard model.

• Trailer dimensions: length, width and deck structure can be adjusted according to cargo size
• Load capacity: standard 80-ton configuration, with structural upgrades available for heavier equipment
• Axle configuration: heavy-duty axle selection based on payload and local axle-load rules
• Suspension system: rigid suspension as standard; air suspension optional
• Ramp system: hydraulic foldable ramps, with ramp capacity upgrade available up to large machinery requirements
• Hydraulic steering system: optional for complex routes and special heavy transport operations
• Support legs: extended or widened support legs available for improved loading stability
• Tires: 12R22.5, 8.25R15 or solid tire options depending on road condition
• Accessories: special toolboxes, spare tire brackets and additional safety equipment
• Surface finish: polyurethane spray paint or powder coating color according to customer requirement

If your cargo includes excavators, mining equipment, crushers, harvesters or oversized steel structures, send the cargo drawing, weight, track width, loading method and destination country through the Luyi Auto inquiry form so the engineering team can recommend a suitable lowbed trailer configuration.

Packaging and Transportation

Before shipment, the trailer receives anti-rust wax and marine paint protection to reduce corrosion risk during sea transportation. Small parts are packed in cartons or wooden boxes and fixed securely to prevent loss or damage during loading and shipping.

The trailer can be shipped by RO-RO vessel, flat rack or bulk carrier from major Chinese ports. For heavy-duty lowbed trailers, shipping method should be selected according to trailer dimensions, destination port conditions, shipping cost and delivery schedule. Luyi Auto can assist with loading coordination, export documents and shipment planning. Standard lead time is usually 15–30 working days after deposit, depending on customization and production schedule.

Why Choose Luyi Auto

For heavy haulage buyers, the key question is not only whether a trailer can carry 80 tons on paper. The more important question is whether the structure, axle layout, ramp system, suspension, braking and coating are suitable for the buyer’s real cargo and route conditions.

Luyi Auto supports project-based configuration discussions for construction machinery transport, mining equipment relocation, agricultural machinery delivery and infrastructure cargo movement. Buyers can also review related construction and infrastructure transport cases and mining and heavy haulage trailer solutions to understand how trailer configuration is matched with actual working conditions.

From quotation to shipment, Luyi Auto can support configuration review, production coordination, pre-delivery inspection, export documentation, shipping arrangement and spare parts communication. For after-sales and technical support details, visit Luyi Auto service support or contact the team through the contact page.

FAQ

1. What is the main use of a 3 line 6 axle lowbed semi trailer?
It is mainly used for transporting heavy and oversized machinery such as excavators, bulldozers, loaders, cranes, mining equipment, crushers, agricultural harvesters, industrial boilers and large infrastructure components.

2. How much weight can this lowboy trailer carry?
The standard rated load capacity is 80 tons, with a gross vehicle weight of 120 tons. Actual transport capacity should also be checked against local axle-load regulations, road conditions, tire specification and cargo weight distribution.

3. Why choose a lowbed design instead of a flatbed trailer?
A lowbed trailer lowers the cargo center of gravity and helps reduce overall transport height. This improves stability when transporting tall or heavy machinery and can make route planning easier where bridge height or overhead clearance is limited.

4. Can the ramps be upgraded for heavier equipment?
Yes. The standard hydraulic foldable ramps have a load capacity of at least 60 tons, and ramp capacity can be upgraded according to the loading and unloading requirements of large construction machinery up to higher project demands.

5. Can this trailer be customized for local road regulations?
Yes. Dimensions, load capacity, axle configuration, suspension type, braking system, lighting, reflective markings and accessories can be discussed according to local road regulations and destination-market requirements.

6. What information should I send before requesting a quote?
Please send the cargo type, cargo weight, machine dimensions, track width, loading method, road condition, destination country, required axle configuration and quantity. These details help Luyi Auto recommend a safer and more cost-effective trailer configuration.

Need a lowbed trailer recommendation? Send your cargo weight, machinery dimensions, road condition and destination country through the Luyi Auto inquiry form to get a project-based configuration and quotation.
