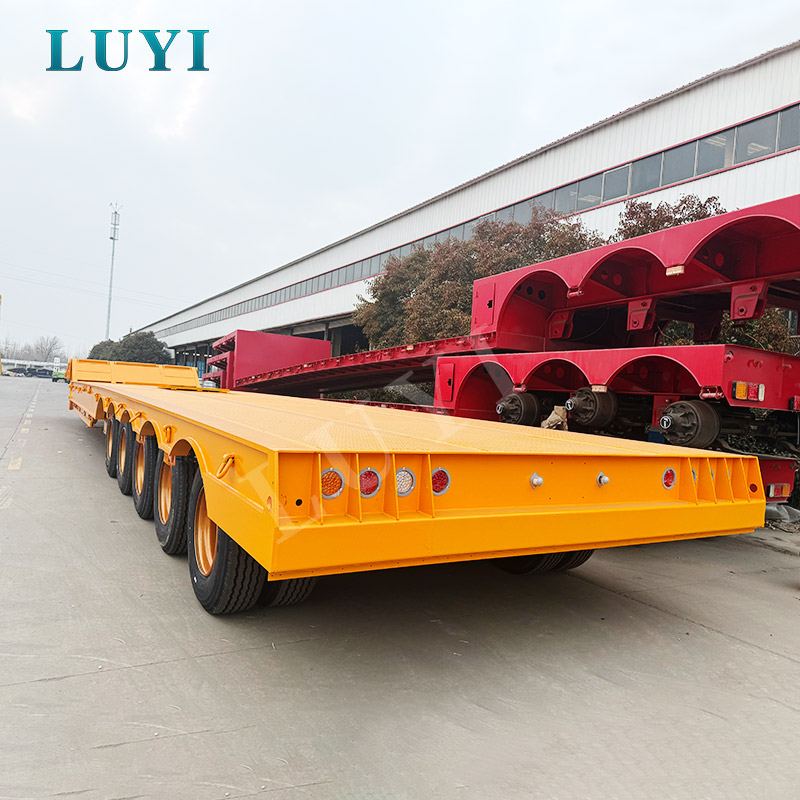

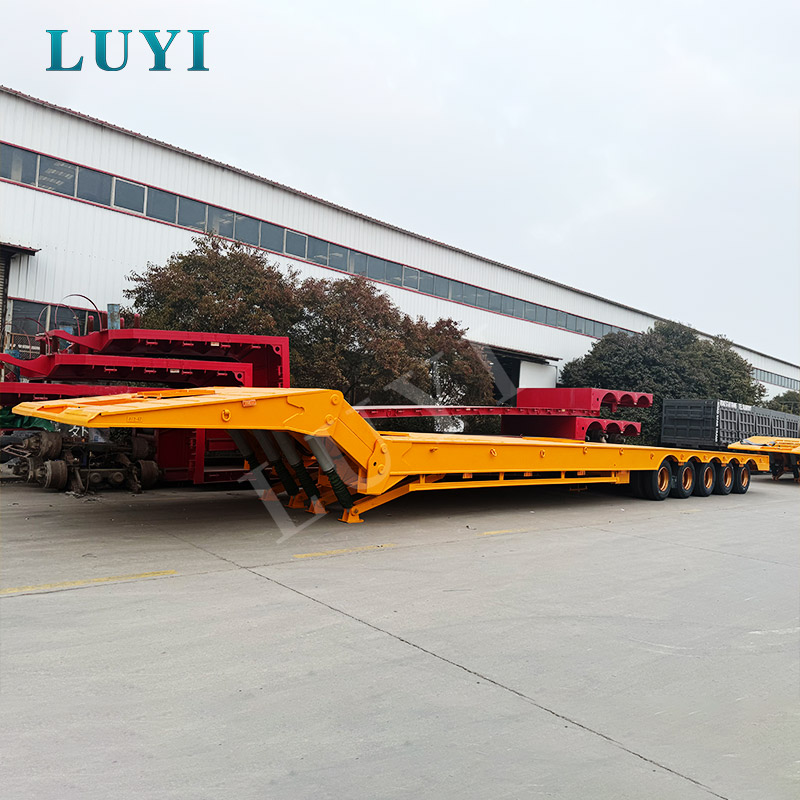

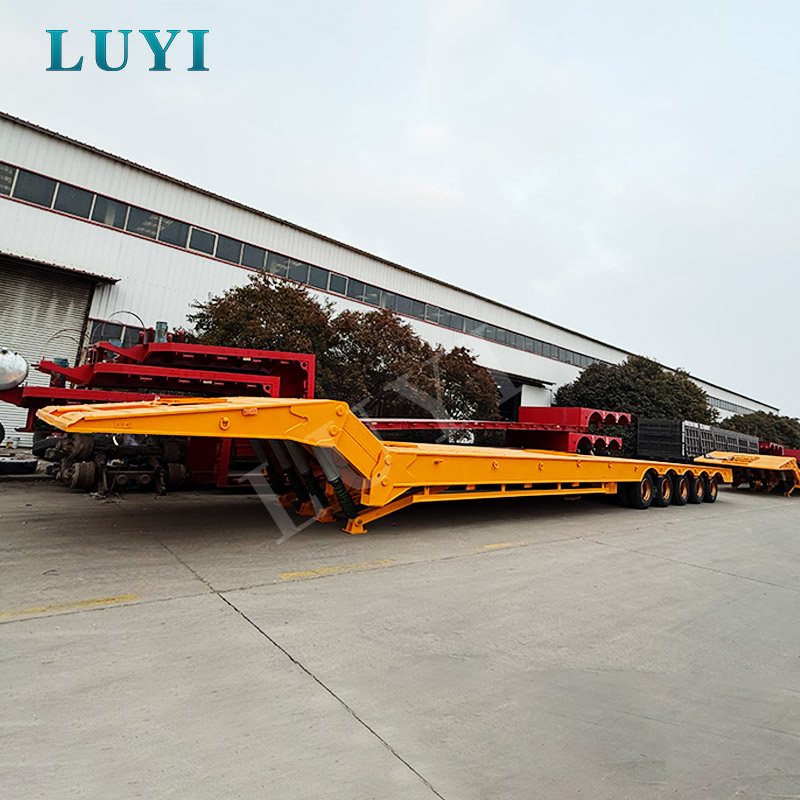

5 Axle Lowbed Gooseneck Carrier for 80T Heavy Equipment Transport

Key Applications

The 5 axle lowbed gooseneck carrier is built for transport jobs where cargo height, weight, loading angle and jobsite efficiency all matter. It is suitable for carrying excavators, bulldozers, loaders, rollers, cranes, mining excavators, crushers, combine harvesters, large tractors, industrial boilers, generator sets, bridge girders, tunnel boring machine components and other oversized project cargo.

For construction contractors, mining fleets, machinery rental companies and infrastructure logistics providers, this type of lowbed semi trailer is especially valuable when the cargo needs a lower center of gravity and safer loading height. The low platform improves stability during long-distance transport, while the gooseneck structure helps distribute front-end stress when carrying heavy equipment.

The detachable front gooseneck design allows front-end loading without relying on a crane in many operating scenarios. This means self-propelled machines can drive on and off the trailer more efficiently, which helps reduce waiting time at construction sites, mining areas, ports and equipment transfer yards.

For buyers comparing similar heavy-haul solutions, this model can also be evaluated alongside Luyi Auto’s 5-axle foldable gooseneck lowbed semi trailer, detachable gooseneck lowboy trailer and heavy-duty gooseneck lowbed trailer according to loading method, deck height, axle layout and local transport regulations.

Technical Specifications

Strengths and Characteristics

The main advantage of this 5 axle lowbed gooseneck carrier is its ability to combine heavy load capacity, low deck height and easier front-end loading. For buyers moving high-value machinery, the trailer structure must support the load while also keeping the equipment stable during braking, turning and long-distance operation.

The reinforced high-strength steel main beam is designed with a 16mm upper plate, 10mm lower plate and 18mm middle plate. This structure helps improve resistance to bending and torsion when the trailer carries concentrated loads from excavators, crushers, bulldozers and other heavy machines.

The 5 axle layout helps distribute the load more evenly across the trailer, which is important for heavy equipment transport routes where road conditions, axle load limits and tractor matching must be considered together. The leaf spring suspension is a practical choice for heavy-duty operation in markets where durability, serviceability and parts availability are important.

The 8-meter pull-out extension function gives fleets more flexibility when moving long machinery, steel structures or irregular cargo. Instead of using a different trailer for every cargo length, buyers can use this extendable lowbed design to support a wider range of transport tasks.

Compared with a standard flatbed semi trailer, this lowbed gooseneck carrier is better suited for taller and heavier machines because the lower platform helps reduce total transport height and improves center-of-gravity control.

Advanced Safety Systems & Compliance

Heavy machinery transport requires predictable braking, stable lighting and reliable coupling between the tractor and trailer. This model uses a WABCO brake valve and double brake chamber configuration to support braking performance under heavy-load conditions. The double chamber system is especially useful when the trailer operates on long routes, uneven roads or jobsite access roads.

The trailer is equipped with a 24V 7-pin ISO 1185 socket and LED lighting system, including rear combination lights, side marker lights, license plate lights and brake lights. These configurations help improve visibility during night operation, long-distance transport and port-to-project delivery.

The detachable front gooseneck loading structure also supports safer loading for self-propelled machinery. When the loading method is matched correctly, excavators, bulldozers and other equipment can drive onto the deck from the front, reducing dependence on cranes or temporary loading platforms.

For international buyers, local road regulations may affect axle configuration, overall width, lighting layout, brake requirements and permitted load. Before production, Luyi Auto recommends that buyers provide destination country, expected cargo weight, cargo dimensions, tractor model and route conditions so the engineering team can check whether the standard configuration needs adjustment.

Our Craftsmanship & Quality Control

Luyi Auto manufactures lowbed trailers with attention to the real stress points found in heavy equipment transport. For gooseneck lowbed carriers, the main beam, gooseneck connection, axle area, side beam and deck plate are all important because they directly affect long-term structural stability.

During production, key welding areas are processed with automatic submerged-arc welding where applicable. The welding quality, main beam dimensions, reinforced load-bearing areas and structural alignment are checked before the trailer enters final assembly.

After assembly, the axle, suspension, braking system, electrical system, landing gear, tool box, spare tire frame and lighting system are inspected one by one. Surface finish and anti-rust treatment are also checked before shipment to reduce corrosion risk during sea transport.

For export orders, Luyi Auto keeps inspection records for production traceability. Buyers who want to review factory capability can visit the Luyi Auto factory page to better understand manufacturing support, production environment and export-oriented trailer supply capability.

Optional Configurations & Customization

A lowbed gooseneck carrier should be configured according to the buyer’s cargo weight, cargo height, route restrictions, tractor model, road conditions and local regulations. Luyi Auto supports configuration-based customization instead of simply offering one fixed trailer specification.

• Axle configuration: 5 axle / 13-ton axle configuration for this model; axle layout can be discussed according to load and road regulation requirements.
• Gooseneck design: Hydraulically fixed gooseneck with detachable front loading design for self-propelled machinery loading.
• Deck extension: 8-meter pull-out extension function for longer equipment and oversized project cargo.
• Suspension: Leaf spring suspension as standard; other suspension options can be reviewed according to operating environment.
• Landing gear: 28-ton landing gear for heavy-duty parking and support operation.
• Tire specification: 275/70 R22.5 tire specification, with market-specific matching available after confirmation.
• Brake and electrical system: WABCO brake valve, double brake chamber, 24V 7-pin ISO 1185 socket and LED lighting configuration.
• Surface treatment: Polyurethane spray paint or powder coating; color can be customized according to the client’s fleet identity.
• Accessories: Spare tire frame, toolbox and other practical accessories can be confirmed before production.

If your project involves different machinery sizes or more specialized loading requirements, you can also compare this model with Luyi Auto’s heavy-duty low loader trailer or submit your cargo details through the contact page for configuration advice.

Packaging and Transportation

Before shipment, the trailer is treated with anti-rust wax and marine paint to help protect the frame, deck, accessories and exposed metal areas during sea transportation. This is especially important for long-distance export shipments, humid port storage and cross-border delivery projects.

Small parts are packed in cartons or wooden boxes and securely fixed to reduce the risk of loss or damage during port handling. The trailer can be shipped by RO-RO vessel, flat rack or bulk carrier depending on destination port, shipping cost, sailing schedule and trailer configuration.

Before loading, Luyi Auto carries out a full inspection covering welding quality, main beam dimensions, structural strength, axle and suspension installation, braking system, lighting system, paint finish, anti-rust treatment and accessory completeness. Export documents and shipment coordination can be arranged according to order requirements.

Why Choose Luyi Auto

For heavy machinery transport equipment, a buyer needs more than a low price. The trailer must match cargo weight, loading method, road conditions, axle load restrictions, tractor compatibility and long-term maintenance requirements. Luyi Auto supports buyers with configuration-based communication before production, helping reduce the risk of buying a trailer that looks suitable but does not match the real jobsite.

Luyi Auto supplies a wide range of semi trailers and heavy-duty trucks, including lowbed trailers, flatbed trailers, sidewall trailers, tanker trailers, powder tank trailers and rear tipping trailers. This makes it easier for buyers to compare different transport solutions under one supplier system.

For this 5 axle lowbed gooseneck carrier, the engineering and export team can help review payload, cargo dimensions, loading method, shipping method, tire and suspension requirements, paint color, accessories and documentation before order confirmation. This process is especially useful for contractors, fleet owners and project buyers who need a trailer that fits both cargo and local road conditions.

To receive a practical quotation, buyers should send cargo name, cargo weight, cargo dimensions, destination country, tractor model, road conditions, preferred shipping port and any local transport restrictions.

Send your heavy equipment transport requirements and request a configuration-based quote.

FAQ

1. What is the basic setup of this 5 axle lowbed gooseneck carrier?

This model is a 5 axle lowbed semi trailer with 13-ton axles, 80-ton loading capacity, low loading platform, 8-meter pull-out extension function, hydraulically fixed gooseneck and detachable front loading design.

2. What cargo can this trailer transport?

It is suitable for excavators, loaders, bulldozers, rollers, cranes, mining machines, crushers, agricultural machinery, industrial boilers, generator sets, steel structures and other heavy or oversized equipment.

3. Why choose a detachable front gooseneck design?

A detachable front gooseneck design allows many self-propelled machines to drive onto the trailer from the front. This can reduce crane dependence, shorten loading time and improve efficiency at construction sites, mining areas and machinery transfer yards.

4. How do I know whether 5 axles are enough for my project?

Axle selection should be based on cargo weight, cargo length, road conditions, local axle load limits and tractor capability. Buyers should provide cargo and route details before quotation so Luyi Auto can check whether the 5 axle configuration is suitable.

5. Can this trailer be customized for local road regulations?

Yes. Overall dimensions, axle layout, lighting, braking system, suspension, tire specification, accessories and paint color can be discussed according to destination market requirements and transport conditions.

6. What information should I send before requesting a quote?

Please send the cargo name, cargo weight, cargo dimensions, destination country, tractor model, loading method, road conditions, preferred shipping port and any local road regulation requirements. This helps Luyi Auto provide a more accurate configuration and quotation.
