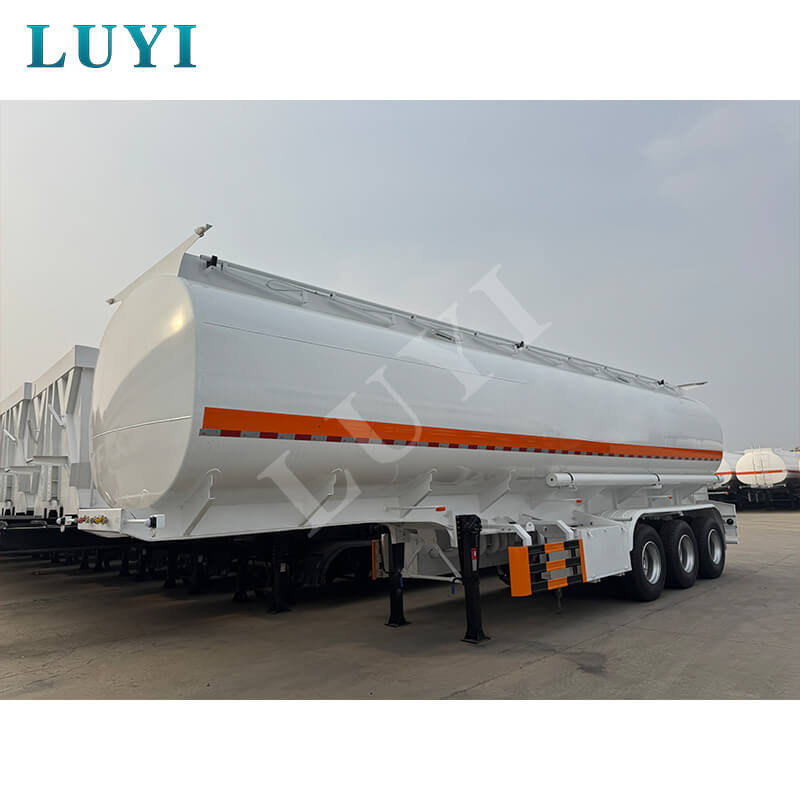

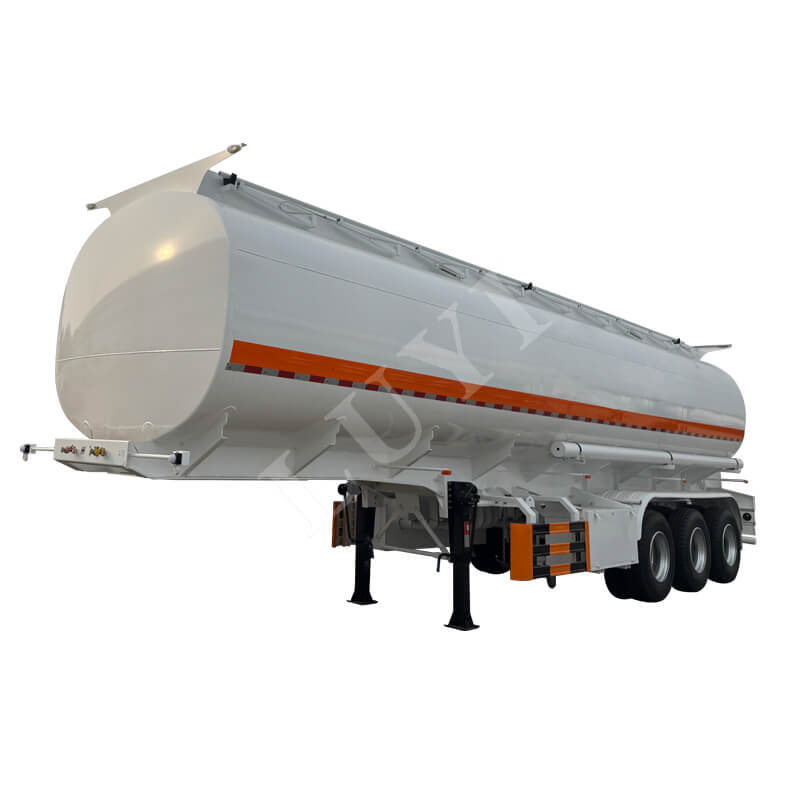

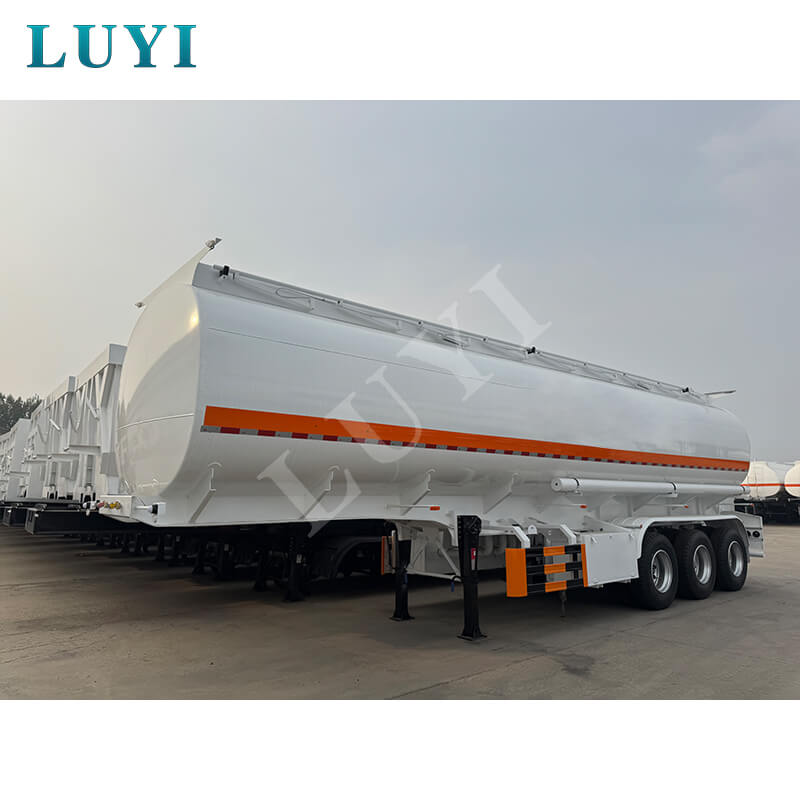

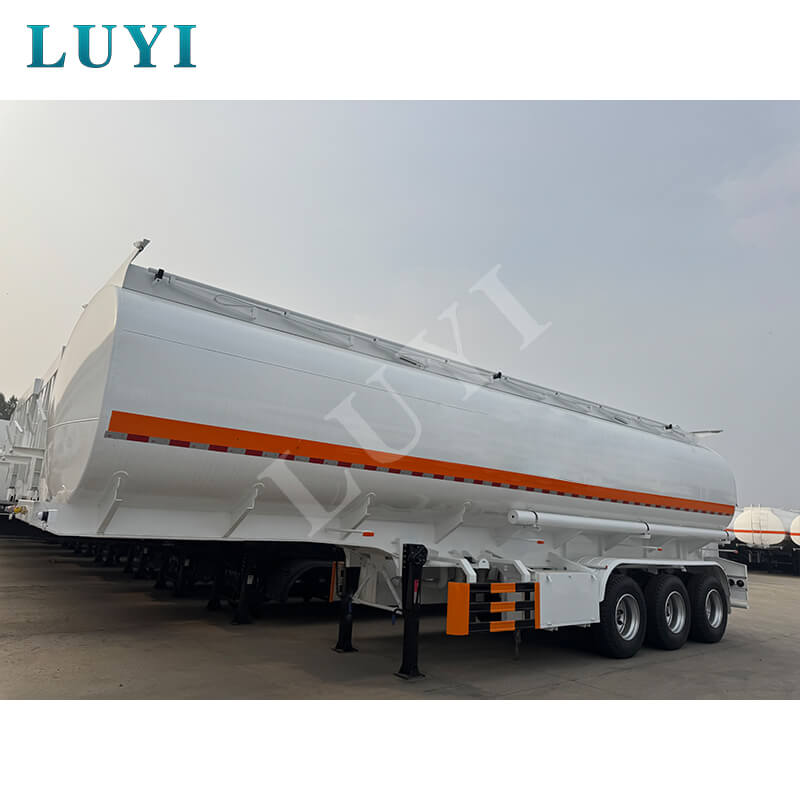

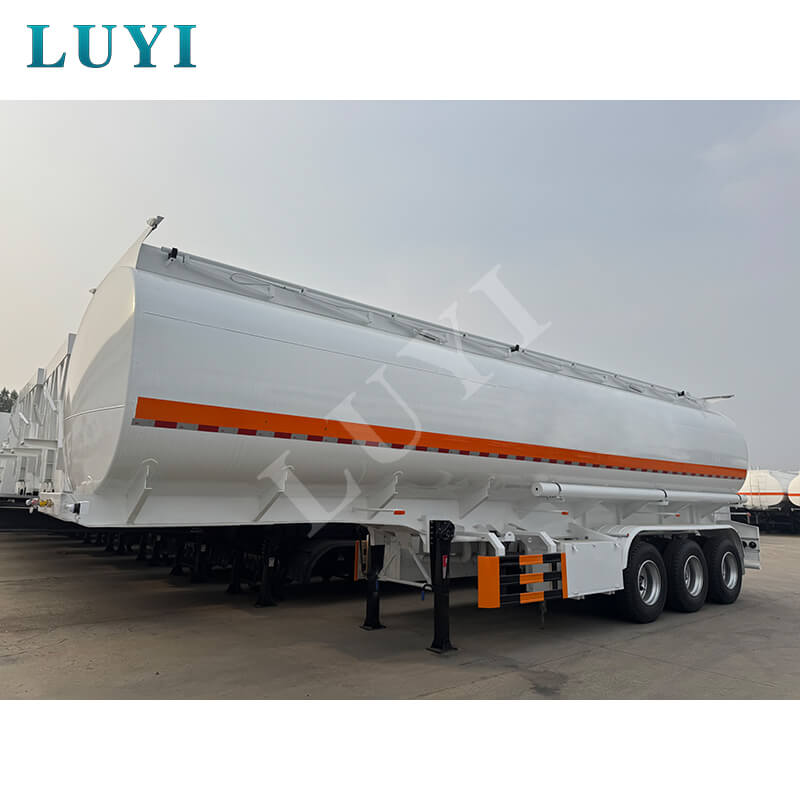

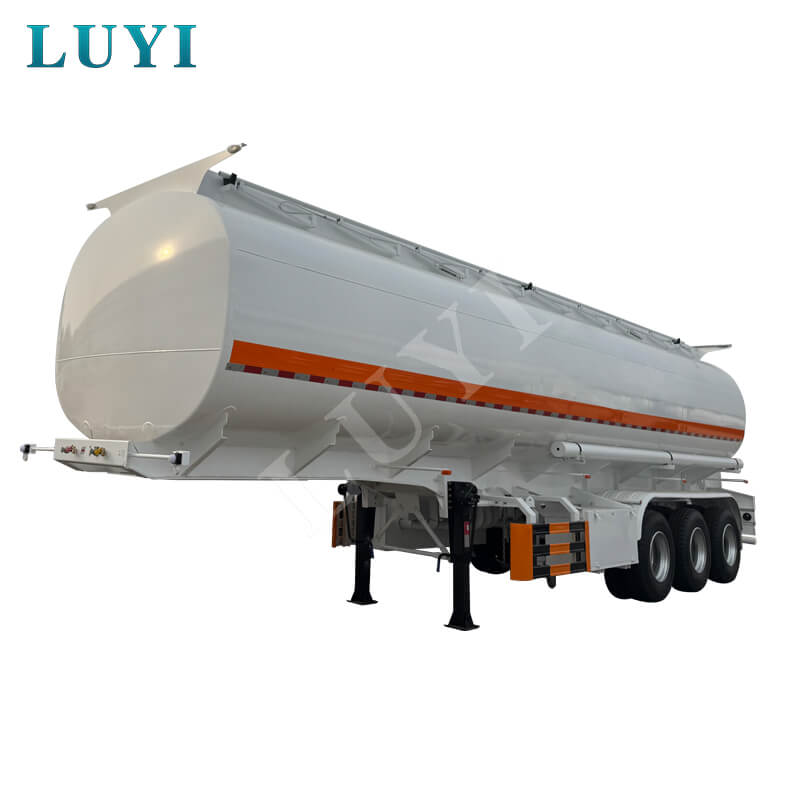

3-axle 40,000-liter carbon steel oil tank semi-trailer

LUYI 3-Axle 40,000L Carbon Steel Tanker Semi-Trailer, originating from Shandong Province, China, is a high-efficiency truck semi-trailer specially designed for transporting oil materials such as diesel, gasoline, and crude oil. The body mainly adopts carbon steel, with aluminum alloy as an alternative option. Equipped with 90×13×10mm leaf springs and a mechanical suspension system, it features a solid and durable structure suitable for various transportation scenarios.

With dimensions of 12,500×2,500×3,600mm, it boasts a strong load-bearing capacity with a maximum effective payload of 60 tons. Configured with 3 axles (ZY/FUWA/BPW options) and multiple specifications of tires (12R22.5/12.00R20/11R22.5), it ensures stable and reliable driving. Fitted with JOST standard 28-ton support legs and 2-inch (50mm) or 3.5-inch (90mm) JOST kingpins, it offers strong adaptability and easy operation. Colors can be customized as needed, balancing practicality and personalization, making it a preferred equipment for oil transportation.

Size：12500x2500x3600MM

Tire：12R22.5/12.00R20/11R22.5

King pin：2"(50mm)or3.5"(90mm) JOST

Leaf Spring：90(W)mm*13(Thickness)mm*10(Layer)

Axle：3 axle ZY/FUWA/BPW

Function：Transport Diesel, gasoline, petroleum, crude oil

Suspension：Mechanical suspension

Color：Customers Optional

FAQ

1. What are your advantages?

We have 15 years of export work experience, and our products have been exported to more than 60 countries and

regions including Africa, the Middle East, Southeast Asia, South America, etc.

We have a professional after-sales service technical team that can solve your problems in time

2. What payment methods do you accept?

L/C and T/T

3. We want tubeless trucks, is that ok?

Yes, both radial tires and tubeless tires are optional.

4. What logistics methods can you use for transportation?

We can use various transportation tools to transport construction machinery.

(1) Our main mode of transportation is that the machine will be shipped by container or ro-ro/bulk.

(2) For China's inland neighboring countries, we can ship the machine by road or rail.

(3) For urgently needed spare parts, we can ship by DHL, TNT, UPS or FEDEX.

5. In addition, what other products does your factory produce?

Our factory not only produces tractors, but also dump trucks, sprinkler trucks, truck cranes, mixer trucks, dump trailers,

tank trailers, low-bed trailers, dust removal trailers, etc.

Our factory is large in scale and can customize different products according to different customer r
