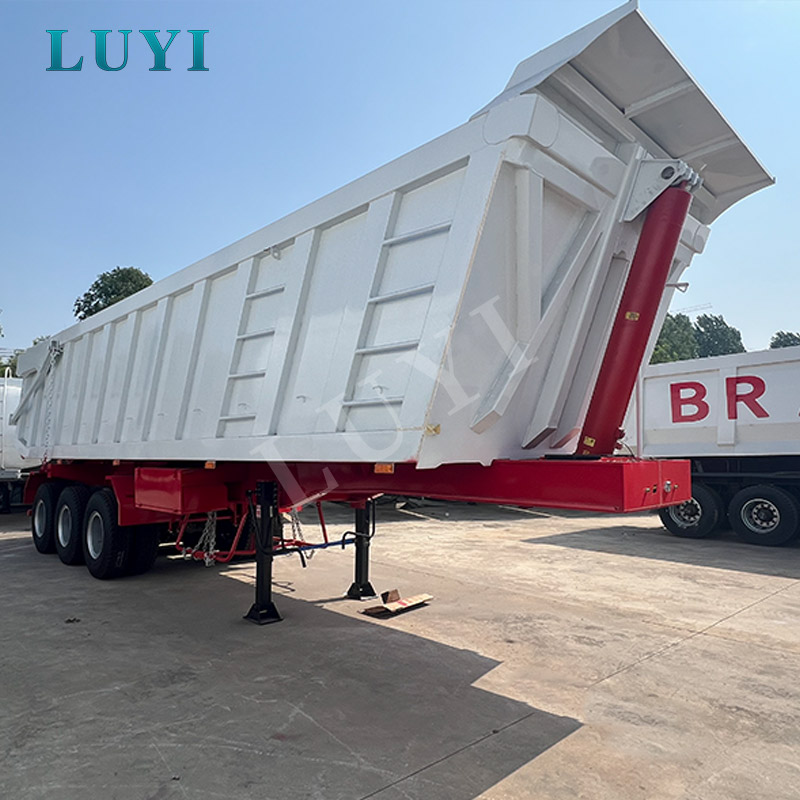

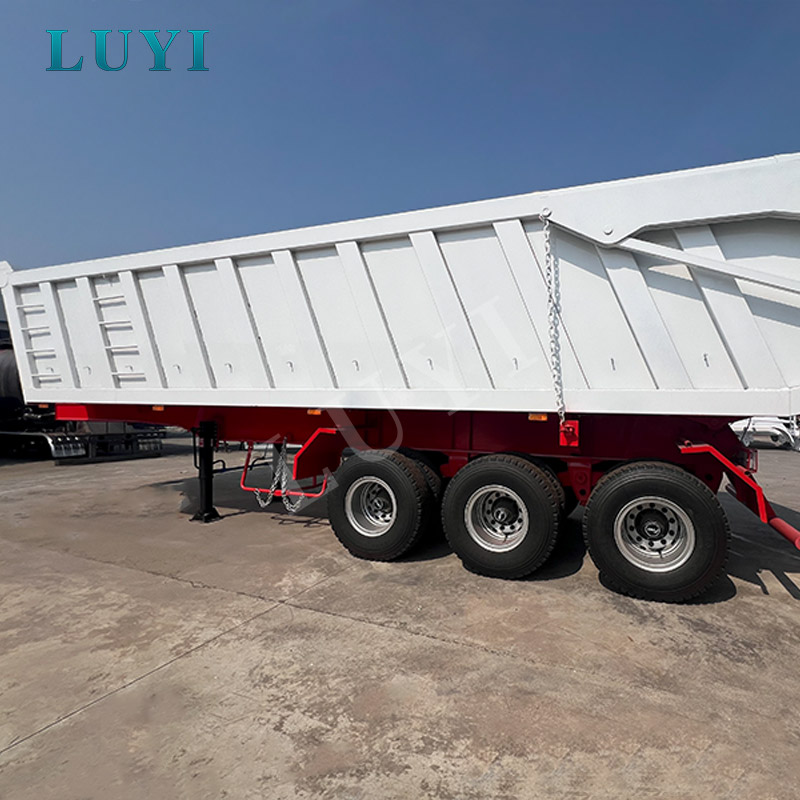

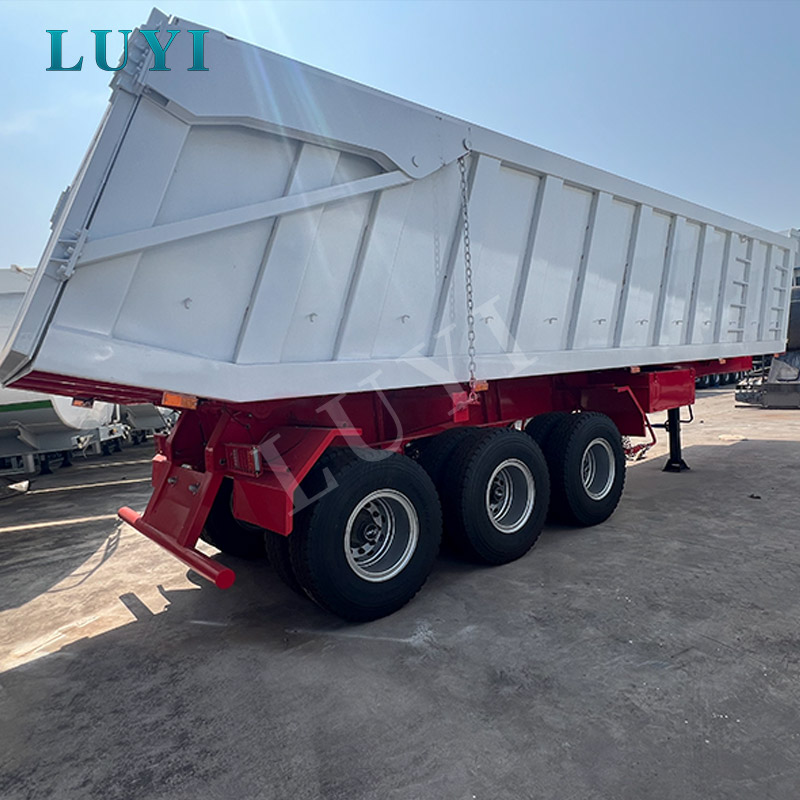

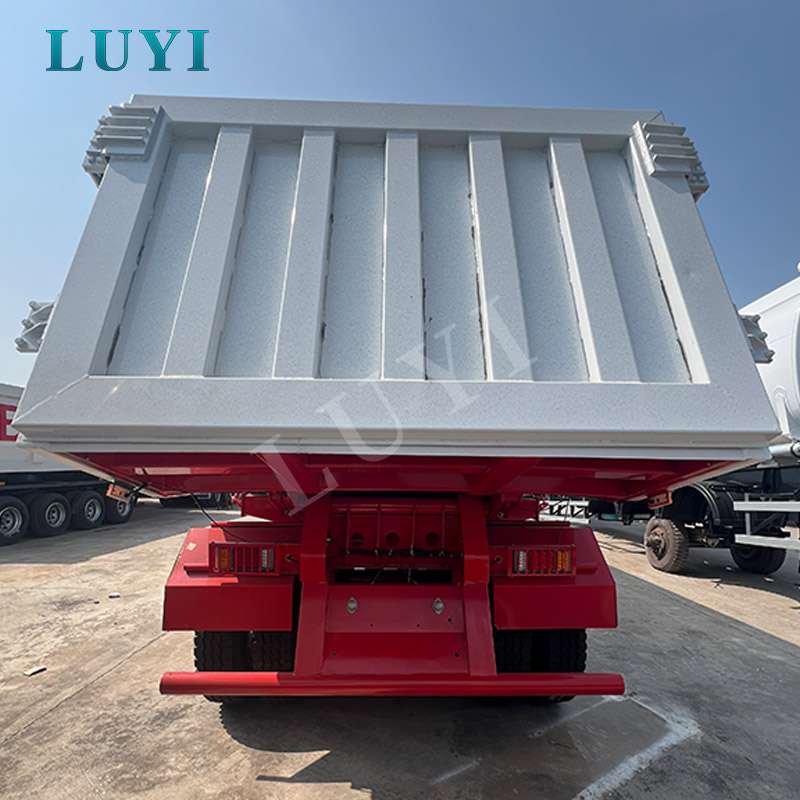

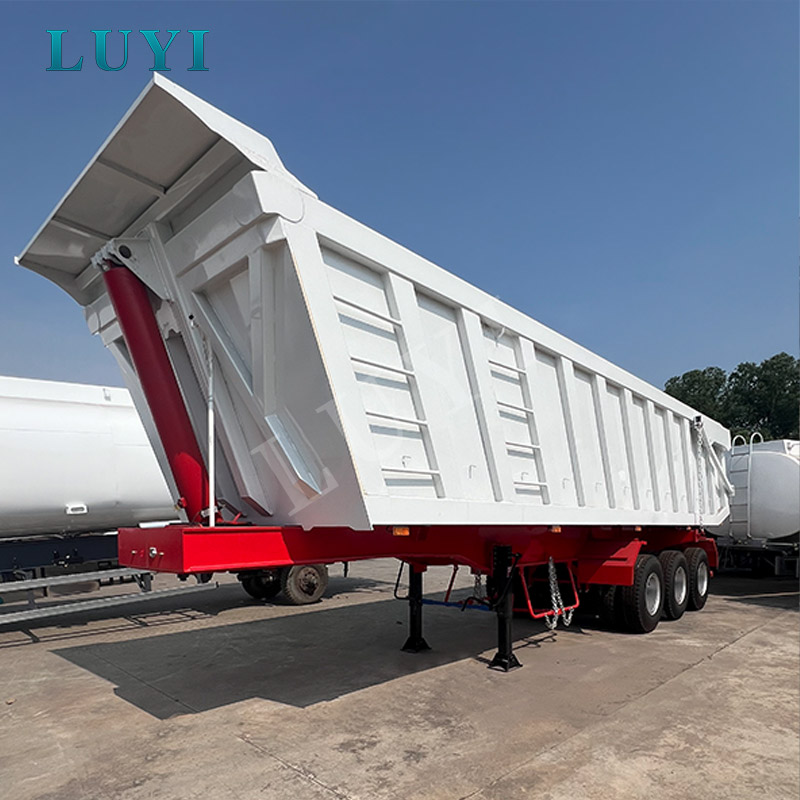

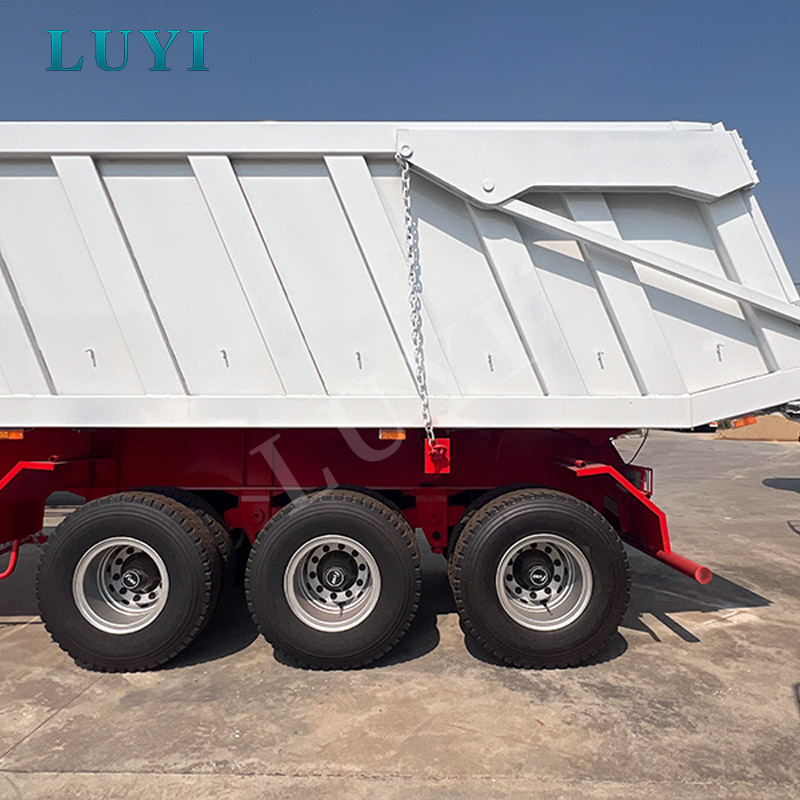

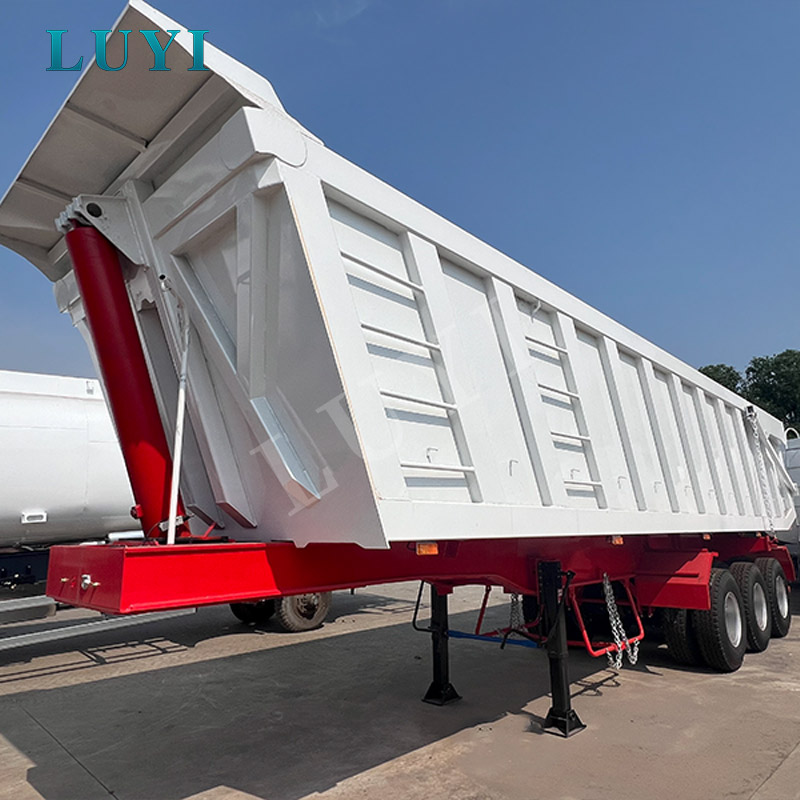

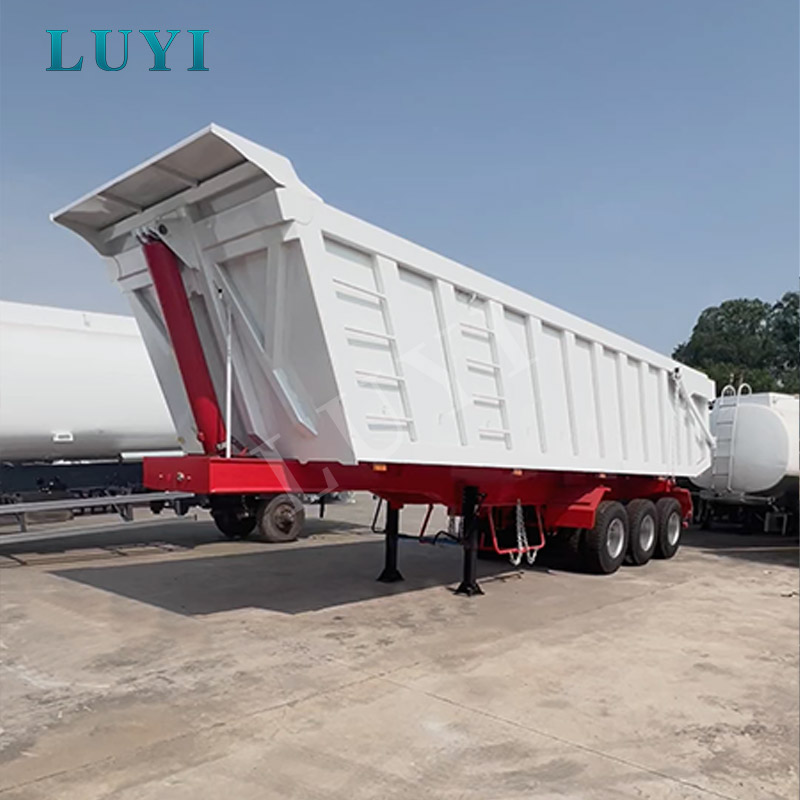

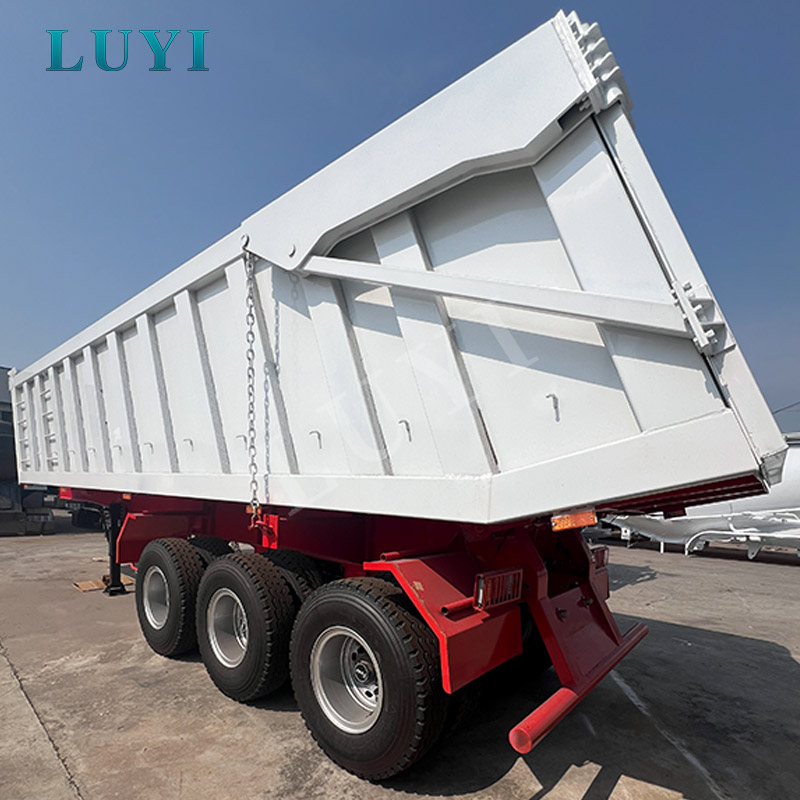

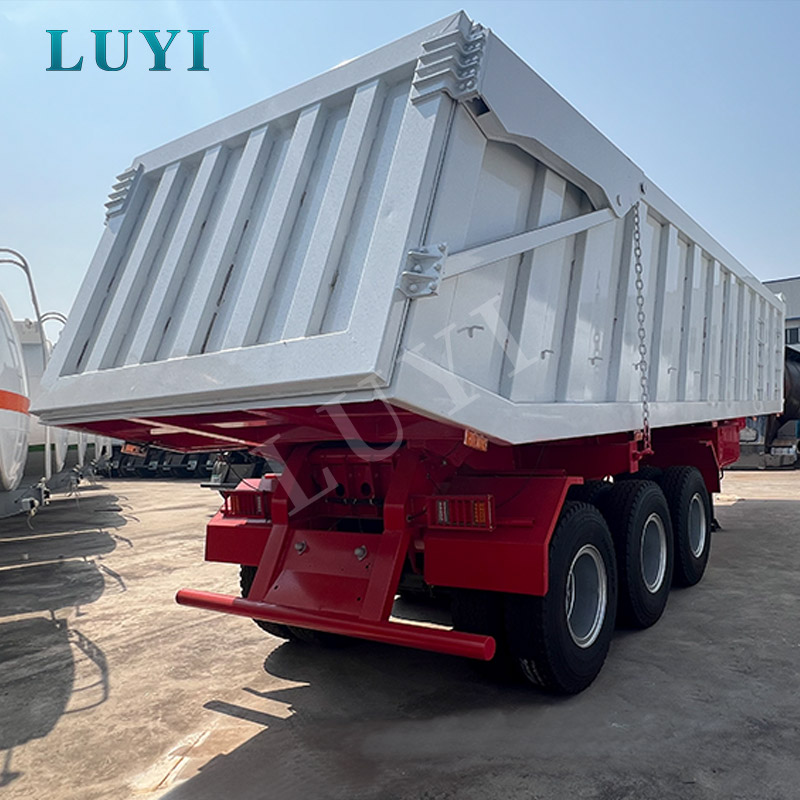

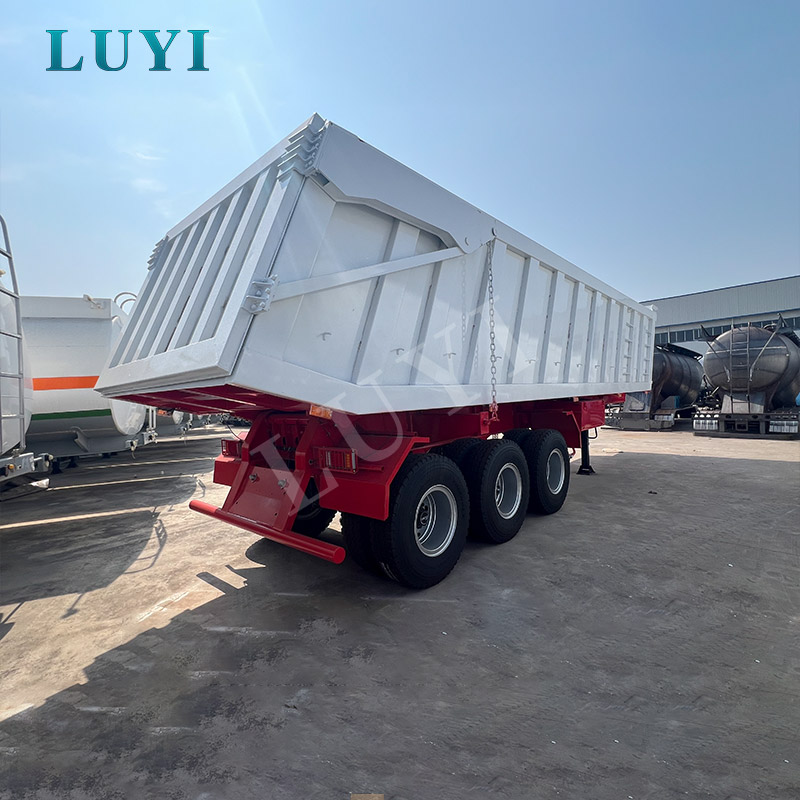

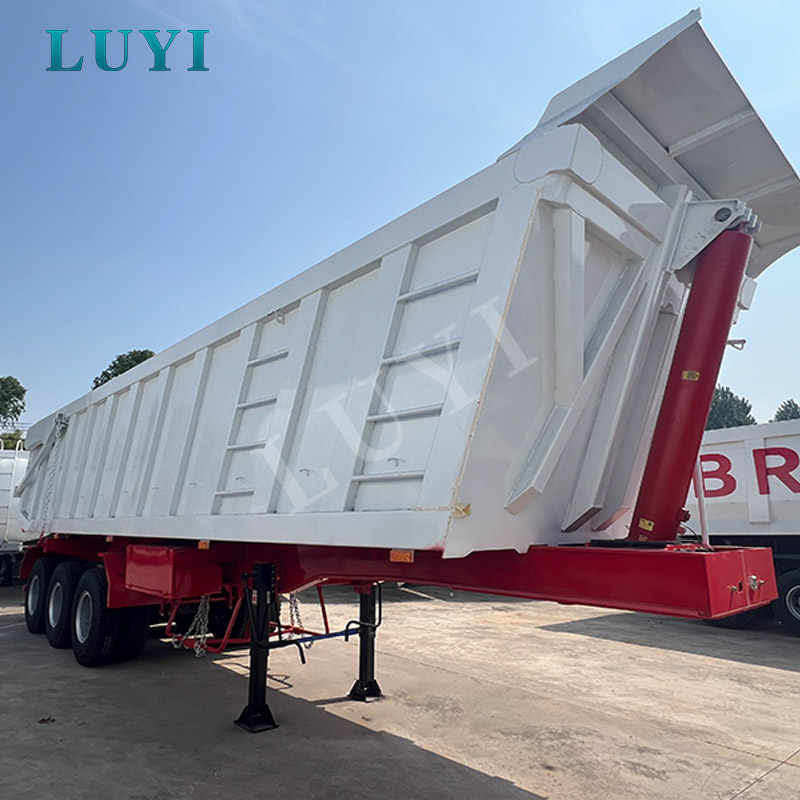

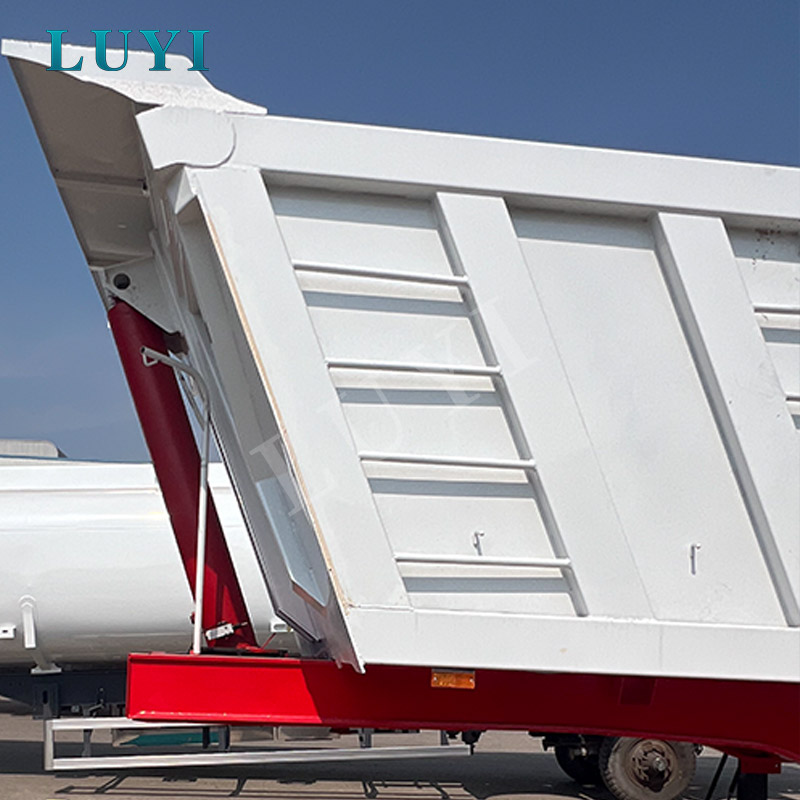

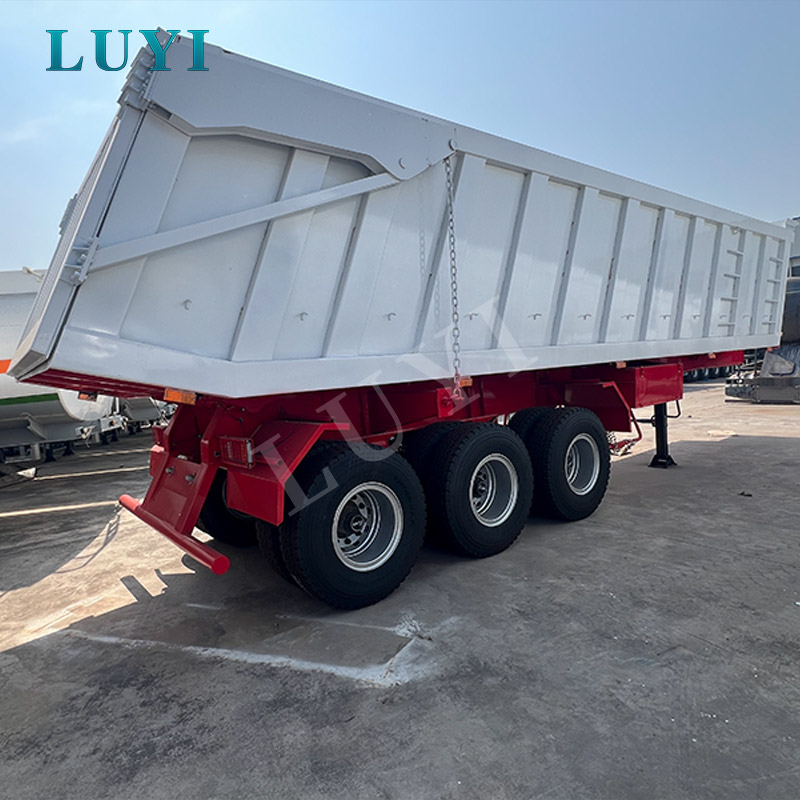

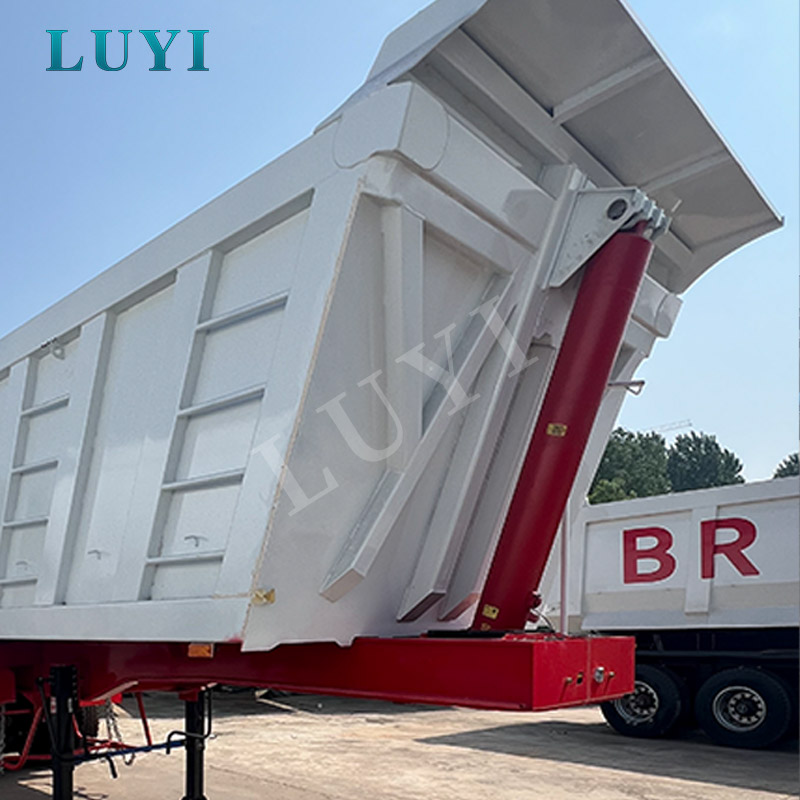

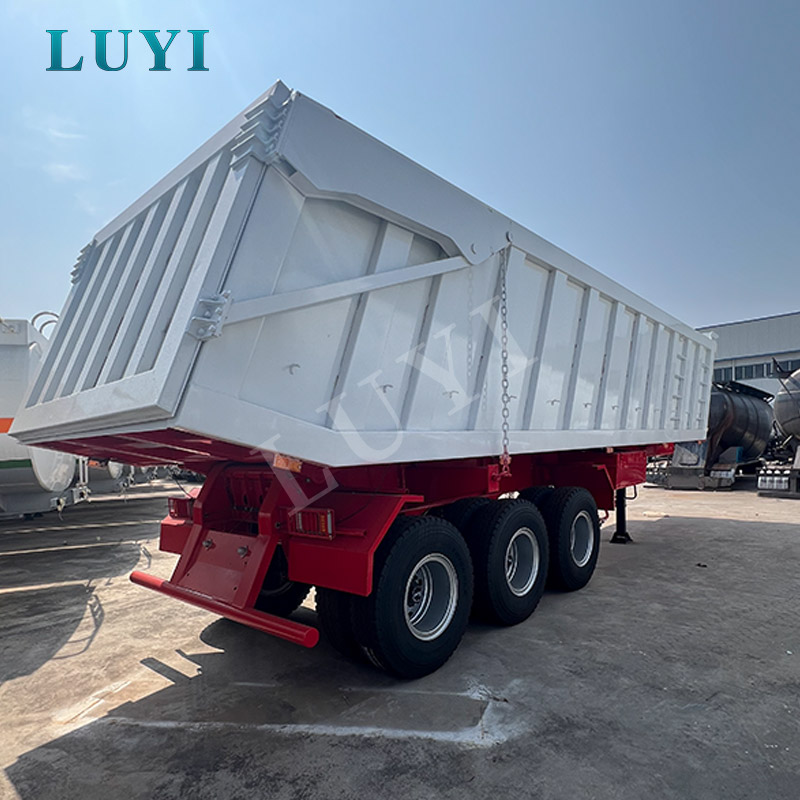

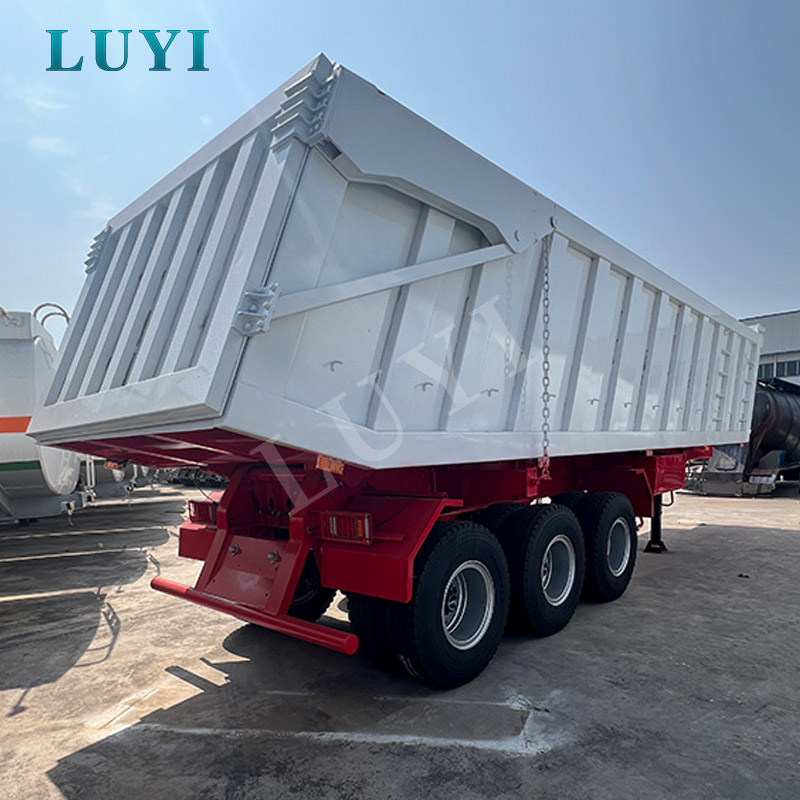

3 Axle 60 Ton Rear Dump Semi Trailer for Mining, Construction and Bulk Cargo Transport

Key Applications

The 3 axle 60 ton rear dump semi trailer is built for heavy-duty bulk material transport where fast unloading, structural strength and tipping stability directly affect daily productivity. It is commonly used by mining contractors, construction material suppliers, infrastructure contractors, port logistics operators and agricultural bulk transport fleets.

In mining areas, this trailer can transport ore, coal, sand and crushed stone between loading points, crushers, stockpiles and temporary storage yards. In construction projects, it is suitable for road base materials, gravel, soil, demolition waste and aggregates used in road, bridge, railway and water conservancy works. The rear tipping structure allows bulk cargo to be discharged quickly at job sites where unloading time and vehicle turnaround are important.

• Ore, coal, sand and gravel transport in mines and quarry sites
• Road, bridge, railway and water conservancy construction material delivery
• Construction waste, soil and demolition material handling
• Port bulk cargo transfer and short-distance material movement
• Agricultural bulk material transport, including grain, fertilizer and other loose cargo
• Fleet operation where high-frequency loading and unloading cycles are required

For buyers comparing different rear tipping structures, Luyi Auto also provides a complete rear tipping semi trailer product range for sand, gravel, coal, ore and construction material transport.

Technical Specifications

Strengths and Characteristics

A rear dump semi trailer used in mining or construction is exposed to repeated impact loading, uneven ground, heavy bulk cargo and high-frequency tipping cycles. This model is configured around those working conditions instead of being designed only for standard road freight.

The heavy-duty overload frame design uses 8 mm top and bottom flange plates with a 6 mm vertical plate to support long-term structural strength. Automatic submerged arc welding helps improve welding consistency on key frame sections, which is important for trailers carrying ore, coal, sand, gravel and other dense bulk materials.

The 60-ton load capacity, FUWA 20T axles and air suspension with liftable first axle are selected for buyers who need a stronger load-bearing configuration while also considering tire wear and empty-return efficiency. When the trailer is unloaded or lightly loaded, the liftable first axle can help reduce unnecessary tire contact and operating cost.

• Rear dump structure: suitable for fast unloading of loose bulk cargo at mines, construction sites and stockyards.
• Heavy-duty frame design: supports repeated loading cycles and rough-site operation.
• FUWA 20T axles: provide a practical axle configuration for 60-ton bulk cargo applications.
• Air suspension with liftable first axle: improves operational flexibility and helps reduce tire wear during empty return.
• Disc brake with WABCO brake valve: supports safer braking performance in demanding transport conditions.
• Powder coating and baking varnish: improves surface protection for export shipment and outdoor working environments.

For buyers comparing rear tipping trailers with other hauling equipment, Luyi Auto’s full semi trailer product range can help match the right structure to the cargo type, road condition and loading method.

Advanced Safety Systems & Compliance

Rear dump trailers require careful attention to braking, suspension stability, tipping operation, lighting visibility and chassis strength. This model is equipped with disc brakes, WABCO brake valve, dual brake chambers and standard ABS to support safer operation under heavy-load conditions.

The 24V electrical system, 7-core socket, 6-core standard cable, turn signals, brake lights and marker lights help improve road visibility during daytime and nighttime operation. For construction and mining fleets, clear lighting and braking reliability are especially important when trailers operate between highways, industrial roads and unpaved job-site access roads.

The air suspension and liftable first axle configuration can help improve driving adaptability and reduce unnecessary wear when the trailer is not fully loaded. However, buyers should confirm axle load limits, legal gross weight, braking requirements and tipping operation rules according to the destination country before finalizing the order.

Available compliance-related options may include:

• ABS or EBS configuration according to market requirements
• Additional reflective markings for highway and night operation
• Side protection, rear bumper and mudguard options
• Lighting connector adjustments for local tractor compatibility
• Hydraulic system matching according to tractor PTO and tipping requirements
• Localized tire, axle and suspension configuration according to road rules

For a real project reference, buyers can review Luyi Auto’s Saudi Arabia 3-axle rear tipping semi trailer case study to see how this type of trailer supports high-frequency bulk material transport in construction applications.

Our Craftsmanship & Quality Control

For a dump semi trailer, quality control must focus on the parts that affect load-bearing, tipping stability and long-term field operation. At Luyi Auto, each rear dump semi trailer goes through inspection before delivery, covering welding quality, main frame dimensions, axle and suspension installation, braking performance, electrical system and surface treatment.

The frame and body structure are checked to confirm that key dimensions match the agreed specification. Welding areas are inspected to reduce the risk of cracking under repeated impact loading. The axle, air suspension, lifting function and landing gear are checked before shipment to ensure that the trailer can enter operation with fewer adjustment issues.

• Frame inspection: checks main beam size, flange plate structure and welding consistency.
• Body inspection: confirms floor plate, side plate and tipping body assembly condition.
• Axle and suspension inspection: checks FUWA axle installation, air suspension and liftable first axle function.
• Brake testing: verifies disc brake, WABCO brake valve, dual brake chamber and ABS configuration.
• Electrical testing: checks 24V wiring, 7-core socket, turn signals, brake lights and marker lights.
• Surface treatment inspection: confirms baking varnish and powder coating before export shipment.
• Accessory checking: confirms spare tire bracket, toolbox, hydraulic oil tank and other supplied parts.

Inspection records can be maintained for order traceability, helping overseas buyers confirm that the delivered trailer is consistent with the agreed technical configuration. Buyers who want to understand production capability can visit the Luyi Auto factory page.

Optional Configurations & Customization

A rear dump semi trailer should be configured according to cargo density, route condition, unloading frequency, legal axle load, tractor compatibility and project budget. Luyi Auto provides customized production for buyers who need specific axle brands, suspension systems, tire specifications, body dimensions or hydraulic configurations.

Available customization options may include:

• Load capacity and body dimension adjustment
• Axle brand, axle load and axle quantity selection
• Air suspension, mechanical suspension or liftable axle configuration
• Disc brake or drum brake configuration according to market requirements
• ABS or EBS braking system options
• Hydraulic oil tank and hydraulic lifting system matching
• Floor plate and side plate thickness adjustment according to cargo type
• Tire brand, tire size and wheel rim options
• Kingpin, landing gear, spare tire bracket and toolbox configuration
• Paint color, logo marking and surface treatment requirements

Before requesting a quotation, buyers are advised to provide the cargo type, loading capacity target, destination country, road condition, tractor model, unloading frequency, preferred suspension type and any local road regulation requirements. This allows Luyi Auto to recommend a practical configuration rather than only offering a standard dump trailer price.

Packaging and Transportation

Before shipment, the trailer receives surface protection, and small accessories are packed and fixed to reduce movement during long-distance transport. For this model, the declared shipping method is bulk carrier shipment, which is commonly used for large semi trailers when container loading is not practical.

Luyi Auto can support export documentation, shipment coordination and pre-delivery inspection before the trailer leaves the factory. The trailer may also be treated with anti-rust wax and marine paint protection where required, depending on transport route, shipment time and destination climate.

• Bulk carrier shipment for large semi trailer delivery
• Surface protection before export shipment
• Secure fixing of tools, spare tire bracket and detachable accessories
• Pre-shipment inspection before delivery
• Export document and shipping coordination support
• Door-to-door delivery discussion available according to destination and logistics condition

For order discussion, buyers can submit project details through the Luyi Auto inquiry form or contact the export team through the contact page.

Why Choose Luyi Auto

For mining and construction buyers, a rear dump semi trailer is not only a price comparison item. It directly affects unloading speed, job-site productivity, maintenance frequency, tire wear, braking safety and project schedule. Luyi Auto focuses on matching trailer structure with real operating conditions, including cargo density, route condition, axle load limits and unloading frequency.

When working with Luyi Auto, buyers can discuss:

• Whether the 60-ton rear dump structure matches the cargo density and loading cycle
• Whether air suspension or mechanical suspension is better for the destination road condition
• Whether the liftable first axle can reduce operating cost during empty return trips
• Whether disc brake, WABCO brake valve and ABS match the local safety expectations
• Whether body plate thickness and frame structure match the intended bulk material
• Whether bulk carrier shipment, delivery schedule and export documents fit the procurement plan

If your project involves sand, gravel, coal, ore, construction waste or agricultural bulk material transport, Luyi Auto can help evaluate the trailer configuration and provide a quotation based on your actual operating scenario.

FAQ

Can this 3 axle rear dump semi trailer be customized for local road regulations?

Yes. Axle load, suspension type, braking system, lighting, tire specification, body dimension and reflective markings can be adjusted according to destination country requirements and project conditions.

What cargo is this rear dump semi trailer suitable for?

It is suitable for bulk cargo such as sand, gravel, coal, ore, soil, construction waste, aggregates and selected agricultural materials. Buyers should confirm cargo density and loading method before finalizing the body structure.

How do I choose the right suspension for a rear dump trailer?

Air suspension is useful when ride control, axle lifting and tire-wear reduction are important. Mechanical suspension may be preferred for some rough-site applications because of its simple structure and maintenance convenience. The final choice should depend on route condition, load frequency and maintenance resources.

Can the first axle be lifted?

Yes. This configuration includes air suspension with a liftable first axle. It can help reduce tire wear and improve empty-return economy when the trailer is not fully loaded.

What braking system does this trailer use?

This model is equipped with disc brakes, WABCO brake valve, dual brake chambers and standard ABS. These configurations support safer heavy-load braking and better control during demanding transport operations.

What information should I send before requesting a quote?

Please send the cargo type, required load capacity, destination country, road condition, tractor model, preferred axle and suspension configuration, unloading frequency, quantity and any local road compliance requirements.
