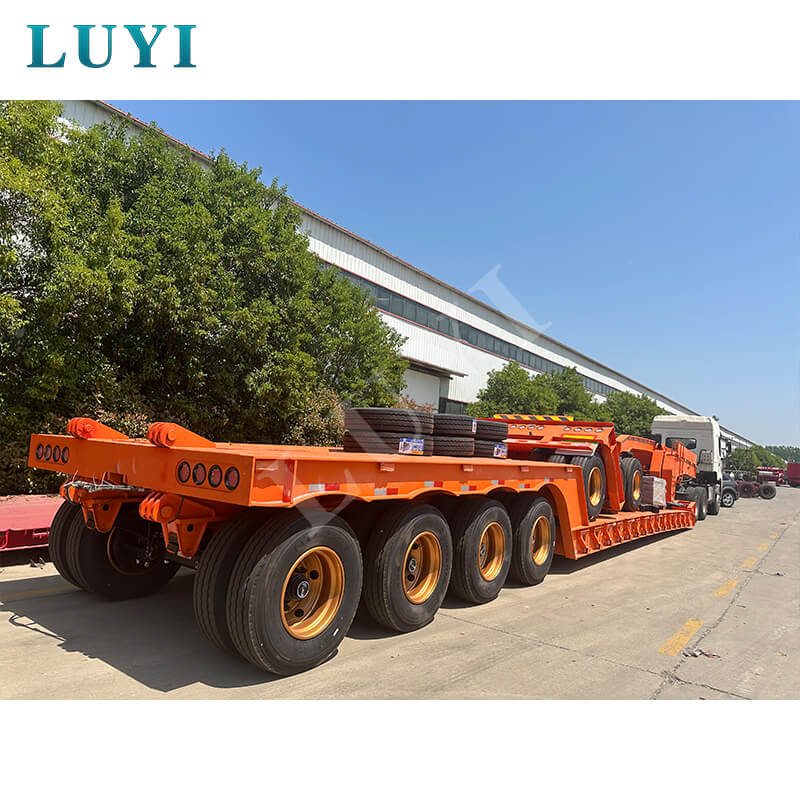

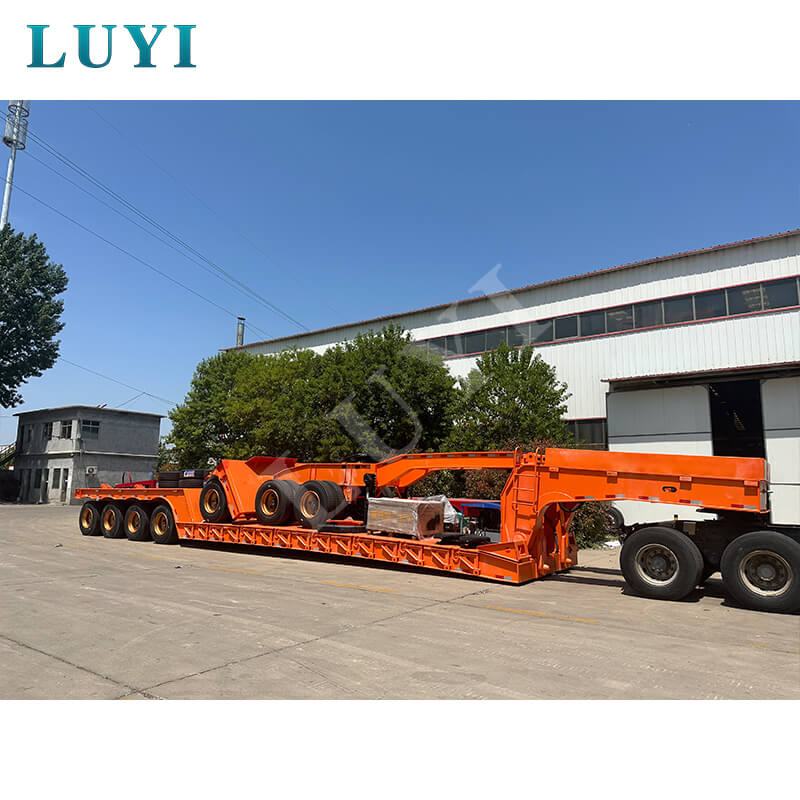

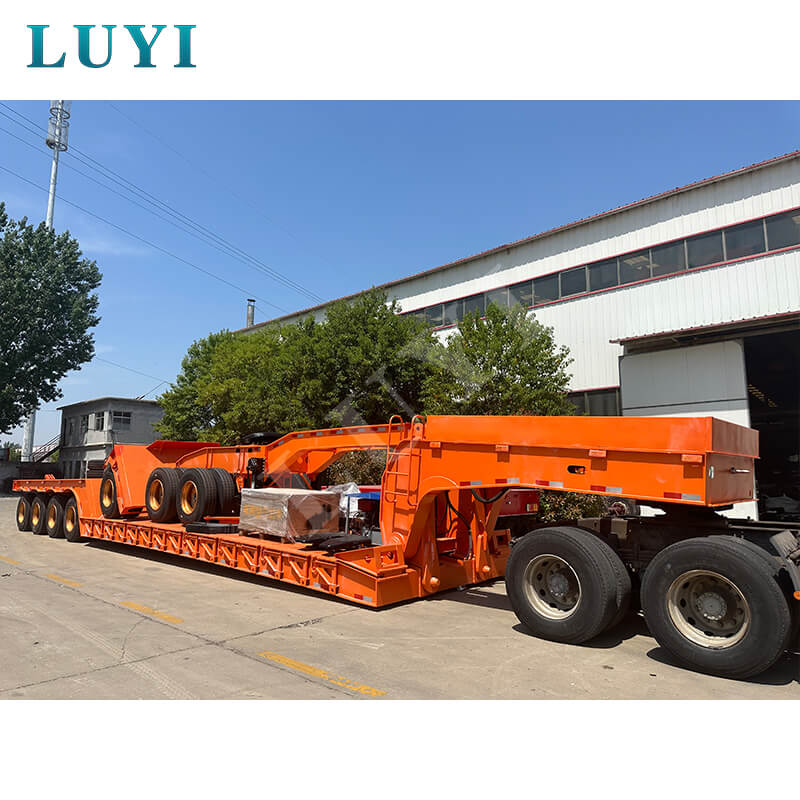

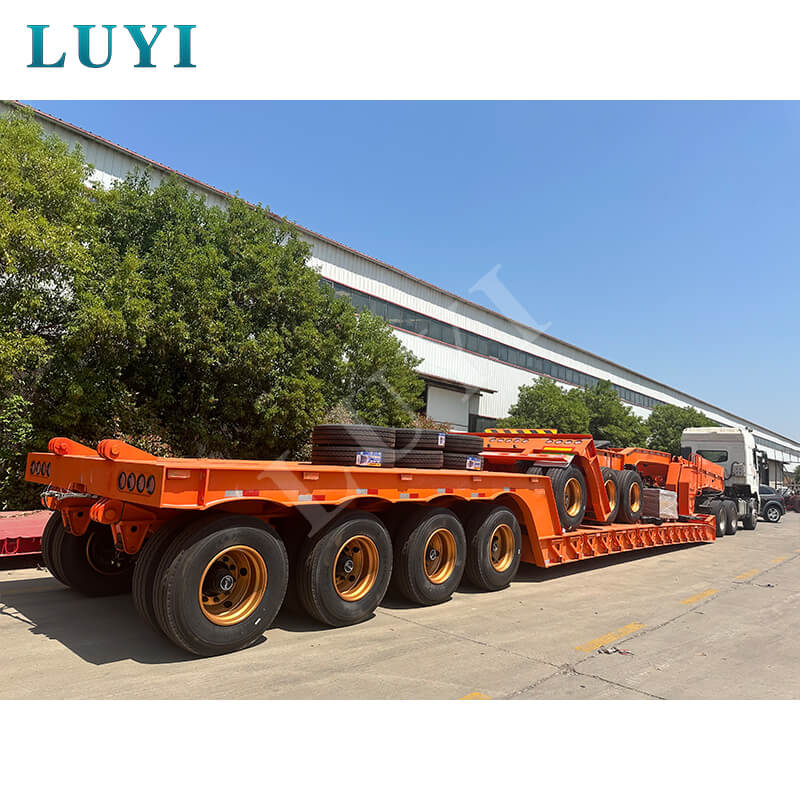

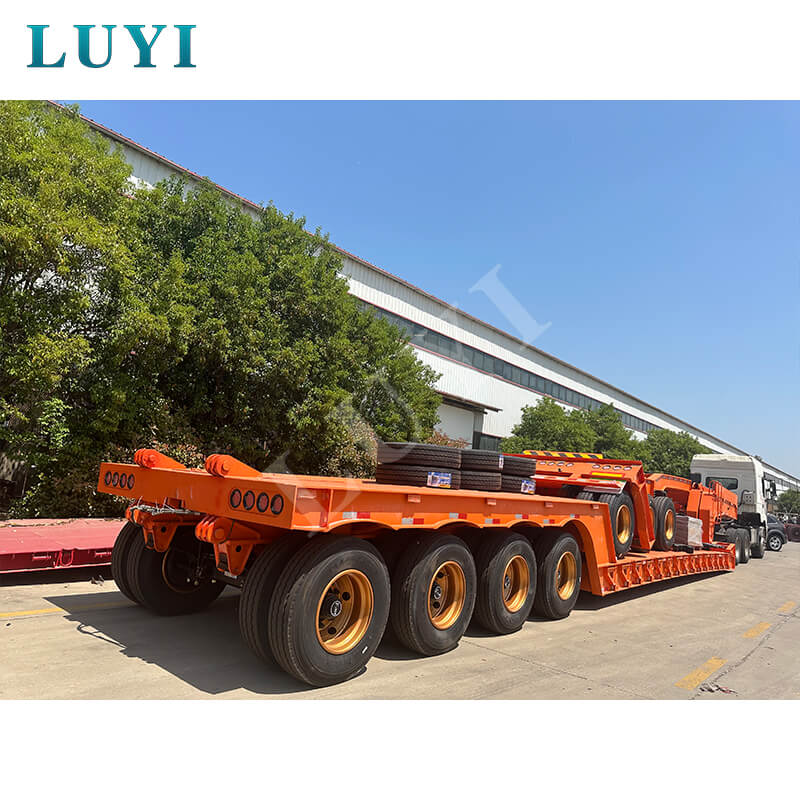

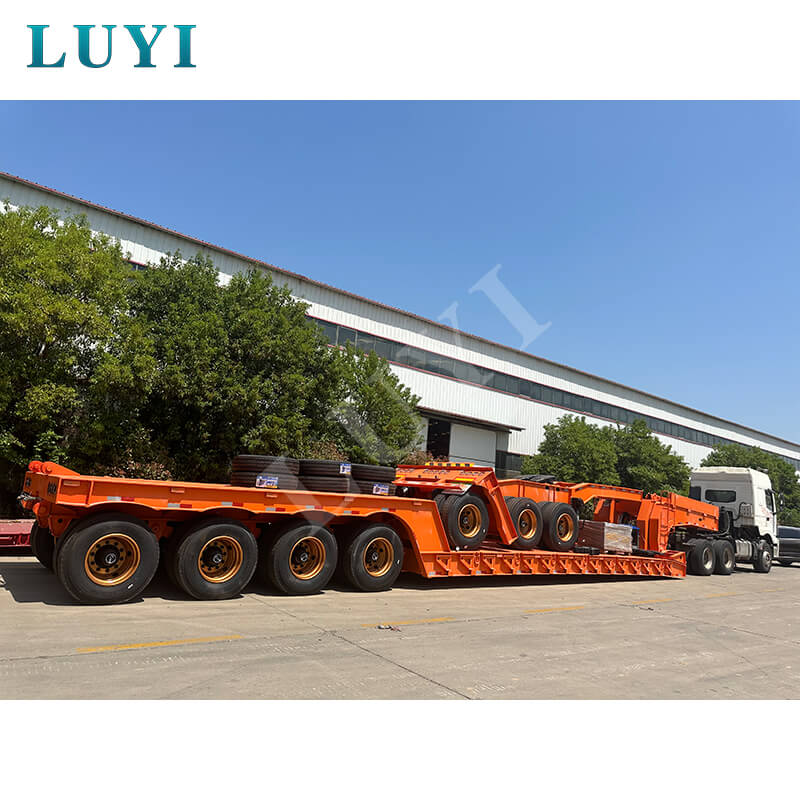

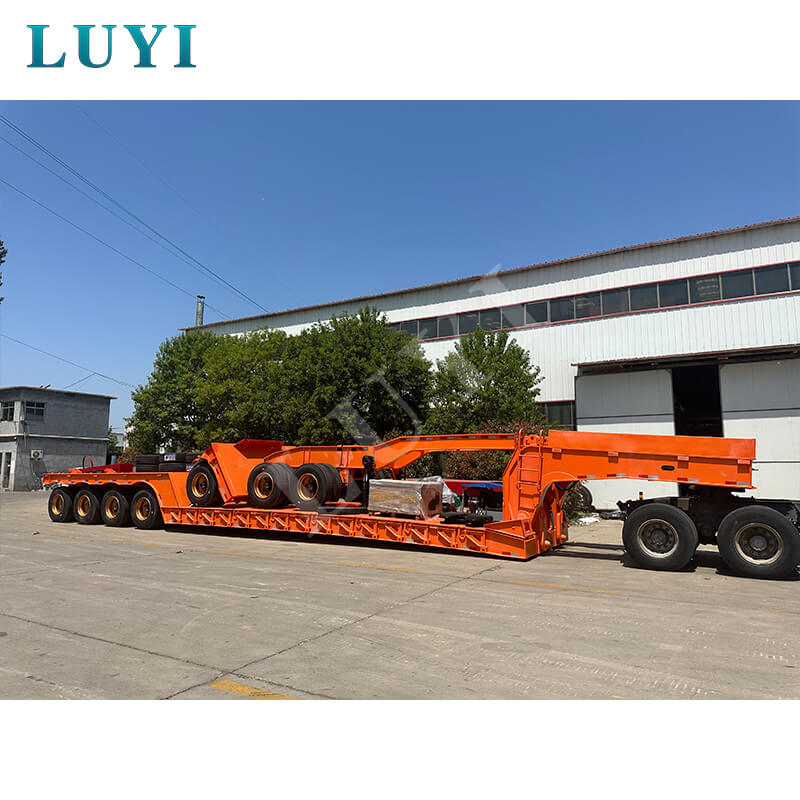

4-axle 100-ton Gooseneck Low-bed Semi-trailer

The 4-Axle 100-Ton Gooseneck Lowboy Semi-Trailer from LUYI VEHICLE is a high-performance truck trailer originating from Shandong Province, China. Crafted from high-quality steel, its main beam adopts T700/Q345 steel, ensuring a robust and durable structure. With a load-bearing capacity of 100-120 tons and a maximum effective payload of 120,000 kg, it easily meets heavy-duty transportation needs.

This semi-trailer measures 18,000×2,500×1,500 mm. It is equipped with 13-ton FUWA axles and a mechanical suspension system for stable and reliable driving, along with standard 28-ton support legs for secure positioning. The dual-line braking system guarantees driving safety, while the kingpin offers two options—2-inch (50 mm) or 3.5-inch (90 mm) JOST models—ensuring strong adaptability. Tire options include 11.00r20, 12r22.5, 315, and 385, and the color can be customized to meet different transportation scenarios and personalized requirements.

Size：18000*2500*1500MM

Axle：11.00r20 12r22.5 315 385

Max Payload：120000kgs

Landing Gear：Standard 28Ton

Loading capacity：100-120T

Main Beam：T700/Q345 Steel

King pin：2"(50mm)or3.5"(90mm) JOST

Tire：11.00r20 12r22.5 315 385

Suspension：Mechanical Suspension

Color：Customers Optional

FAQ

1.What are your advantages?

We have 15 years of export work experience, and our products have been exported to more than 60 countries and regions including Africa, the Middle East, Southeast Asia, South America, etc. We have a professional after-sales service technical team that can solve your problems in time

2. What payment methods do you accept?

L/C and T/T

3. We want tubeless trucks, is that ok?

Yes, both radial tires and tubeless tires are optional.

4. What logistics methods can you use for transportation?

We can use various transportation tools to transport construction machinery.

(1) Our main mode of transportation is that the machine will be shipped by container or ro-ro/bulk.

(2) For China's inland neighboring countries, we can ship the machine by road or rail.

(3) For urgently needed spare parts, we can ship by DHL, TNT, UPS or FEDEX.

5. In addition, what other products does your factory produce?

Our factory not only produces tractors, but also dump trucks, sprinkler trucks, truck cranes,mixer trucks, dump trailers,tank trailers, low-bed trailers, dust removal trailers, etc. Our factory is large in scale and can customize different products according to different customer requireme
