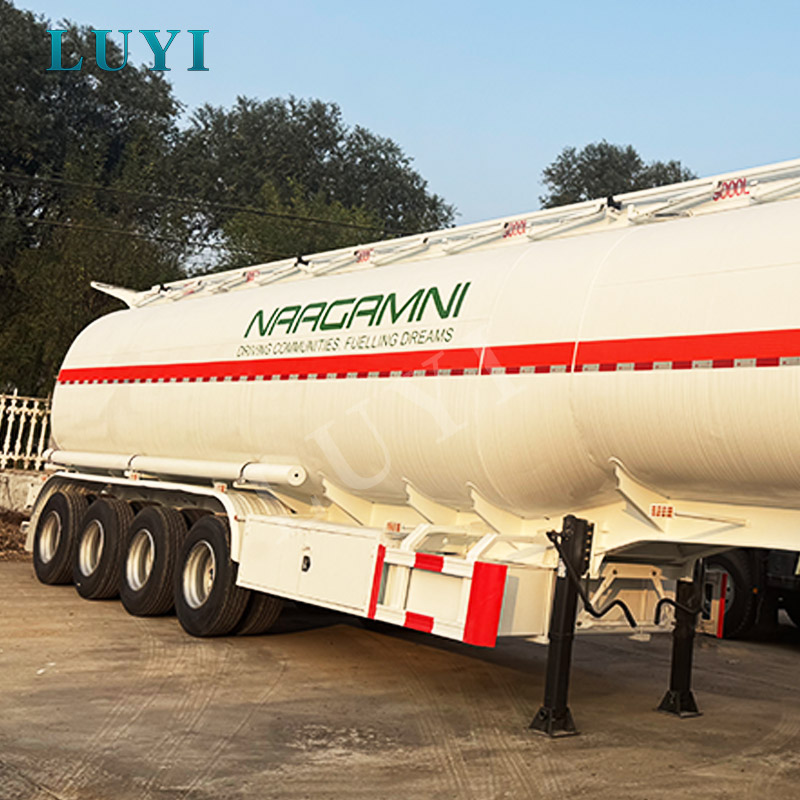

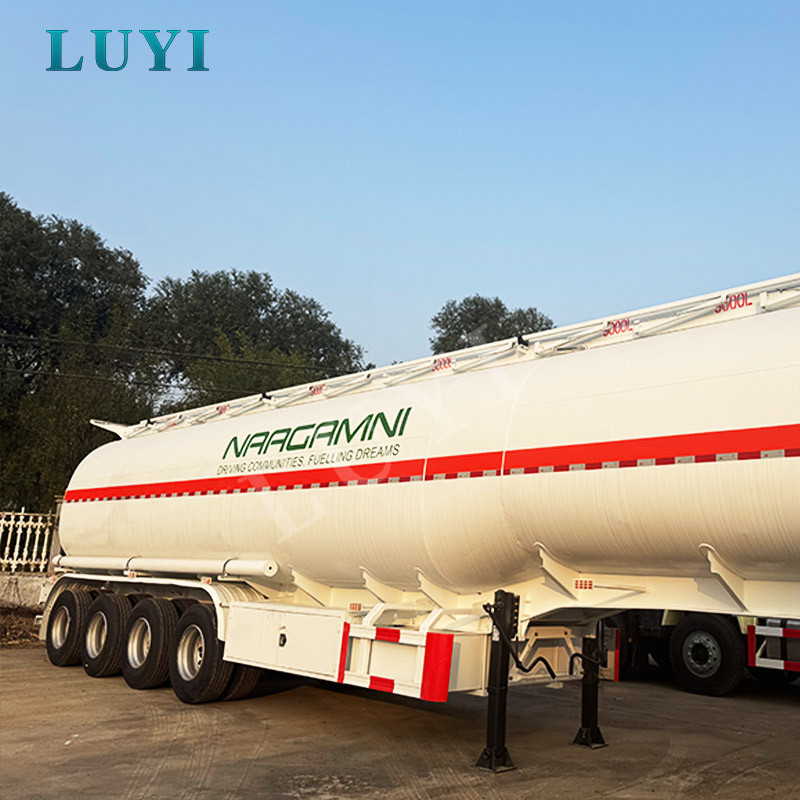

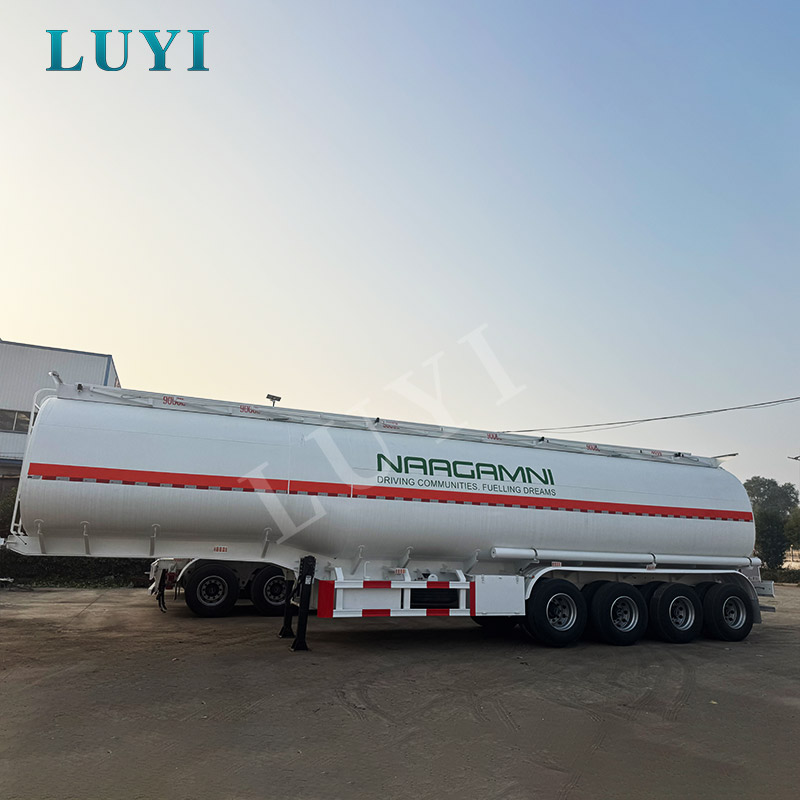

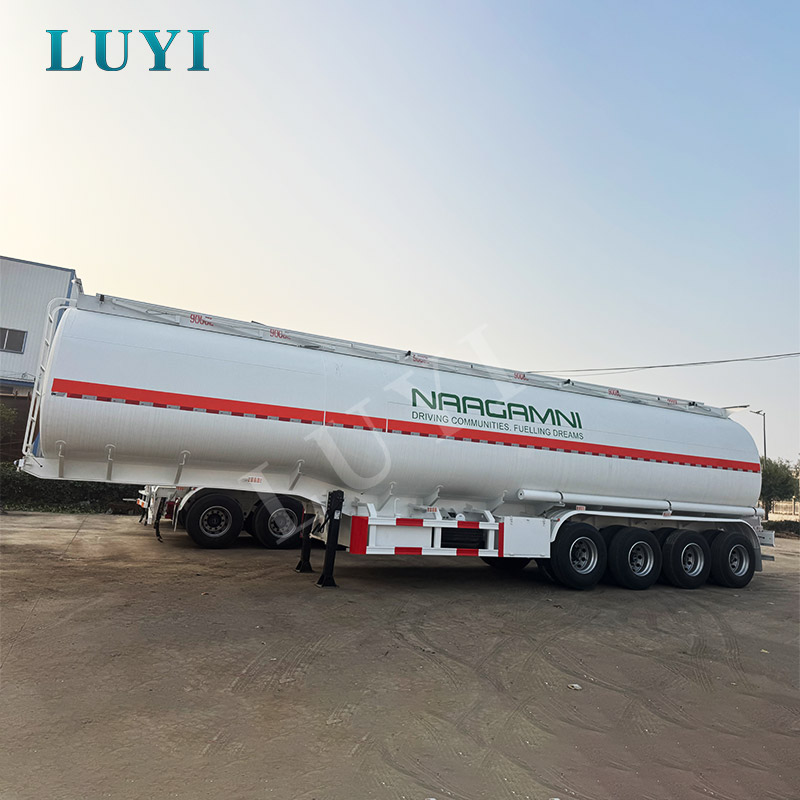

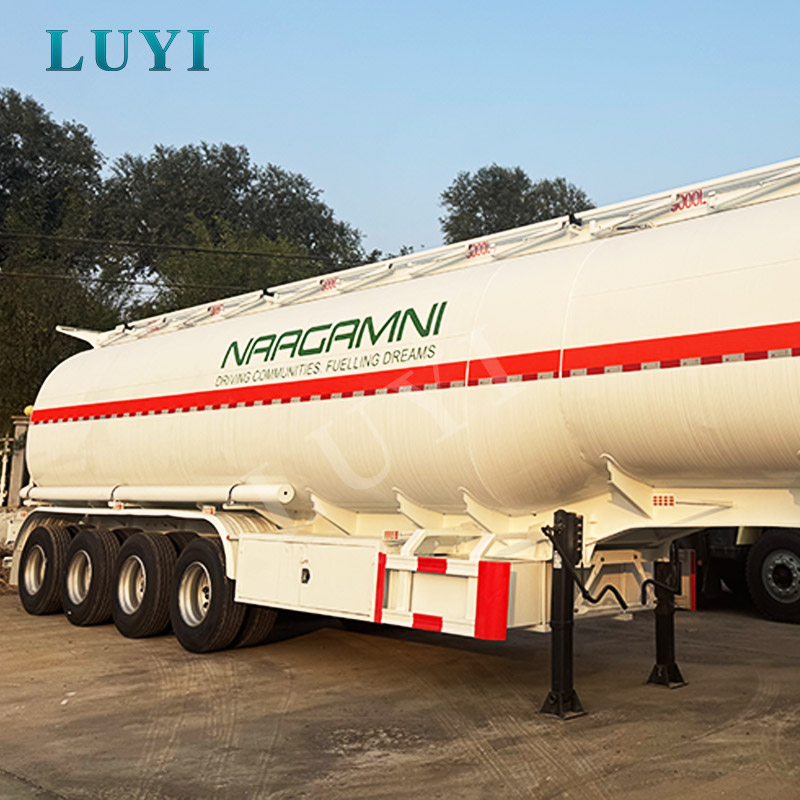

LUYI 54,000-liter oil tank semi-trailer

The 4-axle 54,000L fuel tanker semi-trailer from LUYI, originating in Shandong, China, is a high-quality semi-trailer specifically designed for fuel transportation. Crafted from premium steel, it boasts exceptional durability and a flexible loading capacity ranging from 30,000L to 60,000L. Equipped with 4 axles (available in 2/3/4/5 axles options) paired with renowned 13/16T FUWA/BPW axles, it delivers an impressive maximum payload of 80 tons, ensuring outstanding transportation efficiency.

Fitted with 12R22.5 tires, the trailer features 90mm (width) × 13mm (thickness) × 10-layer leaf springs, along with optional mechanical or air suspension, balancing excellent driving stability and load-bearing performance. The 28-ton standard landing gear guarantees safe parking, while the wax polishing finish offers both protection and aesthetics, with colors fully customizable to customer requirements.

With reliable materials, rational structural design, and flexible configuration options, this fuel tanker semi-trailer is suitable for various fuel transportation scenarios, integrating safety and practicality. It stands as a top choice for the logistics and transportation industry.

Size：10.8*2.55*3.7M

Landing Gear：Standard 28Ton

Max Payload：60 ton

King pin：2"(50mm)or3.5"(90mm) JOST

Suspension：Mechanical Suspension Air Suspension

Leaf Spring：90(W)mm*13(Thickness)mm*10(Layer)

Tire：12R22.5/12.00R20/11R22.5

Main Beam：T700/Q345 Steel

Color：Customers Optional
