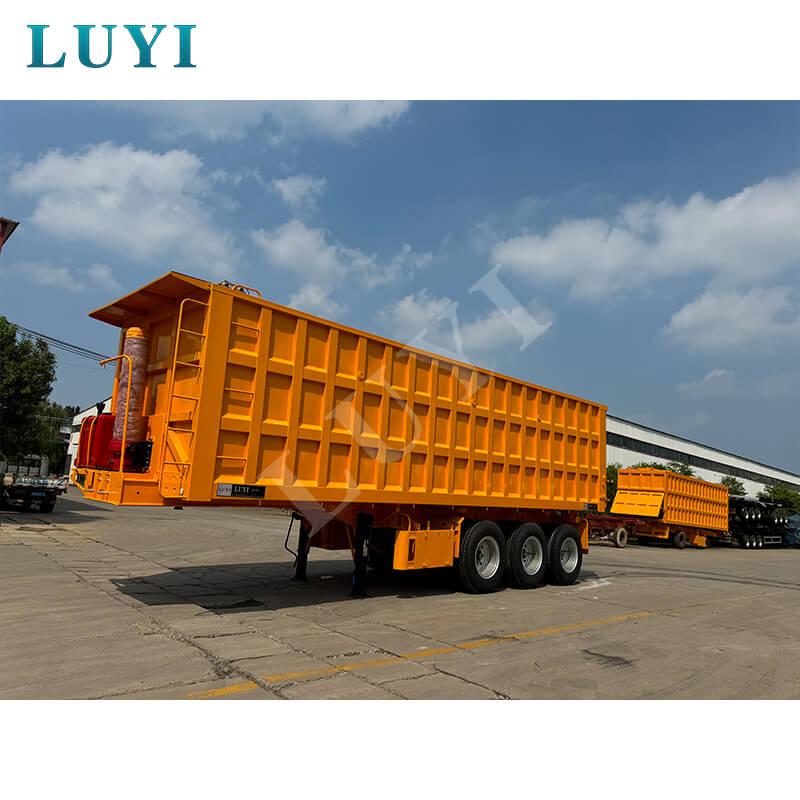

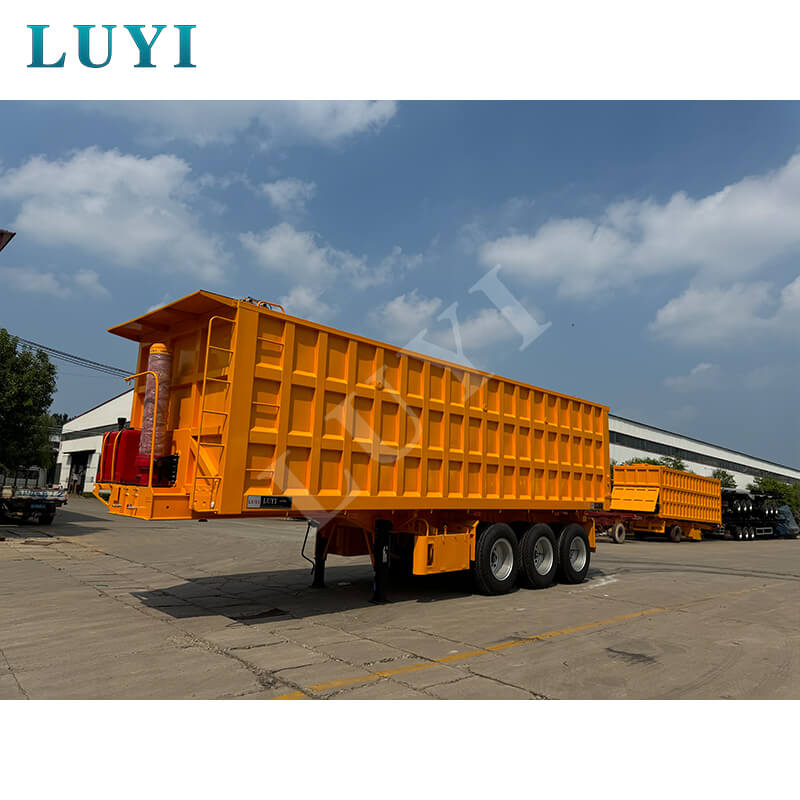

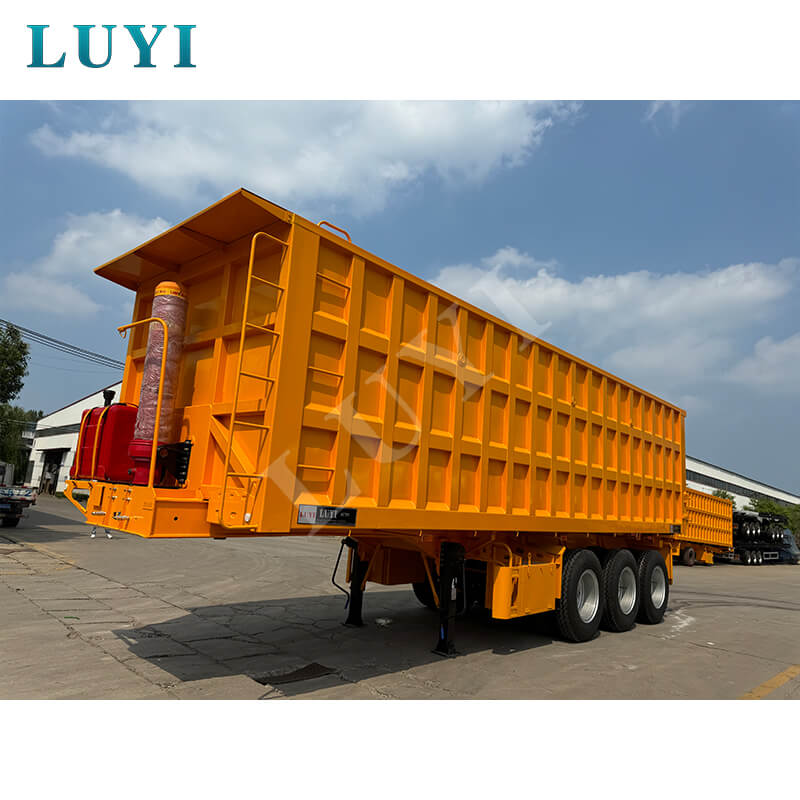

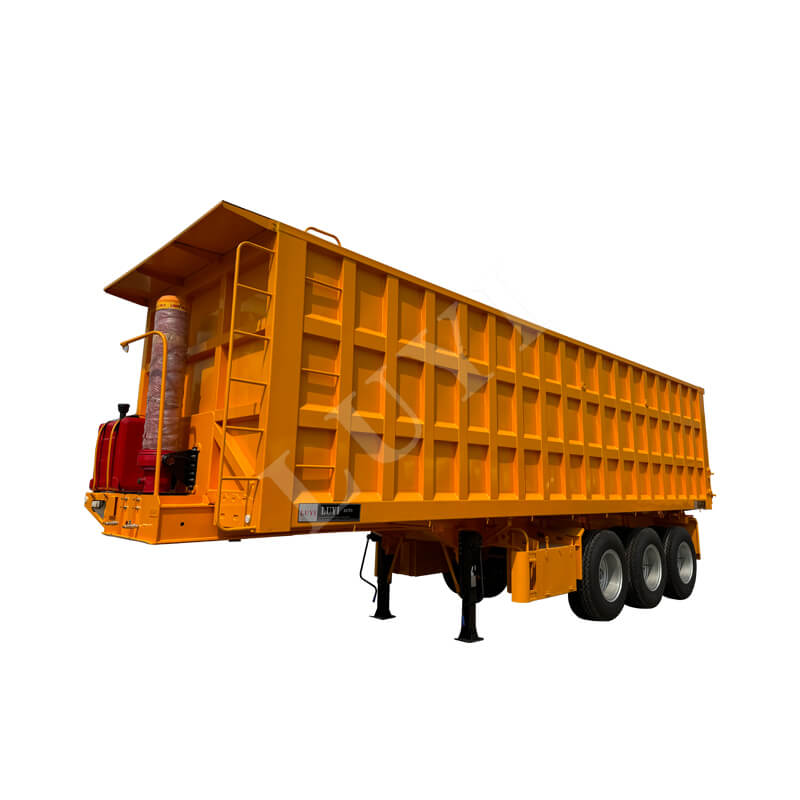

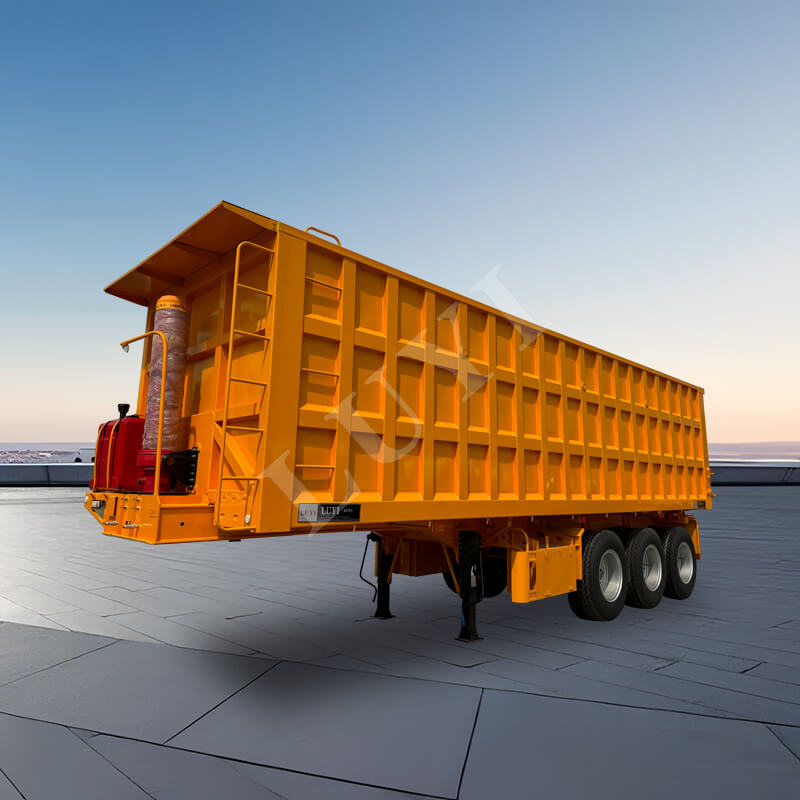

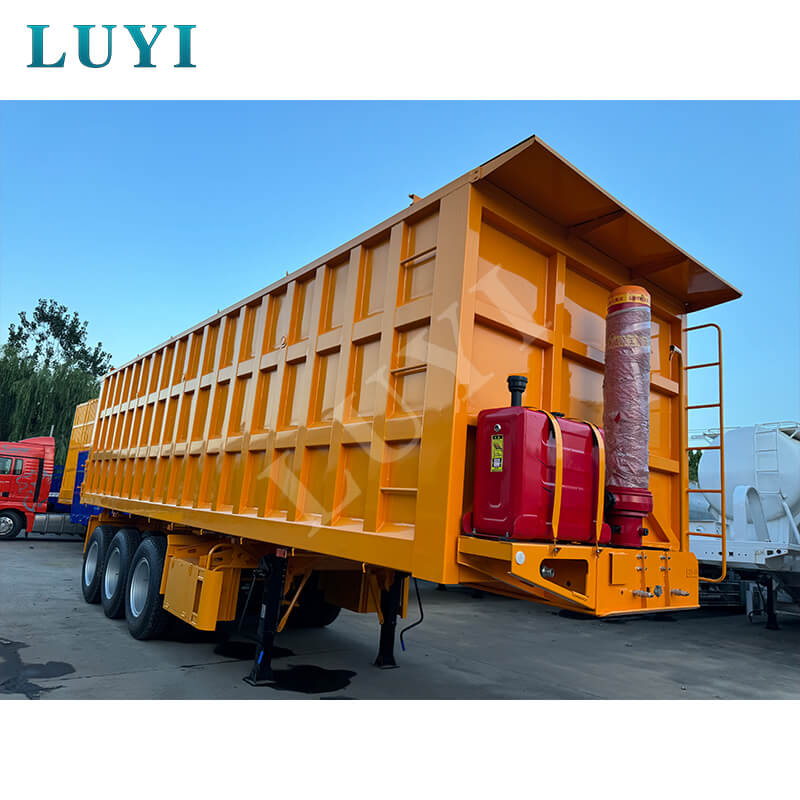

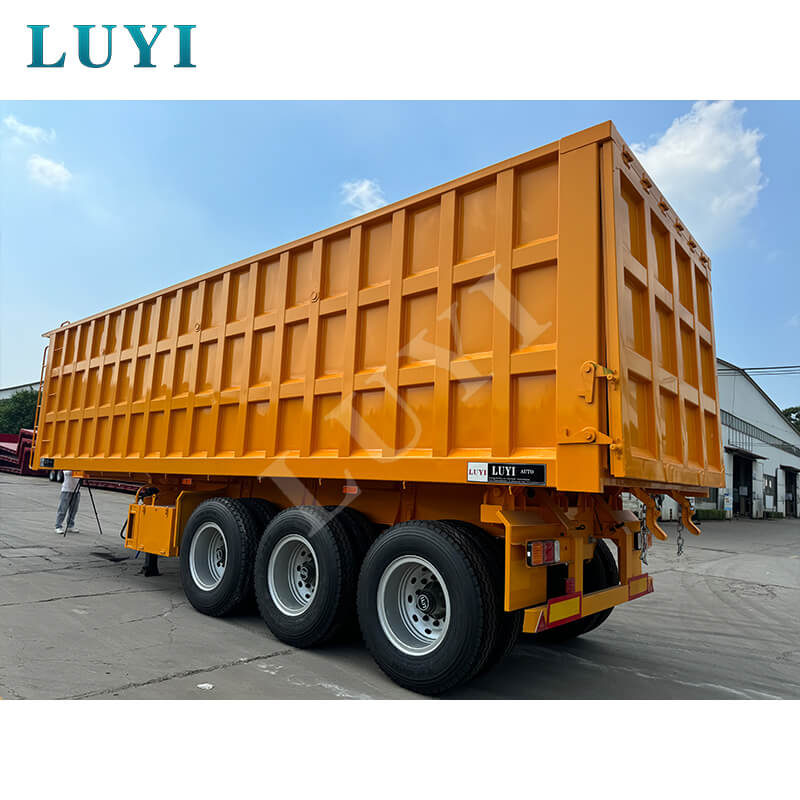

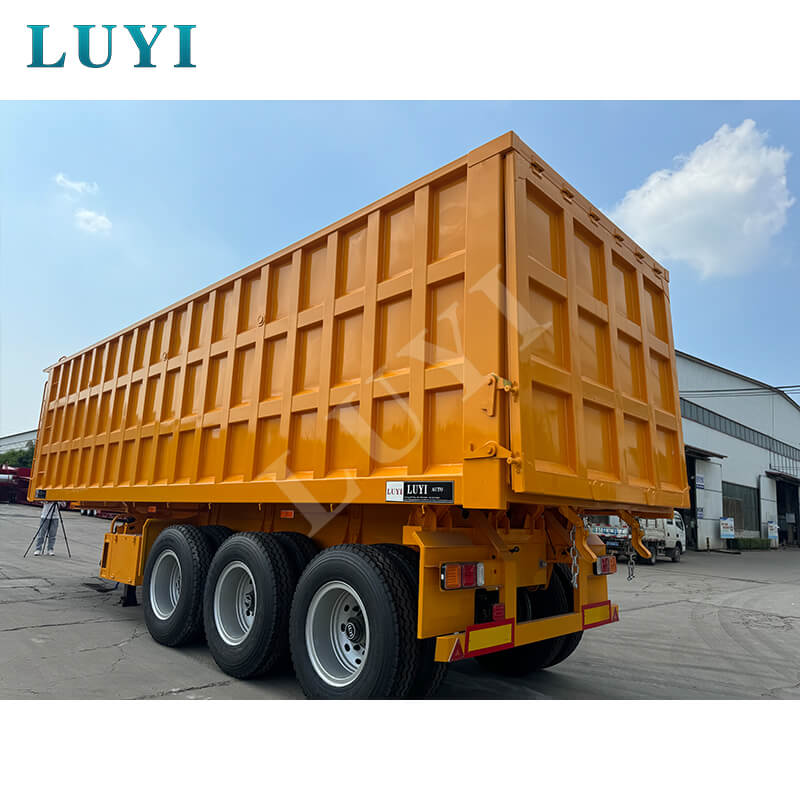

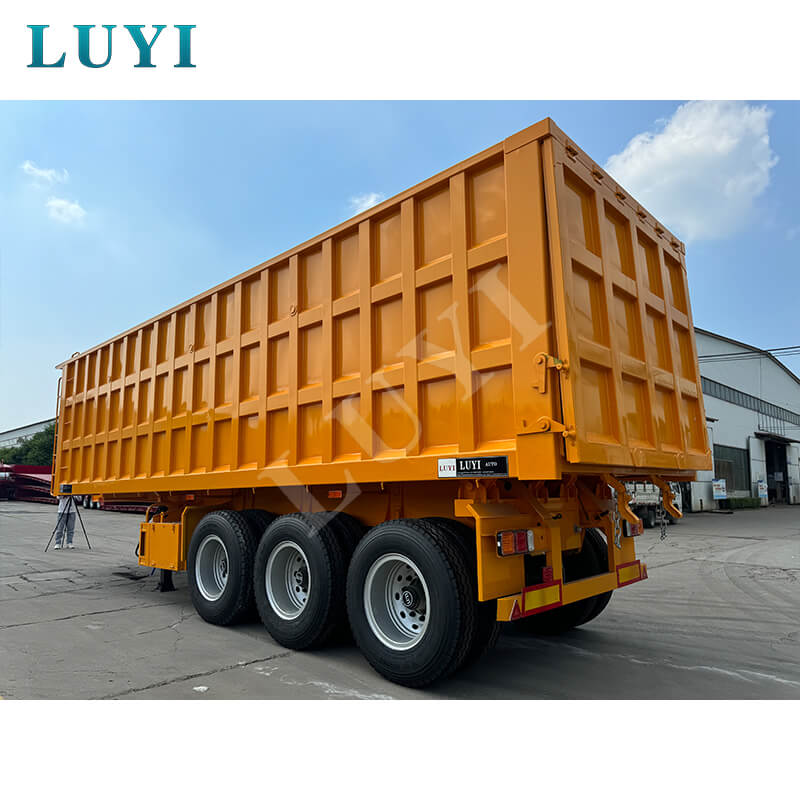

3-axle 60-ton rear-tipping dump semi-trailer

This 3-axle 60-ton rear-tipping dump semi-trailer is a heavy-duty new semi-trailer with a load capacity of 80 tons, suitable for high-intensity operation scenarios. The body is made of steel, and the bottom plate is a 3-5 mm checkered plate, which is anti-slip and durable. It is equipped with 13/16-ton Fuwa/BPW/CIMC axles and 12 tires. The rims can be selected in 8.00-20/8.5-20/8.8-20 specifications, with a track width of 1820 mm and a wheelbase that can be flexibly adjusted between 7000-8000 mm, ensuring strong stability.

The suspension system adopts a 10/10/10 heavy-duty leaf spring suspension, which has excellent load-bearing performance. It is equipped with an Anti-lock Braking System (ABS) to improve driving safety. The product supports the dumping function with high efficiency and has passed ECE, GCC, and CE certifications, ensuring compliance. The kingpin is available in two options: 2 inches/3.5 inches, which is suitable for different tractors, and is applicable to heavy cargo transportation fields such as mineral resources and infrastructure construction.

Length*Width*Height:： 11000mm*2500mm*2800mm

Axle: 2/3/4* 13/16T FUWA/BPW

Loading Capacity: 30T-100T

Rim： 8.00-20 /8.5-20/8.8-20/8.5-22.5/9.0-22.5

Floor ：3-5mm Diamond Plate

Tread ：1820mm

Wheel Base： 7000-8000mm

ABS Anti-lock Braking System： ABS Anti-lock Braking System

Steel Spring ：10/10/10 Heavy Duty Leaf Spring Suspension
