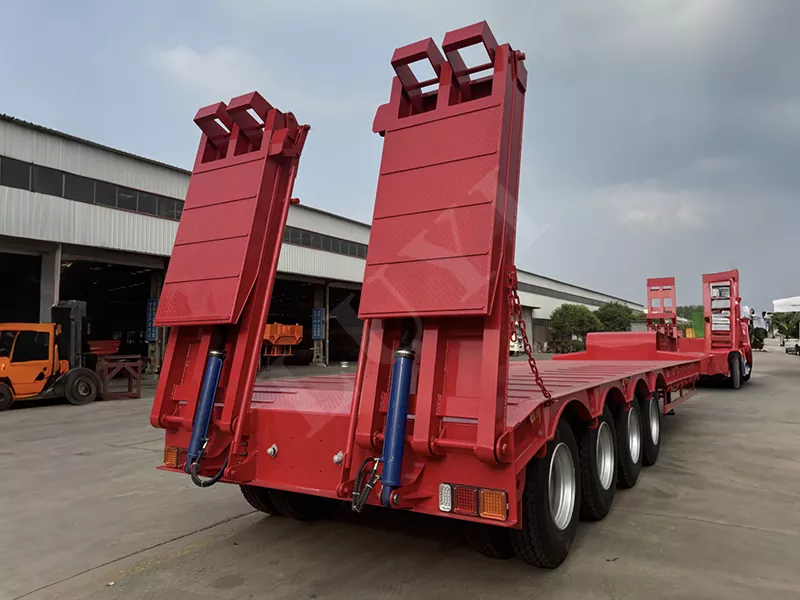

Four-Axle Flatbed Semi-Trailer

Before production, the technical department should first design and produce drawings according to the needs of users and the market, the design specifications of the drawings should match the technical parameters when signing the contract, and the drawings are completed and then transferred to the production department.

The production department cuts, welds, strengthens, assembles and tests the steel according to the details of the drawings. Finally, the quality of the product is satisfied after the customer's inspection. The specific production process is as follows;

1. Steel plate material cutting stage:

According to the drawings of each part produced by the design department, each part is cut out with the CNC underwater cutting machine, such as the beam web, the reinforcing plate, and the standard small accessories

2. Fixed submerged arc welding beam and beam

In the second step, the cut web and upper and lower wings are fixed to the solder joints, and then the beam is welded with submerged arc welding.

3. Laser calibration, laser beam

First cut out the web of the beam, cut out the U-shaped hole through which the beam can pass, and then fix the welded I-beam in parallel. It is important to compare the results of the beams. If the parallel error of the two I-beams is large, there will be very serious tire wear.

4. Connect the side beam and weld the kingpin

At this time, the main beam of the low plate semi-trailer is basically formed, and only the side beam is welded to form the frame structure. And the traction pin traction plate is welded to the position required by the contract, and the welding process requires high requirements, otherwise the low chassis truck trailer will skew.

5. Welding frame, welding suspension

At this time, the welding suspension must strictly control the size and maintain the verticality, otherwise it will cause tire wear.

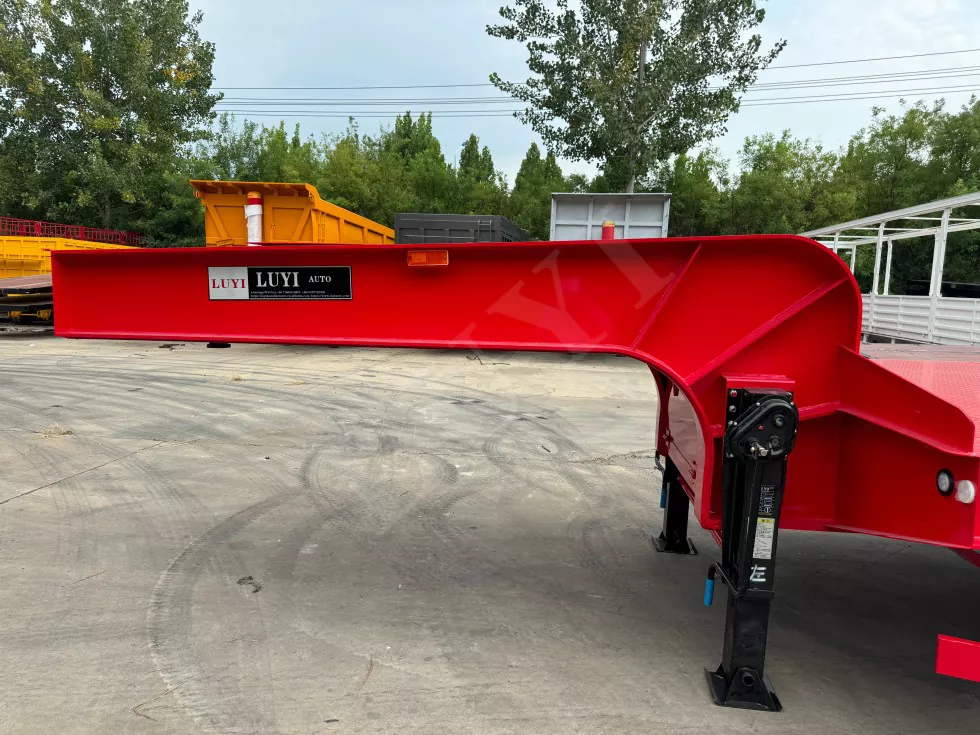

6. Connect the gooseneck

This process is to complete the welding of the gooseneck and chassis structure of the low plate semi-trailer, and the accuracy of the welding is very important, because the Angle deviation of the traction pin will affect the use of the semi-trailer, especially in the later use, and the wrong welding will cause the tire wear of the trailer.

7. Lay the bottom plate

The steel plate that is at least greater than 3mm is laid on the bearing platform of the low plate semi-trailer, the welding process should pay attention to the welding seam of the frame structure, at the same time for different cargo transportation, the steel plate laid is also different, the common bottom plate should be patterned steel plate, strong friction, the stability of the transport of goods will be improved.

Product Parameter (Specification)

Product Feature And Application

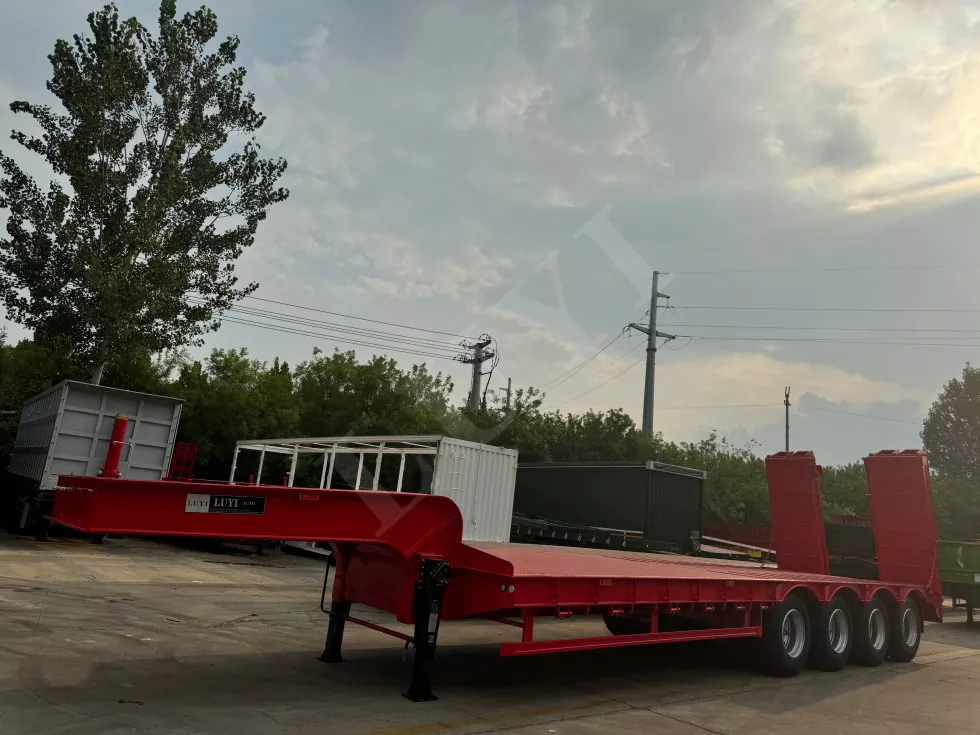

The low flat semi-trailer has flat type, concave beam type and tire exposed type structure, and the longitudinal beam adopts flat type or gooseneck type. Its frame is ladder type, longitudinal beam section is I-shaped, with high stiffness, high strength characteristics. The main plane of the frame cargo platform is low, which ensures the smoothness of transportation and is suitable for carrying all kinds of construction machinery, large equipment and steel。

The support device of the semi-trailer is mainly used to support the trailer when unhanging, and is composed of legs, connecting brackets, etc. Many brands, York, Pasmark, Fuhua, Jost and so on are very good legs, generally not bad!

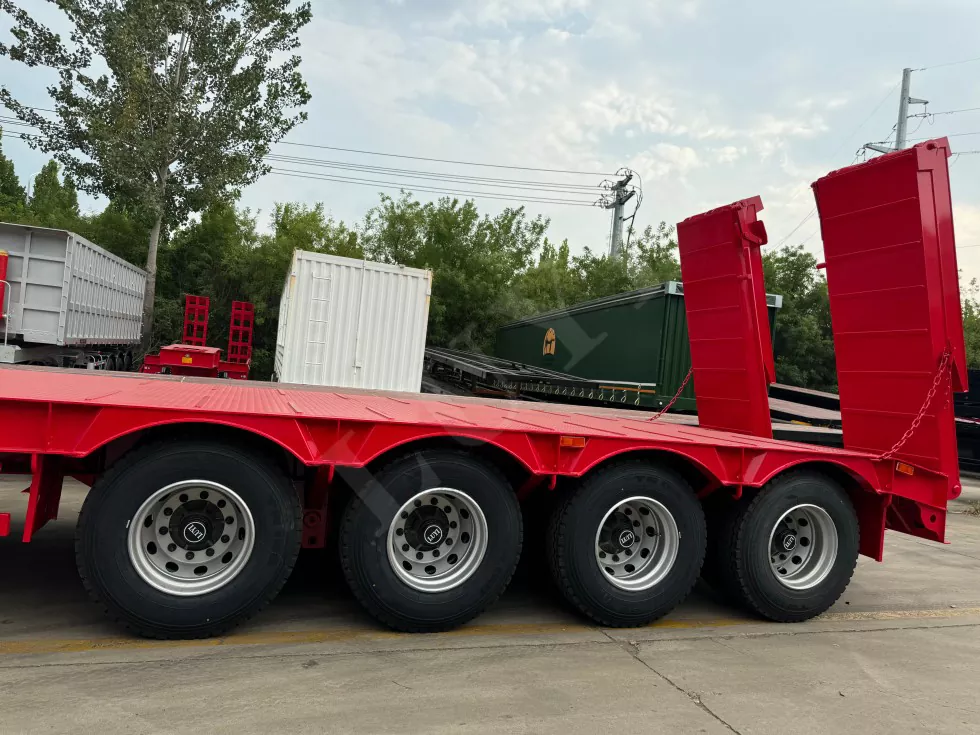

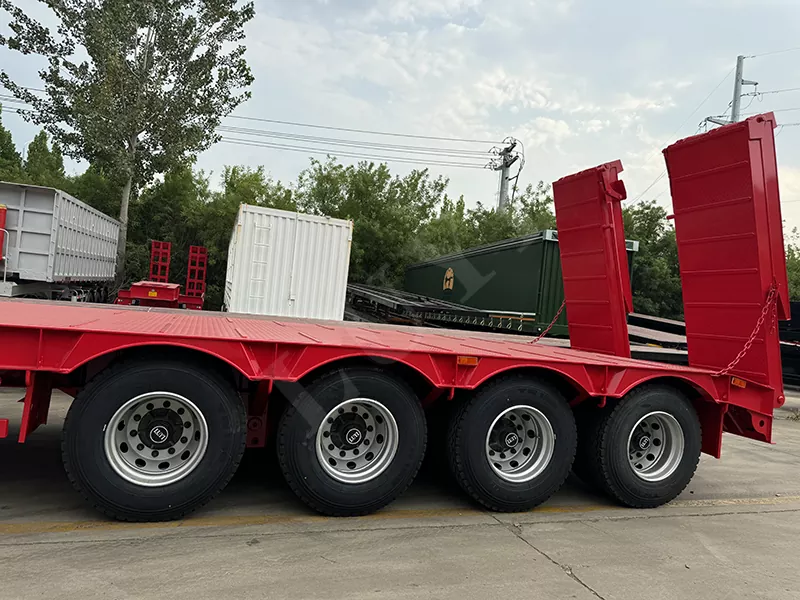

Diversity of tire choices: single tire and dual tire configuration options are provided, while supporting the customization of multiple tire models and brands to adapt to different road conditions and load requirements.Usually 12.00R20 or 12R22.5 steel radial tires are used. Some models may be equipped with 13.00R25 (for more complex road conditions). Block or mixed patterns (such as "mine pattern" or "off-road pattern") provide good grip and mud discharge performance, suitable for complex road conditions such as construction sites and mining areas. High load capacity: single tire load can reach 3.5-4.5 tons (need to match according to axle load). Wear and cut resistance: tread rubber formula and structural design are suitable for environments with sharp objects such as gravel and slag.

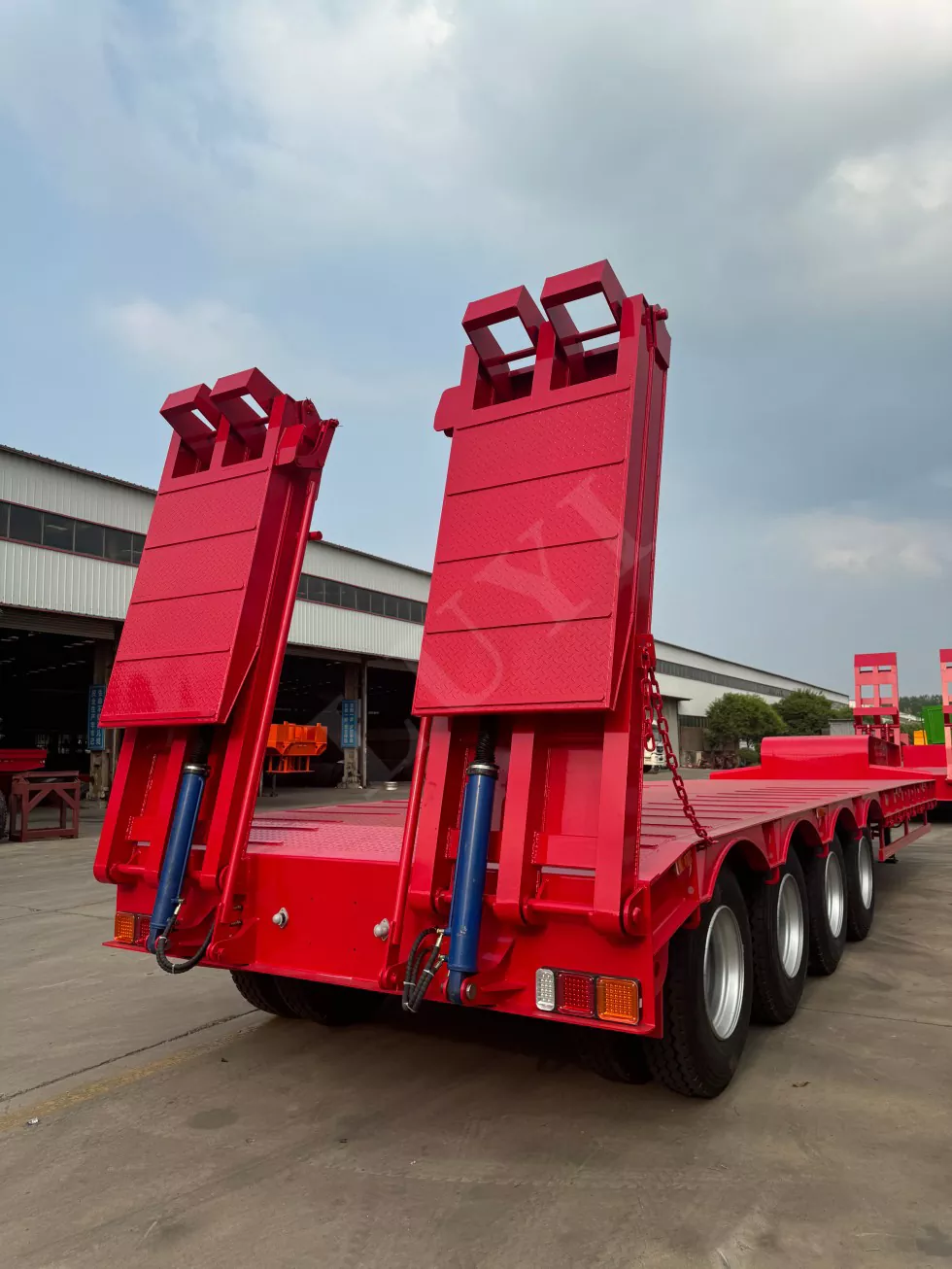

It solves the disadvantages of too large Angle of ladder slope and poor passability in rear loading and unloading of low flat semi-trailer. The labor intensity of the operator is reduced, and the work efficiency is improved. Improve the loading efficiency and create greater benefits for users. Low center of gravity, good stability. Improved passing performance on bumpy roads. Safely and easily replace tires or perform other repairs
