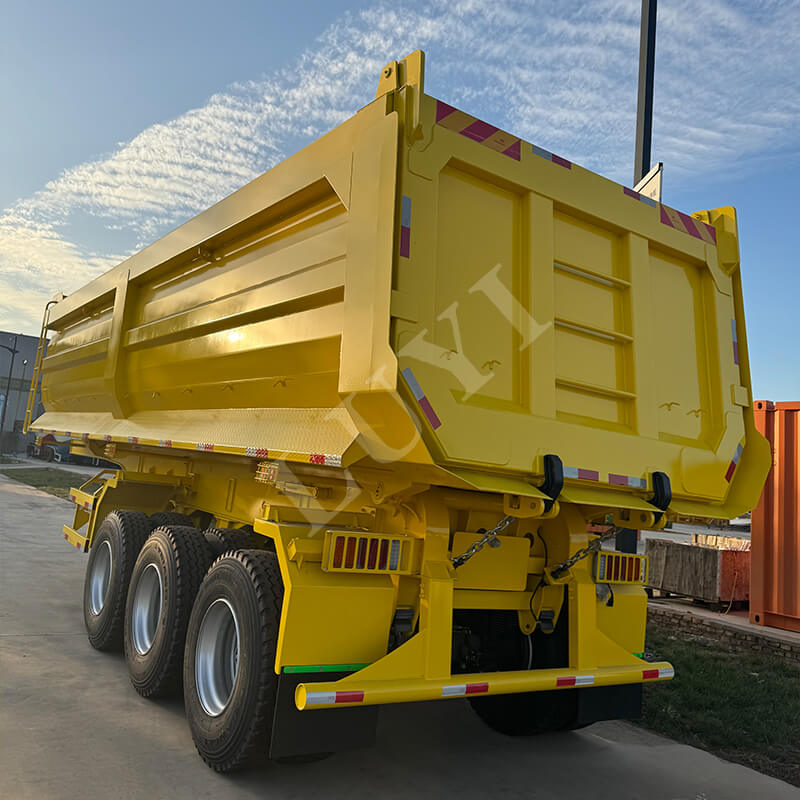

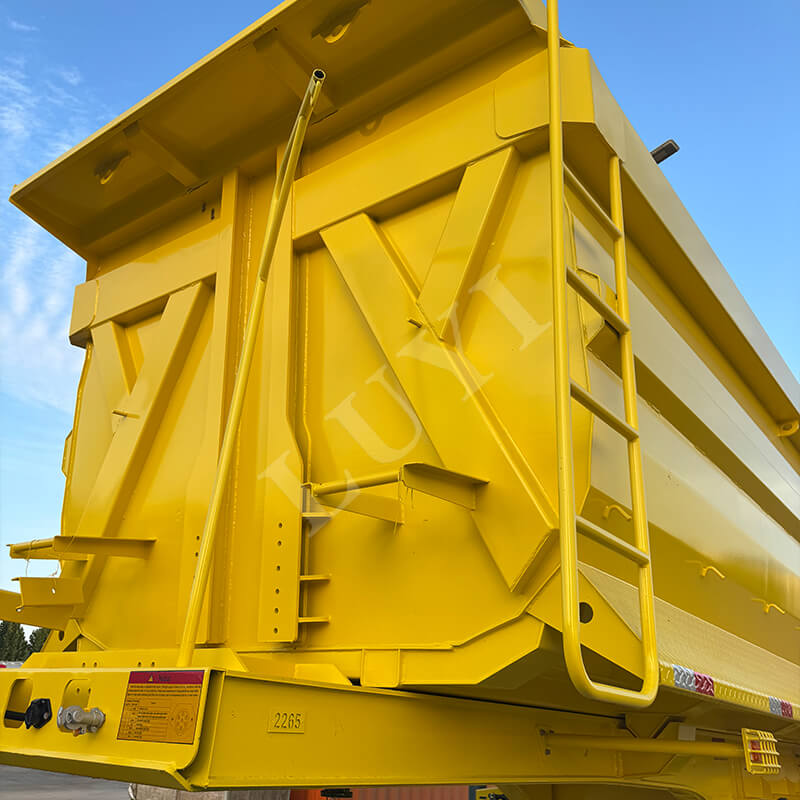

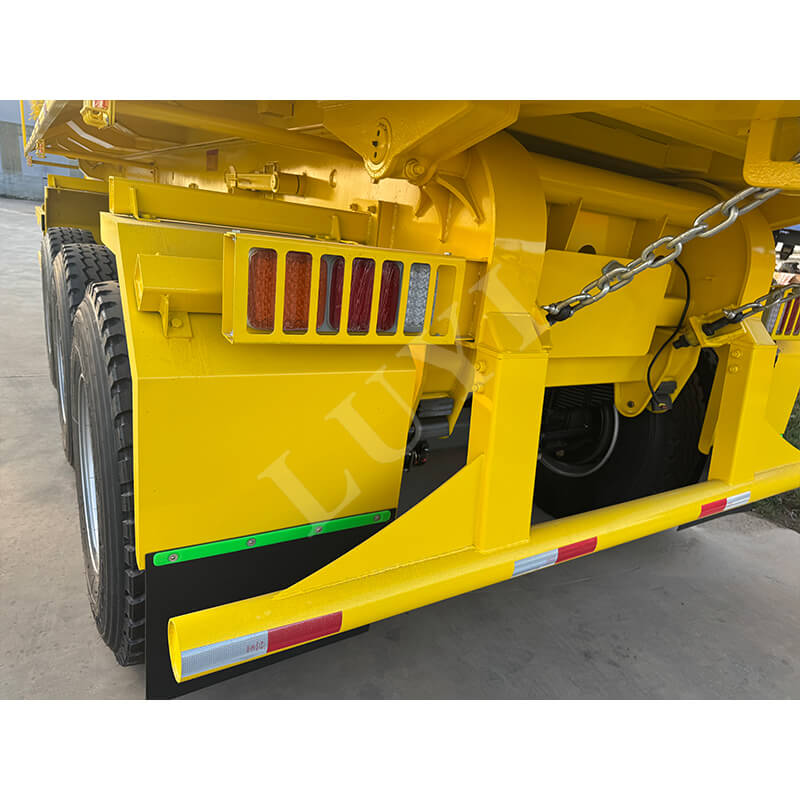

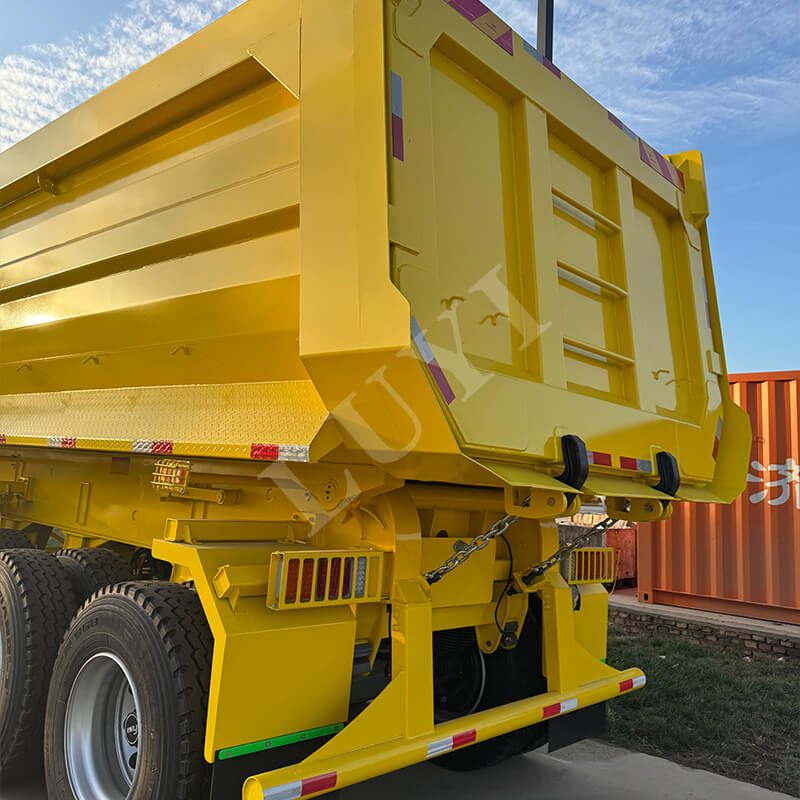

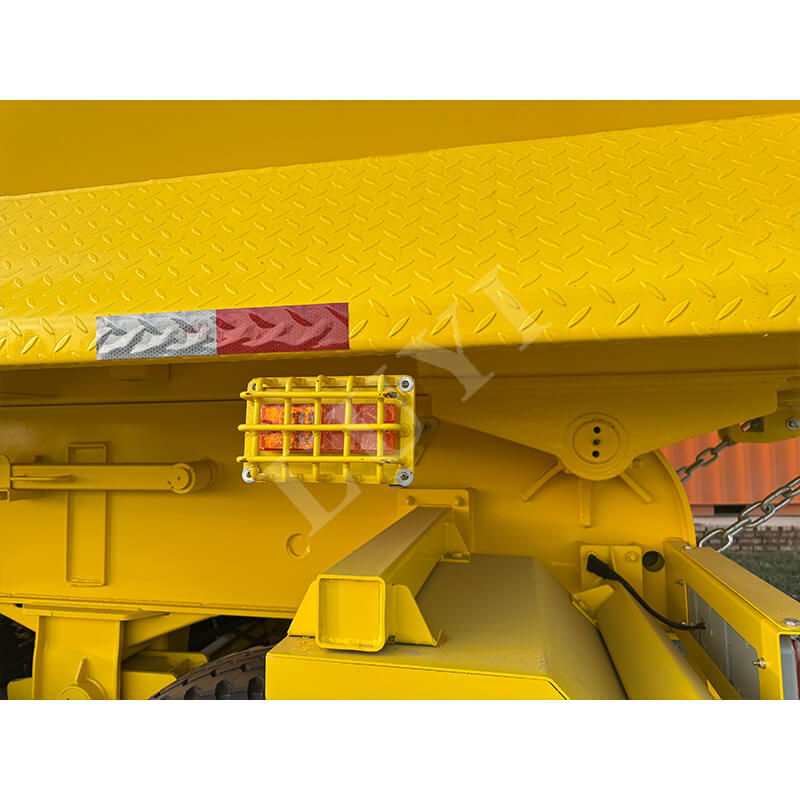

Heavy Duty Hydraulic 3 Axle 60-80 Ton U Type Rear Tipping Semi Trailer

LUYI heavy-duty hydraulic 3-axle U-type rear-tipping semi-trailer, originating from Shandong Province, China, is a dump truck trailer specially designed for materials such as sand, gravel, and grains. The material can be selected from carbon steel or aluminum alloy, which balances the needs of strength and lightweight. The body size is 12500×2500×3600 mm, and the maximum effective load reaches 60 tons, meeting the requirements of heavy-duty transportation.

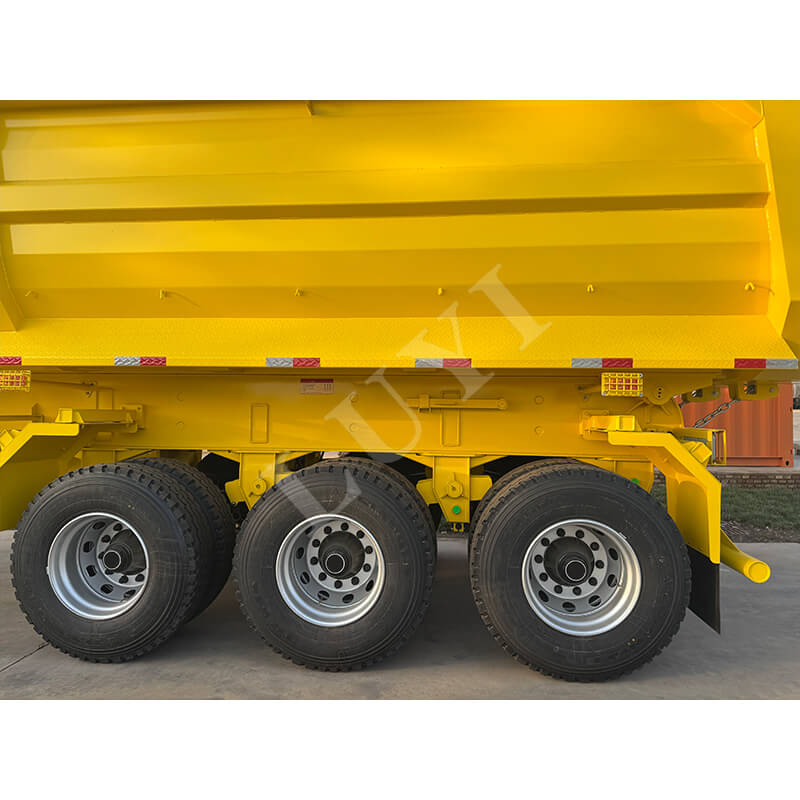

The vehicle has excellent flexibility. The axles can be configured with 2/3/4 axles, equipped with Fuwa or BPW brand axles. The suspension can be optional mechanical or air suspension, adapting to different road conditions; it is matched with 12R22.5/12.00R20/11R22.5规格 tires for stable driving. It is equipped with standard 28-ton outriggers to ensure parking safety. The kingpin provides 2-inch (50 mm) or 3.5-inch (90 mm) JOST options. The color can be customized according to customer needs. The hydraulic dump design is efficient and convenient, providing a high-quality solution for material transportation.

Size：12500x2500x3600MM

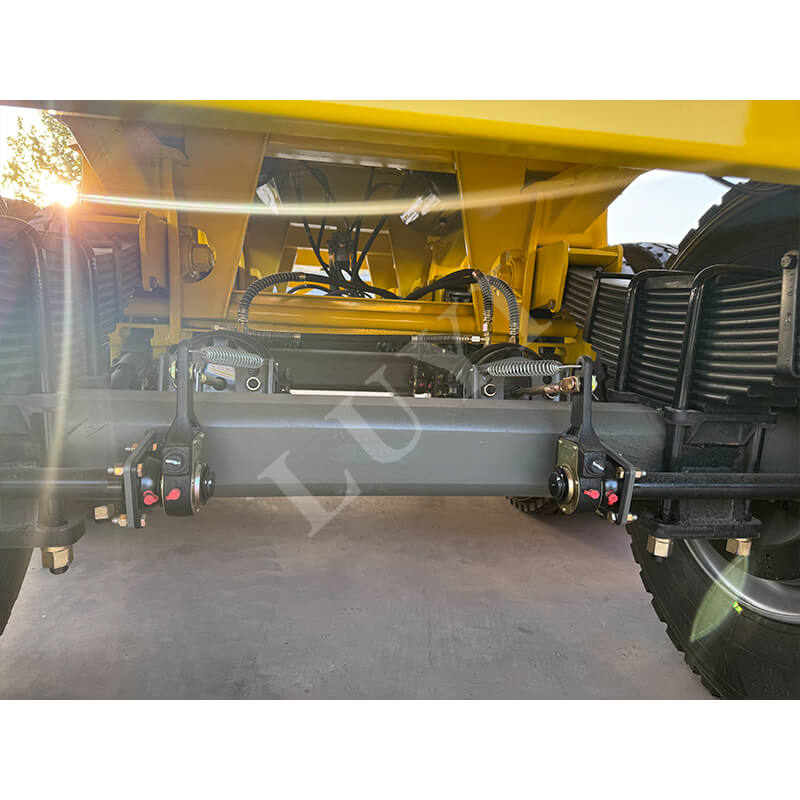

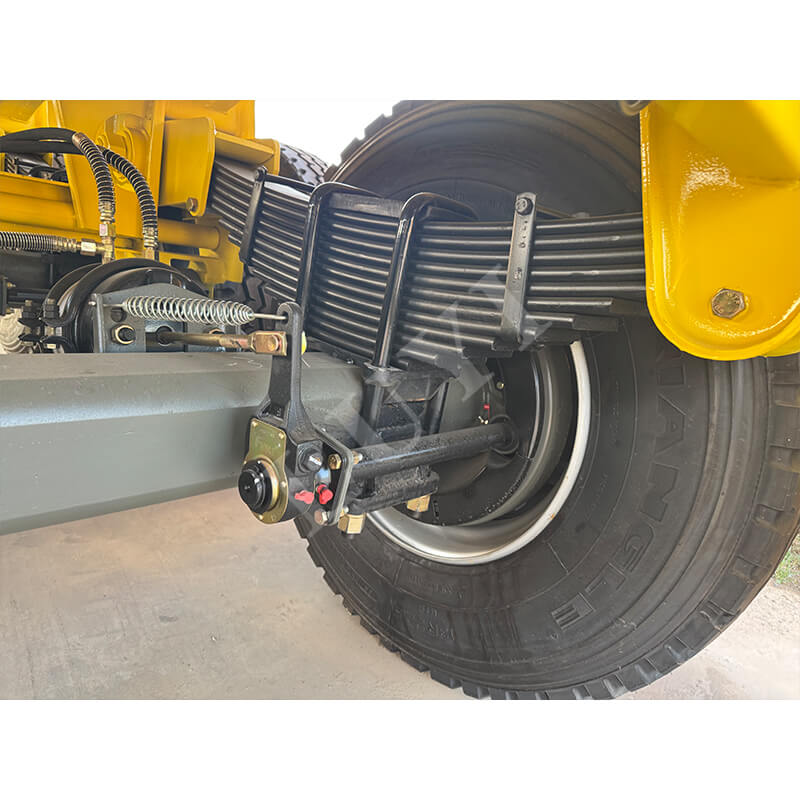

Suspension ：Mechanical Suspension Air Suspension

Tire： 12R22.5/12.00R20/11R22.5

Function：Sand Stone Grain Transporting

King pin： 2"(50mm)or3.5"(90mm) JOST

Landing Gear： Standard 28Ton

Use：Truck Trailer

Color：Customers Optional

FAQ

1. What are your advantages?

We have 15 years of export work experience, and our products have been exported to more than 60 countries and regions including Africa, the Middle East, Southeast Asia, South America, etc. We have a professional after-sales service technical team that can solve your problems in time

2. What payment methods do you accept?

L/C and T/T

3. We want tubeless trucks, is that ok?

Yes, both radial tires and tubeless tires are optional.

4. What logistics methods can you use for transportation?

We can use various transportation tools to transport construction machinery.

(1) Our main mode of transportation is that the machine will be shipped by container or ro-ro/bulk.

(2) For China's inland neighboring countries, we can ship the machine by road or rail.

(3) For urgently needed spare parts, we can ship by DHL, TNT, UPS or FEDEX.

5. In addition, what other products does your factory produce?

Our factory not only produces tractors, but also dump trucks, sprinkler trucks, truck cranes,mixer trucks, dump trailers,tank

trailers, low-bed trailers, dust removal trailers, etc. Our factory is large in scale and can customize different products

according to different customer requirements.
