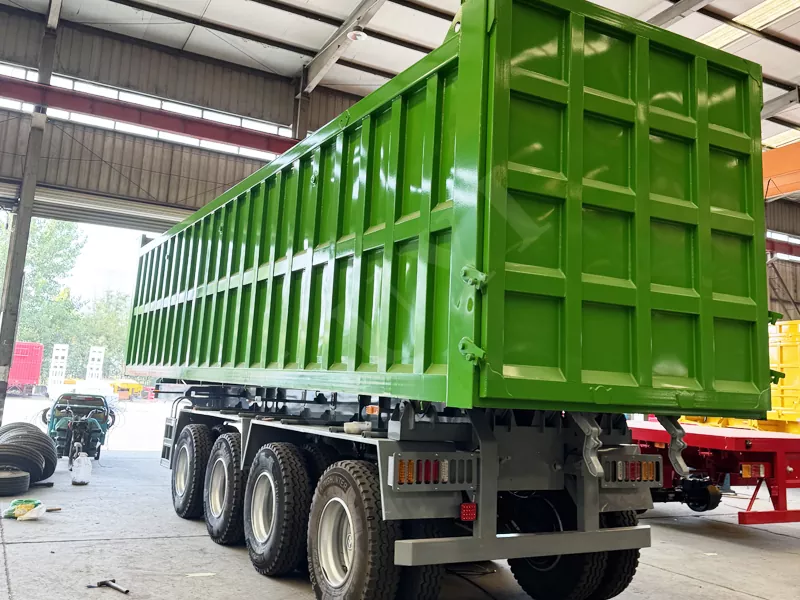

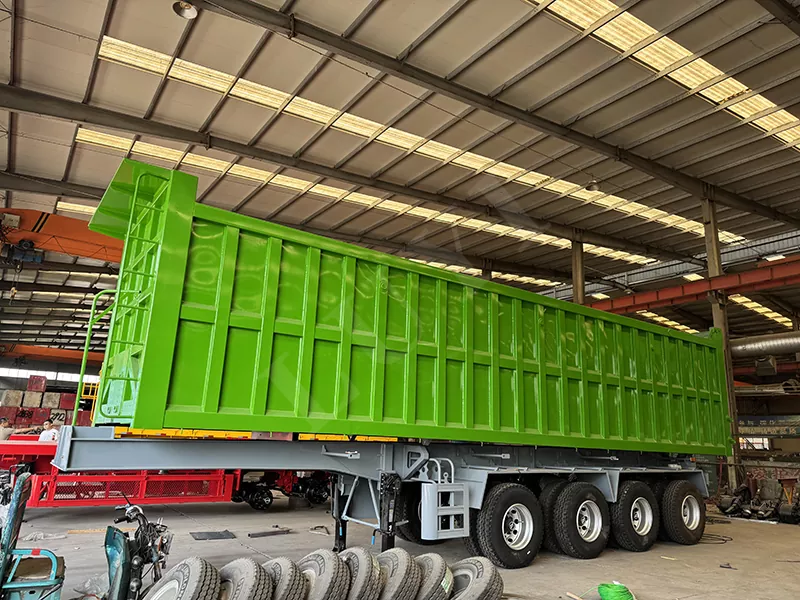

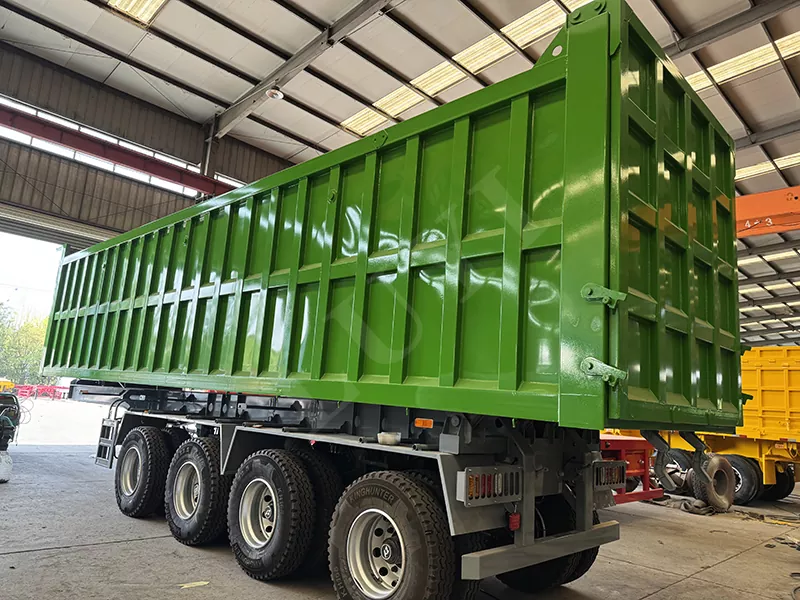

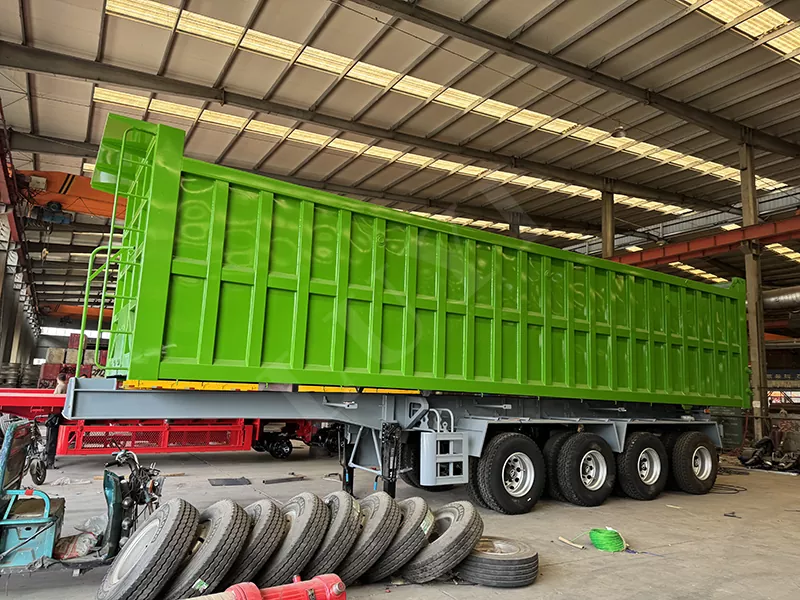

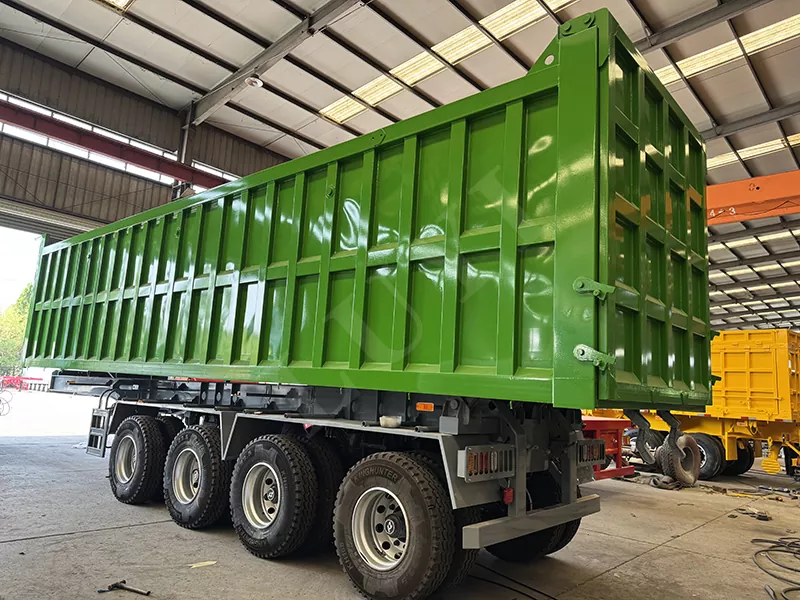

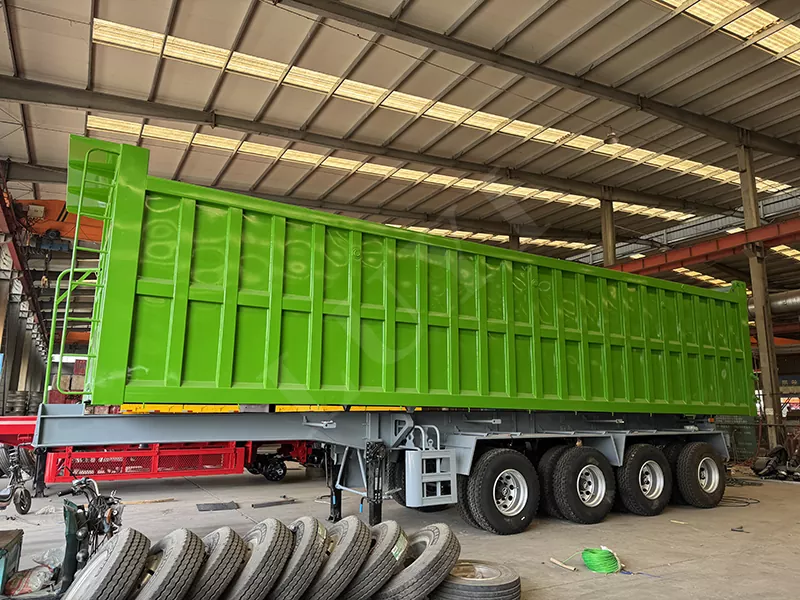

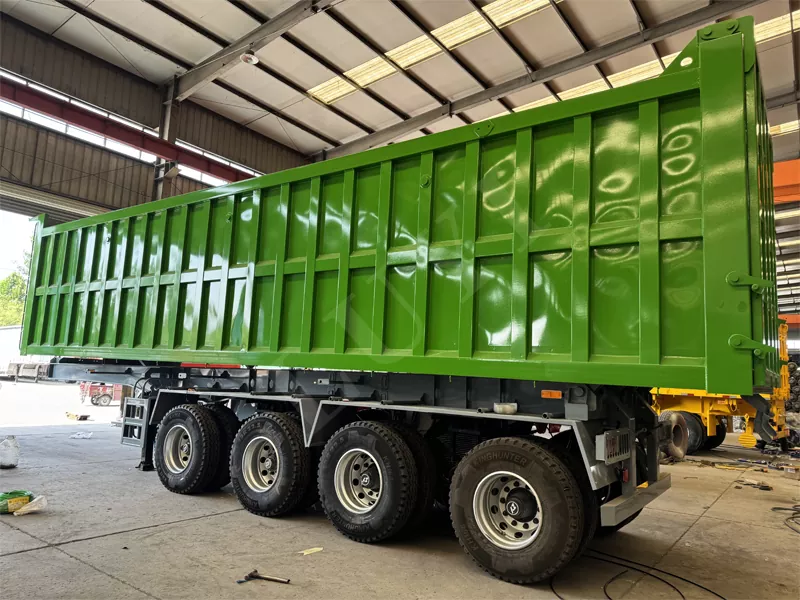

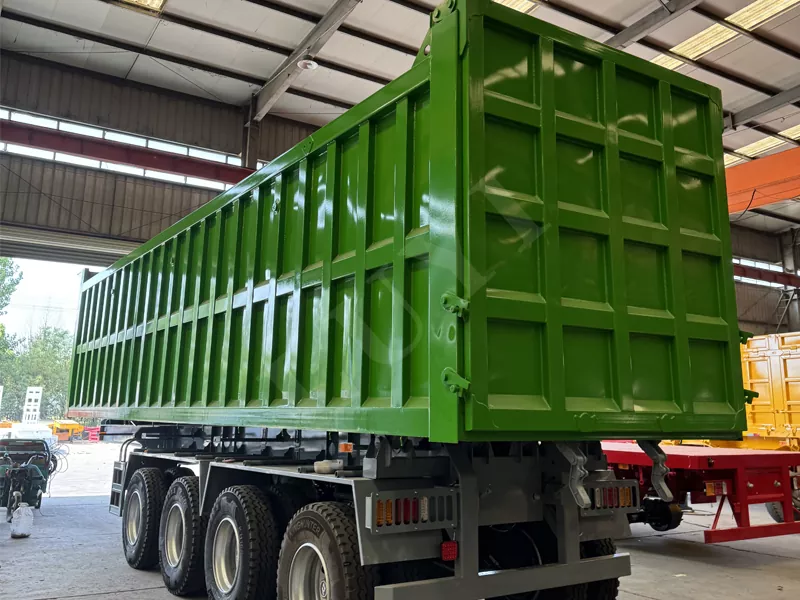

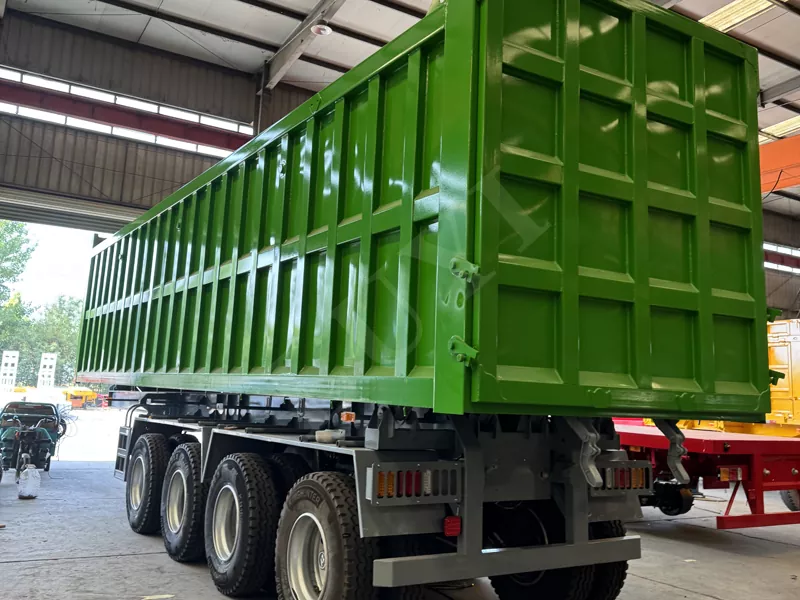

4-Axle Rear Dump Semi-Trailer

4-axle rear dump semi-trailer is 13 meters long, 2.5 meters wide, with a load capacity of 80 tons and 40 cubic meters.

Vehicle beam: height 500 (mm), upper wing plate 18*200 (mm), lower wing plate 20*200 (mm), web double vertical plate 8 (mm);

Material: Q345B manganese plate heavy-duty durable I-beam and high-strength steel 400, welded by automatic submerged arc welding process.

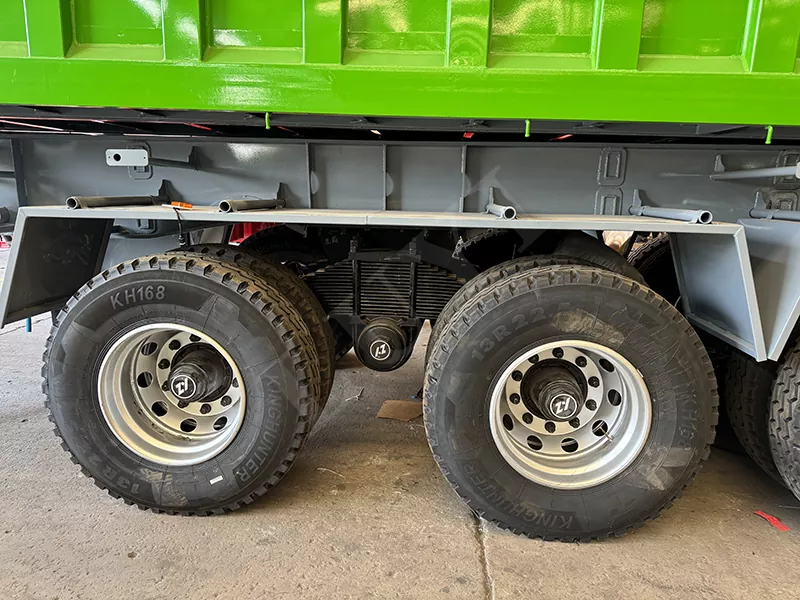

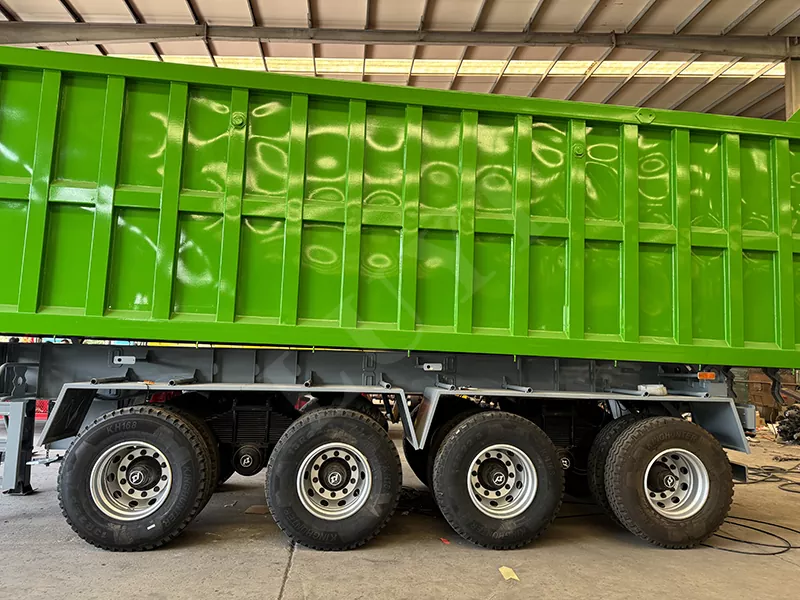

4X16T Guangdong Fuhua brand or BPW brand. Optional steel wire or vacuum tires, single tire and double tire can be designed. Four-axle air suspension or mechanical suspension, heavy-duty leaf spring, WABCO ABS. Yost outriggers and traction pins, WABCO relay valves, 24V electrical circuits, LED headlights, anti-collision bumper design, equipped with large-size tool boxes, the whole vehicle adopts special powder spraying process, wax spraying factory, to ensure the safety of marine transportation.
