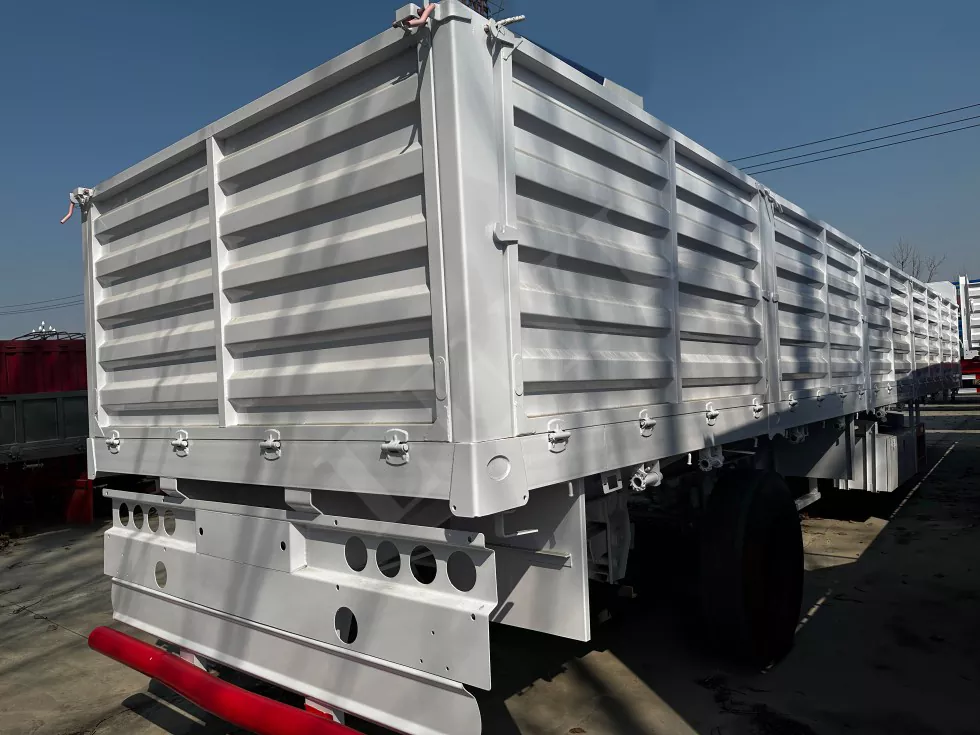

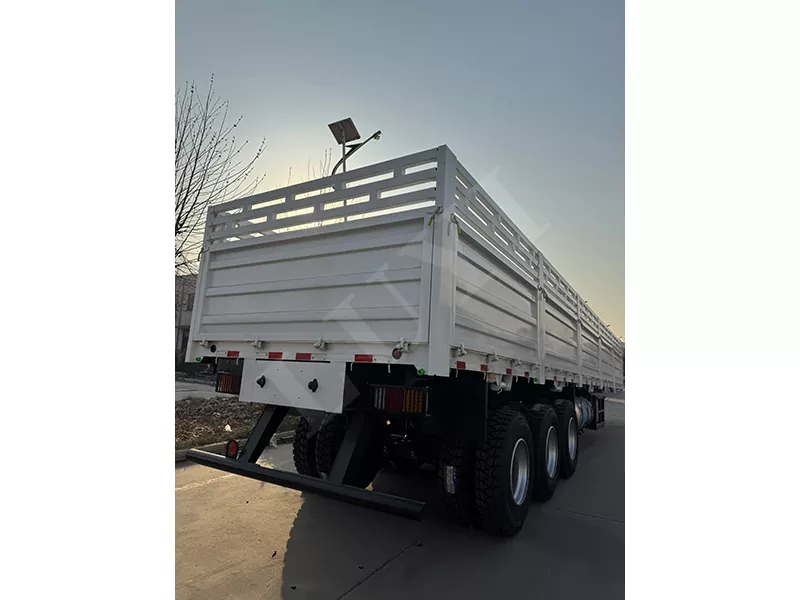

Side wall semi trailer have a wide usage,
It’s basically used for medium and long-distancetransportation , it can transport a wide range of bulk cargo, like sand, bags, animals etc.
The standard length of the trailer is 12.5m, 13m.
The side panel can be 0.6m, 0.8m, 1m, 1.2m, or1.8m etc.
lt can have multi -fuction , such as we can also install additional container locks ordetachable columns according to customers’special requirements.
|
Flatbed Trailer with Side Wall |
|||||
|
Model |
LUYI0305 |
||||
|
Dimension(Optional) |
Axle No. |
Rated Load (kg) |
Tire No. |
Tire Size |
|
|
60cm |
3 |
60000 |
12 |
825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier) |
|
|
80cm |
3 |
60000 |
12 |
||
|
80cm |
4 |
80000 |
16 |
||
|
Axle |
13/16/18 T |
||||
|
Suspension |
Heavy Duty Mechanic Suspension with Leaf Springs |
||||
|
Main Beam Material |
Q345B manganese plates, automatic submerged arc welded |
||||
|
Brake System |
Dual line braking system with automatic braking system/chambers |
||||
|
Brake Air Chamber |
Double Model |
||||
|
Kingpin |
2' or 3.5' Interchangeable |
||||
|
Landing gear |
28T loading capacity with 80T static lifting capacity. |
||||
|
Platform |
4-6 mm diamond steel plate |
||||
|
Brake System |
Dual Lines Braking System With Automatic Air Chambers |
||||
|
Electrical System |
24V, 7core socket, lights according to European standards. |
||||
|
Mainbeam Size |
Upper plate |
14mm |
|||
|
Lower plate |
16mm |
||||
|
Mid Web |
8 mm |
||||
|
Height |
500-520mm |
||||
|
Pin Height |
According to the height of the tractor saddle. |
||||
|
Application |
For 2x20ft or 1x40ft containers/bulk cargo transport |
||||
|
Sidewall Height |
300mm 600mm 800mm 1200mm 2000mm by needs |
||||

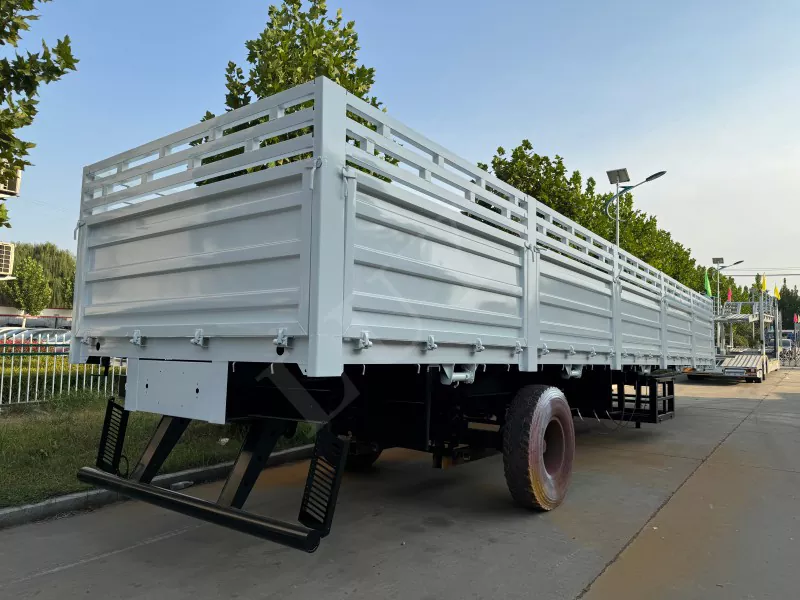

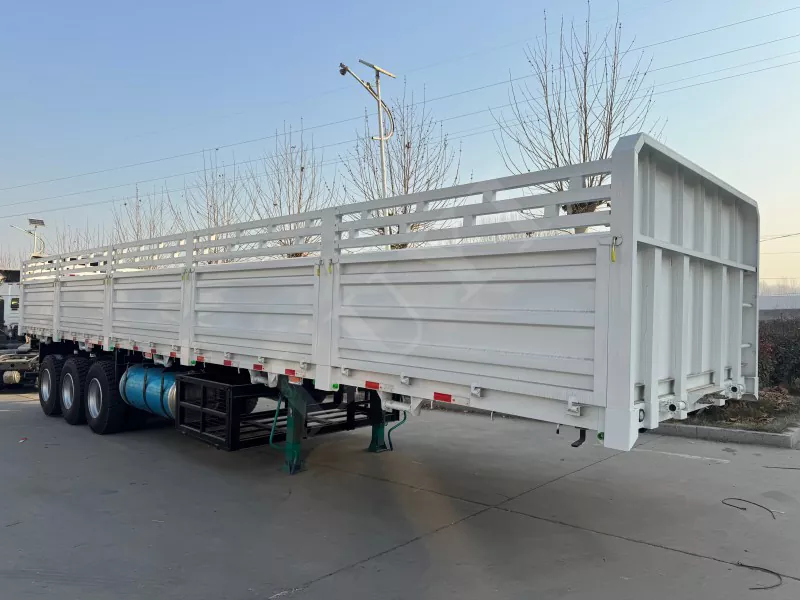

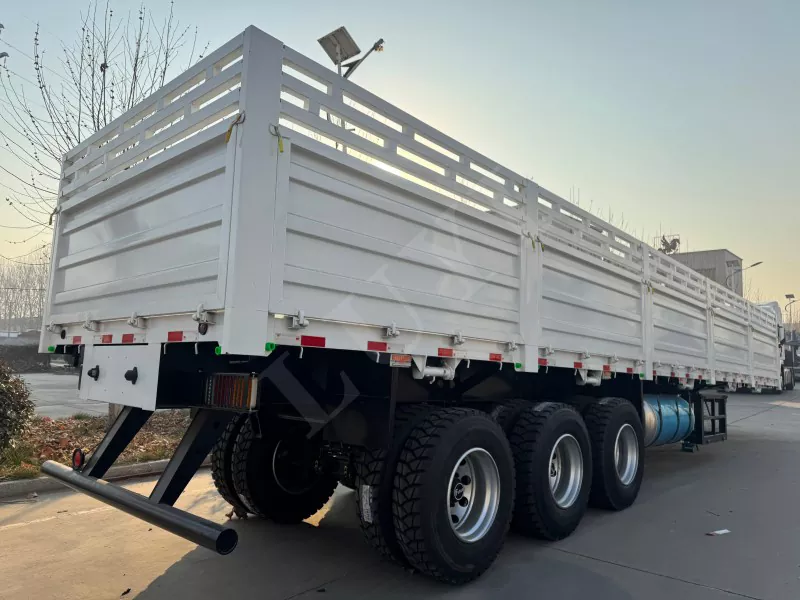

The panel and fencecan be disassembled ,after disassembled , it can use as a flatbed trailerThe front part can be frame style or board styleSide wall height can be 600mm, 800mm, 1000mm,1200mm,1500mm,2000mm by need.

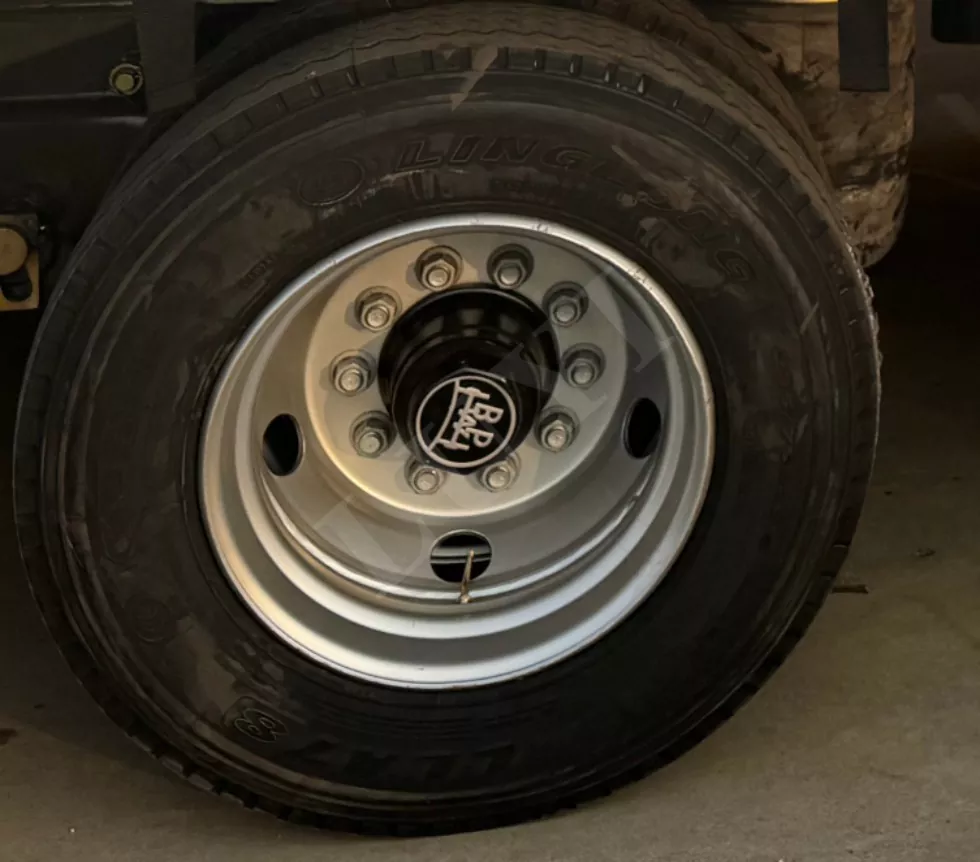

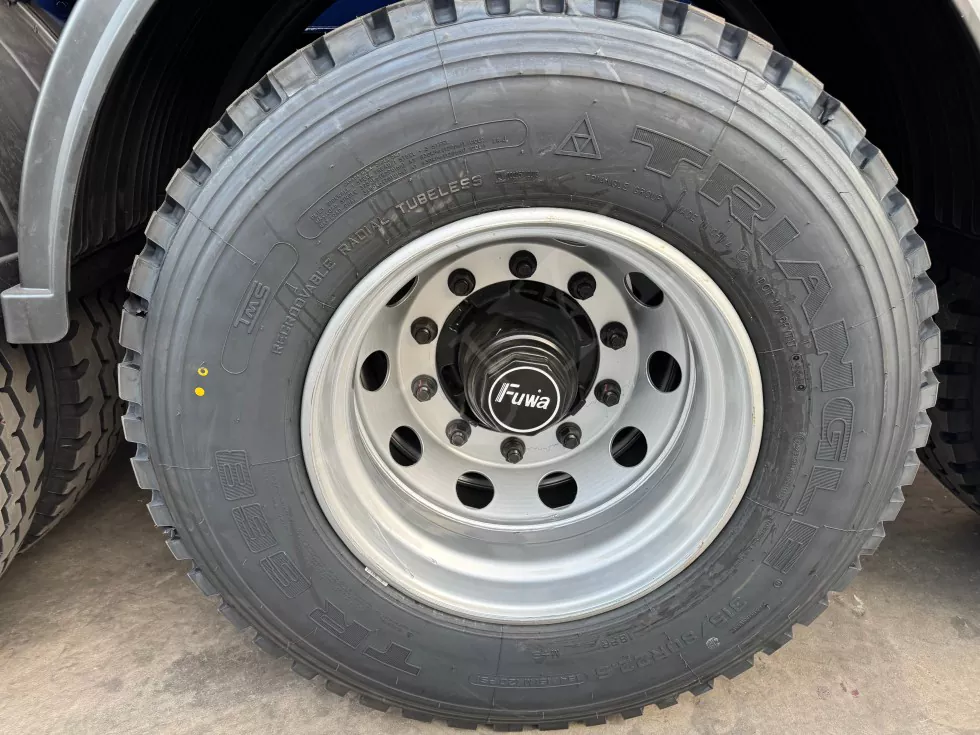

We can match the fitable tire model according to the the trailersize and payload capacity.
Our standard brands include Triangle, Linglong, Chengshan, ete
Customers’ Special requirement can be customized

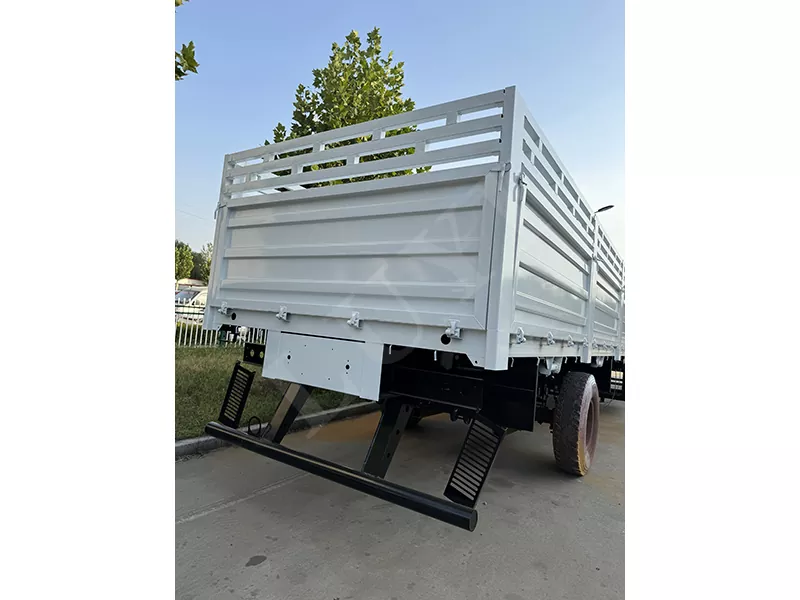

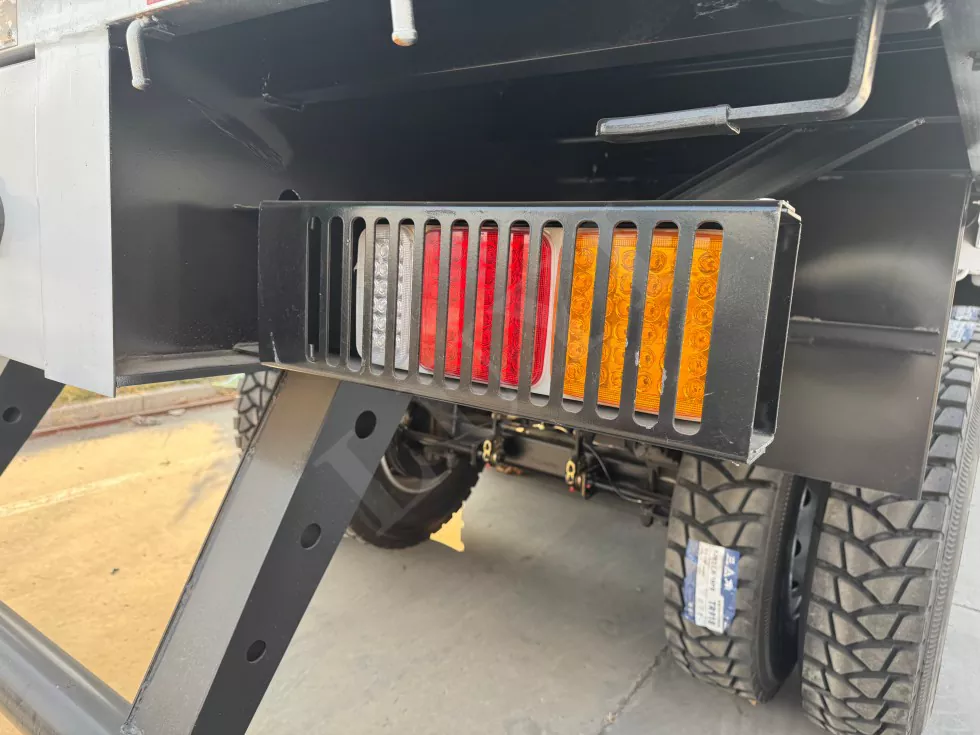

New rear-tail wing strut. Network of lamp anti-theft devices

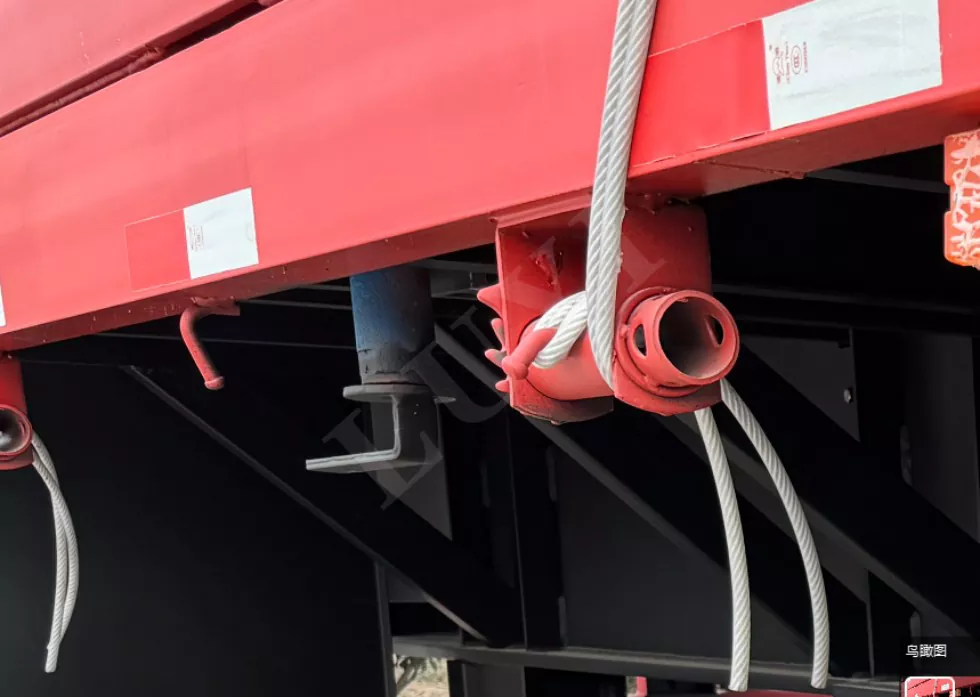

container lock.
The fenced flatbed trailer may be used to load the container after using a container lock.

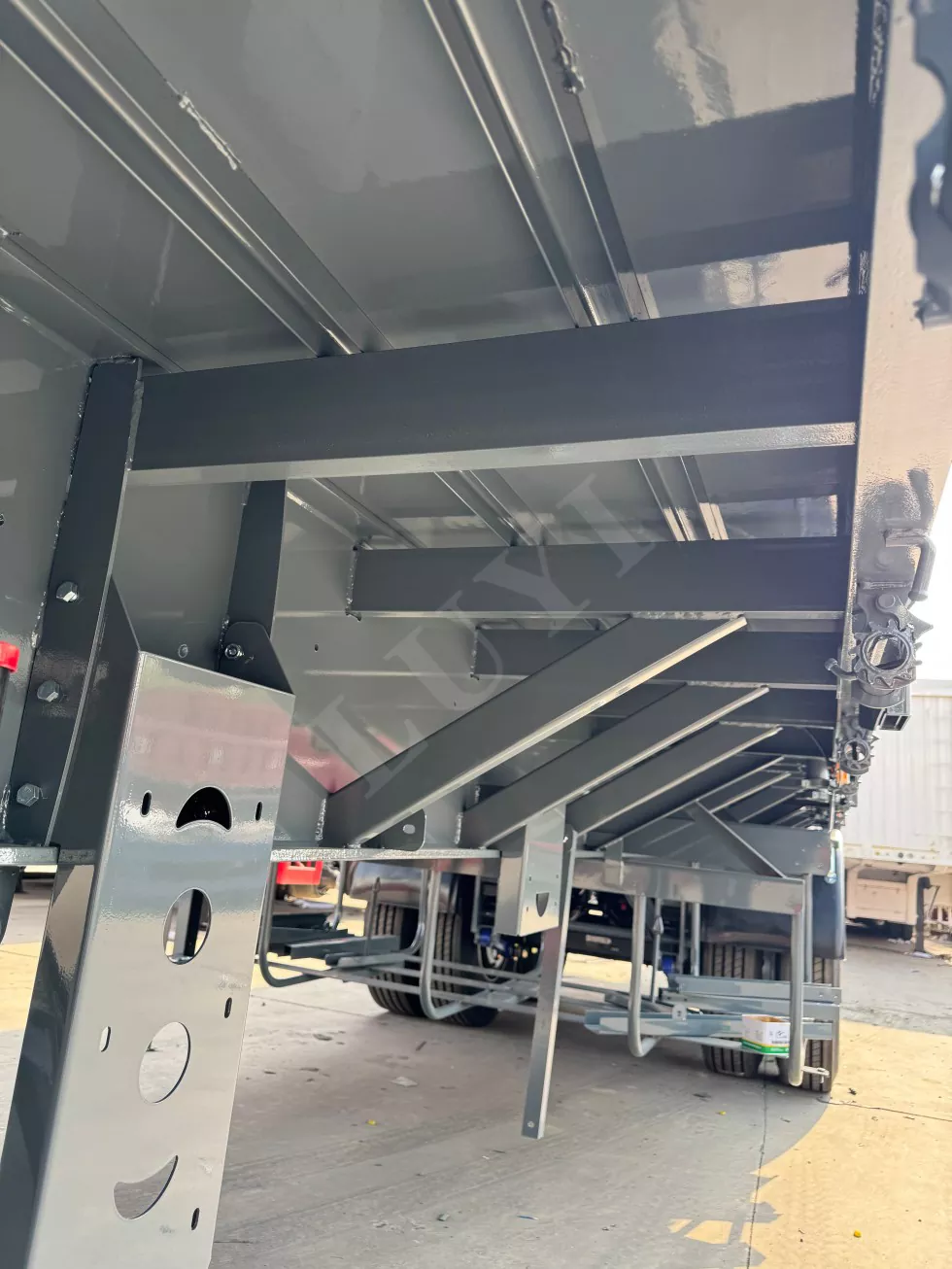

Main beam
The main beam adopts Q345 high-strength steel, which is stable and safe when operating under harsh road conditions.

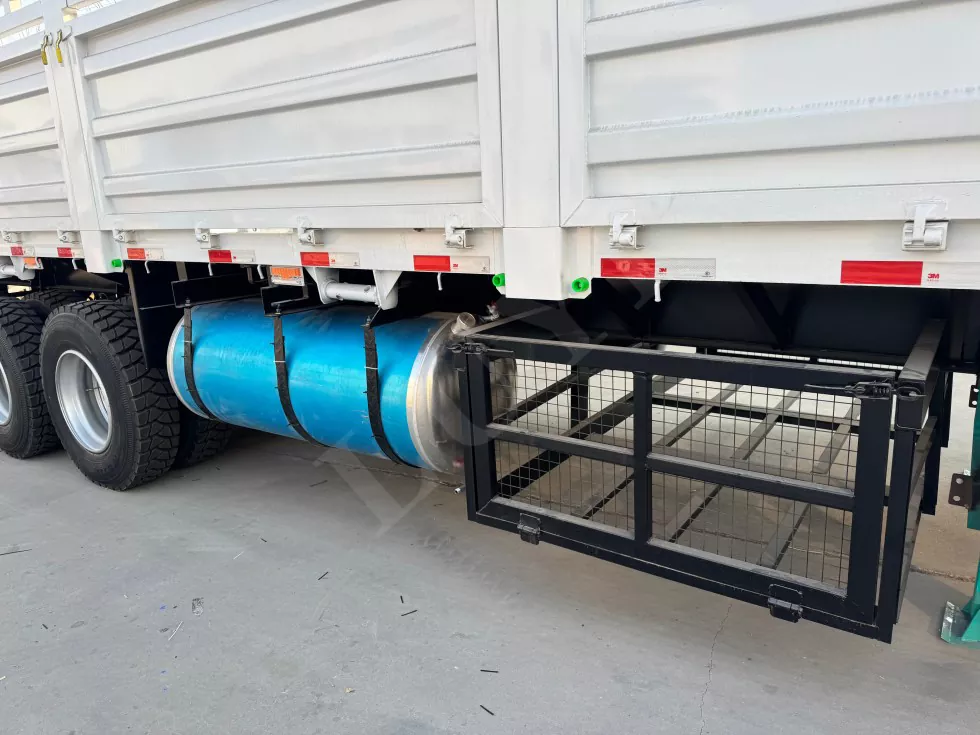

Tank and tool box
Large fuel tank design, external storage frame

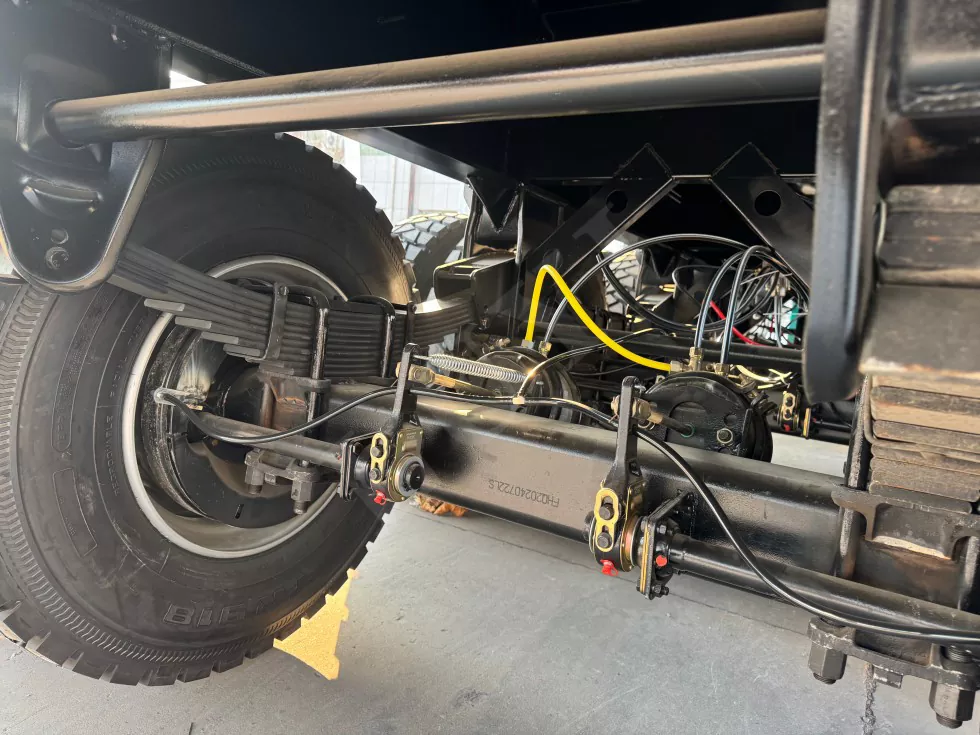

We usually use the mechanical suspension or air suspension;
Our axles brand is normally BPW or FUWAWe adopt double air chamber braking system, WABCO relay valve;
ABS is optional by your need.
Axle BPW/FUWA/LEAO/SAF Axle optional.
Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong Carrying Capacity and high bending Strength.Axle maintenance-free could reach 3 Year/400,000 kilometers.
Summary
This 80cm sidewall trailer combines operational practicality with robust engineering, delivering 18% higher loading efficiency than conventional models while maintaining full road compliance. Custom configurations available upon request.
