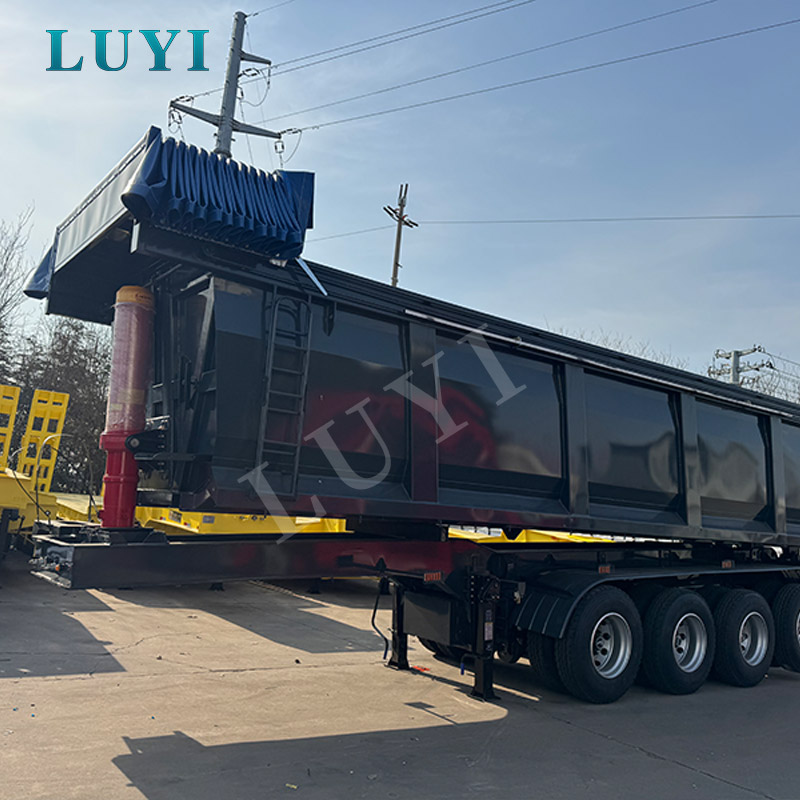

This LUYI rear tipper semi-trailer is a heavy-duty transport semi-trailer originating from Shandong, China, specially designed for heavy truck towing applications in mining, infrastructure and bulk cargo transportation. Made of high-quality solid steel, the trailer features excellent load-bearing performance with a maximum load capacity of 70 tons and a curb weight of only 9 tons, achieving an optimal balance between heavy load and lightweight body. Its overall dimensions are 9000mm×2550mm×3700mm, with adjustable side wall height ranging from 400mm to 1200mm for flexible cargo accommodation.
Constructed with Q345 carbon steel wheel hubs of 500mm height and reinforced main beams with 70-ton bearing capacity, it ensures strong structural stability and long service life. Configured with 4/6 axles optional, matching mechanical spring or air suspension systems, and multi-spec tires including 11.00R20, 12R20 and 315/80R22.5, it runs steadily on various complex road conditions. The hydraulic cylinder driven U-shaped dump body enables fast and efficient unloading. Customizable color is available to meet diverse customer demands, making it a reliable and durable heavy transport equipment for bulk materials such as sand, gravel and coal.
Size：9000mm,2550mm,3700mm
Max Payload：70 Ton
Suspension：Mechanical Spring or Air Suspension System
Material：Steel
Tire：11.00R20 /12R20 /315/80R22.5
Landing Gear：Jost 28ton double speed
Side wall height：400-1200mm height
Rims：Height 500mm Q345 carbon steel
Color：Customers Optional
