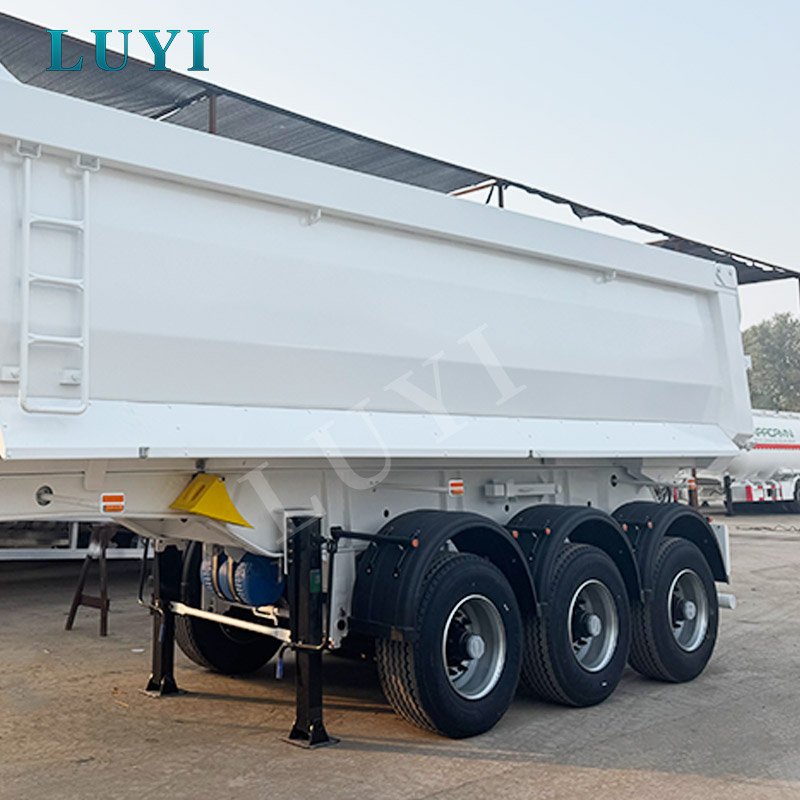

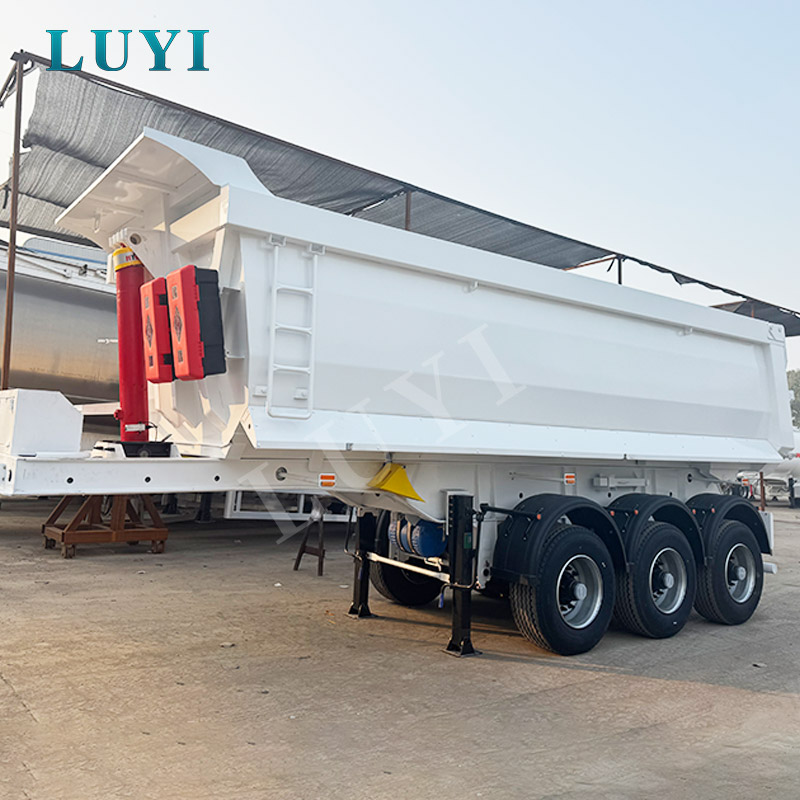

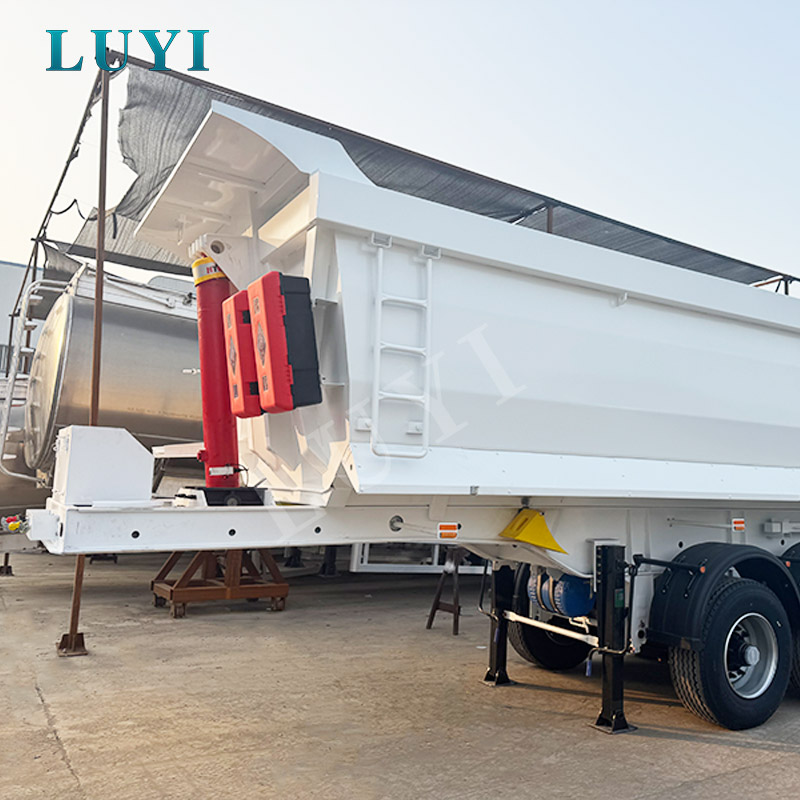

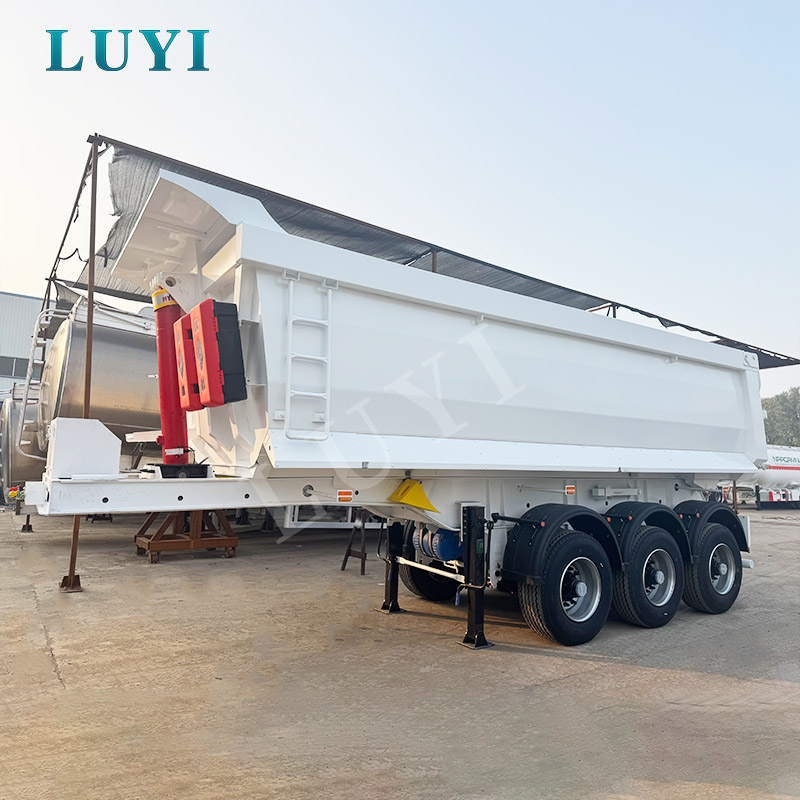

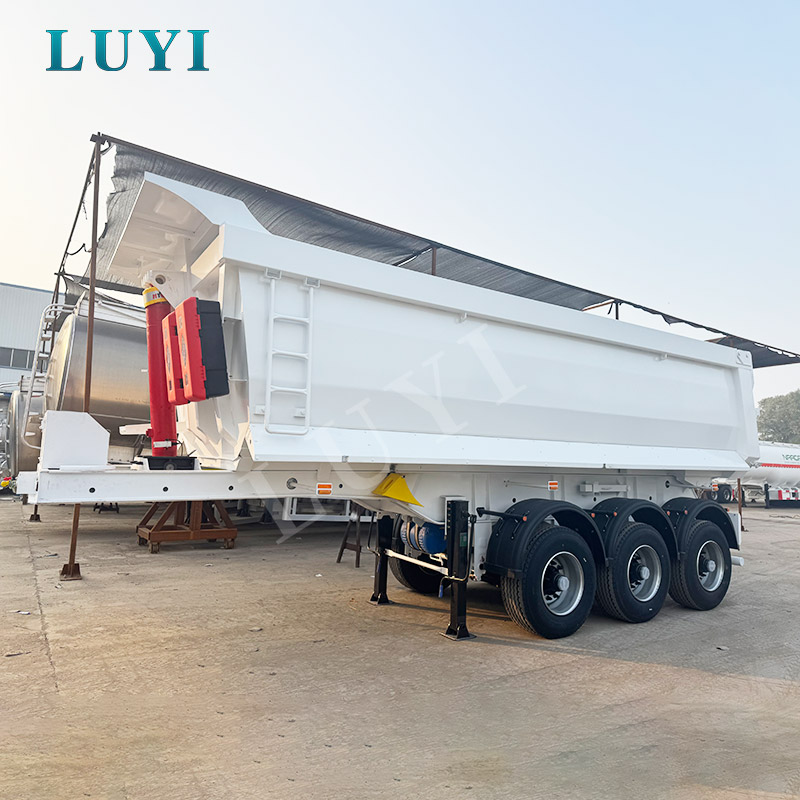

The LUYI three-axle U-shaped hydraulically adjustable rear-tipping semi-trailer is an efficient transportation equipment specially designed for the transportation of materials such as sand, gravel, and grain. It originates from high-quality manufacturing in Shandong, China.
The product is made of carbon steel or aluminum alloy, with a body size of 12500x2500x3600MM and a maximum load capacity of 60 tons, featuring strong bearing capacity and a stable structure. The trailer offers flexible options of 2/3/4 axles, paired with well-known brand axles from FUWA or BPW, and is equipped with various specifications of tires such as 12R22.5 and 12.00R20 to adapt to different road conditions. The suspension system can be optional mechanical or air suspension, ensuring excellent driving stability.

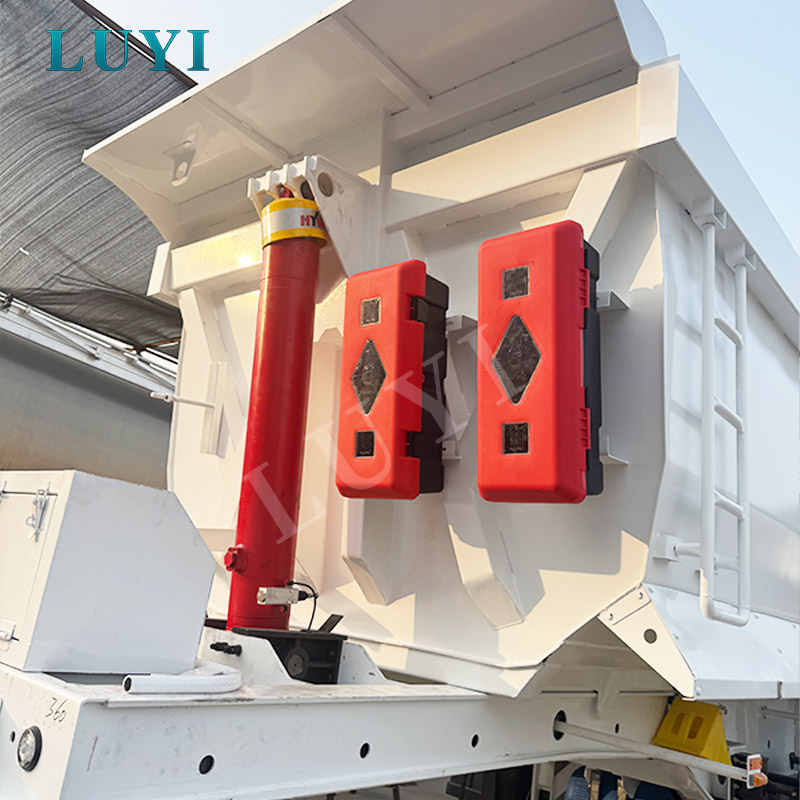

The 28-ton standard outriggers and 2-inch (50mm) or 3.5-inch (90mm) JOST kingpins guarantee safe and reliable connection. The hydraulically adjustable design makes unloading more efficient and convenient, and the color can be customized by customers to meet personalized needs. The product combines durability and adaptability, making it an ideal transportation partner for scenarios such as engineering construction and grain transportation. With high-quality materials and precision craftsmanship, it provides users with stable and efficient transportation solutions.
Size：12500x2500x3600MM
Landing Gear：Standard 28Ton
Max Payload：60 ton
King pin：2"(50mm)or3.5"(90mm) JOST
Suspension：Mechanical Suspension Air Suspension
Leaf Spring：90(W)mm*13(Thickness)mm*10(Layer)
Tire：12R22.5/12.00R20/11R22.5
Main Beam：T700/Q345 Steel
Color：Customers Optional
