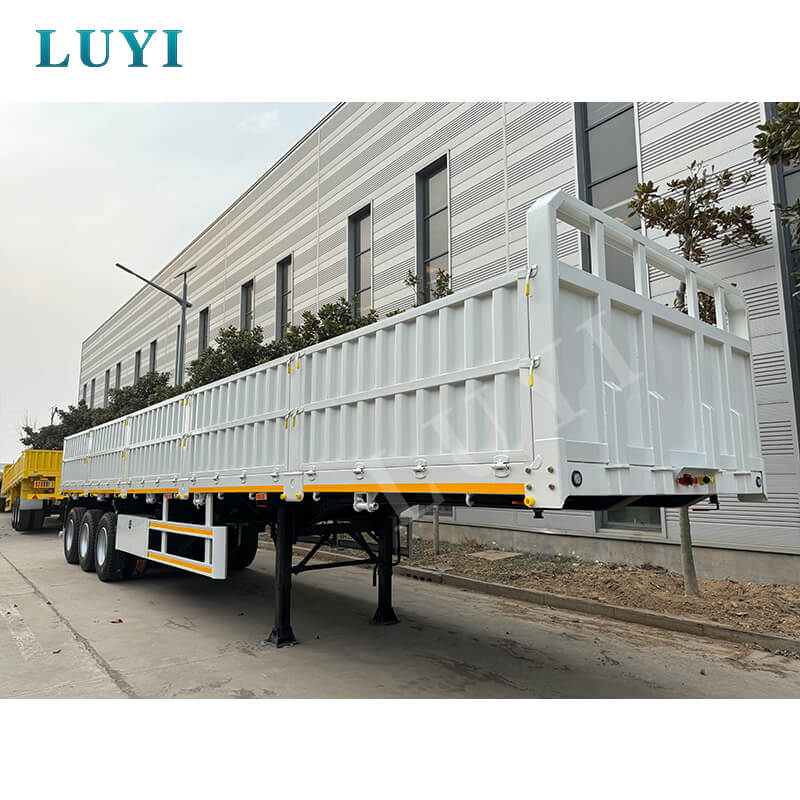

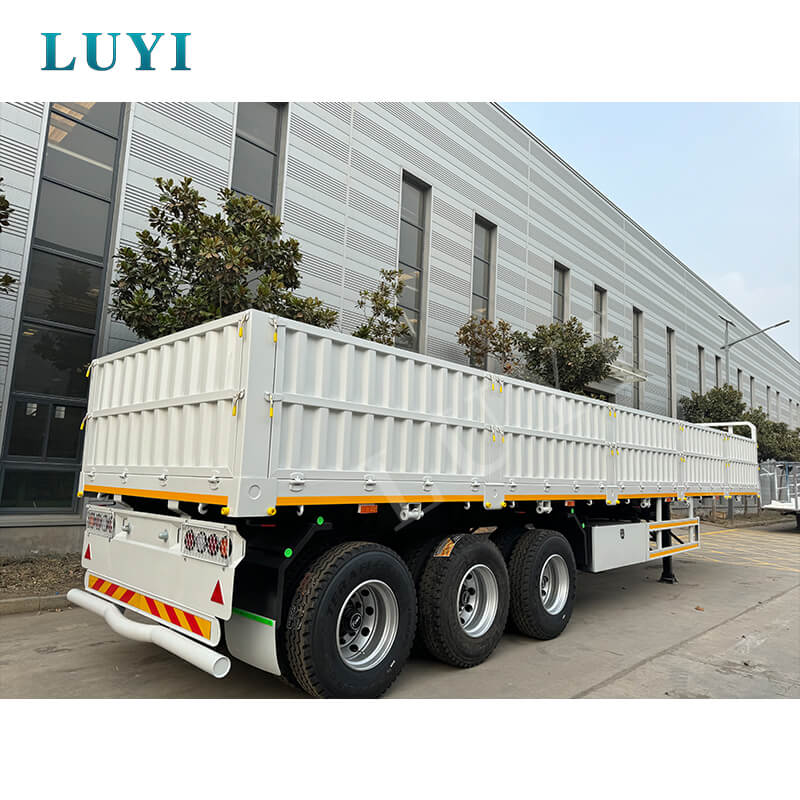

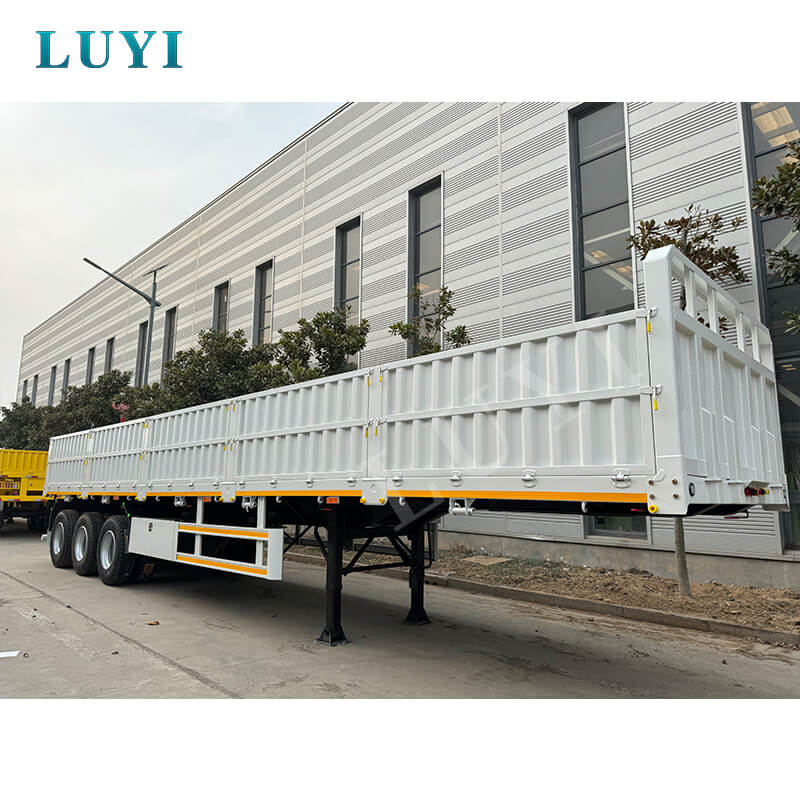

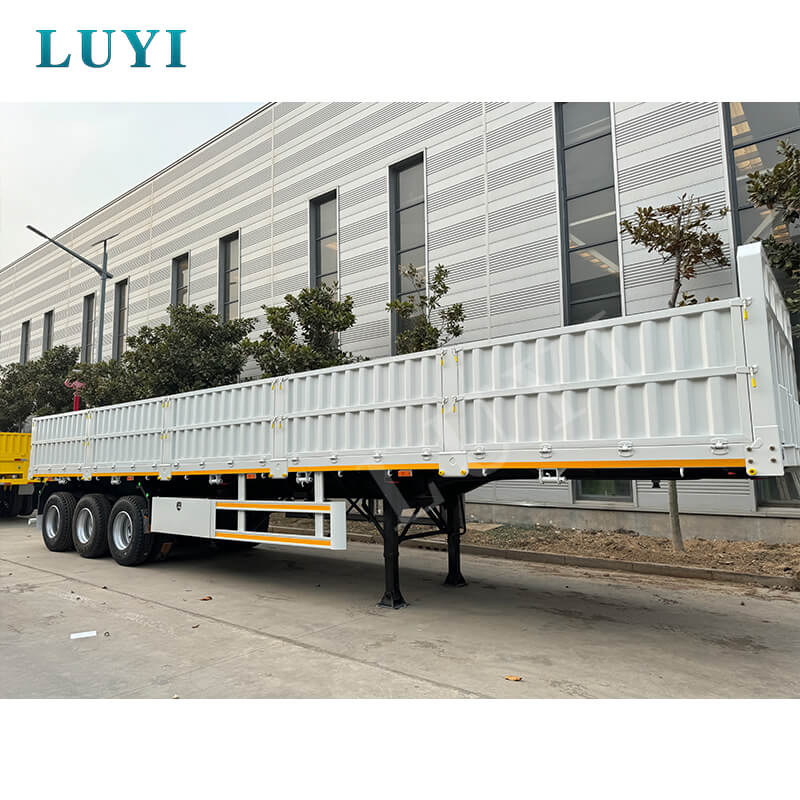

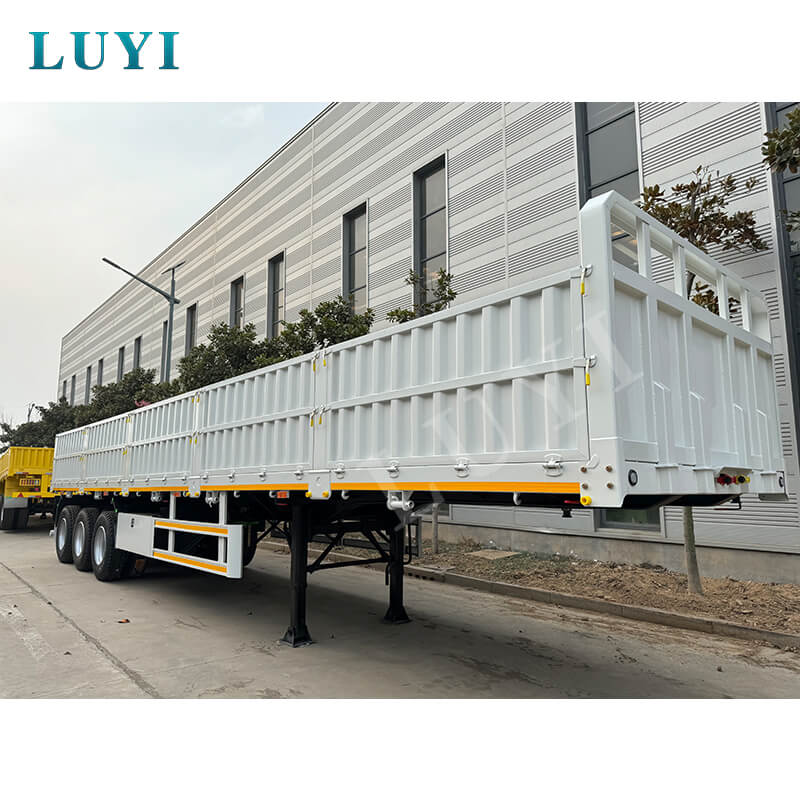

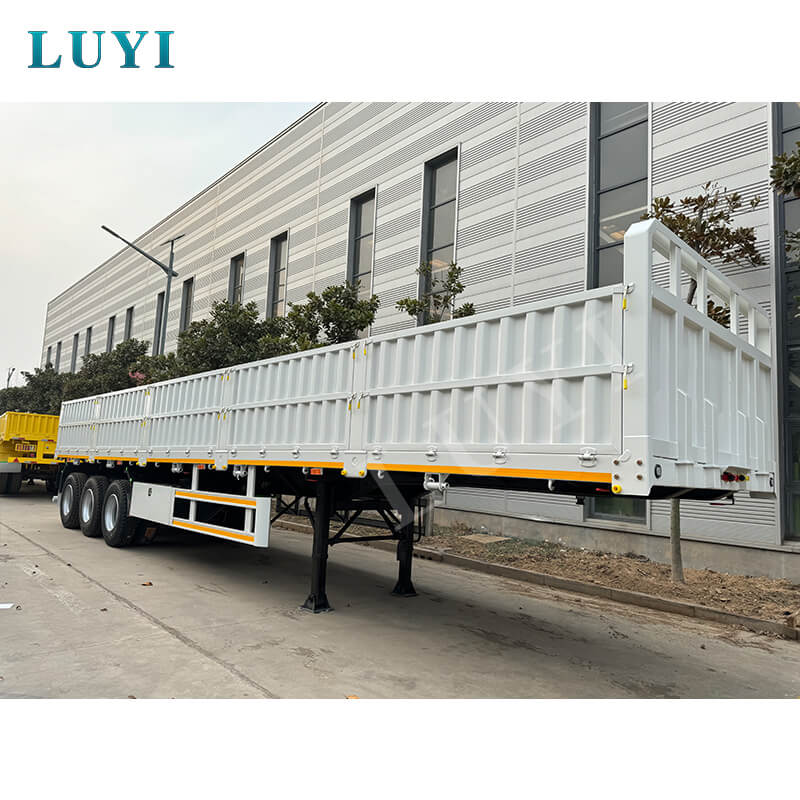

LUYI 3 Axle 60-ton Side Wall Stake Semi-trailer

The LUYI 3-Axle 60-Ton Side Wall Stake Semi-Trailer, originating from Shandong Province, China, is a brand-new truck trailer specially designed for cargo transportation. Constructed with high-strength steel, it combines durability and load-bearing capacity, boasting a maximum effective payload of 80 tons, which easily meets the demands of heavy-duty cargo transportation.

The product dimensions and cargo box dimensions are uniformly 13600x2500x2000 mm, providing ample space to accommodate various types of cargo. It is equipped with a 3-axle structure, 12.00R24 tires, and a mechanical suspension system, ensuring stable driving and strong shock resistance. The support legs adopt a standard 28-ton configuration for firm support, while the kingpin offers two options: 2-inch (50 mm) or 3.5-inch (90 mm) JOST, compatible with different tractors. In addition, the color can be customized according to needs, fully meeting customers' personalized requirements, making it an efficient and reliable cargo transportation equipment.

Size：13600x2500x2000mm

Axle：3 Axle

Suspension：Mechanical Suspension

Landing Gear：Standard 28Ton

King pin：2"(50mm)or3.5"(90mm) JOST

Tire：12.00R24

Function：Cargo Transport

Color：Customers Optional

FAQ
