A 4 axle detachable gooseneck trailer is designed for heavy-haul operations where ordinary lowbed trailers or flatbed trailers cannot provide enough loading convenience, axle distribution or deck stability. It is commonly used to transport excavators, bulldozers, crushers, mining machines, large tractors, harvesters, industrial equipment, wind power components and oversized project cargo.
The key feature is the detachable front gooseneck. During loading, the gooseneck can be separated from the main deck, allowing the front of the trailer to lower close to the ground. Heavy self-propelled equipment can then drive onto the deck from the front without relying on cranes or steep rear ramps. For buyers handling frequent machinery relocation, this can reduce loading risk, improve jobsite flexibility and shorten equipment transfer time.
Luyi Auto manufactures detachable gooseneck lowboy trailers for heavy equipment transport, with custom axle layout, deck length, suspension, hydraulic system, braking configuration and export-ready safety options. Buyers can also compare Luyi Auto’s lowbed semi trailer range when evaluating different heavy-haul solutions.

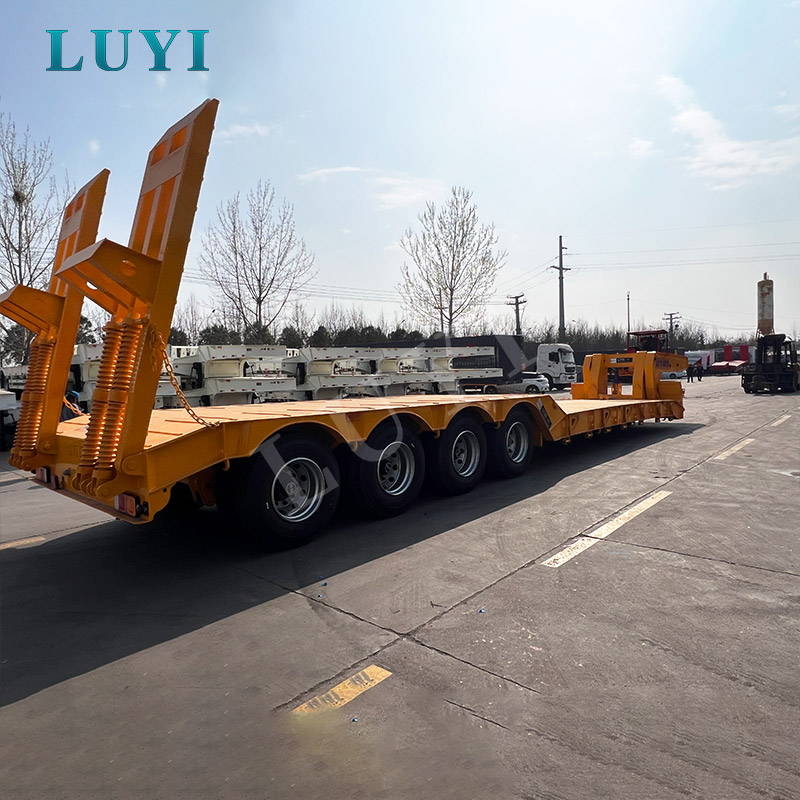

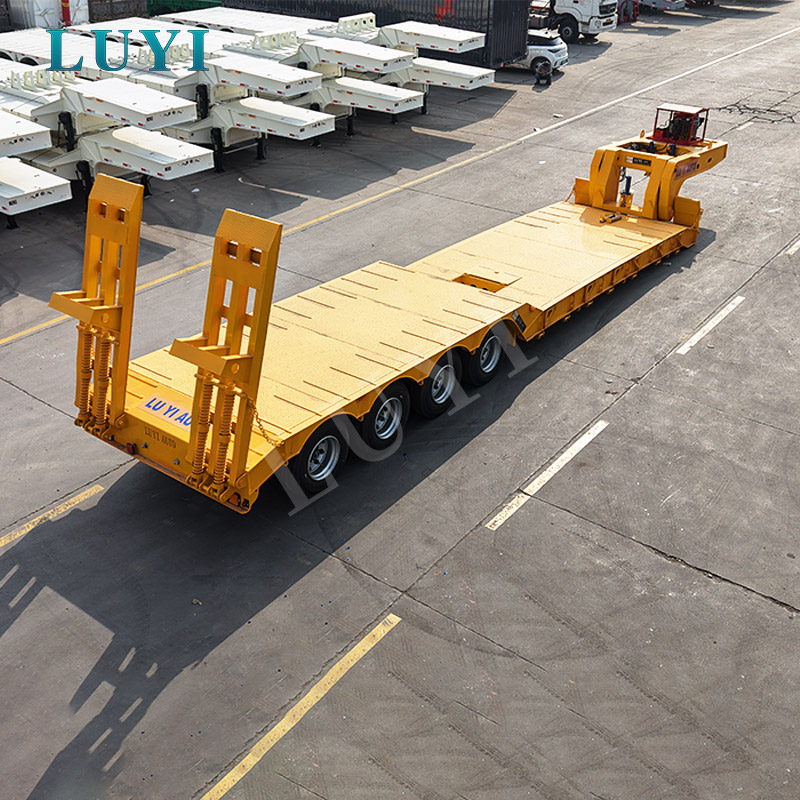

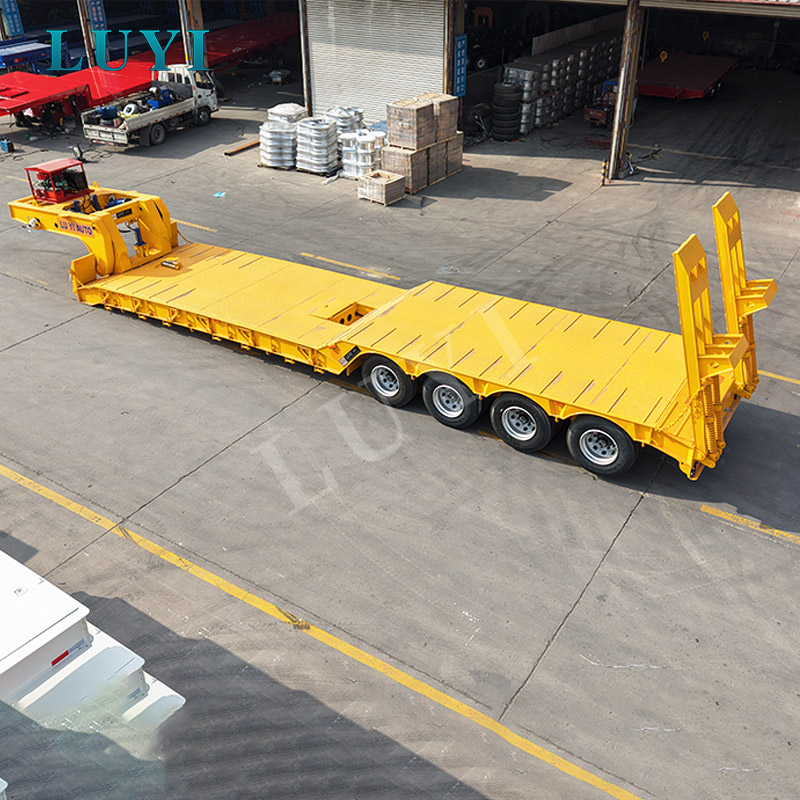

A 4 axle detachable gooseneck trailer, also called a 4 axle RGN trailer or detachable gooseneck lowboy trailer, is a low-deck semi-trailer with four rear axles and a removable front neck. The gooseneck connects to the tractor’s fifth wheel during transport. When loading is required, the gooseneck detaches, the front deck lowers, and equipment can be driven directly onto the trailer.
The four axle layout helps distribute heavy loads more evenly than a 2 axle or 3 axle configuration. This is especially important when transporting machinery with concentrated weight, long wheelbases or high centers of gravity. The low deck helps reduce overall transport height and improves stability during long-distance movement, rough-road transport and heavy project delivery.
For buyers reviewing specific product options, Luyi Auto’s 4-Axle Detachable Gooseneck 150-Ton Low-Bed Truck Trailer and 4-Axle 80-Ton Customized Gooseneck Lowboy Trailer are useful references for heavy equipment and oversized cargo transport projects.
Mining contractors and quarry operators use 4 axle detachable gooseneck trailers to transport crushers, excavators, drilling rigs, loaders, ore handling equipment and other heavy machines. Mining routes often include unpaved roads, uneven ground and steep site access points, so buyers should pay close attention to frame reinforcement, axle rating, mechanical suspension, tire specification and braking reliability.
Infrastructure contractors use detachable gooseneck trailers to move bulldozers, excavators, road rollers, graders, cranes and paving equipment between jobsites. The front-loading design is helpful when machinery must be moved frequently and crane access is limited. For taller machines, the low deck also helps control loaded height under bridges, power lines and road-limit restrictions.
Factories, power plants and project logistics companies may use 4 axle RGN trailers for transformers, generators, large steel structures, processing equipment, tanks, pressure vessels and production-line modules. These cargoes often have uneven weight distribution, so the manufacturer should review cargo drawings, support points, center of gravity and lashing requirements before production.
Large farms, agricultural contractors and equipment dealers use detachable gooseneck trailers to move harvesters, tractors, irrigation systems and other farm machinery. The lower loading angle can reduce loading stress on large machines and improve transport stability on rural roads.
When cargo is too heavy, too tall or too difficult to load on a standard trailer, a 4 axle detachable gooseneck trailer can provide safer access and better load distribution. Buyers transporting long or oversized cargo should also review whether an extendable deck, extra lashing points or multi-axle layout is needed.
The following specification points are commonly reviewed when choosing a 4 axle detachable gooseneck trailer. Final configuration should be confirmed according to cargo weight, machine dimensions, loading frequency, route conditions, tractor compatibility and destination market rules.
| Specification Item | Common Configuration Range | Buyer Consideration |
|---|---|---|
| Trailer Type | 4 axle detachable gooseneck / RGN / lowboy trailer | Designed for heavy machinery, oversized equipment and project cargo requiring low-deck front loading. |
| Payload Capacity | Commonly 60–120 tons; heavier-duty designs can be customized | Choose according to actual cargo weight, safety margin, axle load limits and route conditions. |
| Axle Configuration | 4 axles, commonly 13T or 16T per axle depending on design | Four axles improve load distribution but require careful review of turning radius and legal axle spacing. |
| Overall Length | Approx. 16–19 meters or customized | Deck length should match cargo wheelbase, machine length and jobsite maneuvering conditions. |
| Overall Width | Approx. 3.0–3.2 meters or customized | Width must be reviewed against local oversize transport rules and permit requirements. |
| Deck Height | Low deck design, commonly configured according to cargo height | Lower deck height helps reduce loaded height and improves stability for tall equipment. |
| Deck Surface | Anti-slip steel plate, checker plate or customized surface | Important for tracked machines, wheeled equipment and safe drive-on loading. |
| Gooseneck System | Hydraulic detachable, diesel-powered detachable or customized design | Hydraulic systems improve convenience; diesel systems can be practical for remote or rough working environments. |
| Suspension | Mechanical suspension or air suspension | Mechanical suspension is suitable for rough roads; air suspension helps reduce vibration for sensitive cargo. |
| Tires | Commonly 12R22.5, 315/80R22.5 or project-specific options | Tire choice should consider axle load, route surface, heat, speed and local replacement availability. |
| Kingpin | 2 inch or 3.5 inch JOST-type kingpin options | Must match the tractor’s fifth wheel and gross combination weight. |
| Brake System | Dual-circuit air brake, ABS or market-specific safety configuration | Brake performance is critical for heavy payloads, mountain roads and long-distance transport. |
| Main Beam | High-strength steel structure with reinforced load-bearing zones | Main beam design affects long-term fatigue resistance and structural reliability. |
| Surface Protection | Sandblasting, anti-rust primer, topcoat and optional protective coating | Important for export shipping, humid markets, mining dust and long-term outdoor operation. |
The detachable gooseneck system allows the front neck to separate from the trailer deck. After detachment, the front of the main deck lowers, creating a practical loading path for self-propelled machinery. Once the cargo is positioned and secured, the gooseneck reconnects to the deck and the tractor, raising the trailer to the correct transport position.
This loading process is valuable when the buyer wants to reduce dependence on cranes, rear ramps or temporary loading platforms. It is especially useful for excavators, bulldozers, loaders, graders and other machines that can move under their own power.
If you are still comparing whether an RGN trailer is necessary, Luyi Auto’s guide on removable gooseneck trailer vs lowboy trailer explains when a removable gooseneck structure is more suitable than a fixed gooseneck lowboy trailer.
A hydraulic detachable gooseneck is usually preferred by buyers who load and unload equipment frequently. It can improve operating speed, reduce manual effort and support more consistent loading procedures. For construction fleets, rental companies and project logistics operators, hydraulic operation is often worth considering because loading time directly affects equipment utilization.
A diesel-powered detachable system can be useful in remote areas, rough sites or operations where independent power is preferred. It may be selected by buyers working in mining areas, infrastructure projects or regions where external hydraulic support is not always available. The final choice should consider maintenance ability, operator skill, spare parts availability and daily loading frequency.
A 3 axle detachable gooseneck trailer is often suitable for medium-duty heavy equipment transport where maneuverability and lower operating cost are priorities. It can be a practical option for excavators, tractors, loaders and construction equipment within a moderate payload range.
A 4 axle detachable gooseneck trailer is more suitable when the cargo is heavier, longer or requires better load distribution. The additional axle can help support higher payload targets and improve stability under demanding transport conditions. However, four axles may also increase tire cost, turning radius and route planning requirements.
Buyers can compare this guide with Luyi Auto’s 3 axle detachable gooseneck trailer buying guide to decide whether a 3 axle or 4 axle configuration is more suitable for their cargo, road conditions and legal payload requirements.
The first step is to confirm cargo name, working weight, overall length, width, height, wheelbase or track length, ground clearance and center of gravity. A trailer for a 70-ton excavator may need a different deck structure, lashing arrangement and axle rating than a trailer for a generator, transformer or industrial module.
Buyers should avoid selecting a trailer that only matches the current maximum cargo weight. A practical safety margin helps protect the main beam, axles, tires, suspension and braking system during repeated heavy-load operation. For long-term heavy-haul work, this margin is part of operating reliability rather than an unnecessary upgrade.
Low deck height is one of the main reasons to choose a detachable gooseneck trailer. Buyers should calculate total loaded height by combining trailer deck height, tire size, suspension condition and cargo height. This helps avoid problems with bridge clearance, tunnel height, power lines and oversize route permits.
For 60–80 ton transport, 13-ton axle options may be suitable depending on route and legal limits. For heavier 100–120 ton projects, buyers often review 16-ton axles or higher-duty axle configurations. The final decision should consider not only structural strength but also axle load laws in the destination market.
Mechanical suspension is widely used for mining, construction and rough-road applications because it is strong, relatively simple and easier to maintain. Air suspension can reduce vibration and support smoother highway transport, but it requires better maintenance conditions. The route should decide the suspension, not only the buyer’s preference.
Before production, confirm tractor horsepower, fifth wheel height, kingpin size, air line layout, electrical connection, hydraulic or PTO interface and gross combination weight. A mismatch between tractor and trailer can cause poor load balance, difficult coupling, unstable braking or unsafe operation.
Four axle detachable gooseneck trailers are often used for cargo that may exceed standard road dimensions. Buyers should confirm width, height, length, axle load, permit, escort and reflective marking requirements before finalizing deck size, axle spacing and safety configuration.
A 4 axle detachable gooseneck trailer is often purchased for a specific project or repeated heavy-haul task, so customization is usually more important than choosing a standard model. Luyi Auto can adjust the trailer configuration according to cargo, route, tractor and destination market requirements.
For buyers who need higher payload capacity but not detachable front loading, Luyi Auto’s 4-axle high-payload lowbed trailer and 4-axle gooseneck low-bed semi-trailer can also be reviewed before the final selection.
For heavy-haul trailers, manufacturing quality is directly connected to safety and uptime. Buyers should check the main beam structure, gooseneck connection points, deck flatness, axle installation, suspension alignment, welding quality, brake system assembly, hydraulic or diesel gooseneck operation, paint coverage and pre-delivery load-related inspection.
At the Luyi Auto factory, buyers can discuss steel selection, chassis structure, cutting and welding process, axle and suspension matching, gooseneck system layout, surface treatment and export inspection requirements before production. This helps reduce the risk of receiving a trailer that looks suitable in a quotation but does not match real transport conditions.
Luyi Auto’s technical and export service team can support buyers with configuration review, cargo analysis, tractor matching, documentation, shipping coordination and after-sales communication. For international heavy-haul buyers, this technical communication is often critical because cargo, roads and regulations differ significantly by market.
4 axle detachable gooseneck trailers are commonly shipped by RO-RO vessel, bulk carrier or other project-based shipping methods depending on trailer size, order quantity and destination port. Before shipment, detachable components, hydraulic parts, accessories, spare tires, toolboxes and documents should be checked and secured properly.
For long-distance sea transport, buyers should confirm anti-rust protection, paint protection, accessory packing and unloading conditions at the destination port. If the trailer is oversized or partially disassembled for shipment, the buyer should also confirm reassembly support, documentation and local unloading equipment before arrival.
Case studies help buyers evaluate whether a supplier understands real operating conditions rather than only listing specifications. In Luyi Auto’s Suriname detachable hydraulic gooseneck lowboy trailer delivery case, the delivered trailers were configured for mining and infrastructure transport, with emphasis on hydraulic gooseneck operation, low-deck loading and heavy equipment movement.
For buyers working on rough roads and infrastructure routes, the Botswana 4-axle lowbed semi-trailer case study provides a useful reference for how axle layout, frame durability and road conditions affect trailer configuration. Buyers who want to understand factory verification can also review the Czech factory audit case, where customers inspected welding, painting, assembly and customization discussions before cooperation.
For project delivery examples, Luyi Auto’s 4-axle lowboy semi-trailer shipment to Kenya shows how lowboy trailers are used to support infrastructure and heavy equipment transport in overseas markets.
The gooseneck separates from the front of the trailer, allowing the main deck to lower for front loading. After the machine is driven onto the deck and secured, the gooseneck reconnects and raises the trailer to transport position.
A 3 axle detachable gooseneck trailer is usually more maneuverable and suitable for medium-duty heavy equipment transport. A 4 axle version is better for heavier machinery, better load distribution and demanding heavy-haul routes, but it may increase tire cost and turning radius.
Hydraulic detachable goosenecks are convenient for frequent loading and unloading. Diesel systems may be preferred in remote or rough working environments where independent power is useful. The right choice depends on loading frequency, site conditions and maintenance resources.
Common 4 axle detachable gooseneck trailers are often selected for 60–120 ton heavy-haul work, with heavier-duty custom options available. The final capacity should be based on cargo weight, safety margin, axle load rules, route conditions and tractor capacity.
Yes. It is suitable for mining excavators, crushers, drilling machines, loaders and other heavy machines if the frame, axle rating, suspension, tires and braking system are configured for the actual route and payload.
It depends on the loading method. If cargo is self-propelled and front loading improves safety or efficiency, a detachable gooseneck trailer may be more practical. If cargo can be loaded by rear ramps or crane, a fixed gooseneck lowboy may be more economical.
Provide cargo type, maximum cargo weight, cargo dimensions, photos or drawings, loading method, road condition, destination country, tractor model, required quantity, preferred gooseneck system and any local regulation details.
Procurement note: A 4 axle detachable gooseneck trailer should be selected around real cargo weight, real loading workflow and real route restrictions. The right configuration is not always the highest-capacity model—it is the one that loads safely, distributes weight legally and stays reliable under daily heavy-haul operation.
If your project involves excavators, bulldozers, mining machines, crushers, industrial equipment, agricultural machinery or oversized cargo, Luyi Auto can help you compare payload capacity, deck height, axle rating, suspension type, hydraulic or diesel gooseneck system, braking configuration and export requirements.
You can send your trailer requirements or contact Luyi Auto to receive a configuration-based quotation for your 4 axle detachable gooseneck trailer project.
